GPS Shield

Item #: GPS-10102
Bin:J2
There are no reviews yet Write a review
Price: $20.76 inc GST
    The product is in stock Availability: Stocked
    Usually ships In 1-2 days.
    Stocked Quantity: 1

    Quantity:

    GPS Shield

    Description: Adding GPS to your Arduino has never been easier. The multiple GPS receivers attach easily to the shield, and with the example sketch, you will be able to locate your exact position within a few meters. Here's where we are. GPS also gives you amazingly accurate time! A GPS quickstart guide is available for this product.

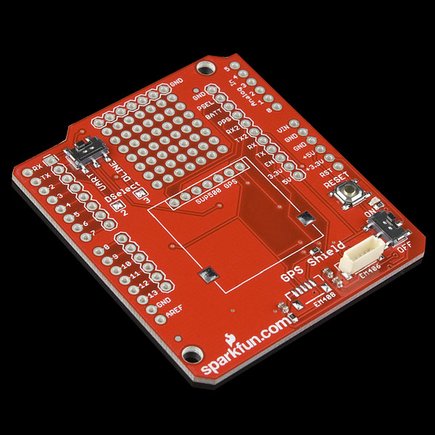

    With the GPS Shield you can add GPS functionality to your Arduino. A connector for the popular EM-406 GPS receiver is populated on the board, and footprints for EM-408 and EB-85A connectors are also made available (connectors are not soldered on or included and can be found below in the related items). There is also a spot for the SUP500 GPS module. The regular GPS pins (RX, TX, PPS, etc.) are also broken out to a 10-pin 0.1" pitch header, and a small protoyping area is also provided.

    The DLINE/UART switch switches the GPS module's input/output between Arduino's standard TX/RX pins or any digital pins on the Arduino (default setting uses pins 3 and 2 connected to TX and RX, respectively). The regular GPS pins (RX, TX, PPS, etc.) are broken out to a 10-pin 0.1" pitch header, and a small protoyping area is also provided. An ON/OFF switch is included which controls power to the GPS module. Additionally, the Arduino reset switch is also brought out.

    Note: The DLINE/UART switch must be set to DLINE in order to upload code through the Arduino IDE.

    The shield also includes the footprint for a 12mm coin cell battery holder to provide battery backup to the optional EB-85A gps module.

    Note: GPS modules are not included with the GPS Shield, and only the EM-406 connector is populated. Headers are also not installed or included, we recommend the 6 and 8-pin stackable headers.

    Features:

    • EM-406 connector populated
    • EM-408 and EB-85A connector footprints provided and connected for optional use
    • SUP500 connector and footprint
    • Coin cell battery socket footprint provided and connected for optional battery backup of EB-85A GPS module
    • Standard Arduino sized shield
    • Prototyping area
    • GPS serial and PPS signals broken out to a 0.1" header for additional device connections
    • Arduino reset button
    • DLINE/UART switch controls serial communications
    • ON/OFF switch controls power to GPS module

    Documents:

    Replaces: GPS-09487
