ISDT SC-608 150W 8A MINI Smart LCD Balance Charger

Item #: EL-CPC60815C
There are no reviews yet Write a review
Price: $108.57 inc GST
    The product is in stock Availability: Discontinued

    This is a model aircraft lithium battery charger. This is a charger with a smart operating system. This is a charger with a very small volume.
    When you use it, the battery charge will become easy, it uses ARM cortex-M4, the data processing capacity increased by 20 times, and joined the knob control, operation becomes more simple, with SC OS operating system. The system has a very nice UI design, optimized display content, many task menu display has become more concise, reducing the user's operating steps and difficulty, and the system can be updated online, we will continue to optimize to enhance your user experience. It is equipped with a 2.4-inch IPS display, this display viewing angle up to 178 ?, even in the sunlight, you can also see the contents of the screen clearly, it has a very high conversion efficiency, the use of high-speed and efficient synchronization Digital power technology, with copper to heat, and equipped with micro-cooling fan. Although the volume is very small, but the power has improved greatly - the output power of up to 150W.
    Its input and output ports are used XT-60 terminals, which will make the battery connection become more convenient. If you have a FPV or four-axis aircraft or other models, select it will mean More convenient for their outdoor use,

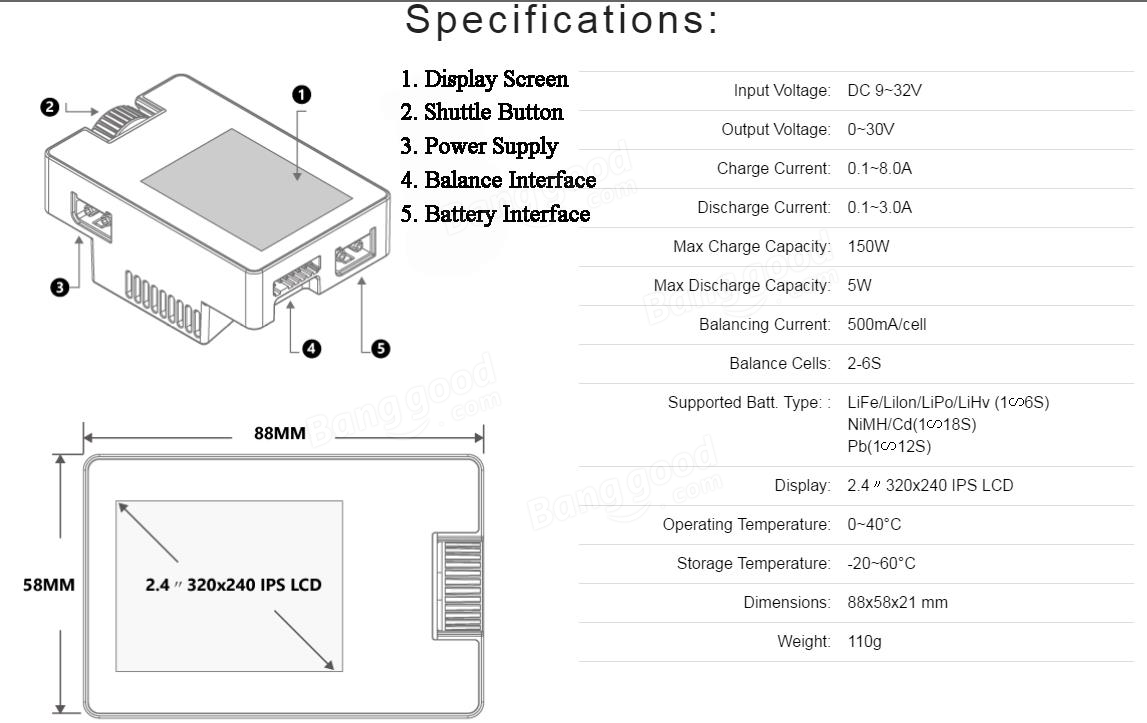

    • 2.4" IPS Display
    • scOs developed just for smart charging
    • Hi converting efficiency, extreme power-volume ratio
    • Single Knob Shuttle Control
    • Outstanding Design
    • ARM 32bit Hi-speed CPU



    • Input Voltage:    DC 9~32V
    • Output Voltage:    0~30V
    • Charge Current:    0.1~8.0A
    • Discharge Current:    0.1~3.0A
    • Max Charge Capacity:    150W
    • Max Discharge Capacity:    5W
    • Balancing Current:    500mA/cell
    • Balance Cells:    2-6S
    • Supported Batt. Type: :    LiFe/Lilon/LiPo/LiHv (1?6S)
    • NiMH/Cd(1?18S)
    • Pb(1?12S)
    • Display:    2.4?320x240 IPS LCD
    • Operating Temperature:    0~40?C
    • Storage Temperature:    -20~60?C
    • Dimensions:    88x58x21 mm
    • Weight:    110g

    Package list

    • ISDT SC-608 150W 8A MINI Smart LCD Balance Charger x1
    • User manual x 1
