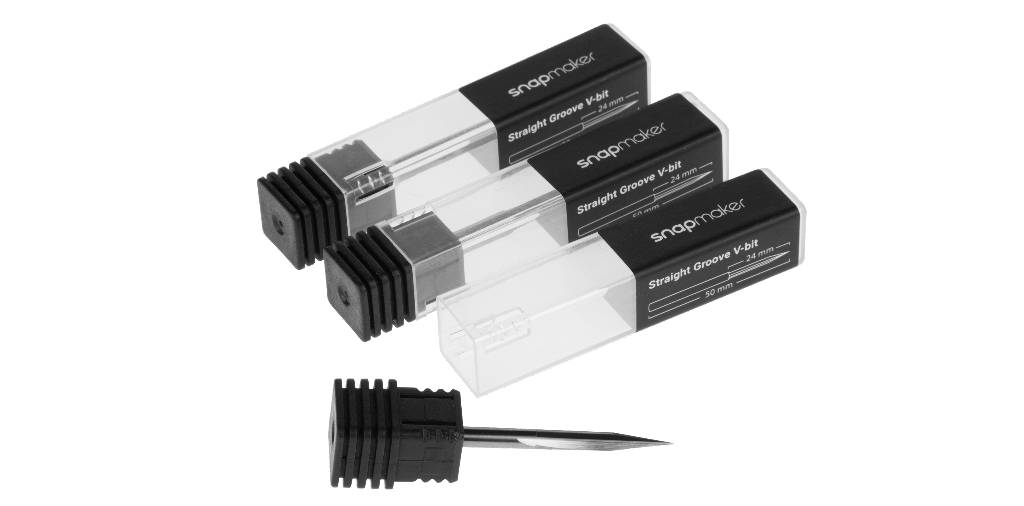

Straight Groove V-bits for Snapmaker 2.0 (3 Bits)
The straight groove v-bit is ideal for rotary projects and detailed oriented works. Its special size makes it stand out in most rotary carving tasks and could be customized through Snapmaker Luban (4-axis CNC functionality) to achieve optimal carving results.
Straight Groove V-bits
UF20 tungsten steel alloy with high hardness and wear resistance, not only is it suitable for epoxy tooling material, but it is also compatible with a dozen materials including carbon fibersheet, MDF and ebony.
A better choice for 4-axis CNC
The longer shank and wider flute carve cylinders or similarly shaped objects more efficiently.
High Precision
Adjust settings in Snapmaker Luban software and obtain optimal results with a few small tweaks.
Specifications
| Shank Diameter | Included Angle | Total Length | Flute Length | Tip Diameter |
3.175 mm | 20° | 50 mm | 24 mm | 0.3 mm |
Notes:• This bit is compatible with Snapmaker 2.0 devices and can be used in both 4-axis CNC and regular CNC.• Due to the longer shank, please pay attention to the work speed and step down settings to avoid potential risks of bit breaking and danger.
