Nano I/O Shield for Arduino Nano

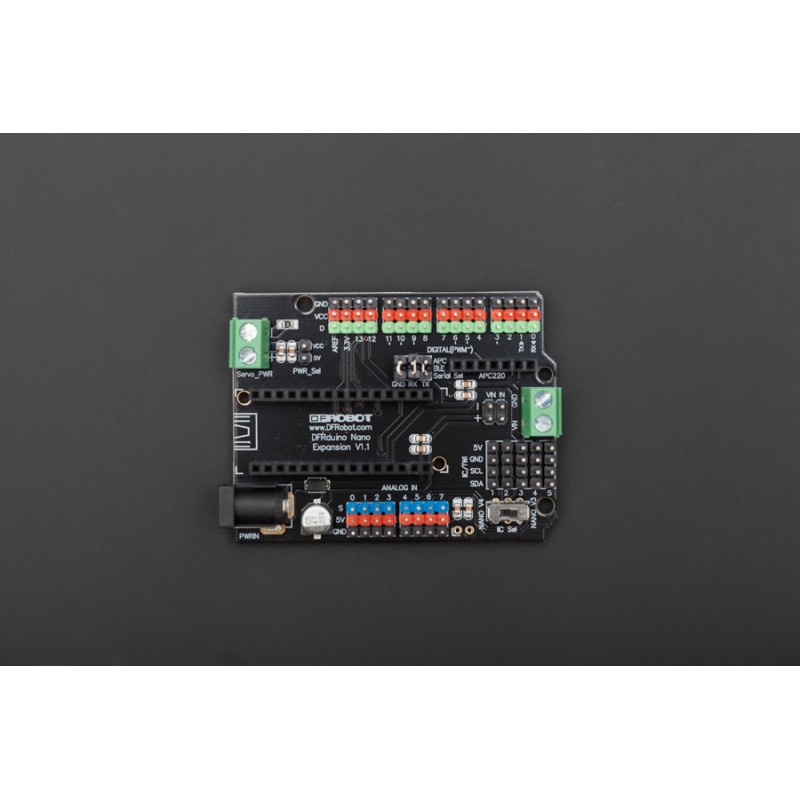

The Arduino Nano I/O Sensor Shield acts as an expansion board for the Arduino Nano and DFRduino Nano microcontrollers. There are several different options for power input. The form factor of the Nano I/O Shield board is the same as the Arduino UNO/arduino Leonardo. In addition, the sensor shield adopts Gravity interface that each pinout includes 5V and GND pins for easy connection to Gravity sensors or servos. To the best compatibility, the shield supports jumper wires for rapid prototyping.

This unit comes fully assembled. The board also has a space specifically for the DFRobot bluetooth module and ACP220. Several I2C pins are also expanded.

The arduino nano shield has independent power supply to provide extra power for servo and other sensors.

V1.1 Update?Add a IIC interface switch, now it is compatible with Arduino Nano, DFRduino Nano V4 and Bluno Nano

|Specification|

• Power supply: +5 V
• Size: 69x54mm (2.7 x 2.1 in)

|Documents|

• Product wiki
• Nano shield V1.1 Schematic

|ShippingList|

• Nano I/O Shield for Arduino Nano x1
