Bambu Textured PEI Plate (Gold)

Item #: BAM-FAP007
Bin:
There are no reviews yet Write a review
Price: $85.33 inc GST
    The product is in stock Availability: Stocked
    Usually ships In 1-2 days.
    Stocked Quantity: 26

    Quantity:
    Bambu Textured PEI Plate, Excellent first-layer adhesion, Improved durability

    Recommended Settings

    Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements

    Excellent first-layer adhesion, Improved durability

    After optimizing the manufacturing process of the Bambu Texture PEI Plate, the durability of the plate is enhanced. Additionally, the adhesion between the prints and the plate is significantly improved, eliminating the need for adhesives.*In some situations, glue is required for very specific filaments

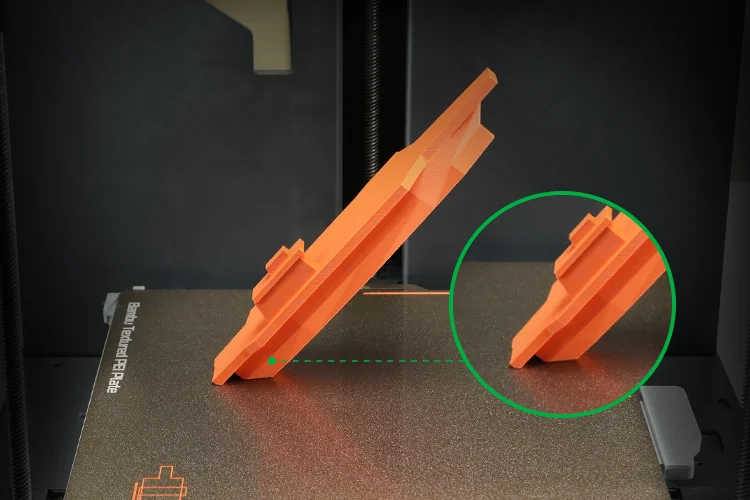

    Surface Finish

    Self-release when cooled down

    PEI is an excellent material for 3D printing applications due to its ability to withstand the repeated heating and cooling cycles of a printer heatbed. Prints come off easily when the temperature of the heatbed reaches room temperature, and we always recommend waiting until it reaches 35℃ or lower. If the print is still adheres to the plate, simply bend the steel plate and the model will fall right into your hands.

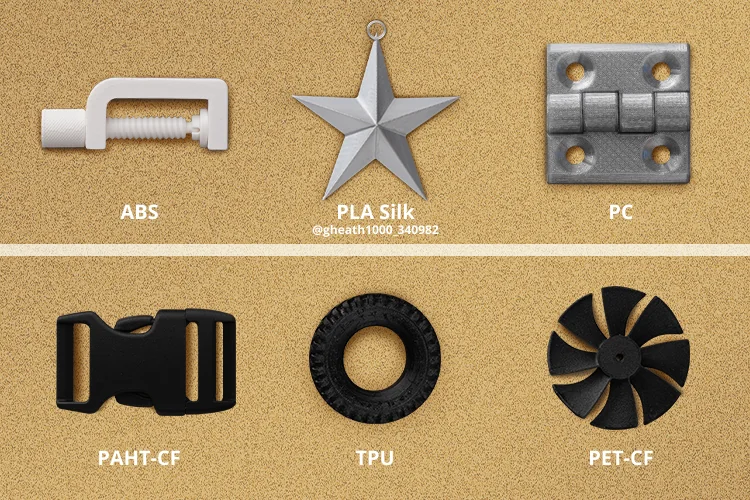

    Compatibility with various filaments

    PEI allowing it to print not only common materials such as PLA, TPU, and PETG, but also materials that require high temperatures like ABS and Nylon.

    Prevent warping with reliable magnetic adhesion

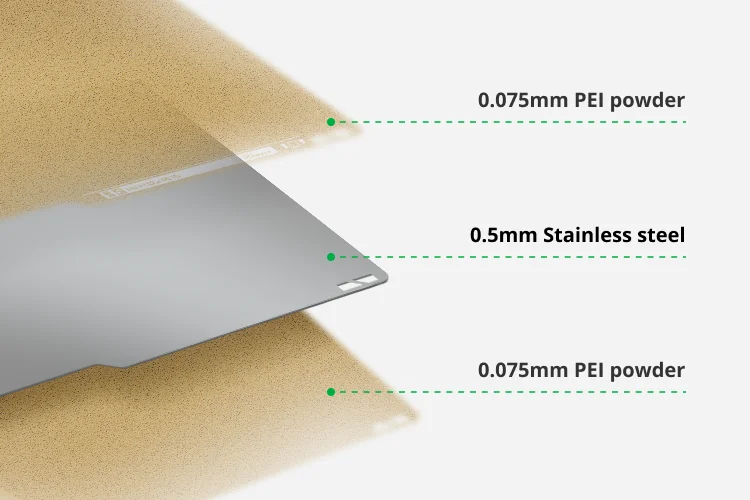

    The Bambu Texture PEI Plate features a 0.5mm thick stainless steel plate that enhanced magnetic adhesion. This helps to prevent warping and ensure optimal print quality during 3D printing, reducing the likelihood of the first layer detaching due to deformation. It also helps when printing larger models in materials that are prone to warping like ABS, PC and Nylon.

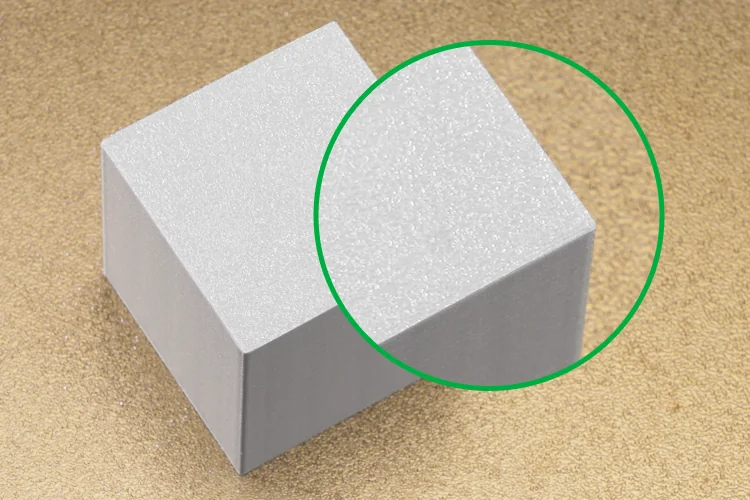

    Textured surface finish

    Bambu Texture PEI Plate offers a one-of-a-kind first-layer surface. Through the application of a powder-coating process, this PEI Build Plate creates a rugged texture that adds a texture to your prints.

    Installation Steps

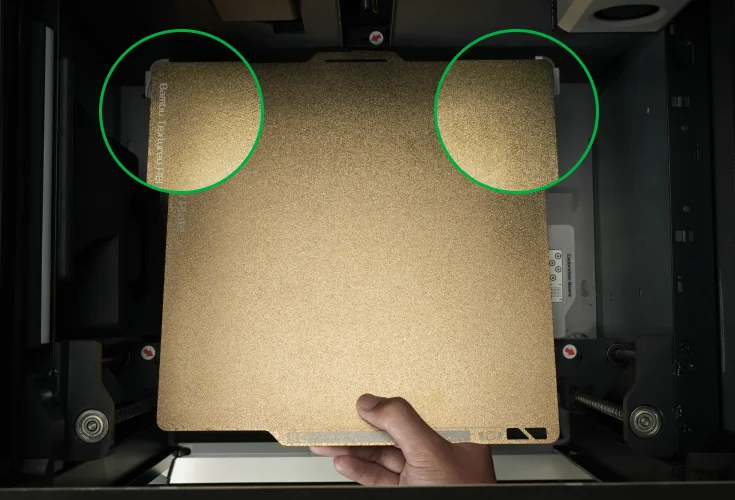

    Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

    Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you

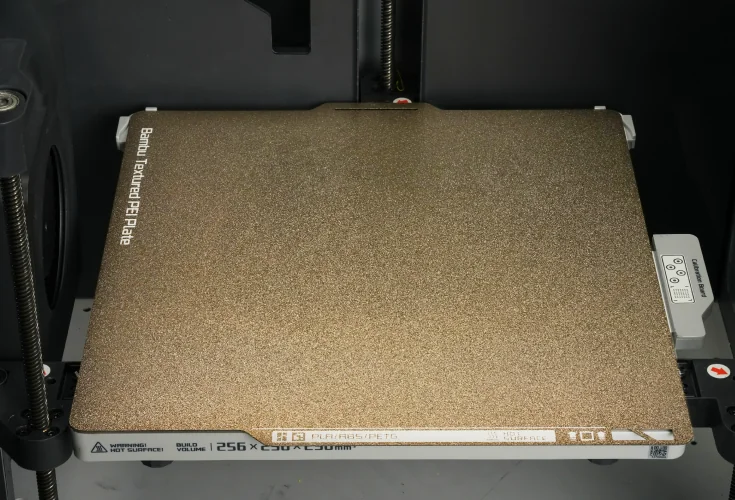

    Step 2: Lower the plate and secure to the magnetic platform

    Step 2: Lower the plate and secure to the magnetic platform

    Product Specification

    Considerations

  • The Automatic Calibration for Flow Rate on Textured PEI Plate is not supported, and we don't recommend performing the Flow Calibration on it, to avoid print quality issues. The texture of the plate can interfere with the LIDAR calibration resulting in bad calibration results.

  • First Layer Inspection is also not supported by the Textured PEI Plate, due to the texture of the print surface.

  • The Automatic Calibration for Flow Rate is not recommended, as the LIDAR will have trouble correctly reading the print surface and the calibration can be affected

  • Regularly clean the print surface with dish soap and hot water to eliminate any dust or grease residue, which might cause bad adhesion. IPA can also work, but the best solution to clean the plate is washing it, to ensure the best performance.

  • Do not clean the Textured PEI with Acetone, as it will damage the PEI surface.

  • Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.

  • The Textured PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
