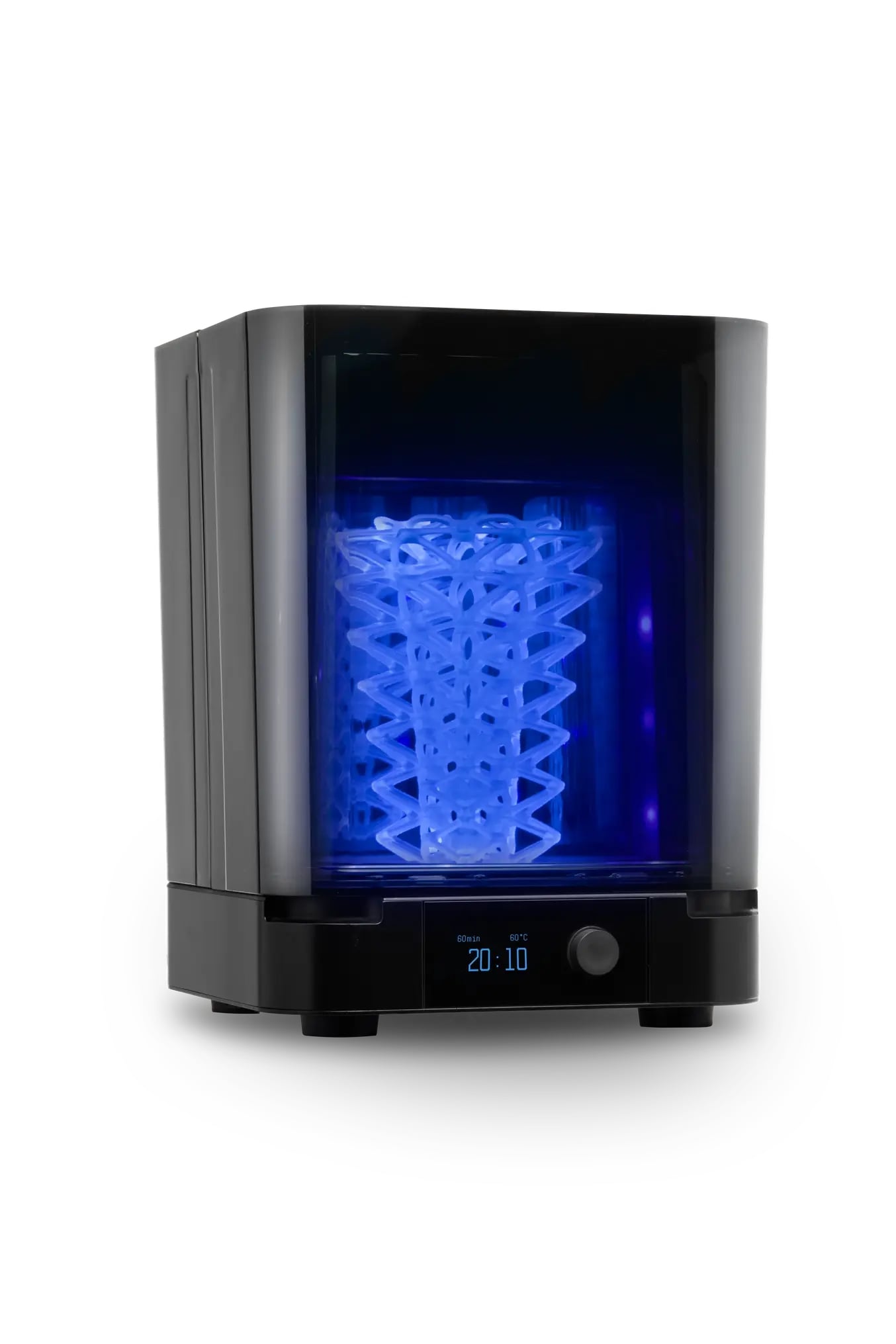

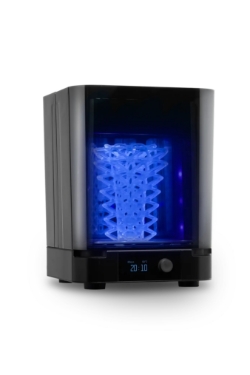

Form Cure

Item #: FH-CU-01
There are no reviews yet Write a review
Price: $1,581.25 inc GST
    The product is in stock Availability: Stocked
    Usually ships In 2-4 days.
    Stocked Quantity: 1


    Product Description

    Post-curing maximizes material properties for stereolithography prints, improving parts' strength and performance. Form Cure precisely combines heat and 405 nm light to consistently post-cure prints. Form Cure is designed for curing parts printed on the Form 3 generation printers, and can also be used for curing smaller parts printed on our large format 3D printers, Form 3L and Form 3BL

    What's Included

    - Form Cure


    Printer compatibility: Form 3, Form 3+, Form 3L, Form 3B, Form 3B+, Form 3BL, Form 2


    Advanced Heating

    Preheat the chamber and waste no time getting parts ready for optimum post-curing.

    Uniform Exposure

    Provide consistent curing with a rotating turntable.

    Maximize Material Properties

    Leverage Form Cure's default time and temperature settings unique to each material for optimum performance.

    Rapid, High-Intensity Curing

    Bring temperatures up to 80°C while 13 multi-directional LEDs emit the optimal wavelength of light for fast, effective curing.

    Post-Processing Tech Specs

    Printer CompatibilityForm 3, Form 3+, Form 3B, Form 2Form 3L, Form 3BL, Form 3, Form 3+, Form 3B, Form 2
    Dimensions26.2 x 26.2 x 34.0 cm
    10.3 x 10.3 x 13.4 in
    Height when open: 64 cm (25.2 in)
    69.0 x 54.0 x 44.5 cm
    27.2 x 21.3 x 17.5 in
    Weight5.6 kg
    12.4 lbs
    53 lb
    Turntable Diameter19.3 cm
    7.6 in
    39.5 cm
    15.6 in
    Maximum Part Height18.5 cm
    7.28 in
    32 cm
    12.6 in
    Operating TemperatureSuggested 18—28 °C
    Suggested 64—82 °F
    Suggested 18—28 °C
    Suggested 64—82 °F
    Maximum Cure Chamber80 °C
    176 °F
    80 °C
    176 °F
    Light Source13 multi-directional LEDs45 multi-directional LEDs
    LED Power39 W70W
    LED Radiant9.1 W36W
    LED Wavelength405 nm375 nm, 405nm
    Power Requirements90–240 V
    6.0 A 50/60 Hz
    144 W
    Input (NA) 100 - 120 VAC, 50-60Hz, 15A
    Input (EU) 220 - 240 VAC, 50-60Hz, 8A
