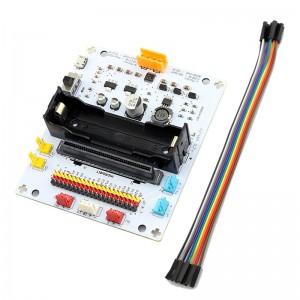

Pinout Motor/ Servor Shield for BBC Micro: bit

Item #: EL-DTS09534M
Bin:Fabric Box #1
There are no reviews yet Write a review
Price: $49.28 inc GST
    The product is in stock Availability: Stocked-NoBackOrder
    Usually ships In 1-2 days
    Stocked-NoBackOrder Quantity: 10

    Quantity:
    This motor/ servo shield is for Micro: bit, it provides a simple way to add motor driving capability to a micro: bit. The shield can drive 2 motors, 2 servos, and allow the motors to be driven with forward, reverse, stop control. It?s easy to add the motor to the shield, and there is an integrated edge connector slot for your Micro: bit to slot into easily. The shield is powered by the battery, and the battery charged by the USB port. It makes easier to achieve the function of your Micro: bit with this shield, and DIY something interesting more convenient.
    Motor-Servo-Shield-1
    Motor-Servo-Shield-2
    Motor-Servo-Shield-3
    Motor-Servo-Shield-4
    Motor-Servo-Shield-5

    Features

    • Drive 2 motors with full forward, reverse and stop control.
    • Access the other micro: bit pins easily and conveniently.
    • Battery charged by USB port.

    Specifications

    • Working voltage: 3.7v (Li-ion battery)
    • Size: 87.8mm x 103.8mm
    • Weight: 95g

    Package list

    • Motor/Servo Shield for BBC Micro: bit x 1
    • Dual-female jumper wire (10 pcs) x 1
