3DMakerPro Toucan 3D Scanner

Item #: 3DMP-T-3DS

There are no reviews yet Write a review

Price: $2,482.98 inc GST

Retail Price: ##RETAILPRICE## inc GST

Was $2,854.30

Points to Purchase:16554

You Save: $371.32 (13.0%)

Estimate Shipping

Quantity:

About This Item

All‑in‑one design: Built‑in microcomputer and AMOLED screen for standalone scanning and preview.
Color and detail: High‑resolution color textures (up to 8K claimed for the Toucan family) and multi‑scale capture modes.
Portability and workflow: Cable‑free operation with internal storage and JMStudio integration for on‑device editing and export.
Target users and use cases: Aimed at hobbyists, designers, and artists who need flexible scanning from desktop models to life‑size objects.
Lasers are not toys, shining lasers into eyes can cause irreparable damage. It is recommended to use laser safe eye protection

Description

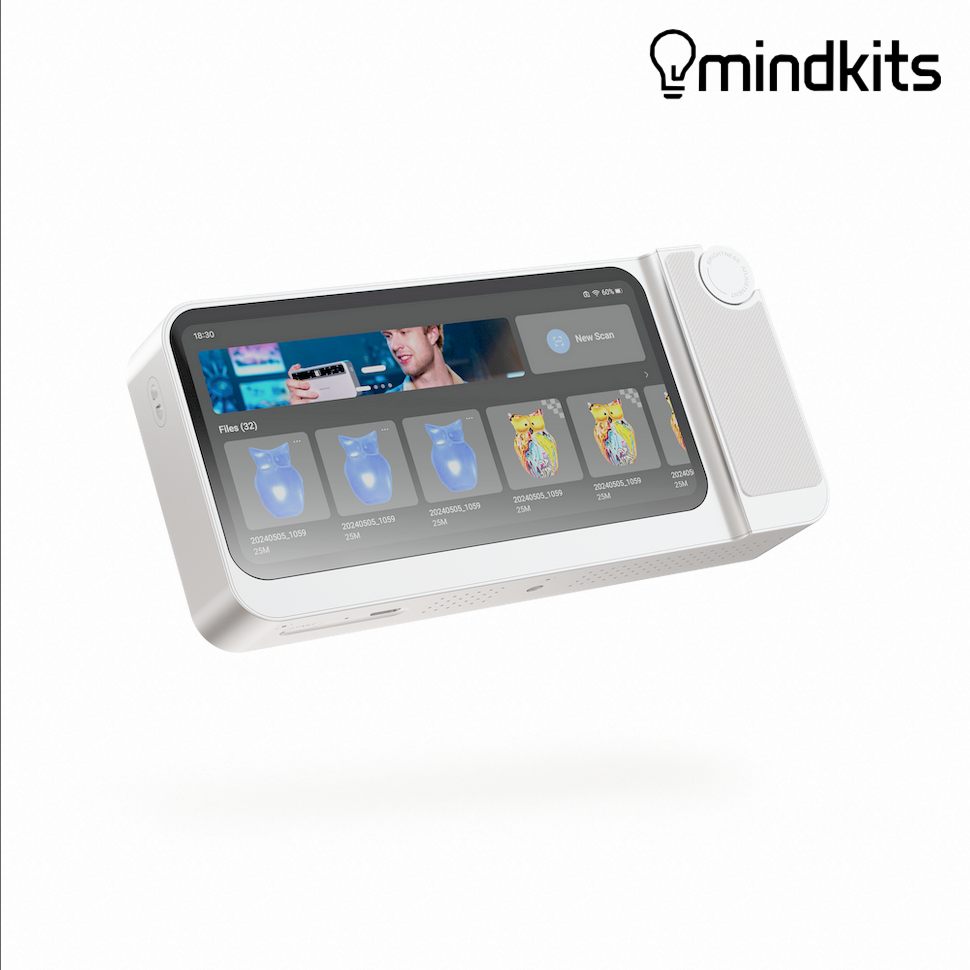

3DMakerPro Toucan 3D Scanner

From desktop figurines to life-size sculptures, Toucan lets you scan, edit, and fuse complete 3D models — all without a computer. Everything happens inside the device.

3DMakerPro Toucan

3DMakerPro Toucan 3D Scanner

From desktop figurines to life-size sculptures, Toucan lets you scan, edit, and fuse complete 3D models — all without a computer. Everything happens inside the device.

Finer, Larger,

Finer, Larger, Brighter

Toucan’s upgraded hardware boasts a powerful MEMS projector with better accuracy and adaptability. Near/far scan modes target objects of all sizes.

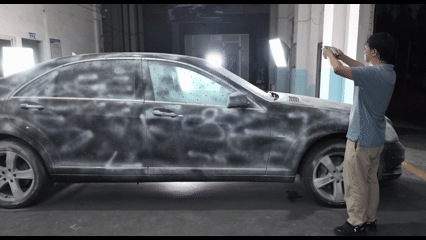

Ultra-Large Range

Effortlessly scan cars, bodies, and furniture with expansive coverage. Achieve full, detailed models in seconds, ideal for large-scale objects.

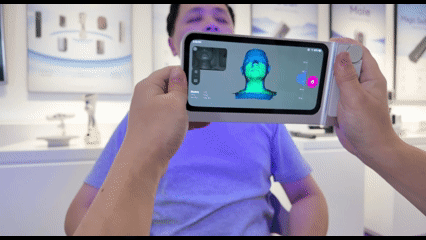

Fine Scan

Effortlessly scan cars, bodies, and furniture with expansive coverage. Achieve full, detailed models in seconds, ideal for large-scale objects. Capture portraits, figurines, electronics, and car parts with sharp accuracy. Deliver intricate, high-quality scans for small to medium items, even on the go.

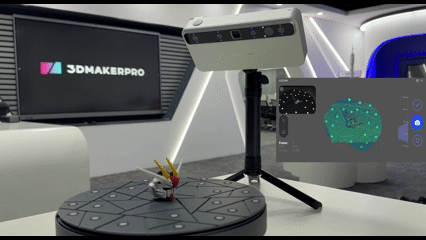

Professional Precision

Scan specimens, jewelry, and dental molds with exceptional clarity using Phase-Shifting Structured Light, excelling with fine, thin targets. Create flawless, detailed models (paired with electric turntable, sold separately).

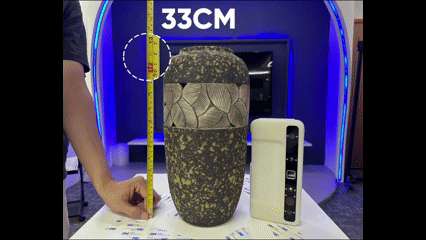

Super Scan

Super Scan Depth

Scans 200-1000mm, probing deep cavities like a 33cm vase interior.

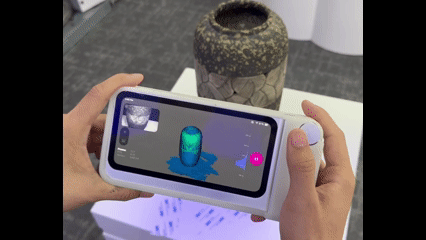

Smart Resume

Smart Resume Scan Mode

Toucan recognizes different object orientations, filling in gaps during the scanning process to effortlessly capture the underside and internal structures.

Convenience Design

Toucan lets you use it just like a camera or smartphone, with operations that feel natural and intuitive.

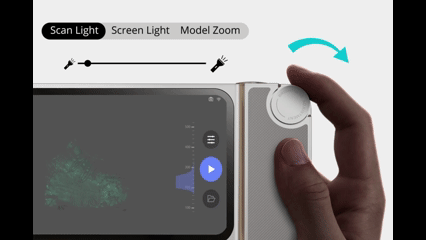

Multi-Level Damping

Multi-Level Damping Wheel

Adjusts parameters, modes, and zoom effortlessly via the wheel.

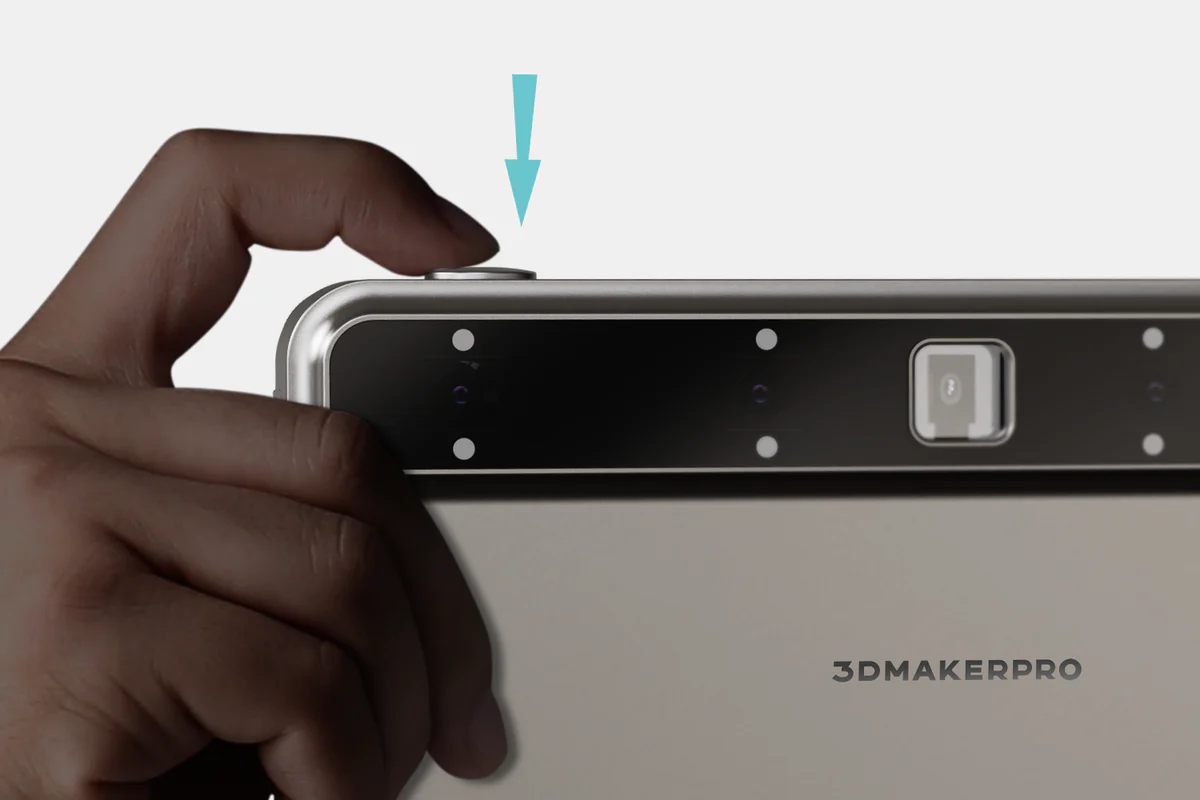

Quick Buttons

For fast setup of scan start, pause, end, and serving as a single-shot photo mode.

Specifications

Specification	Details
Scan Type	Continuous Handheld Scan; Photo Scan; Table Scan
Camera	3D Cameras 4; 48 MP RGB Camera 1
Light Source	Blue Laser Structured Light; (Class1/Class3R)
Single-Frame Accuracy	≤ 0.03mm (Small); ≤ 0.10mm (Large)
Resolution	≤ 0.03mm (Fixed Shot); ≤ 0.05mm (Small); ≤ 0.10mm (Large)
Scanning Range (FOV)	135×185 mm (Small); 1000×750 mm (Large)
Working Distance	200–1000 mm
Scan Speed	Up to 15 fps
Processor	8-core 2.4 GHz CPU; Mali-G52 GPU
Memory / Built-in Storage	32 GB DDR4; 256 GB eMMC
Battery	6600 mAh
Connectivity	Wi-Fi 6; Bluetooth4.1; USB-C
Sensors & Interaction	Position Sensor: 9-axis IMU; Tracking Method: Features/Markers/Global Markers; Button: 2; Scroll Wheel: 1
Volume	200×93×37.5 mm
Weight	735 g
