Bambu Lab H2D Engineering Bundle

Item #: BAM-PF003-D+SA007+SA008-AU

There are no reviews yet Write a review

Price: $4,690.00 inc GST

Retail Price: ##RETAILPRICE## inc GST

Was $4,950.00

Points to Purchase:31267

You Save: $260.00 (5.3%)

notify me

Estimate Shipping

Quantity:

About This Item

Official Bambu Lab provider in New Zealand with local parts and warranty, ensuring an added layer of security for your investment.

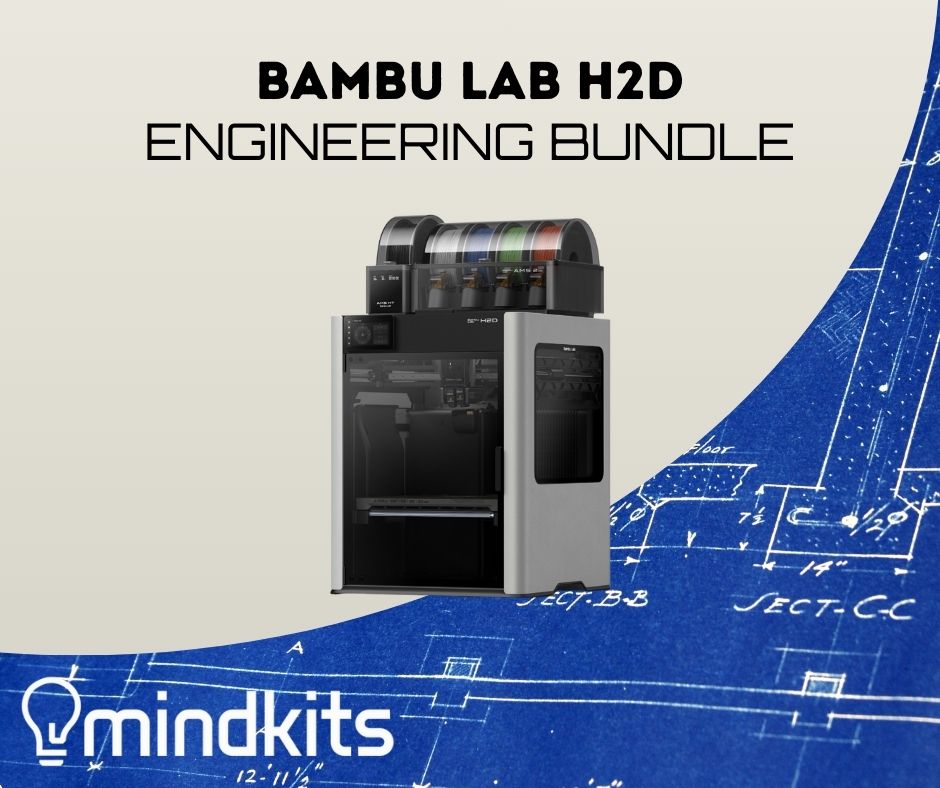

Bambu Lab H2D 3D Printer Engineering Bundle
Includes the Bambu Lab H2D, AMS 2 Pro, and AMS HT
This bundle is equipped with the AMS HT ensuring great print quality for highly demanding engineering filaments such as Nylon/PA, ASA, ABS, PC, and many more!
Real-time spatial alignment utilizing the innovative BirdsEye Camera and advanced computer vision algorithms that achieves precision up to 0.3 mm.
CodeSync technology ensures automatic material calibration without manual intervention.
50 micro-metres of printing precision.
Most expansive build volume available in any Bambu Lab machine to date.
Dual-hotend configuration and actively heated chamber designed for processing the most challenging materials.
Delivers reliable quality at printing speeds of 600 mm/s.
15 sensors providing comprehensive monitoring across the complete filament pathway.

Description

Engineering Bundle

Bambu Lab H2D Engineering Bundle

The robust 3D printing system of the H2D together with the multi-material capabilities of the AMS 2 Pro and bleeding-edge material handling of the AMS HT for maximum creative potential.

600 mm/s Print Speed

350³ mm Build Volume

85°C Drying Capable

24 Color Capacity

What's Included in This Bundle

Bambu Lab H2D Printer

Dual-nozzle, AI-powered 3D printing with laser engraving capabilities

AMS 2 Pro

Advanced multi-material system with auto-rotate drying and RFID sync

AMS HT

High-temperature drying system for engineering-grade materials

H2D Printer Features

Complete personal manufacturing hub combining 3D printing, laser engraving, and digital cutting in one unified platform

Dual Nozzle Technology

Dual-Nozzle, Double Flexibility

Rapid Multi-Material Printing

Dual nozzle technology minimizes purge cycles in multi-color applications. The H2D's intelligent algorithms enhance filament utilization, maximizing dual nozzle performance to conserve time and materials.

Smart Automation

AI-Powered Simplicity

36 Sensors, 4 Cameras, 2 Servos

Four computer vision cameras, 36 sensors, and 2 servos integrated through advanced algorithms deliver unparalleled automation and reliability.

Support Materials

Dedicated Support Material

Flawless Supports with Minimal Waste

With H2D's dual-nozzle configuration, one nozzle can be dedicated to support materials, enabling secure prints and an ideal support interface with minimal purging and reloading.

Build Volume

King-Size Work Zone

Break Free from Size Constraints

With a print volume reaching 350mm x 320mm x 325mm, executing large-scale projects becomes effortless. From laser engraving on substantial objects to printing oversized models, realize your most ambitious concepts.

🎯

Full Auto-Calibration

Single-touch automated laser focus verification and material measurement, removing manual requirements.

📱

Material CodeSync

Automatically reads QR codes on materials to configure optimal presets instantly.

⚡

DynaSense Extruder

20kHz torque sampling dynamically adjusts electromagnetic torque for stable extrusion.

📷

Nozzle Camera

AI-powered macro lens continuously monitors extrusion patterns and identifies failures.

Performance

REAL High-Flow Hotend

Consistently Print at 600mm/s

Specially engineered high-flow hotend guarantees dependable high-speed printing. Prevents mid-print flowrate limitations, allowing uninterrupted speed regardless of print size or complexity.

Monitoring

SOTA Filament Monitoring

15 Sensors on One Filament Path

Along the AMS-to-nozzle pathway, 15 strategic sensors continuously monitor feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure.

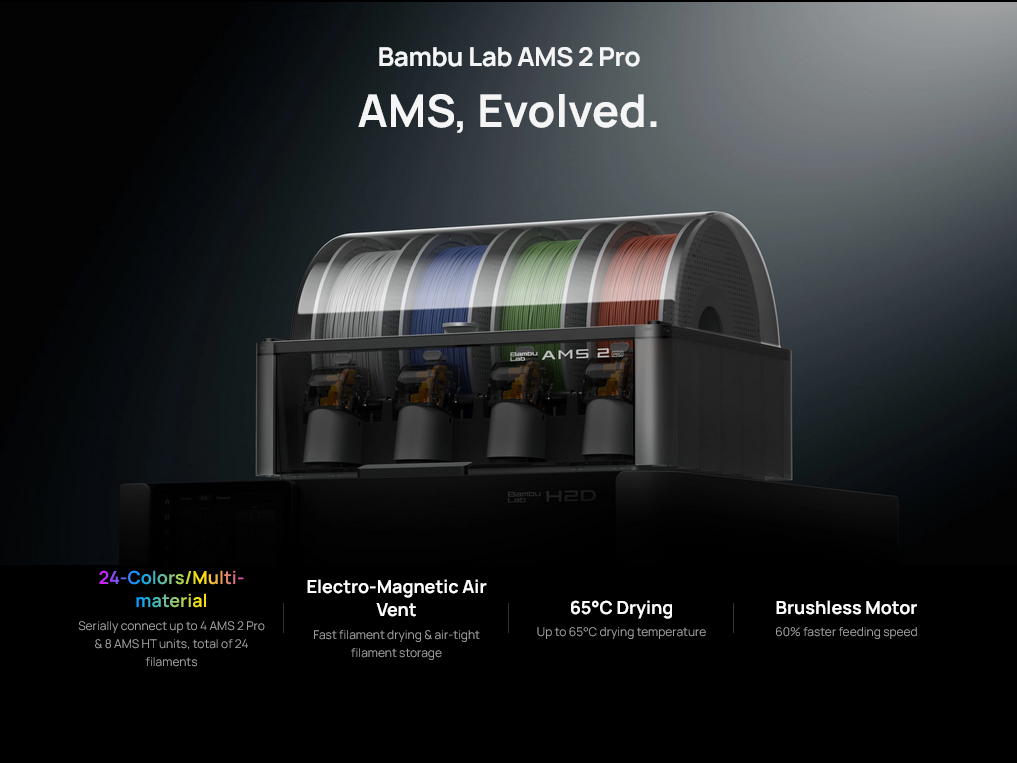

AMS 2 Pro Features

AMS, Evolved. Advanced multi-material management with intelligent drying capabilities

Intelligent Drying

Dry Filament Quickly and Intelligently

Electro-Magnetic Air Vent

Automated ventilation enables dehumidification during drying cycles and creates airtight sealing for weeks of reliable printing performance.

Automation

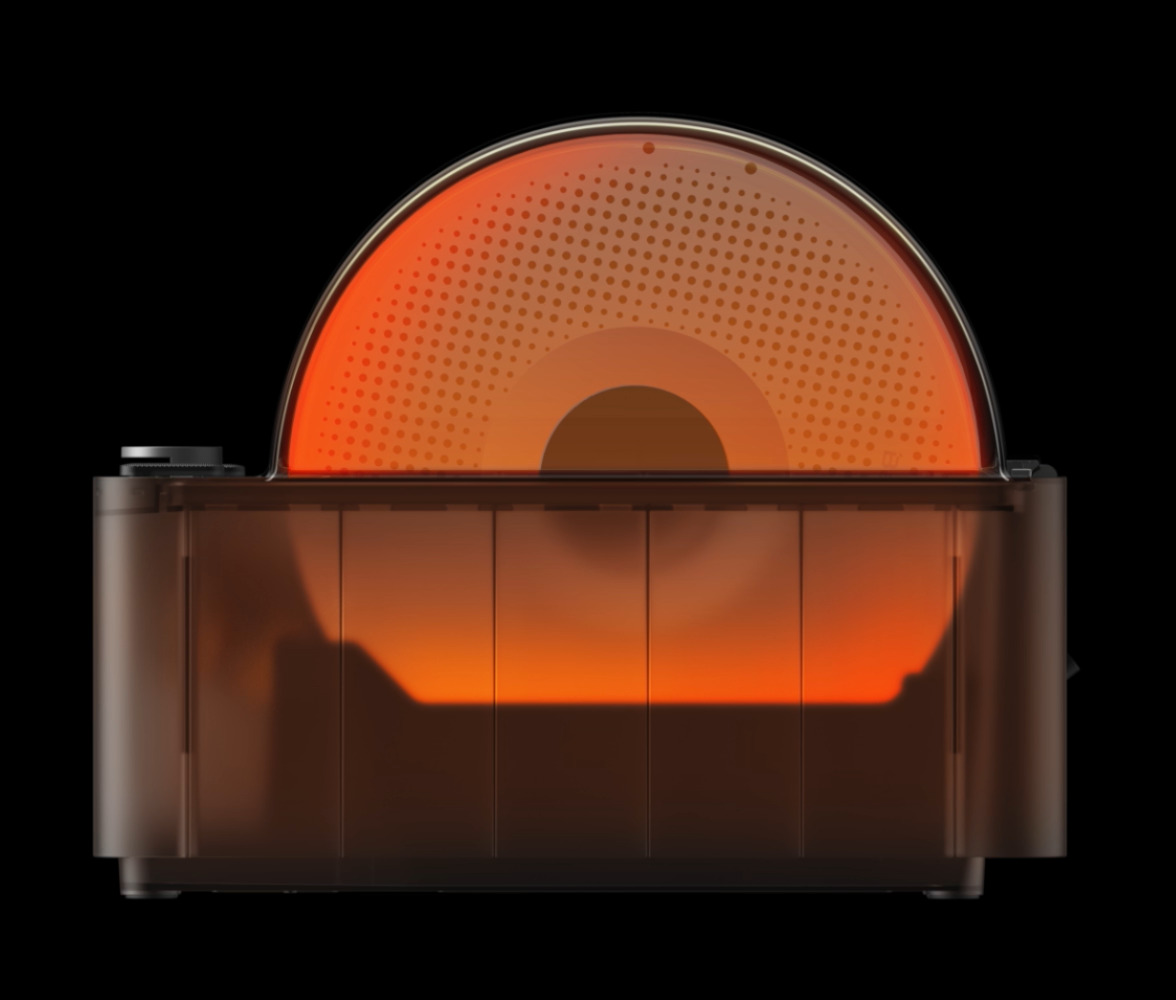

Auto-Rotate Drying

Uniform Coverage

Throughout the drying cycle, filament spools rotate automatically every 5 minutes to ensure uniform drying coverage across the entire spool circumference.

🚀

+60% Faster Feeding

Advanced Bambu PMSM servo motor accelerates filament feeding performance dramatically.

⏱️

-10 min per 100 Changes

Typical 10 minute reduction per 100 filament changes compared to previous systems.

🔧

Tool-Free Access

Immediate, tool-free access to filament tubes from the top panel for quick maintenance.

💎

Ceramic Inlet

Vickers hardness of 1200 dramatically improves longevity with abrasive materials.

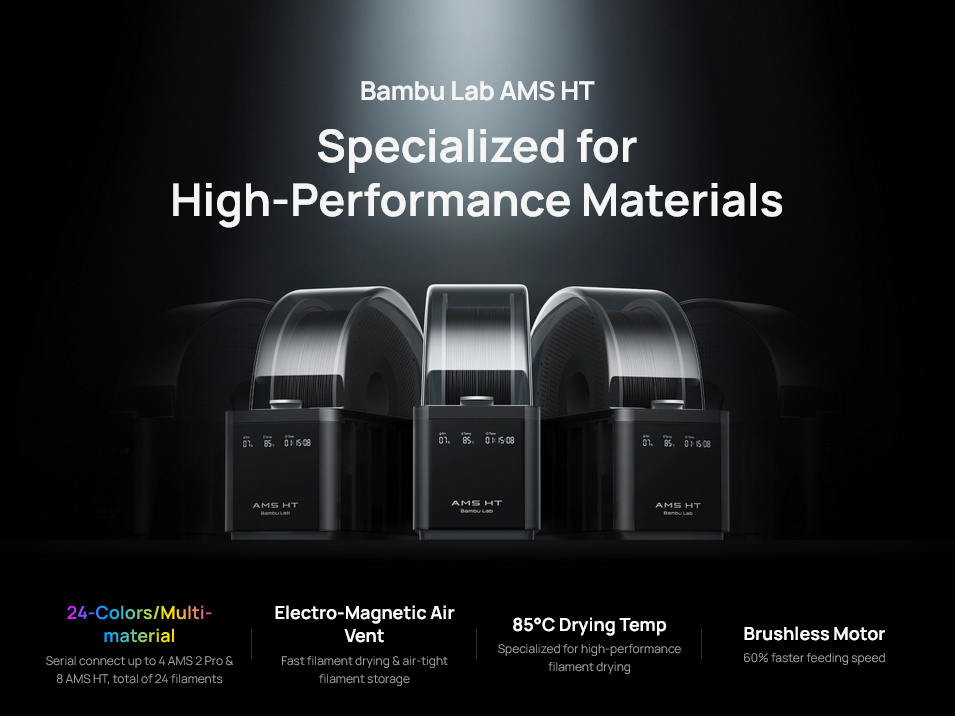

AMS HT Features

Professional-grade 85°C drying for Nylon, Polycarbonate, and carbon-reinforced composites

Material Support

Engineering-Grade Materials

From PLA to Carbon Fiber

Comprehensive material support spanning standard filaments through demanding engineering materials including Nylon (PA), Polycarbonate (PC), and specialty composites. Specialized bypass outlet enables precise handling of TPU and TPE.

Scalability

24-Color Printing Capability

Multi-AMS Integration

Connect multiple AMS HT units alongside AMS 2 Pro systems. Supports up to 4 AMS 2 Pro units and 8 AMS HT units simultaneously for extensive material libraries.

Key Specifications

Build Volume

350 x 320 x 325 mm

Max Print Speed

600 mm/s

Nozzle Configuration

Dual Nozzle

AMS HT Drying Temp

Up to 85°C

Filament Sensors

15 per Path

Cameras

4 Vision + Nozzle Cam

Specifications

Bambu Lab H2D Technical Specifications
Physical Dimensions	492×514×626 mm³
Net Weight	31 kg
Hotend	All Metal
Extruder Gear	Hardened Steel
Nozzle	Hardened Steel
Max Nozzle Temperature	350 °C
Included Nozzle Diameter	0.4 mm
Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter	1.75 mm
Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Supported Build Plate Type	Textured PEI Plate, Smooth PEI Plate
Max Heatbed Temperature	120 ℃
Max Speed of Toolhead	1000 mm/s
Max Acceleration of Toolhead	20,000 mm/s²
Max Flow (Standard Hotend)	40 mm³/s (ABS @ 280 °C)
Max Flow (High Flow Hotend)	65 mm³/s (ABS @ 280 °C)
Active Chamber Heating	Supported
Max Chamber Temperature	65 °C
Air Purification	G3 Pre-filter, H12 HEPA, Granulated Coconut Shell Carbon
Cooling Fans	All with Closed Loop Control
Supported Filament Types	PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, CF/GF Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA CF/GF, PPS, PPS-CF/GF
Live View Camera	Built-in; 1920×1080
Nozzle Camera	Built-in; 1920×1080
BirdsEye Camera	Built-in; 3264×2448 (Laser Edition)
Toolhead Camera	Built-in; 1920×1080
Door Sensor	Supported
Filament Sensors	Run Out, Tangle, Odometry (with AMS)
Power Loss Recovery	Supported
Voltage	100–120 VAC / 200–240 VAC, 50/60 Hz
Max Power	2200 W@220 V / 1320 W@110 V
Working Temperature	10 °C–30 °C
Touchscreen	5-inch 720×1280
Storage	8 GB EMMC + USB Port
Control Interface	Touchscreen, Mobile App, PC App
Neural Processing Unit	2 TOPS
Software	Bambu Studio, Suite, Handy; supports third-party slicers (G-code)
Supported OS	MacOS, Windows
Wi-Fi Frequency	2412–2472 MHz, 5150–5850 MHz (FCC/CE); 2400–2483.5 MHz, 5150–5850 MHz (SRRC)
Wi-Fi Transmitter Power	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)

Bambu Lab AMS HT Technical Specifications
Maximum Drying Temperature	85°C
Power Requirements	External 220V power supply (included)
Connection to Printer	6-pin bus cable (required for drying function)
Standalone Operation	No - must be connected to printer for drying
Filament Capacity	4 spools per unit
Multi-Material Support	Up to 24 colors/materials (when connecting multiple units)
Maximum Connected Units	4 AMS HT units (X1/P1 series), 8 AMS HT + 4 AMS 2 Pro total
Feeding Speed Improvement	60% faster than previous generation
Motor Type	Brushless servo feeding motor
Standard Materials	PLA, PETG, ABS, ASA, PET, HIPS
Engineering Materials	PA (Nylon), PC (Polycarbonate), POM, PP
Specialty Materials	PVA (dried), BVOH (dried), Carbon Fiber composites
Bambu Materials	PLA-CF, PAHT-CF, PETG-CF, Support for PLA/PETG
Bypass Outlet Materials	TPU, TPE, PET-CF, Glass fiber materials
RFID Sync	Automatic filament recognition for Bambu Lab materials
Electromagnetic Air Vent	Active dehumidification and airtight sealing
Auto-Rotate Drying	30° rotation every 5 minutes for even drying
Digital Display	Real-time temperature, humidity, and drying time
Ceramic Inlets	Vickers hardness 1200 for enhanced durability
Bypass Outlet	Dedicated port for soft/brittle materials
Temperature Sensors	Accurate NTC temperature sensor
Physical Failsafes	Multiple redundant safety measures
Lid-Open Detection	Hall sensor with magnetic trigger
Humidity Monitoring	Built-in humidity sensor with real-time display
Emergency Alerts	Notifications for lid opening during drying
H2D Series	Full compatibility; Built-in feeding buffer
X1 Series	OTA update (end of April 2025); Filament buffer or AMS Hub required
P1 Series	OTA update (end of April 2025); Filament buffer or AMS Hub required
A1/A1 mini	OTA update (Q3 2025); TBD
Housing Material	Durable plastic with glass lid
Inlet Material	Ceramic with anti-wear sleeve
Connection Ports	PTFE tube outlet, 6-pin bus cable, power input
Display Type	Digital LCD showing temperature/humidity/time
Ventilation	Active electromagnetic air circulation
Printing While Drying	Not supported for active print job filaments
Standalone Drying	Requires connection to powered printer
TPU Handling	Manual feeding required via bypass outlet
High Moisture Materials	May require brief lid opening for condensation release
Bambu Studio	Remote monitoring, parameter adjustment, status tracking
Bambu Handy	Mobile control, notifications, drying progress
Printer Display	Real-time status, humidity/temperature readings
OTA Updates	Automatic compatibility updates for new printer models

What's in the Box

	H2D AMS Engineering Bundle*	H2D Laser Full Combo	H2D
Bambu Lab H2D	Included	-	Included
Bambu Lab H2DLaser Edition	-	Included	-

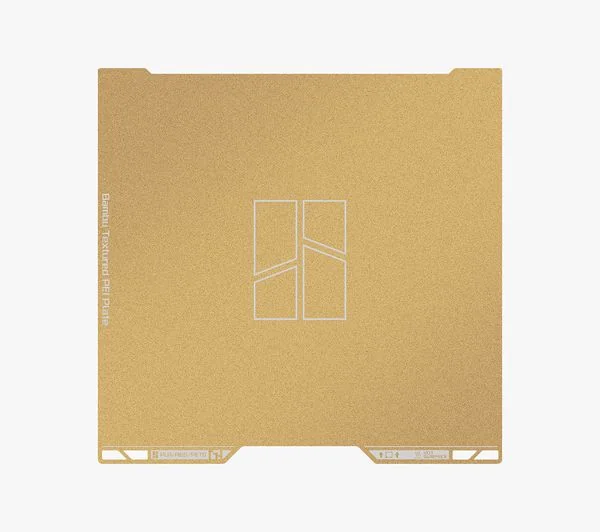

Textured PEI Build Plate	Included	Included	Included
Spool Holder	Included	Included	Included
Accessory Box	Included	Included	Included
AMS 2 Pro	Included	Included	-
10W Laser Module	-	Depending on selected combo	-
40W Laser Module	-	Depending on selected combo	-
Cutting Module (with Pen Holder)	-	Included	-

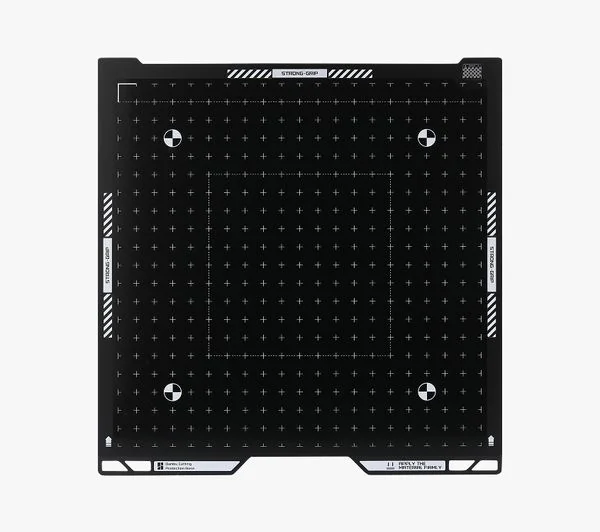

Laser Platform	-	Included	-

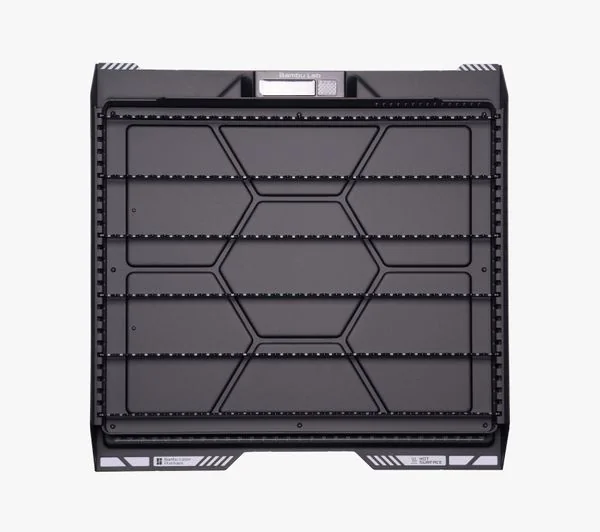

Cutting Platform	-	Included	-
Safety Key	Included	Included	Included

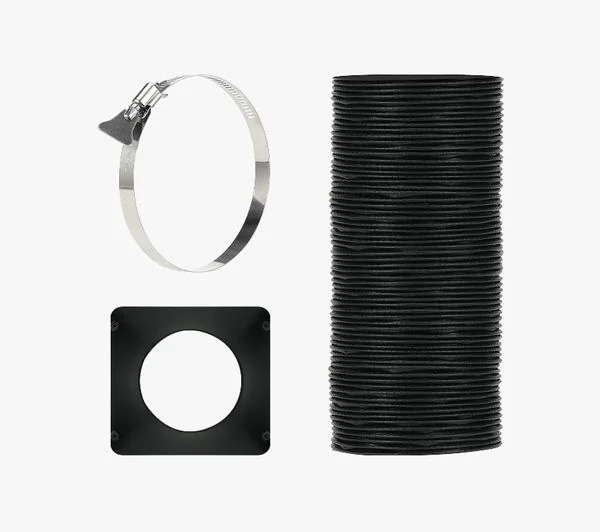

Ventilation Pipe	-	Included	-

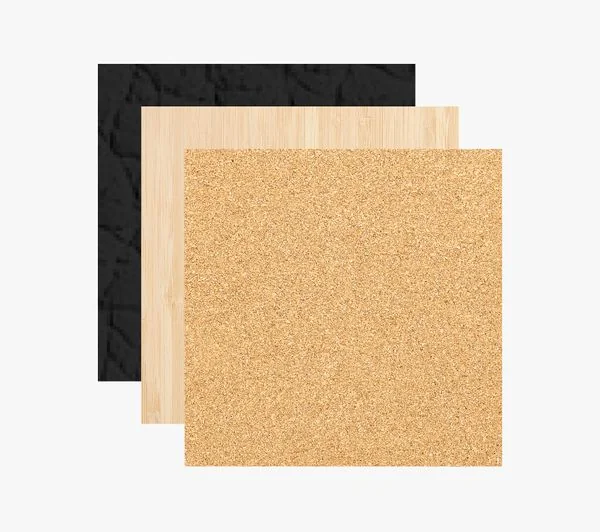

Laser & Cutting Materials	-	Included	-

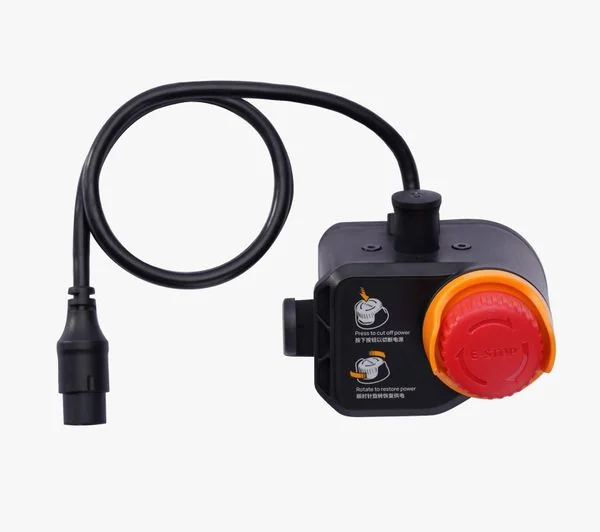

EmergencyStop Button	-	Included	-
