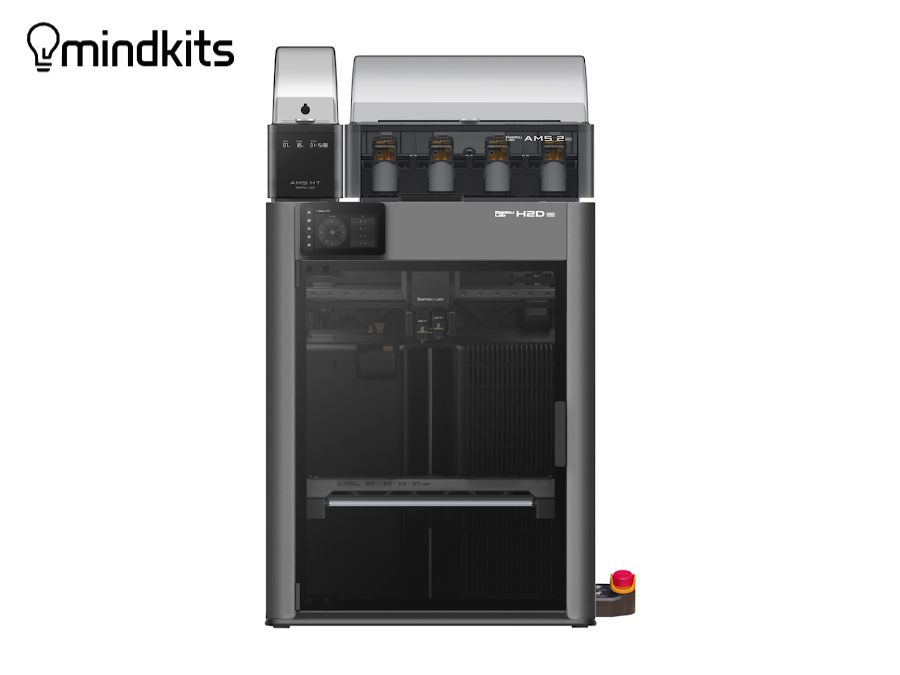

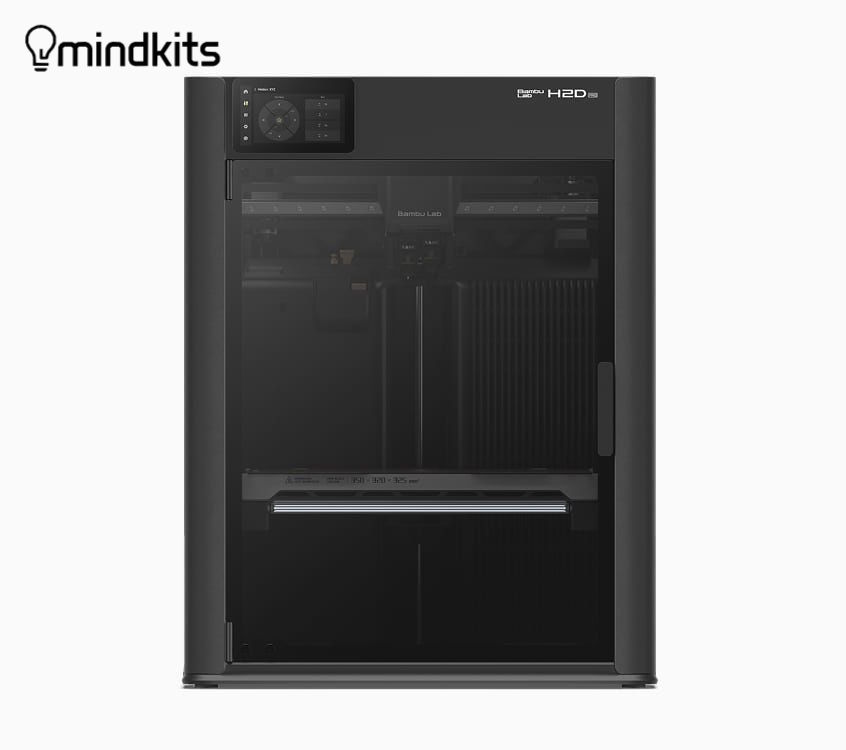

Bambu Lab H2D Pro

Item #: BAM-PF003-E+SA007+SA008-HV

There are no reviews yet Write a review

Price: $6,349.00 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:42327

notify me

Estimate Shipping

About This Item

Official Bambu Lab provider in New Zealand with local parts and warranty, ensuring an added layer of security for your investment.
High-performance dual-nozzle system capable of reaching 350°C, enabling advanced material versatility for professional-grade prints.
Enterprise-level security features including WPA2-Enterprise Wi-Fi, secure Ethernet connectivity, and a physical network killswitch.
Precision engineering with Vision Encoder Calibration for ultra-accurate 50µm motion control and consistent print quality.
Robust build environment with a 65°C heated chamber, tungsten carbide nozzles for durability, and multi-stage HEPA filtration for safe operation.

Description

Featured

Bambu Lab H2D Pro

The H2D Pro offers the option to connect to your devices through its newly added Ethernet port, ensuring robust network communication in complex environments. Ethernet connectivity can also be use

PROFESSIONAL CONNECTION

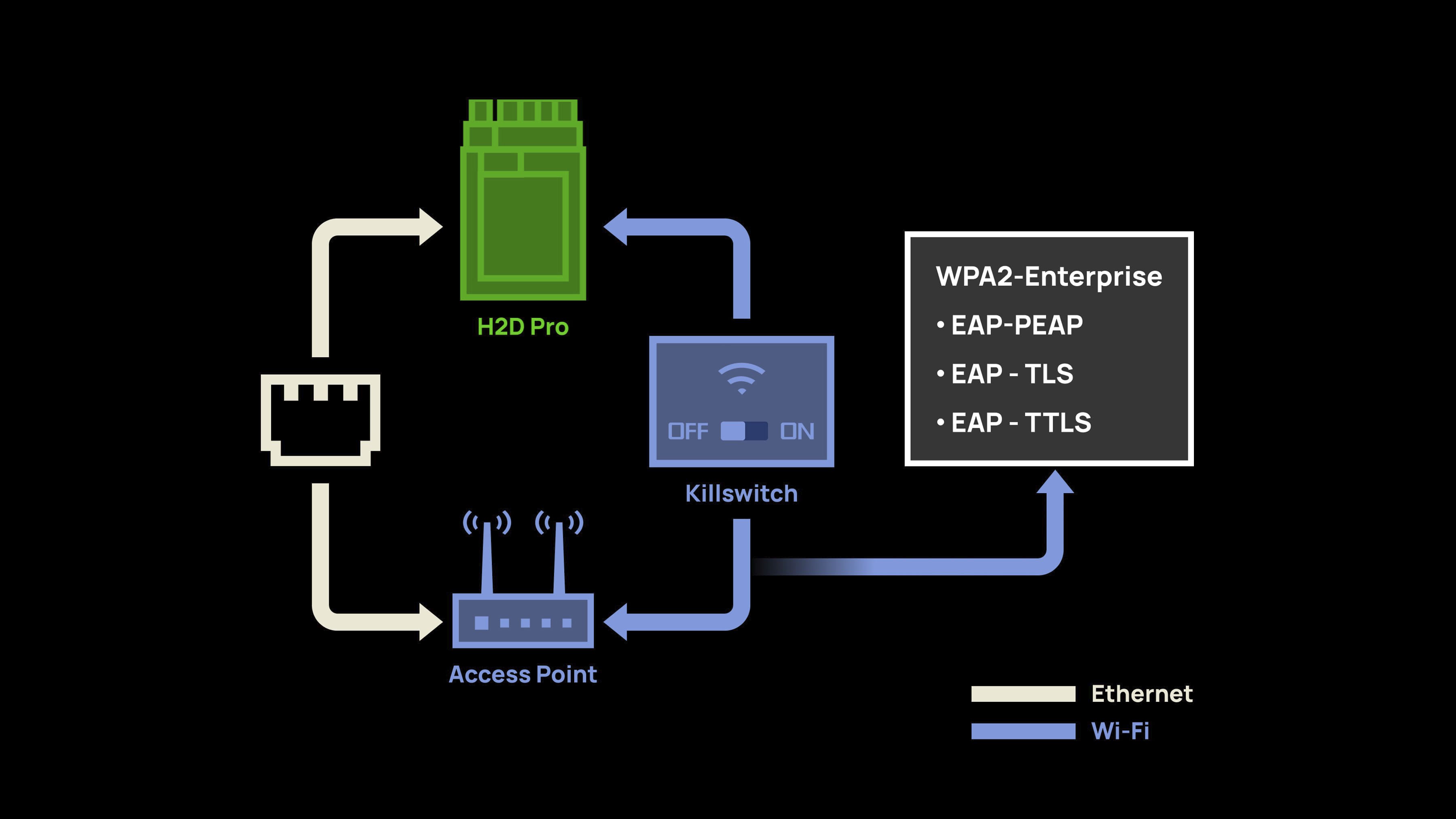

Professional Connection Options

Stable Ethernet Connection, WPA2-Enterprise Authentication Wi-Fi Connection

The H2D Pro offers the option to connect to your devices through its newly added Ethernet port, ensuring robust network communication in complex environments. Ethernet connectivity can also be used in crowded wireless signal environments. Additionally, the H2D Pro provides WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/EAP-TTLS) and individual physical kill switches for Wi-Fi, meeting stringent network security requirements.

ENTERPRISE INTEGRATION

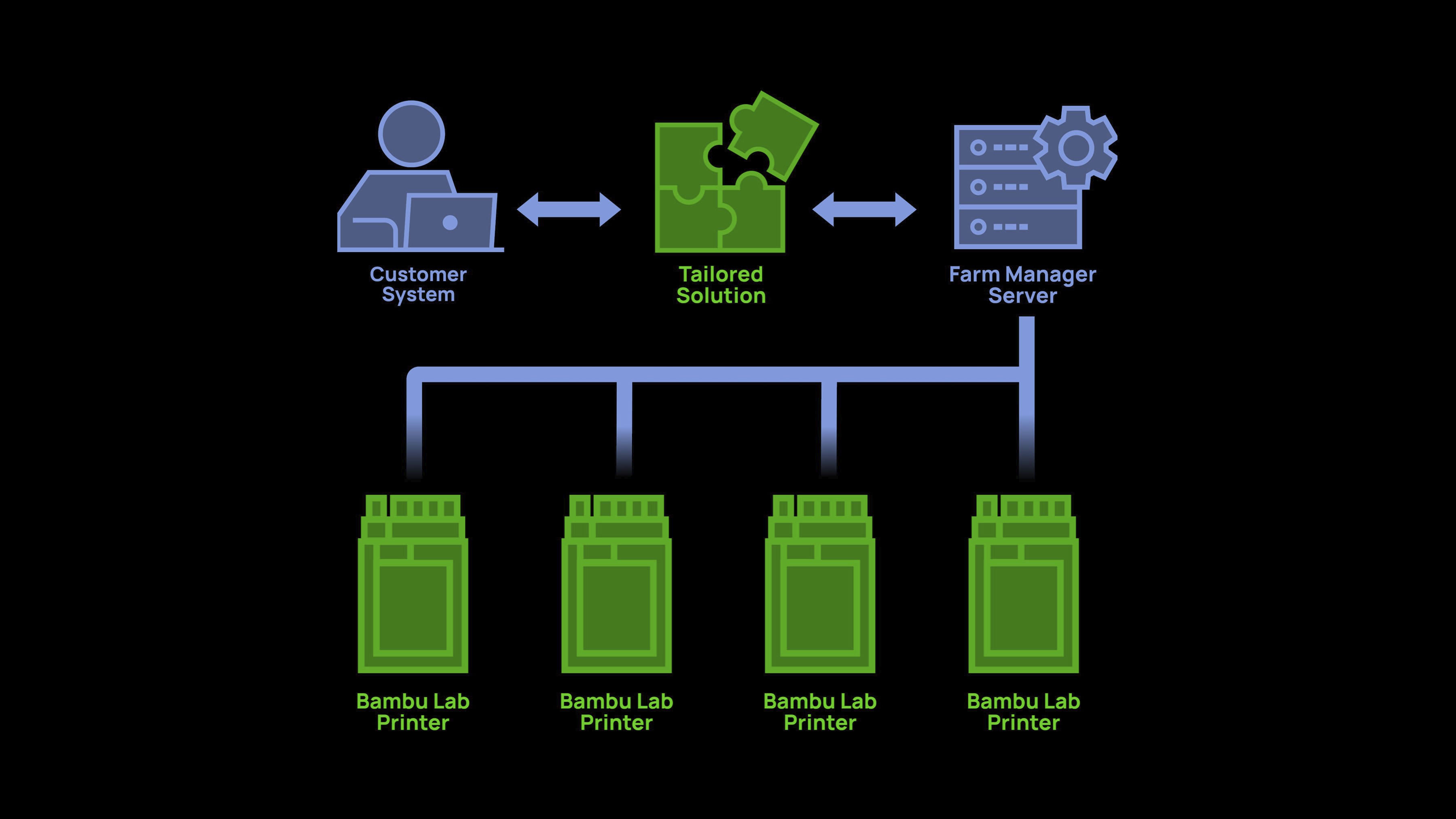

Enterprise Integration Support

Tailor Solution For Printer Management

Bambu Lab provides professional support for enterprises to custom-develop efficient printer fleet management tools, meeting their business integration needs. Our expert software R&D team offers full technical assistance to help clients achieve their required customized functionalities. (For more details, please contact your local reseller)

MULTI-MATERIAL PRINTING

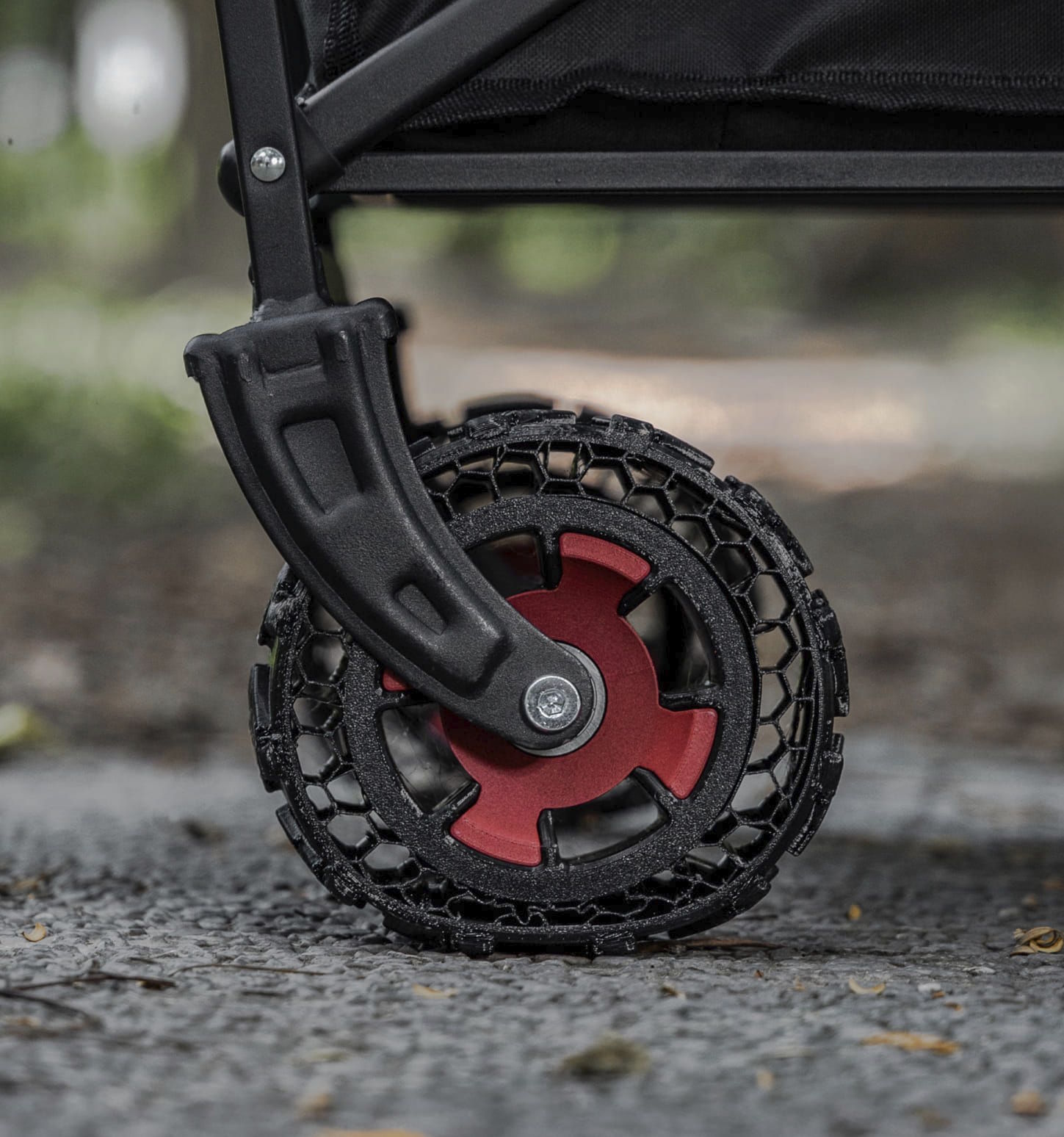

Multi-Material Printing

Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

DEDICATED SUPPORT

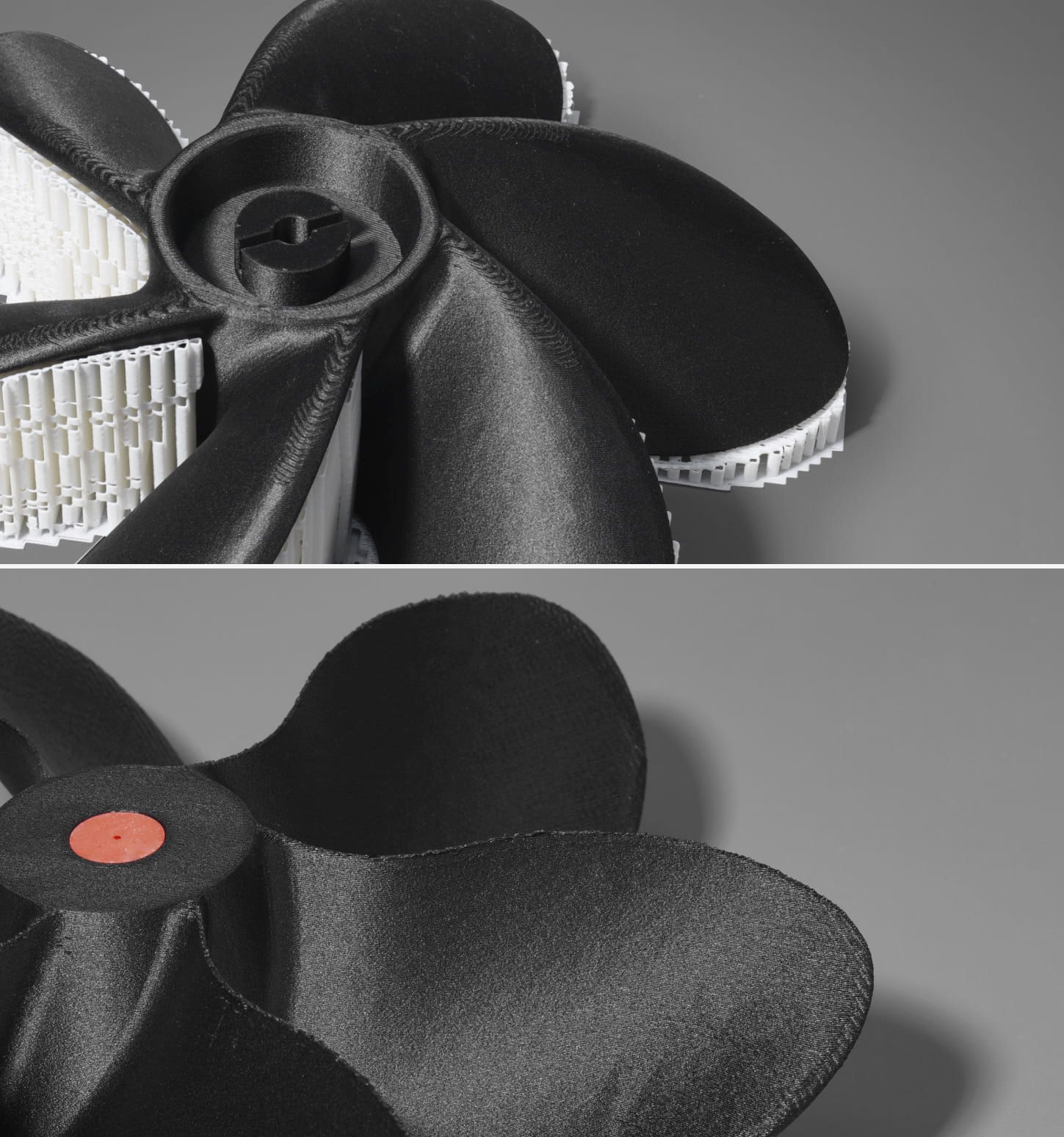

Dedicated Support Material

Efficient Support Printing & Perfectly Smooth Interface

Print with support is no longer a headache. With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

EFFICIENT MULTI-COLOR

Efficient Multi-Color Printing

Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

350℃ (662°F)

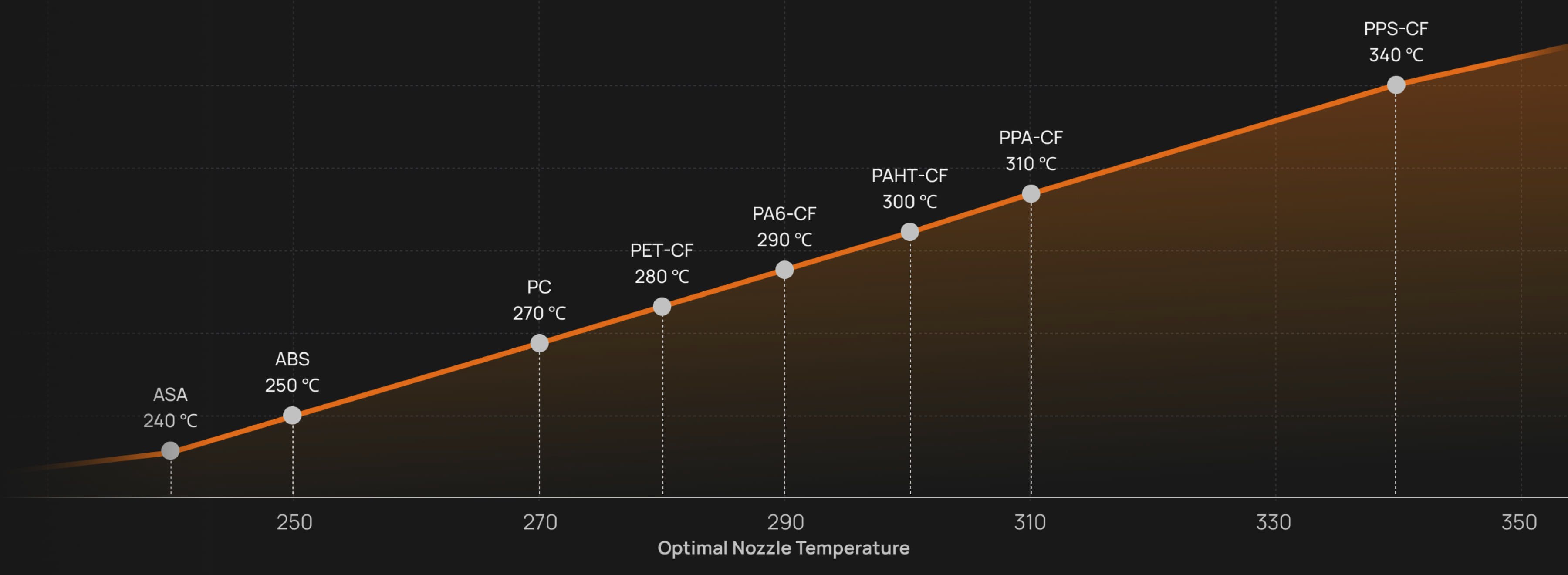

350℃ (662°F) High-Temperature Nozzle

Print engineering filaments better

Unlock the full potential of your high-temperature engineering filaments with a 350℃ (662°F) nozzle. Experience improved layer bonding when printing demanding materials like PPA-CF, PPS, and PPS-CF at higher temperatures, leading to stronger and more reliable parts.

65℃ (149°F)

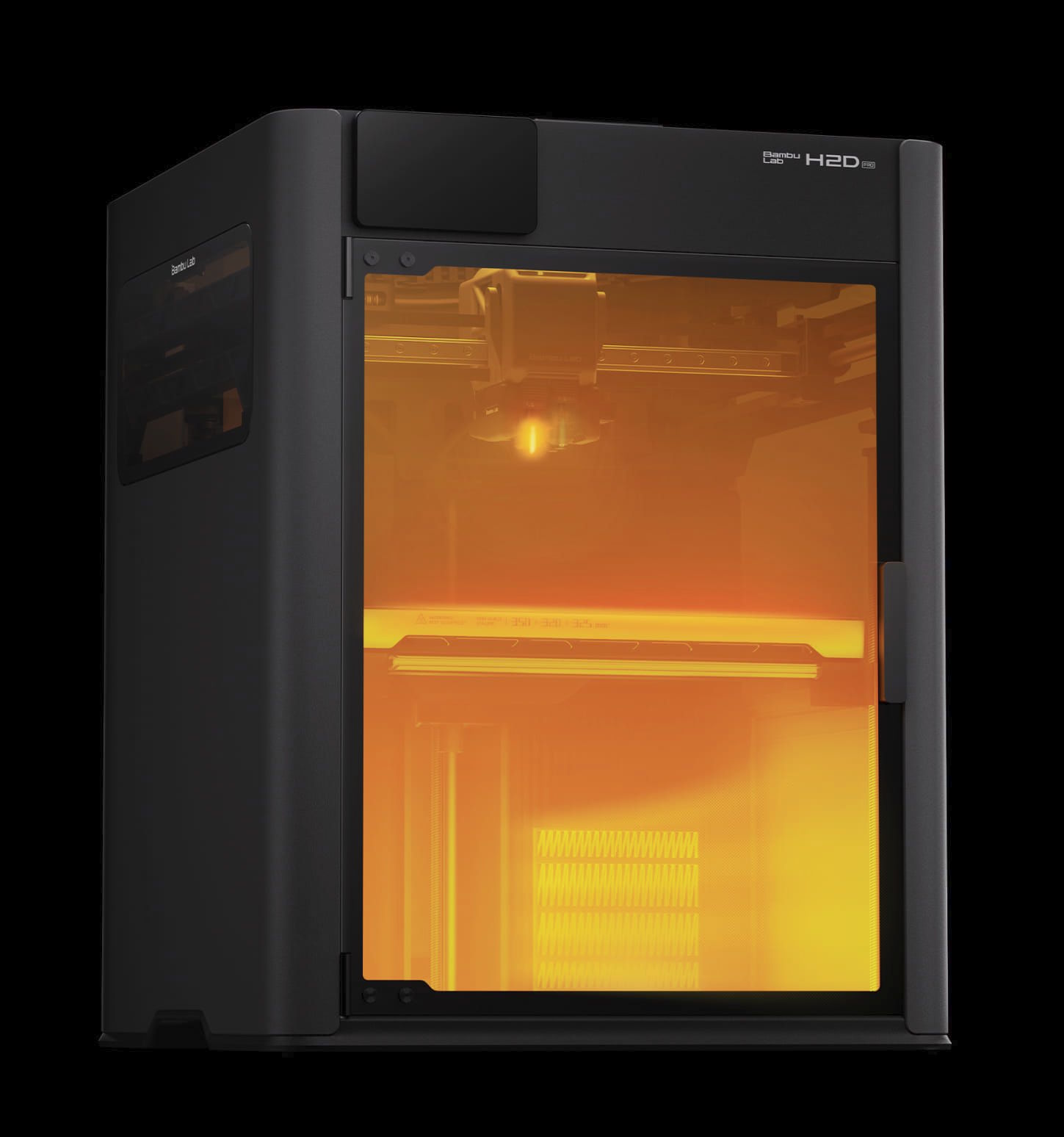

65℃ (149°F) Active Chamber Heating & Cooling

Less failure, stonger prints

Equipped with a 65°C active chamber heater and adaptive air circulation, the H2D Pro intelligently manages chamber temperature for optimal printing. Active flaps control internal/external airflow based on filament type, preventing low-temp clogs, reducing high-temp warping, improving layer bonding, and fully leveraging each material's strengths.

65℃ (149°F) Active Chamber Heating & Cooling

TOOLHEAD ENHANCED

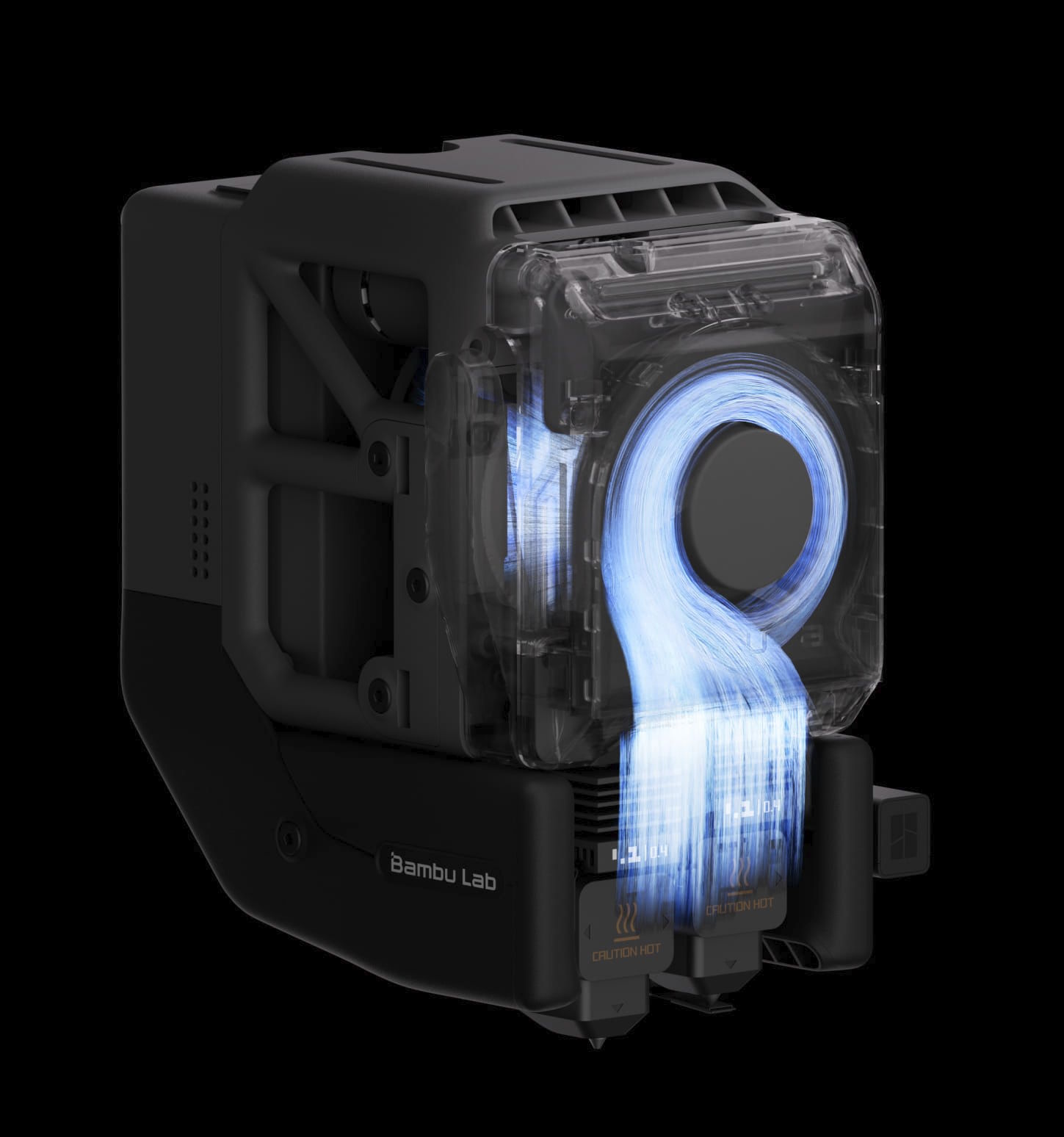

Toolhead Enhanced Cooling Fan

Improving high-temperature reliability

A new high-performance fan integrated into the toolhead front cover effectively cools the extruder and hotend heatsink. This intelligent temperature control mitigates potential clogging and filament jaming in challenging environments, enabling a 3°C increase in the recommended printer operating temperature.

TUNGSTEN CARBIDE

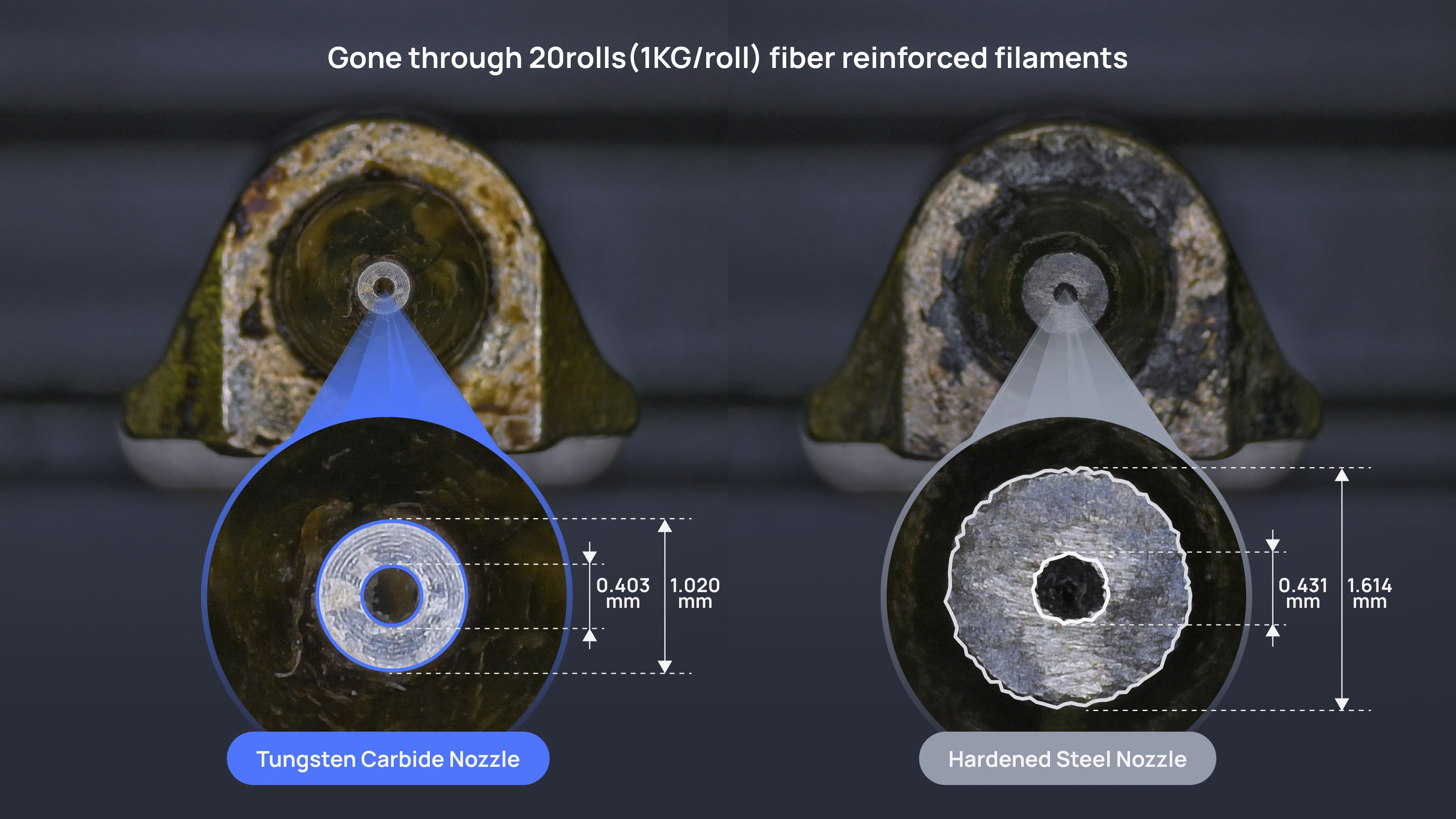

Tungsten Carbide Super Durable Nozzle

HRA 90 Tougher nozzle, lower maintainance

With HRA 90 compared to hardened steel's 74, the H2D Pro's tungsten carbide nozzle provides exceptional wear resistance. This results in a 50% increase in lifespan when printing abrasive, high-performance fiber-reinforced filaments.

VISION ENCODER

Vision Encoder

50 micrometer ultra-fine motion accuracy

The H2D Pro comes standard with an ultra-high precision vision encoder plate, utilizing 5µm resolution optical measurement to calibrate toolhead movement. This advanced system ensures consistent and distance-independent 50µm motion accuracy across the entire build area, lay down strong foundation for producing highly accurate prints.

HEAVY DUTY

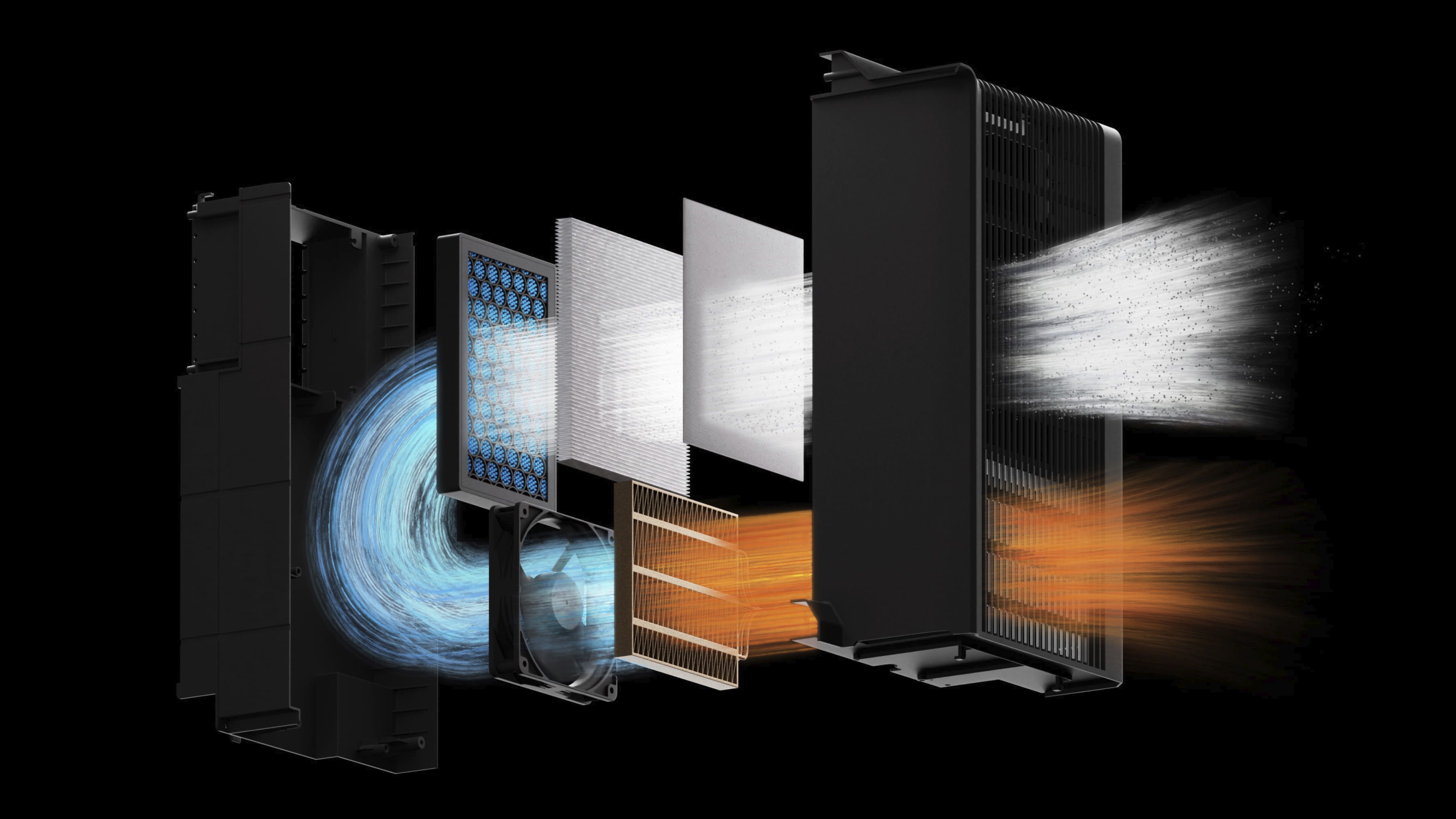

Heavy Duty Air Filtration

Effectively Filter Particulates And VOCs Generated by 3D Printing

For optimal air filtration, we've integrated a G3 pre-filter, an H12 HEPA filter, and a premium coconut shell activated carbon filter. This enhanced system effectively minimizes excessive odors and particulates, particularly beneficial when printing in less ventilated spaces.

Specifications

GENERAL
Technology	Fused Deposition Modeling (FDM)
Motion System	CoreXY
Assembly	Fully-Assembled
Made in	China
MACHINE DIMENSIONS
Outer Dimensions (w/o AMS)* (L × W × H)	492×514×626mm (19.4"×20.2"×24.6")
Net Weight (w/o AMS)**	31kg (68.4lb)
PRINTING PARAMETERS
Build Volume SINGLE Extrusion (L × W × H)	325mm × 320mm × 325mm (12.79"×12.59"×12.79")
Build Volume DUAL Extrusion	300mm × 320 × 325mm (11.81"×12.59"×12.79")
Total Volume for Two Nozzles	350mm × 320mm × 325mm (13.77"×12.59"×12.79")
Filament Diameter	1.75mm
Extrusion	Dual Extrusion
Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Extruder Gear	Hardened Steel
Hotend	All-Metal
Nozzle Material	Tungsten Carbide Nozzle
Max. Nozzle Temperature	350°C
Nozzle Size	0.4mm
Max Build Plate Temperature	120°C
Build Surface	Flexible Textured PEI Plate
OPTIONAL	Smooth PEI Plate
Max Toolhead Speed	1000mm/s
Max Toolhead Acceleration	20,000mm/s²
Max Flow Rate (Standard Flow Hotend)	40mm³/s*
Active Chamber Heating	Supported
Max Chamber Temperature	65°C
Pre-Filter Grade	G3
HEPA Filter Grade	H12
AIR PURIFICATION
Activated Carbon Filter Type	Granulated Coconut Shell
VOC Filtration	Superior
Particulate Matter Filtration	Supported
COOLING
Part Cooling Fan	Closed Loop Control
Cooling Fan for Hotend	Closed Loop Control
Main Control Board Fan	Closed Loop Control
Chamber Exhaust Fan	Closed Loop Control
Chamber Heat Circulation Fan	Closed Loop Control
Auxiliary Part Cooling Fan	Closed Loop Control
PRINTER FEATURES
Enclosed	Yes—Plastic & Glass
Frame	Aluminum and Steel
Filament Cutter	Built-In
Build Plate	Magnetic, Flexible
Bed Leveling	Fully-automated
Emergency Button	✓
Swappable Nozzle System	✓
Power Loss Recovery	✓
CAMERA(S)
Live View Camera	Built-in; 1920 × 1080
Nozzle Camera	Built-in; 1920 × 1080
BirdsEye Camera	Built-in; 3264 × 2448
Toolhead Camera	Built-in; 1920 × 1080
SENSOR(S)
Door Sensor	Supported
Filament Runout Sensor	Supported
Filament Tangle Sensor	Supported
Filament Odometry	Supported with AMS
COMPATIBLE MATERIALS
Third-Party Filament	Yes***
Supported	PLA, PETG, TPU, PVA, BV OH, ABS, ASA, PC, Nylon / PA, PET, PPS, PPA, and Carbon/Glass Fiber Reinforced Filament variants of the previously listed materials
COMMUNICATION
Display	5" Capacitive Touch Screen
Display Resolution	720 × 1280
Storage	Built-in 8 GB EMMC and USB Port
Control Interface	Touchscreen, mobile App, PC App
Motion Controller	Dual-core Cortex-M4 and Single-core Cortex-M7
Applicator Processor	Quad-core 1.5 GHz ARM A7
Neural Processing Unit	2 TOPS
NETWORK CONTROL
Connectivity	Wi-Fi, Ethernet
Network Kill Switch	Wi-Fi & Ethernet
Wi-Fi Frequency Range	2400 MHz - 2483.5 MHz
Wi-Fi WPA2-Enterprise	EAP-PEAP, EAP-TLS, TAP-TTLS
Wi-Fi Transmitter Power (EIRP)	≤ 21.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
Wi-Fi Protocol	IEEE 802.11 b/g/n
Ethernet Socket	RJ45
Ethernet Speed	100 Mbps / Full Duplex
Removable Network Module	Yes
802.1X Network Access Control	Yes
SOFTWARE
Slicing Software	Bambu Studio
Third-party slicer support	Supports standard G-code (Super Slicer, PrusaSlicer, Cura, etc.)
Compatible OS	Windows, MacOS
Supported File Format(s)	STL, 3MF
POWER REQUIREMENTS
Input Voltage	100 - 120 VAC / 200 - 240 VAC, 50/60 Hz
Max Power**	1320 W@110 V, 2200 W@220 V
Average Power	1050 W@110 V, 1050 W@220 V

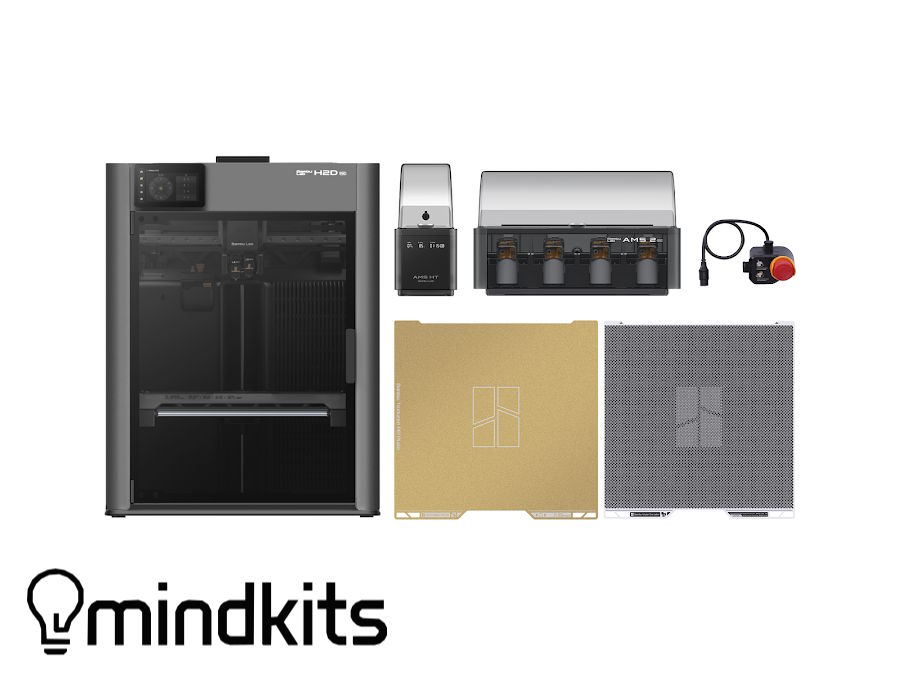

What's in the Box

Bambu Lab H2D Pro
Bambu Lab AMS 2 Pro
Bambu Lab AMS HT
Vision Encoder Plate
Emergency Stop Button
Textured PEI Build Plate
