Bambu Lab R1 55W CO2 Laser Cutter and Engraver

Item #: BAM-LM001-P-AU

There are no reviews yet Write a review

Price: $4,999.00 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:33327

notify me

About This Item

Official Bambu Lab reseller in New Zealand with local support, parts and warranty.
55W CO2 laser cuts up to 20 mm acrylic and 18 mm walnut plywood in one pass (medium or long-focus lens).
600 x 300 mm work area, or 600 x 3000 mm with the optional Conveyor.
Up to 1,000 mm/s with even engraving depth.
TriSense cameras, lasers and encoders: what you mark is what you cut.
Automatic laser alignment and autofocus. No manual calibration.
Crossflow ventilation, lid-open stop, flame detection and emergency stop.

Overview

New

Bambu Lab R1 55W CO2 Laser Cutter and Engraver

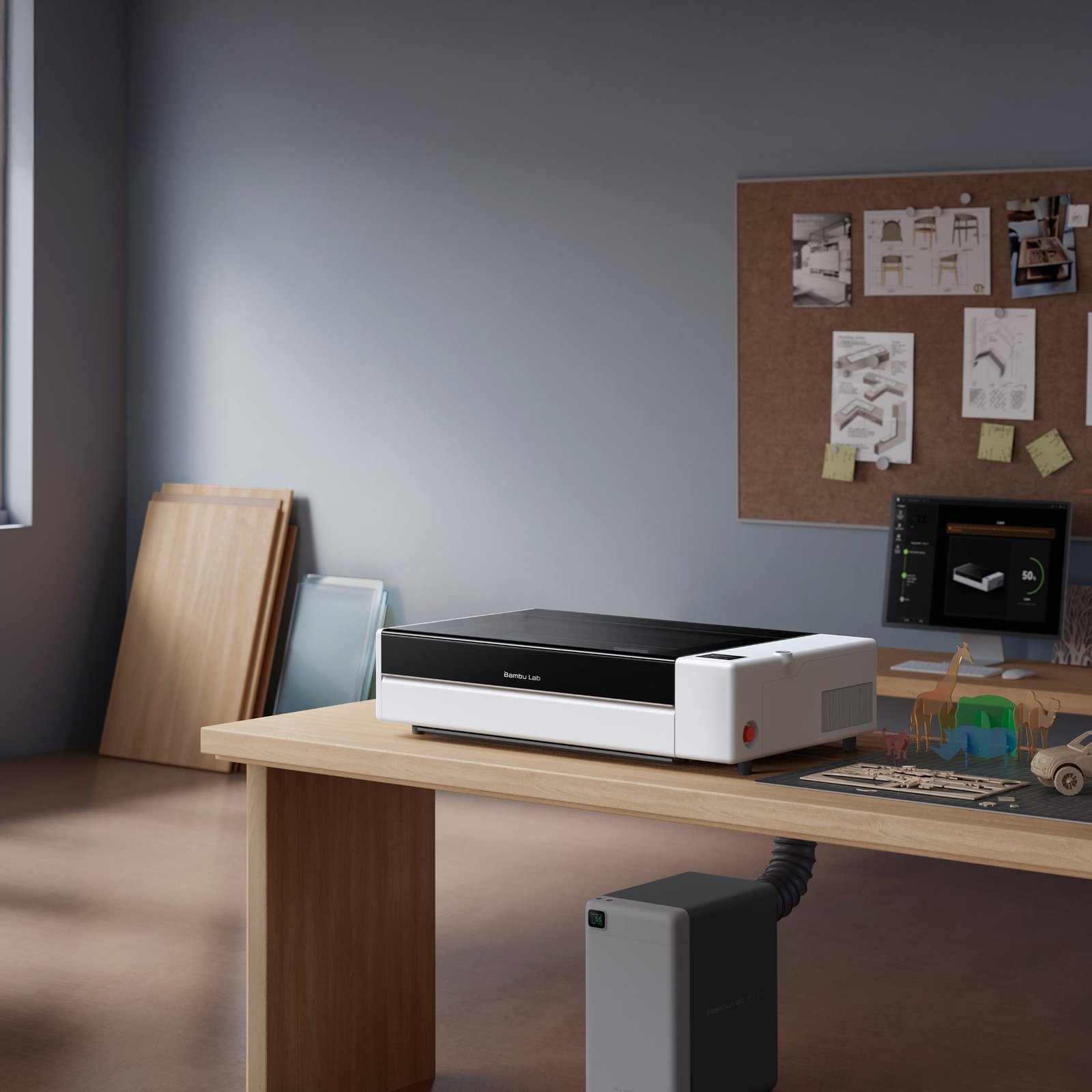

Big job. Light work. Bambu Lab's first dedicated laser brings a 55W CO2 tube, a 600 x 300 mm work area and automatic setup to your desk, so you spend less time calibrating and more time making.

55WCO2 laser

600 x 300 mmWork area (3 m with Conveyor)

1,000 mm/sMax speed

20 mmAcrylic in a single pass*

55W CO2

Cuts deeper. Cuts more.

A CO2 laser is the most versatile choice for everyday workshop materials. R1 cuts and engraves plywood, clear acrylic, leather, fabric, paper, EVA foam and shell, and engraves glass, ceramic and coated metal. With the medium- or long-focus lens it cuts up to 18 mm black walnut plywood and 20 mm acrylic in one pass.*

Materials the Bambu Lab R1 can cut and engrave

TRISENSE SYSTEM

What you mark is what you cut.

A BirdsEye Camera captures the whole bed, a Toolhead Camera locates exactly what you are working on, XY encoders track the head in real time, and a pinpoint laser plus distance-measurement laser set focus automatically. The result is absolute motion accuracy under 0.1 mm over 600 mm.

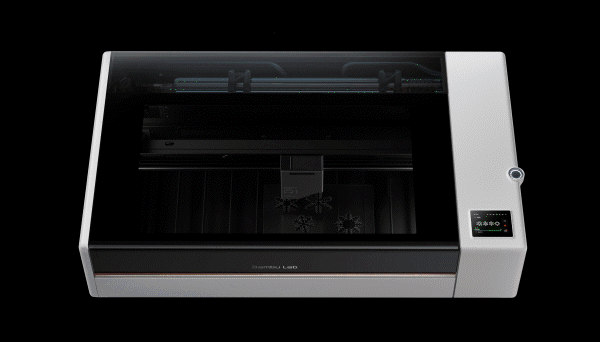

Bambu Lab R1 optical path and TriSense cameras

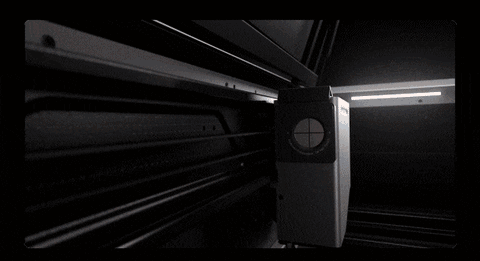

AUTO LASER ALIGNMENT

No manual calibration.

Aligning a CO2 optical path usually means test shots and trial and error. Mount R1's Laser Alignment Sensor on the toolhead and it measures the beam, detects misalignment and corrects the path automatically in about a minute.

PRECISION

Follows curves, finds the tiny stuff.

Height sensing follows every rise and fall on cups, bowls and uneven surfaces. Measurement stays accurate on glass and clear acrylic, and the Toolhead Camera can trace a printed outline, trim a sticker or place fine detail on a small part.

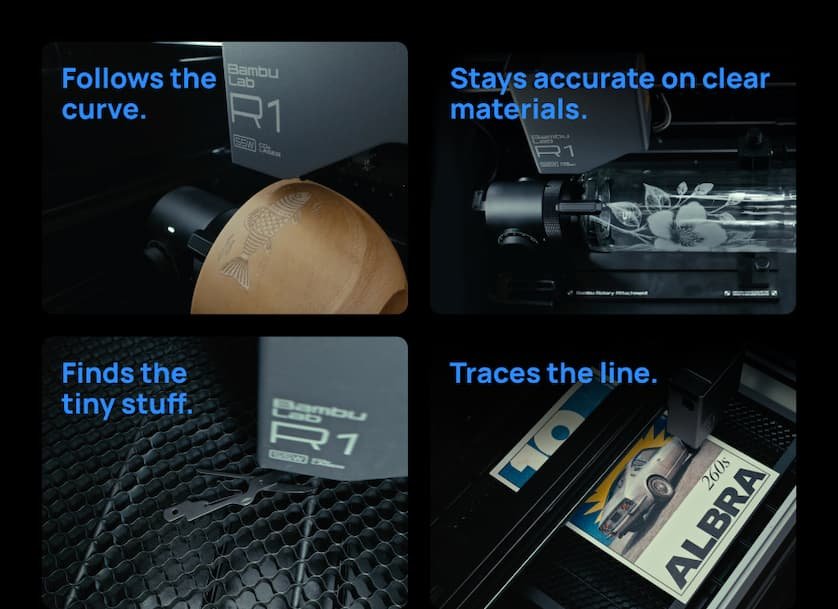

Bambu Lab R1 precision engraving on curved and clear materials

BAMBU ALGORITHMS

Fast, without losing detail.

Vibration compensation, the same technology used in Bambu Lab 3D printers, keeps lines crisp out of every turn. R1 also compensates as it moves so engraving depth stays even at up to 1,000 mm/s.

SAFER BY DESIGN

Cleaner air and layered protection.

Crossflow ventilation brings fresh air in one side and exhausts smoke from the other for a steady flow across the whole chamber. Lid-open stop, flame detection, a safety key and an emergency stop are all standard. The enclosed machine is a Class 1 laser product.

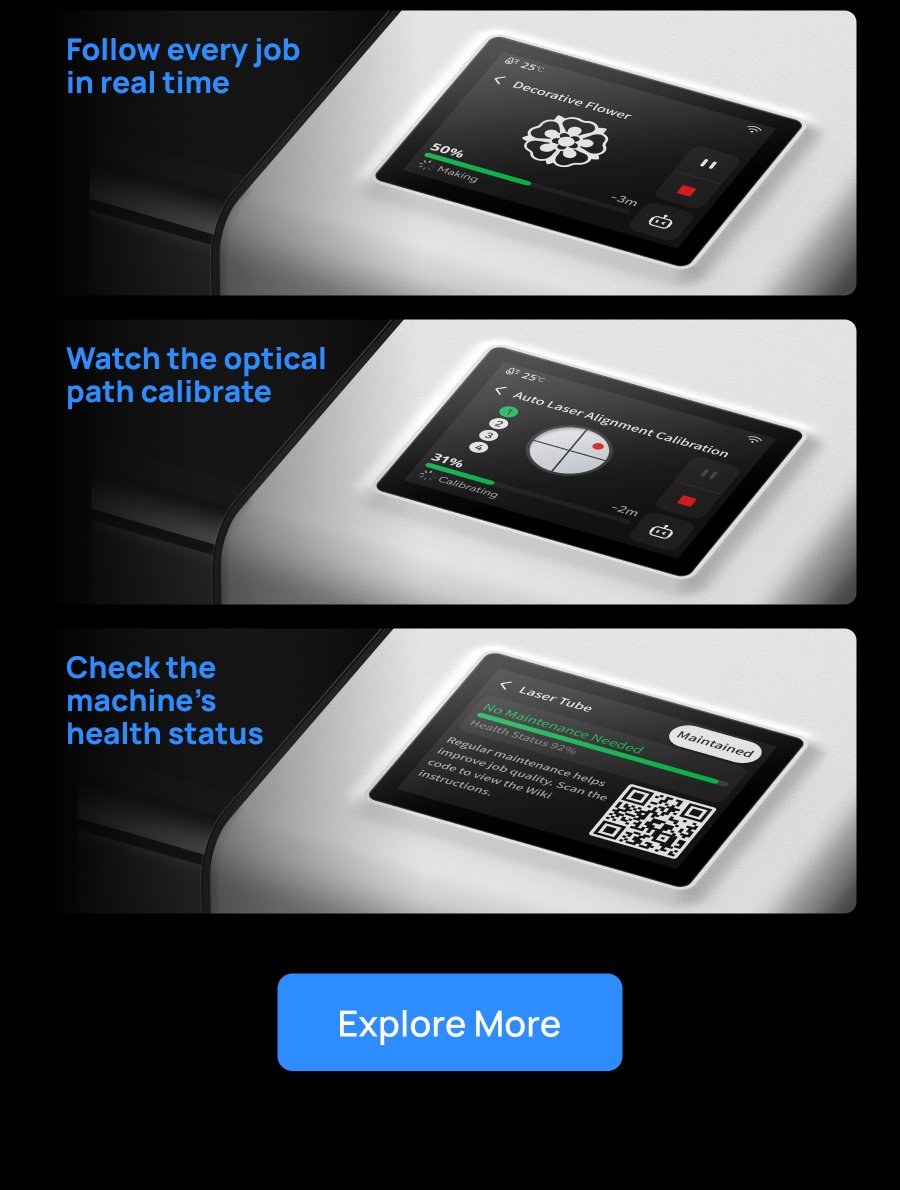

Bambu Lab R1 touchscreen job, calibration and health status

Grow into bigger projects

Add the Riser Base for taller objects, the Rotary Attachment for 360-degree engraving on bottles and cups, medium- and long-focus lenses for thicker stock, and the Conveyor to feed boards up to 3 metres long. Pair R1 with the E1 Pro smoke purifier to filter smoke and odour at the source. All accessories are sold separately.

MindKits is an official Bambu Lab reseller in New Zealand, with local support, parts and warranty.

*Requires the medium- or long-focus lens, sold separately. All references to wood refer to plywood.

Technical Specifications

Processing

Laser type	55W CO2 laser
Cut and engrave	Wood (plywood), acrylic including clear acrylic, leather, fabric, paper, EVA foam, shell
Engrave only	Coated metal (bare metal cannot be engraved), glass, ceramic
Max cutting capacity, short-focus lens	15 mm black walnut plywood / 20 mm acrylic
Max cutting capacity, medium-focus lens	18 mm black walnut plywood / 20 mm acrylic
Max cutting capacity, long-focus lens	18 mm black walnut plywood / 20 mm acrylic (faster than medium at the same thickness)
Working area	Standalone: 600 x 300 mm. With Conveyor: 600 x 3000 mm
Max speed	1000 mm/s
Max acceleration	20000 mm/s²
Spot size	Short-focus 0.11 mm, medium-focus 0.17 mm, long-focus 0.19 mm
Air assist pump	30 L/min @ 30 kPa

Measurement and Positioning

Positioning system	Dual-camera + dual-laser + dual-encoder
Absolute motion accuracy (with Vision Encoder)	<0.1 mm @ 600 mm
Positioning accuracy	<0.2 mm
Focusing	Fully automatic laser ranging
Panoramic and detail capture	Supported
Curved, cylinder and revolve surface processing	Supported

Automation

Laser alignment	Fully automatic
One-tap setup and autofocus	Supported
Automatic material recognition	Supported (Bambu Lab official materials only)
System health management	Supported

Safety

Laser safety	Class 1 (enclosed). With the Riser Base or Conveyor fitted it becomes a Class 4 device requiring CO2 laser-safety eyewear and trained operators
Safety interlocks	Lid-open protection, flame detection, auto fire extinguishing (requires the Auto Fire Extinguishing System, sold separately)
Safety key and emergency stop	Standard

Physical, Power and Software

Dimensions	940 x 560 x 200 mm
Space required (lid open)	W940 x D660 x H650 mm. Allow 100 mm clearance left, right, rear and top
Net weight	33.5 kg
Package dimensions	1095 x 725 x 310 mm
Shipping weight	43.09 kg
Input voltage	100-240 VAC, 50/60 Hz
Max input power	780 W
Operating temperature	10 °C to 30 °C
Software	Bambu Suite (Windows, macOS)
Connectivity	Dual-band Wi-Fi, USB

What You Can Make

What you can make

From layered clocks and lamps to marble runs, wearable fabric pieces, engraved glassware and full-length furniture panels with the Conveyor, R1 covers hobby, classroom and small-business production.

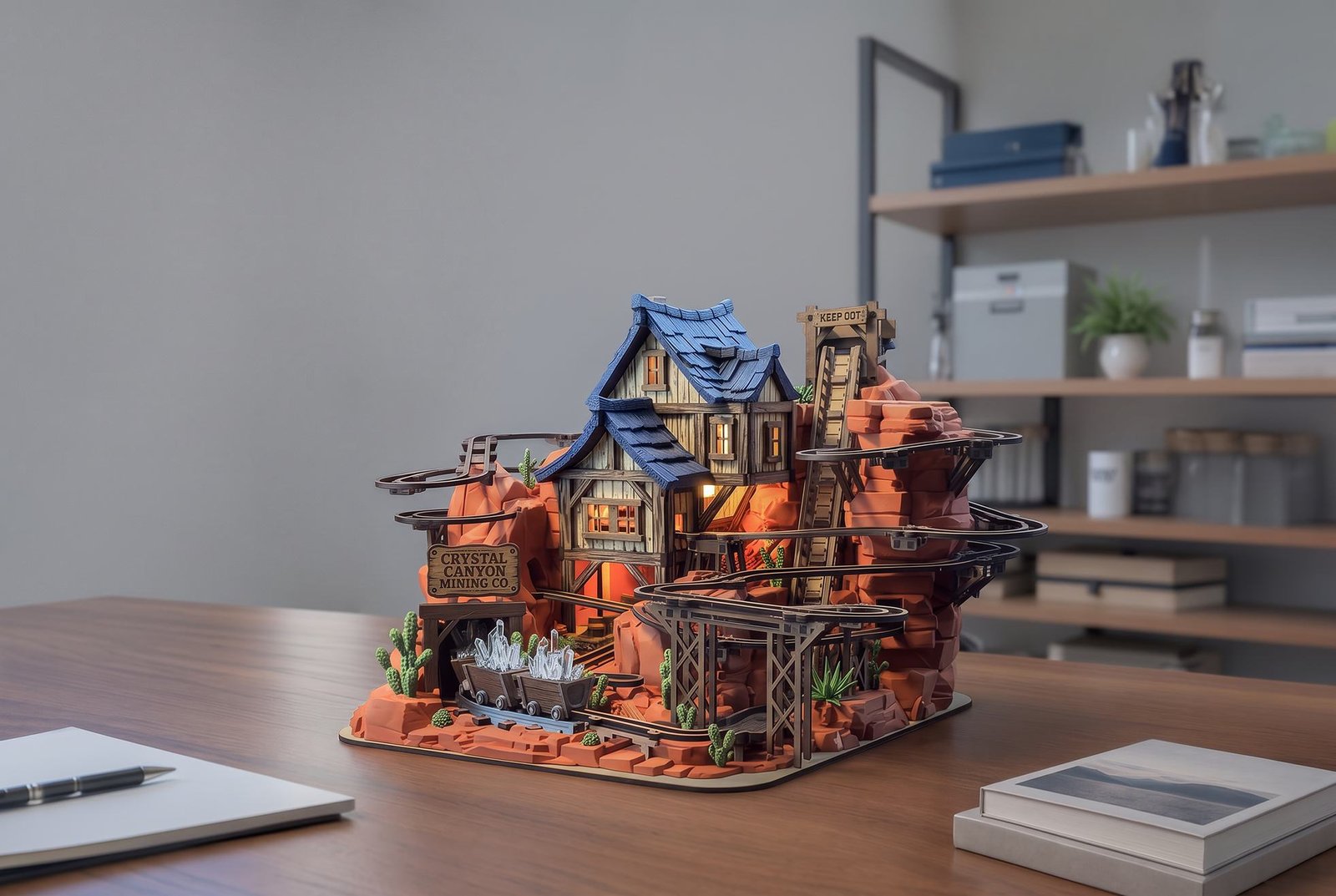

Laser-cut marble run made on Bambu Lab R1

Layered acrylic clock made on Bambu Lab R1

Layered sunflower painting made on Bambu Lab R1

Resources

What's in the Box

What is in the box

1 x Bambu Lab R1 55W CO2 Laser Cutter and Engraver

Riser Base, Rotary Attachment, medium- and long-focus lenses, Conveyor, E1 Pro smoke purifier and Auto Fire Extinguishing System are sold separately.
