BundleBambu Lab R1 Long Material Bundle
The 55W CO2 R1 with the Riser Base and Automatic Conveyor Feeder, ready to process signs, panels and furniture parts up to 3 m long straight out of the box.
55WCO2 laser
600 x 3000 mmWork area with Conveyor
248 mmWorkpiece height with Riser
1,000 mm/sMax speed

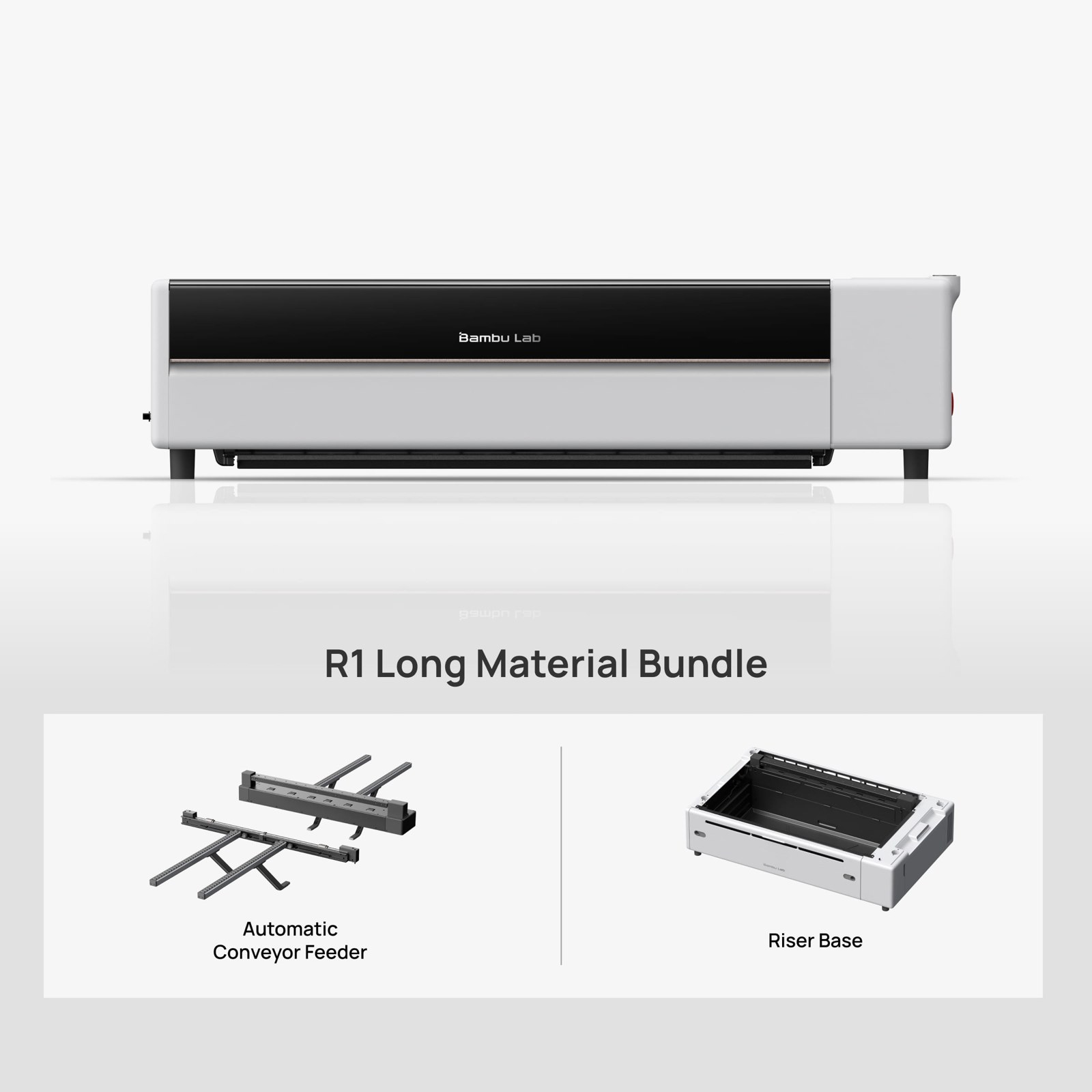

What the bundle includes
- 1 x Bambu Lab R1 55W CO2 Laser Cutter and Engraver
- 1 x Riser Base
- 1 x Automatic Conveyor Feeder
Riser BaseMore height, and the base for every upgrade.

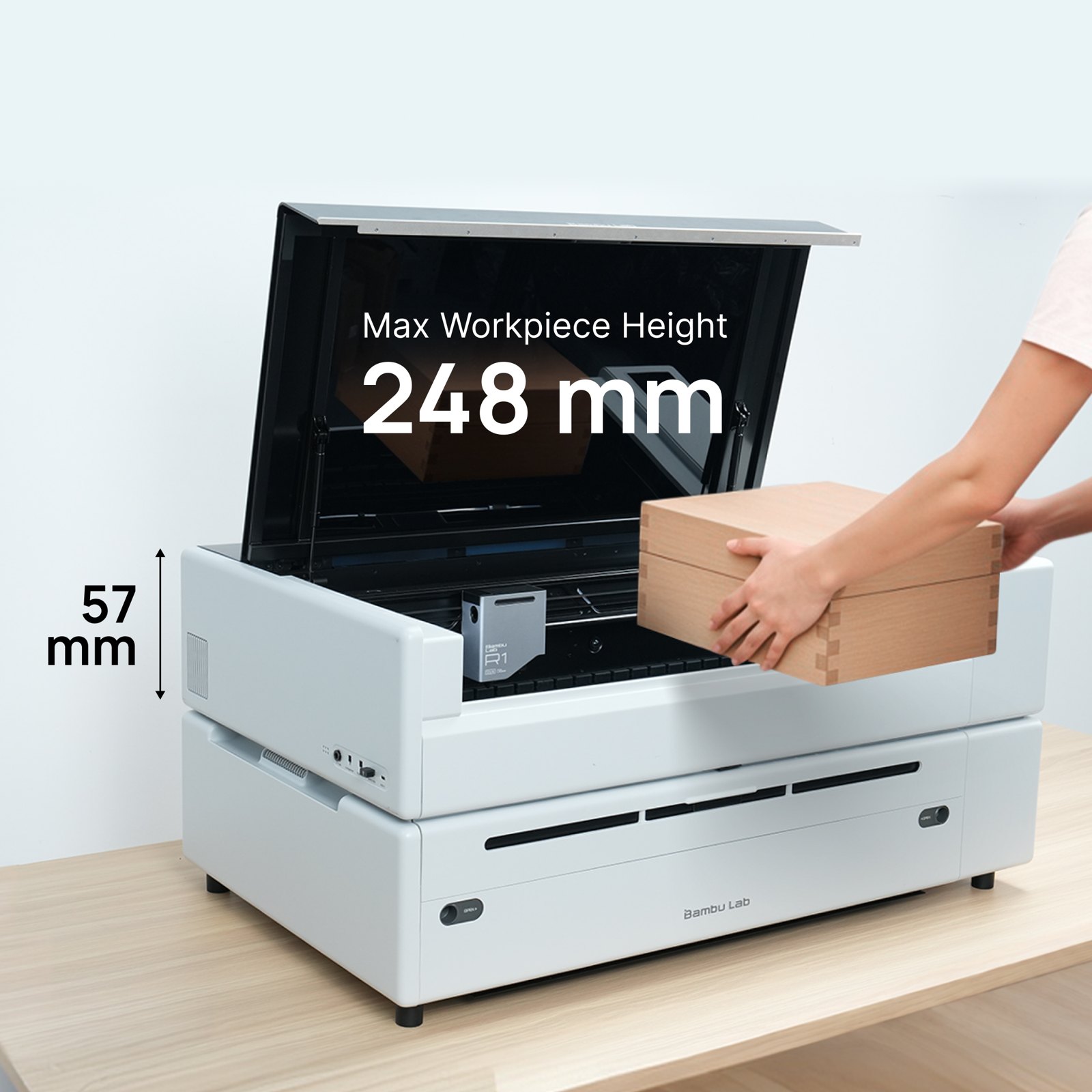

The Riser Base lifts R1 to give 248 mm of workpiece clearance and creates the pass-through space the Conveyor and Rotary need.
ConveyorProcess stock up to 3 metres long.
The Automatic Conveyor Feeder pulls long material through R1 during the job, so large signs, panels and furniture parts no longer need to be cut down to fit.
55W CO2Cuts deeper. Cuts more.
A CO2 laser is the most versatile choice for everyday workshop materials. R1 cuts and engraves plywood, clear acrylic, leather, fabric, paper, EVA foam and shell, and engraves glass, ceramic and coated metal. With the medium- or long-focus lens it cuts up to 18 mm black walnut plywood and 20 mm acrylic in one pass.*
TRISENSE SYSTEMWhat you mark is what you cut.
A BirdsEye Camera captures the whole bed, a Toolhead Camera locates exactly what you are working on, XY encoders track the head in real time, and a pinpoint laser plus distance-measurement laser set focus automatically. The result is absolute motion accuracy under 0.1 mm over 600 mm.
AUTO LASER ALIGNMENTNo manual calibration.
Aligning a CO2 optical path usually means test shots and trial and error. Mount R1's Laser Alignment Sensor on the toolhead and it measures the beam, detects misalignment and corrects the path automatically in about a minute.
PRECISIONFollows curves, finds the tiny stuff.
Height sensing follows every rise and fall on cups, bowls and uneven surfaces. Measurement stays accurate on glass and clear acrylic, and the Toolhead Camera can trace a printed outline, trim a sticker or place fine detail on a small part.
BAMBU ALGORITHMSFast, without losing detail.
Vibration compensation, the same technology used in Bambu Lab 3D printers, keeps lines crisp out of every turn. R1 also compensates as it moves so engraving depth stays even at up to 1,000 mm/s.
SAFER BY DESIGNCleaner air and layered protection.
Crossflow ventilation brings fresh air in one side and exhausts smoke from the other for a steady flow across the whole chamber. Lid-open stop, flame detection, a safety key and an emergency stop are all standard. The enclosed machine is a Class 1 laser product.
Grow into bigger projects
Add the Riser Base for taller objects, the Rotary Attachment for 360-degree engraving on bottles and cups, medium- and long-focus lenses for thicker stock, and the Conveyor to feed boards up to 3 metres long. Pair R1 with the E1 Pro smoke purifier to filter smoke and odour at the source. All accessories are sold separately.
MindKits is an official Bambu Lab reseller in New Zealand, with local support, parts and warranty.
*Requires the medium- or long-focus lens, sold separately. All references to wood refer to plywood.
