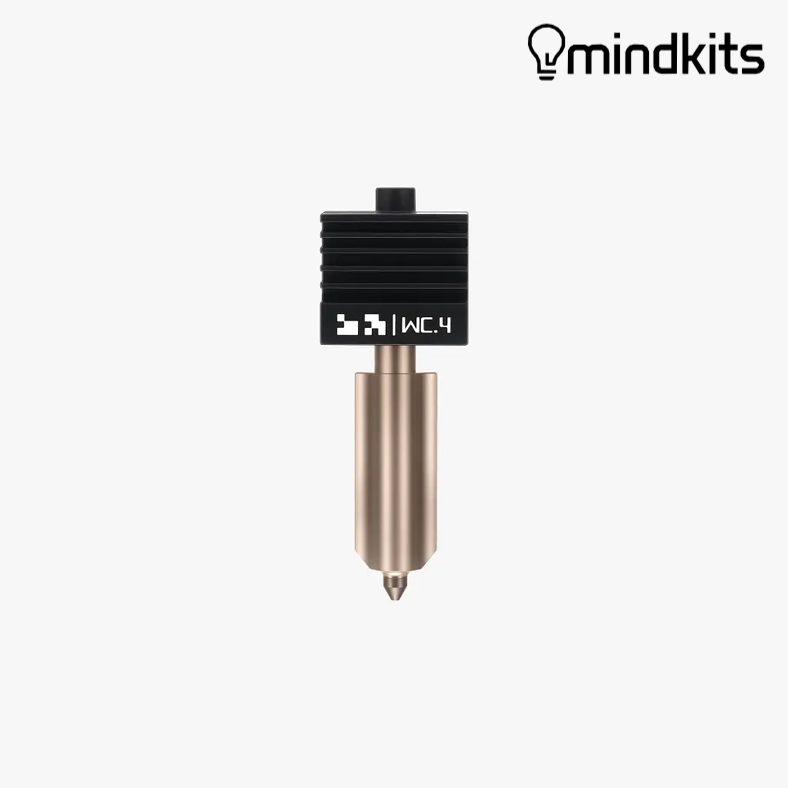

Bambu Lab Tungsten Carbide Nozzle - Standard Flow - 0.4 mm - H2/P2S
HRA 90 Tougher nozzle, lower maintenance

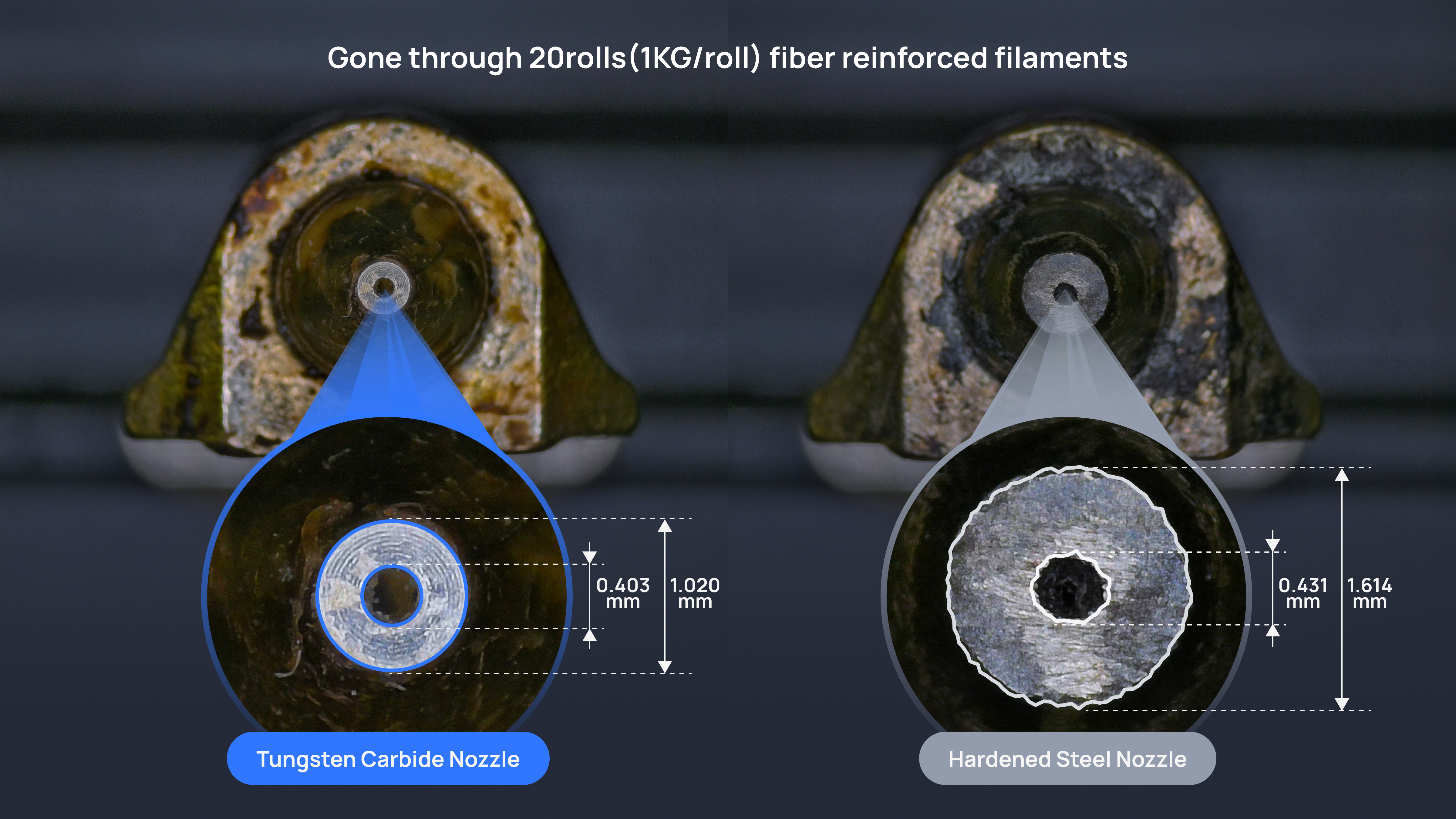

With HRA 90 compared to hardened steel's 74, the Tungsten Carbide nozzle provides exceptional wear resistance. This results in a 50% increase in lifespan when printing abrasive, high-performance fiber-reinforced filaments.

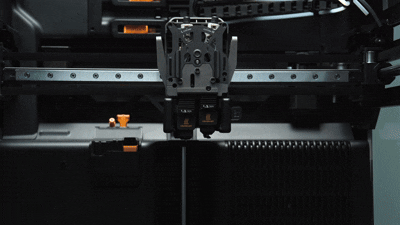

Quick Swap Nozzle Design
The special design of hotend heating assembly enables easy separation of the thermal and electronic components of the hotend. Simply unlock the latch for quick and easy hotend removal and installation.

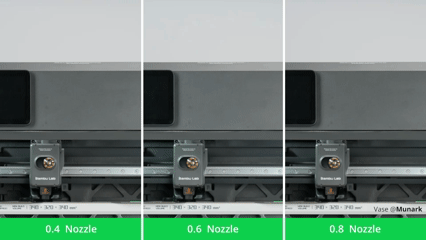

0.6mm and 0.8mm Nozzle - Faster Print Speed
Larger diameter extrudes more filaments per second, resulting in faster print speed

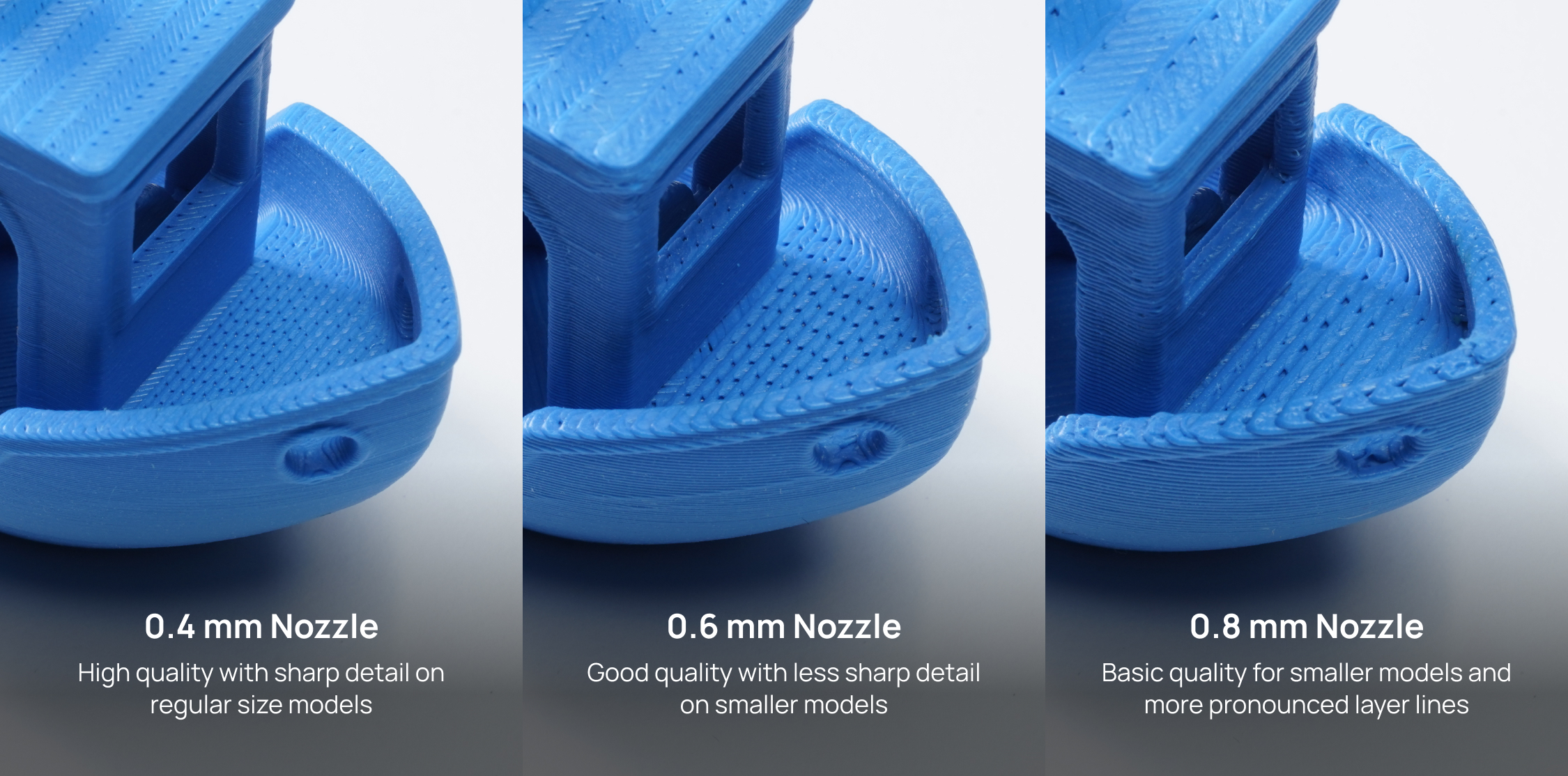

Comparison of Different Nozzle Sizes
|
0.4 mm Nozzle |
0.6 mm Nozzle |
0.8 mm Nozzle |
| Usage scenario |
Ideal for everyday use
with the perfect balance
of speed and quality |
Faster speeds and capable
of printing high-performance filaments,
with some decrease in resolution |
Faster speeds and capable
of printing high-performance filaments,
with some decrease in resolution |
| Commonly used for |
Toys
Mechanical parts
Decorative objects |
Large structural parts
Functional parts for household
Industrial or engineering parts
High-strength models |
Large structural parts
Functional parts for household
Industrial or engineering parts
High-strength models |
Filament Compatibility
| Filament |
0.4 mm
Tungsten Carbide Nozzle |
0.6 mm
Tungsten Carbide Nozzle |
0.8 mm
Tungsten Carbide Nozzle |
| PLA Basic |
√ |
√ |
√ |
| PLA Matte |
√ |
√ |
√ |
| PLA Basic Gradient |
√ |
√ |
√ |
| PLA Silk+ |
√ |
Not recommended |
Not recommended |
| PLA Silk Dual Color |
√ |
Not recommended |
Not recommended |
| PLA Silk |
√ |
Not recommended |
Not recommended |
| PLA Metal |
√ |
√ |
√ |
| PLA Marble |
√ |
√ |
√ |
| PLA Sparkle |
√ |
√ |
√ |
| PLA Wood |
√ |
√ |
√ |
| PLA Galaxy |
√ |
√ |
√ |
| PLA Glow |
√ |
√ |
√ |
| PLA-CF |
√ |
√ |
√ |
| PLA Aero |
√ |
Not recommended |
Not recommended |
| PETG HF |
√ |
√ |
√ |
| PETG Translucent |
√ |
√ |
√ |
| PETG-CF |
√ |
√ |
√ |
| ABS |
√ |
√ |
√ |
| ABS-GF |
√ |
√ |
√ |
| ASA |
√ |
√ |
√ |
| ASA Aero |
√ |
Not recommended |
Not recommended |
| ASA-CF |
√ |
√ |
√ |
| PC |
√ |
√ |
√ |
| PC FR |
√ |
√ |
√ |
| TPU for AMS |
√ |
√ |
√ |
| TPU 95A HF |
√ |
√ |
√ |
| TPU 85A |
X |
Not recommended |
Not recommended |
| TPU 90A |
Not recommended |
Not recommended |
Not recommended |
| PAHT-CF |
√ |
√ |
√ |
| PET-CF |
√ |
√ |
√ |
| PA6-CF |
√ |
√ |
√ |
| PPA-CF |
√ |
√ |
√ |
| PPS-CF |
√ |
√ |
√ |
| Support for ABS |
√ |
√ |
√ |
| Support for PLA/PETG |
√ |
√ |
√ |
| Support for PA/PET |
√ |
√ |
√ |
| Support for PLA (New Version) |
√ |
√ |
√ |
| PVA |
√ |
√ |
√ |
| PA6-GF |
√ |
√ |
√ |
Learn more about filament compatibility on Bambu Lab Wiki.
1. If you need multi-color printing with the AMS, connect the AMS to the right-side Fixed Hotend.
2. If you want to use the second hotend for support-material printing, we recommend using the Liftable Hotend.
3.
TPU85A is only supported on the right-side Fixed Hotend. TPU95AHF/90A
is expected to be supported on the left-side Liftable Hotend starting
from firmware version U2.
4. PET-CF / PPA-CF / PPS-CF are supported only on the left-side Liftable Hotend.
