EinScan Rigil Lite Tri-Mode 3D Scanner

Item #: EINSCAN-RIGIL-LITE

There are no reviews yet Write a review

Price: $6,639.35 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:44263

notify me

Estimate Shipping

Quantity:

About This Item

1 0.05 mm geometric resolution captures fine surface detail across small parts and large objects alike.
2 17+17 crossed blue laser lines deliver up to 2,940,000 points/s for high-speed full-body scanning.
3 7 parallel blue laser lines switch on demand for sharper edges and finer geometry on detailed features.
4 IR VCSEL Rapid Mode scans at 16,000,000 points/s with a working distance up to 1,500 mm — ideal for large objects and portrait-safe capture.
5 Marker-free laser scanning uses a Laser + IR hybrid tracking algorithm so feature-rich parts can be scanned with zero marker prep.
6 6.4-inch 2K AMOLED touchscreen drives the full scan, edit, and export workflow directly on the device.
7 Three operating modes Standalone, Wireless PC (Wi-Fi 6), and Wired PC let you scale compute resources to project size.
8 Dual hot-swappable batteries two 5500 mAh packs plus 60 W PD3.0 USB-C charging keep field sessions running.
9 Outdoor-ready performance scans reliably in direct sunlight and at night without spray on reflective metal or dark plastics.
10 5 MP color texture camera produces full-color, true-to-life models for design, heritage, and digital content work.
11 Compact 870 g body measuring 233 × 180 × 72.8 mm for cable-free, single-hand operation in tight spaces.
12 Standard & Limited Editions choose 24 GB LPDDR5 / 512 GB SSD or step up to 32 GB LPDDR5 / 1 TB SSD.

Description

New Release

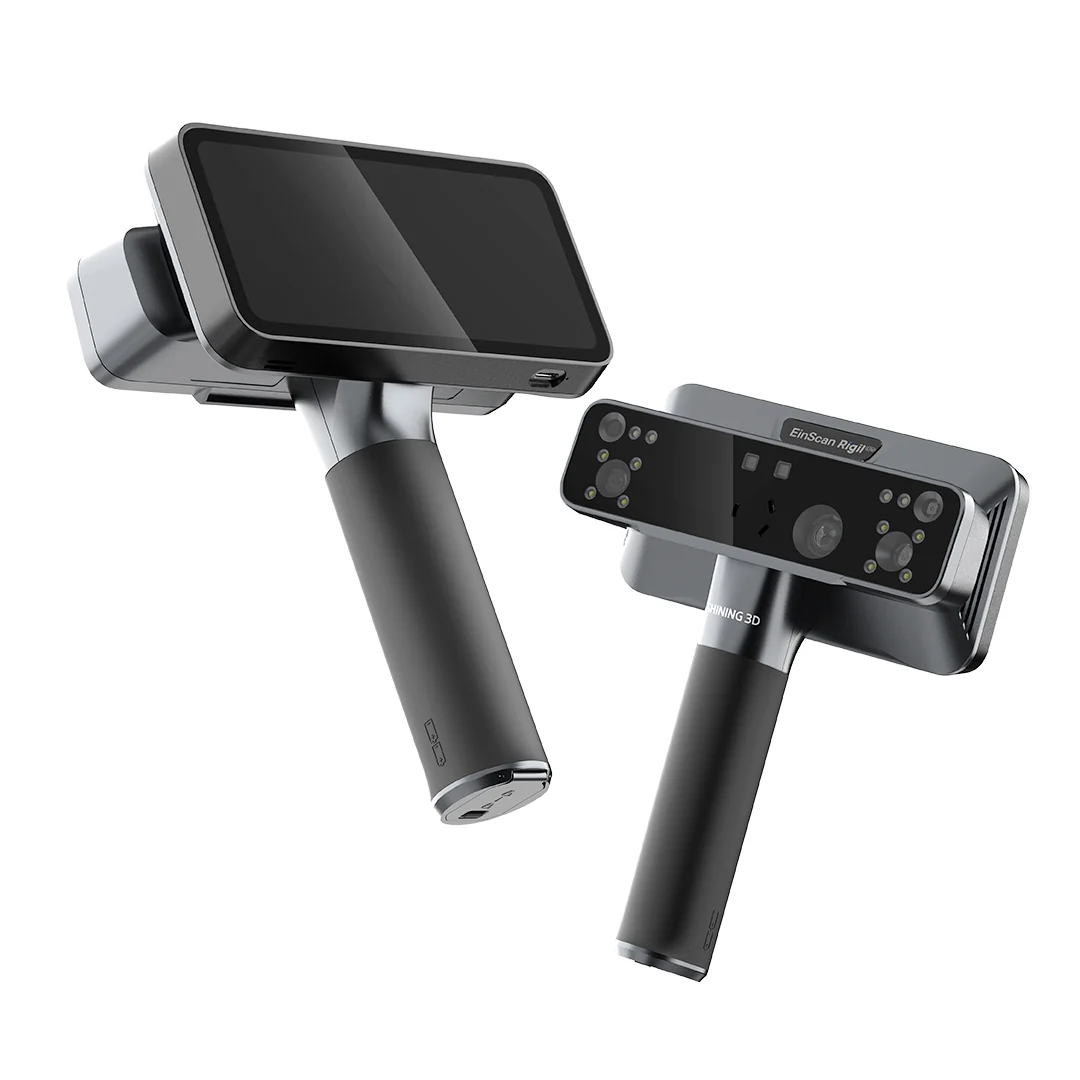

EinScan Rigil Lite All-in-One Wireless Laser 3D Scanner

The EinScan Rigil Lite is a fully integrated, cable-free 3D scanner that combines a blue laser + IR VCSEL hybrid light source, an on-board 6.4-inch 2K AMOLED touchscreen, and a built-in compute platform into a single 870 g handheld unit. Delivering geometric resolution down to 0.05 mm and three flexible work modes — Standalone, Wireless PC, and Wired PC — Rigil Lite brings the core capabilities of the Rigil Series to professionals who want everyday scanning power without a tethered workstation.

All-in-One Standalone
Blue Laser + IR Hybrid
0.05 mm Resolution
Wireless Wi-Fi 6
Marker-Free Scanning

ALL-IN-ONE DESIGN

EinScan Rigil Lite — Lite to Start, Light to Create

The Rigil Series unifies the scanner, display, compute, storage, and power into a single integrated tool, and the EinScan Rigil Lite is the most accessible member of that family. Every step of the workflow — capture, alignment, editing, and export — runs on-device, eliminating the laptop, cables, and bench setup traditional laser scanners require. It's the cost-effective entry point to true all-in-one scanning.

EinScan Rigil Lite — handheld all-in-one wireless 3D scanner with on-device touchscreen

HYBRID LIGHT SOURCE

Blue Laser + IR VCSEL in One Tool

Rigil Lite combines two scanning systems with three light sources. 17+17 crossed blue laser lines drive high-speed Laser HD capture, 7 parallel blue laser lines sharpen detail on edges and small features, and an IR VCSEL Rapid mode handles large surfaces, indoor or outdoor, and is safe for scanning people. Two dedicated camera groups capture each light source independently for clean, low-noise data.

EinScan Rigil Lite — hybrid blue laser and IR VCSEL light source illustration

0.05 mm

Minimum geometric resolution in Laser HD mode

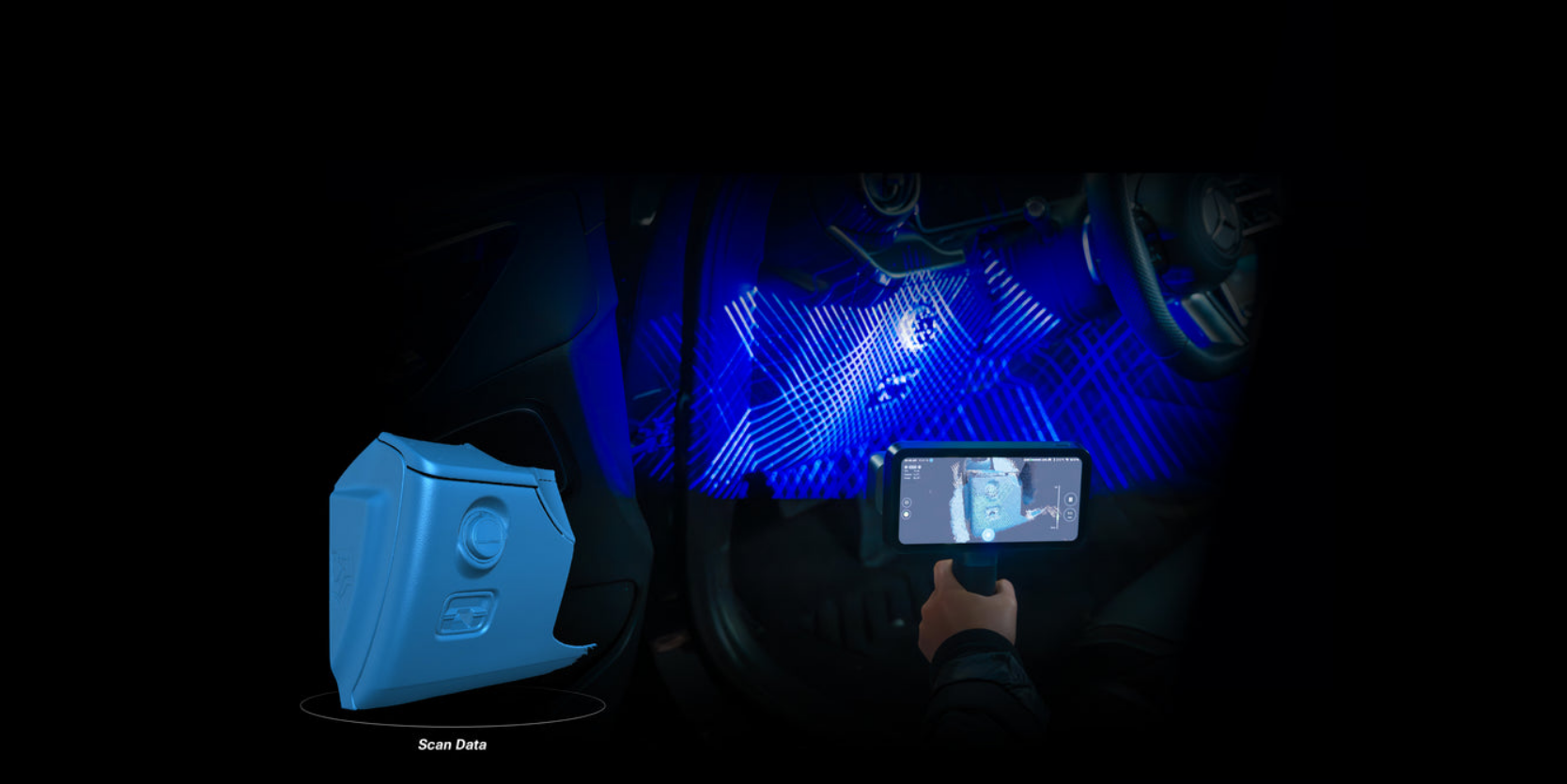

MARKER-FREE WORKFLOW

No Markers. Less Prep. Faster Starts.

A breakthrough Laser + IR hybrid tracking algorithm lets Rigil Lite scan feature-rich objects without sticking a single marker. Start in a high-feature area, cover by sections, and refine details locally — perfect for tight spaces or hard-to-place surfaces like motorcycle frames and engine bays. The result is faster scan starts, a gentler learning curve, and cleaner data than traditional marker-free IR scanning.

EinScan Rigil Lite — marker-free laser scanning of complex mechanical part

1
Standalone Mode Scan, align, edit, and export entirely on the device — no PC, no cables, full portability.
2
Wireless PC Mode Built-in Wi-Fi 6 streams data to a workstation for complex projects and high data volumes.
3
Wired PC Mode USB connection guarantees maximum bandwidth and stability in challenging network environments.

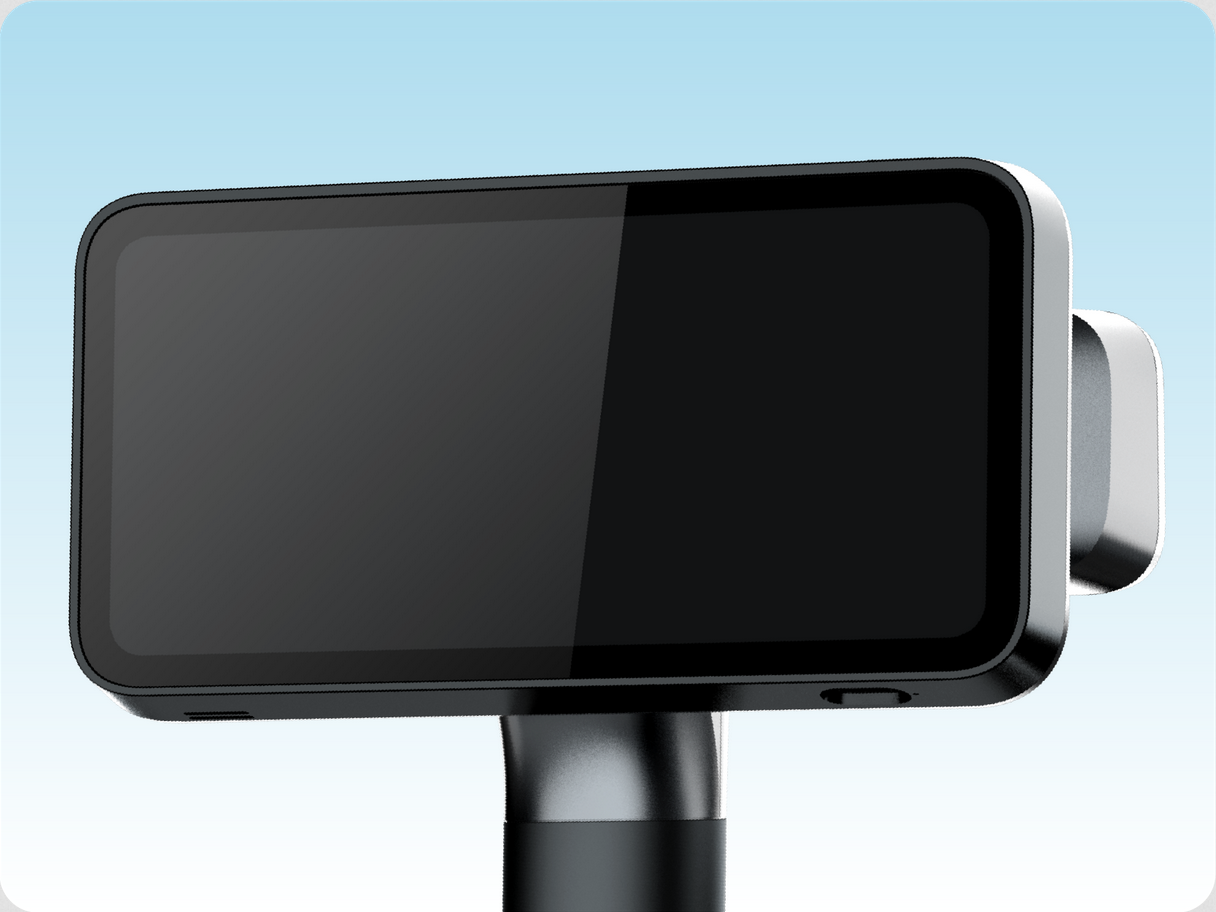

ON-DEVICE COMPUTE

A Workstation in Your Hand

An 8-core 2.4 GHz CPU, 24 GB LPDDR5 RAM (or 32 GB on the Limited Edition), and 512 GB SSD (or 1 TB) power the integrated EXScan Rigil software directly on the scanner. A bright 6.4-inch 2K AMOLED touchscreen provides full project review, real-time rollback, base-surface filtering, and one-click model customization without ever opening a laptop.

EinScan Rigil Lite — 6.4-inch 2K AMOLED touchscreen showing scan workflow

TRUE-COLOR TEXTURE

Full-Color Laser Scanning

A 5 MP texture camera records high-fidelity color data alongside the geometric scan, producing photorealistic, true-to-life models suitable for art, heritage preservation, AR/VR, and digital content. Designers and engineers can carry color information through the entire workflow without a separate photogrammetry pass.

EinScan Rigil Lite — full-color 3D scan with 5 MP texture camera

870 g

Total scanning weight including both batteries

Specifications

Geometric Resolution

0.05 mm (Laser HD) / 0.2 mm (IR Rapid)

Resolution Range

Laser HD: 0.05 – 10 mm; IR Rapid: 0.2 – 10 mm

Scan Speed (Crossed Laser)

2,940,000 points/s

Scan Speed (Parallel Laser)

1,620,000 points/s

Scan Speed (IR Rapid)

16,000,000 points/s

Working Distance

Laser HD: 170 – 550 mm; IR Rapid: 160 – 1,500 mm

Light Sources

Scan Modes

3D Cameras

2.3 MP × 2 + 1.3 MP × 2

Texture Camera

5 MP color

Laser Class

Class II (Laser HD)

Laser HD Alignment

IR Rapid Alignment

Output Formats

Export to USB

Direct export, no software required

CPU

8-core, 2.4 GHz

RAM (Regular)

24 GB LPDDR5

RAM (Limited Edition)

32 GB LPDDR5

Storage (Regular)

64 GB eMMC + 512 GB SSD

Storage (Limited Edition)

64 GB eMMC + 1 TB SSD

Display

6.4-inch 2K AMOLED touchscreen

Work Modes

Wireless

Built-in Wi-Fi 6

Interface

USB Type-C

Battery

5,500 mAh × 2 (replaceable)

Charging

60 W PD3.0 USB-C charger

Dimensions (H × D × W)

233 × 180 × 72.8 mm

Net Weight

870 g (batteries included)

Operating Temperature

-10 °C to 40 °C

Certifications

Operating System

Windows 11 (64-bit)

Processor

13th Gen Intel Core i7-13700H or higher

Graphics

NVIDIA GeForce RTX 3060 Laptop GPU or higher (8 GB+ VRAM)

Memory

64 GB DDR5 dual-channel or higher

Interface

USB 3.0

Additional Information

Rigil Lite delivers the core capabilities of the Rigil Series at a more accessible price point, aimed at professional everyday 3D scanning.

Reverse engineering and CAD workflows on small to mid-size parts.
Automotive aftermarket, restoration, and custom fabrication.
Heritage, art, and digital content creation needing color-accurate scans.
Field engineering, inspection, and on-site capture without a workstation.

Both scanners share the all-in-one form factor and on-device workflow. Rigil Lite trades raw throughput and storage for a more cost-effective entry to the platform.

Laser lines: 17+17 (Lite) vs. 25+25 on Rigil — Rigil is roughly 40% faster.
Volumetric accuracy: Rigil is individually verified at 0.04 + 0.06 mm; Lite is slightly lower.
Memory: 24 GB on the Lite Regular Edition vs. 32 GB on Rigil for ~25% faster processing on large projects.
Storage: 512 GB SSD on Lite Regular vs. 1 TB on Rigil (Lite Limited Edition matches at 1 TB).

Rigil Lite ships with on-device software that handles the entire pipeline from capture to export, with optional PC tools for advanced editing and downstream design.

Real-time rollback to any previous stage during scanning.
Automatic base-surface detection and removal.
Connect-domain and inverse-selection tools for fast cleanup.
One-click measurement retrieval — no calipers required.
Direct export to USB drive without additional software.

What's in the Box

Every EinScan Rigil Lite ships ready to scan out of the box, with the on-device software pre-installed and a complete charging and calibration kit. The Limited Edition adds a memory and storage bump for users handling larger projects.

Regular Edition

1
EinScan Rigil Lite Scanner

All-in-one unit with 6.4-inch 2K AMOLED touchscreen
2
On-Board Compute

8-core 2.4 GHz CPU, 24 GB LPDDR5, 64 GB eMMC + 512 GB SSD
3
Battery Pack × 2

5,500 mAh replaceable Li-ion batteries
4
60 W PD3.0 USB-C Charger

Charge while scanning supported
5
USB Type-C Cable

For Wired PC mode and power delivery
6
Calibration Board

Required for first-use calibration
7
Carrying Case

Protective travel and storage case
8
Quick Start Guide

Setup and safety documentation

Limited Edition Upgrades

9
32 GB LPDDR5 RAM

~25% faster processing on large projects
A
1 TB SSD Storage

Doubled capacity vs. Regular Edition
