EinScan Rigil Tri-Mode 3D Scanner

Item #: EINSCAN-RIGIL

There are no reviews yet Write a review

Price: $9,424.25 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:62829

notify me

Estimate Shipping

Quantity:

About This Item

1 World's first tri-mode 3D scanner switch freely between Standalone, Wireless PC, and Wired PC modes for any workflow.
2 All-in-one integrated design scanner, display, computing, storage, and battery housed in a single unified body.
3 6.4" 2K AMOLED touchscreen preview, control, and process scans on-device without an external monitor.
4 25+25 crossed blue laser lines for high-speed large-area capture up to 4,800,000 points/s.

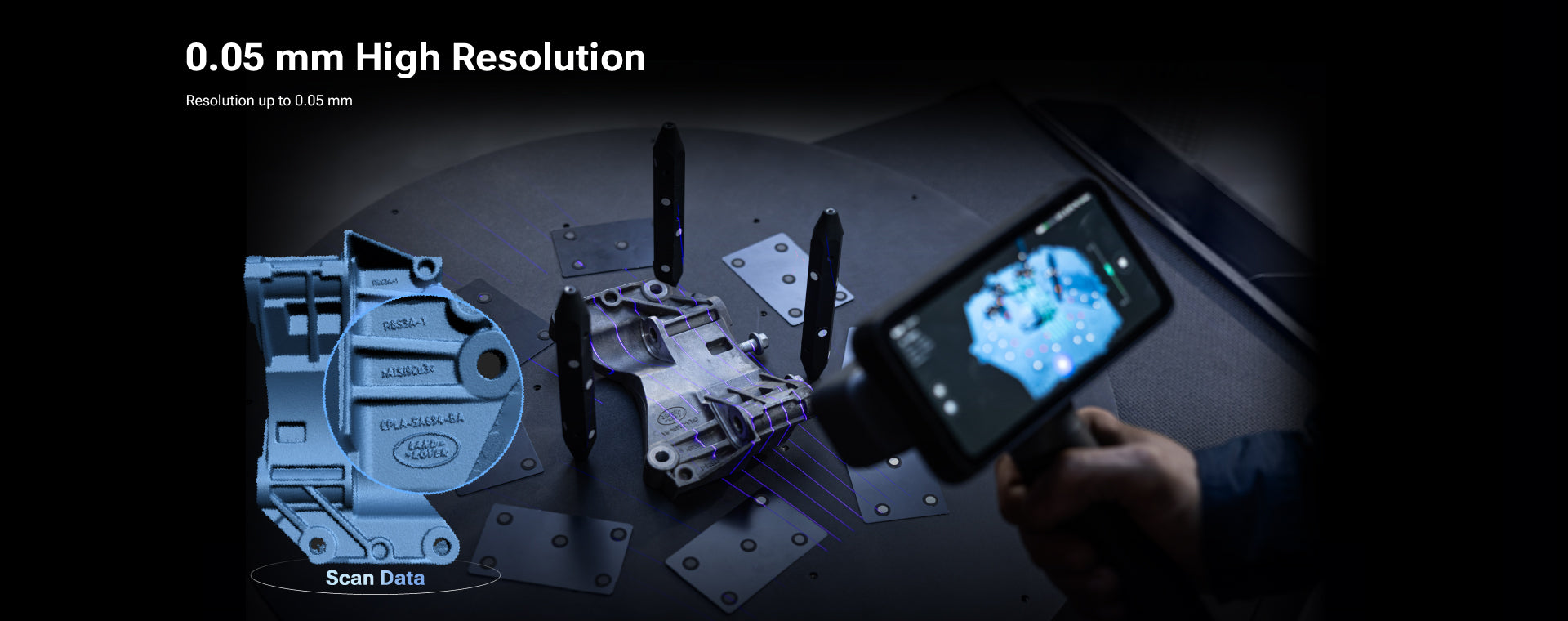

5 7 parallel blue laser lines for fine-detail scanning at up to 1,480,000 points/s with 0.05 mm resolution.

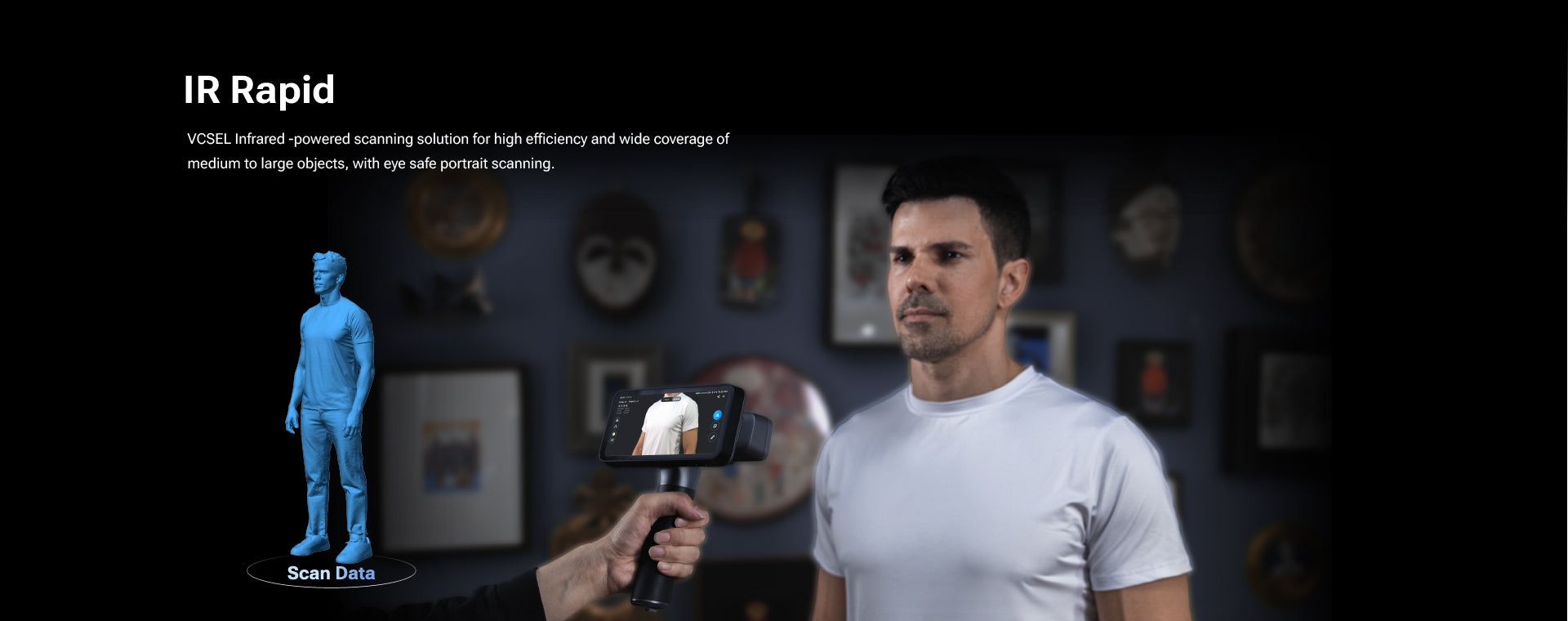

6 IR VCSEL infrared mode delivers up to 16,000,000 points/s for fast capture of large objects and full-body subjects.
7 0.04 + 0.06 mm/m volumetric accuracy calibrated and verified per device for consistent metrology-grade results.
8 Marker-free laser scanning skip marker prep entirely on feature-rich surfaces in tight spaces.
9 5 MP color texture camera captures vivid surface details for high-fidelity rendering and analysis.
10 Built-in Wi-Fi 6 connectivity stream scans wirelessly to a PC for additional processing power when needed.
11 Dual swappable 5500 mAh batteries for extended cable-free operation in the field or workshop.
12 Adapts to dark & reflective surfaces scans automotive parts and shiny metal directly without spray.

Description

World's First Tri-Mode Scanner

EinScan Rigil Tri-Mode All-in-One Laser 3D Scanner

The EinScan Rigil is the world's first tri-mode all-in-one laser 3D scanner, combining built-in computing, hybrid light technology, and a 6.4" 2K AMOLED touchscreen in a single integrated device. Engineered for automotive aftermarket and demanding professional workflows, it delivers up to 0.04 + 0.06 mm/m volumetric accuracy, scan speeds reaching 16,000,000 points/s, and seamless switching between Standalone, Wireless PC, and Wired PC modes — no laptop required.

Tri-Mode Operation
All-in-One Design
Built-in Wi-Fi 6
AMOLED Touchscreen
Hybrid Light Source

TRI-MODE PIONEER

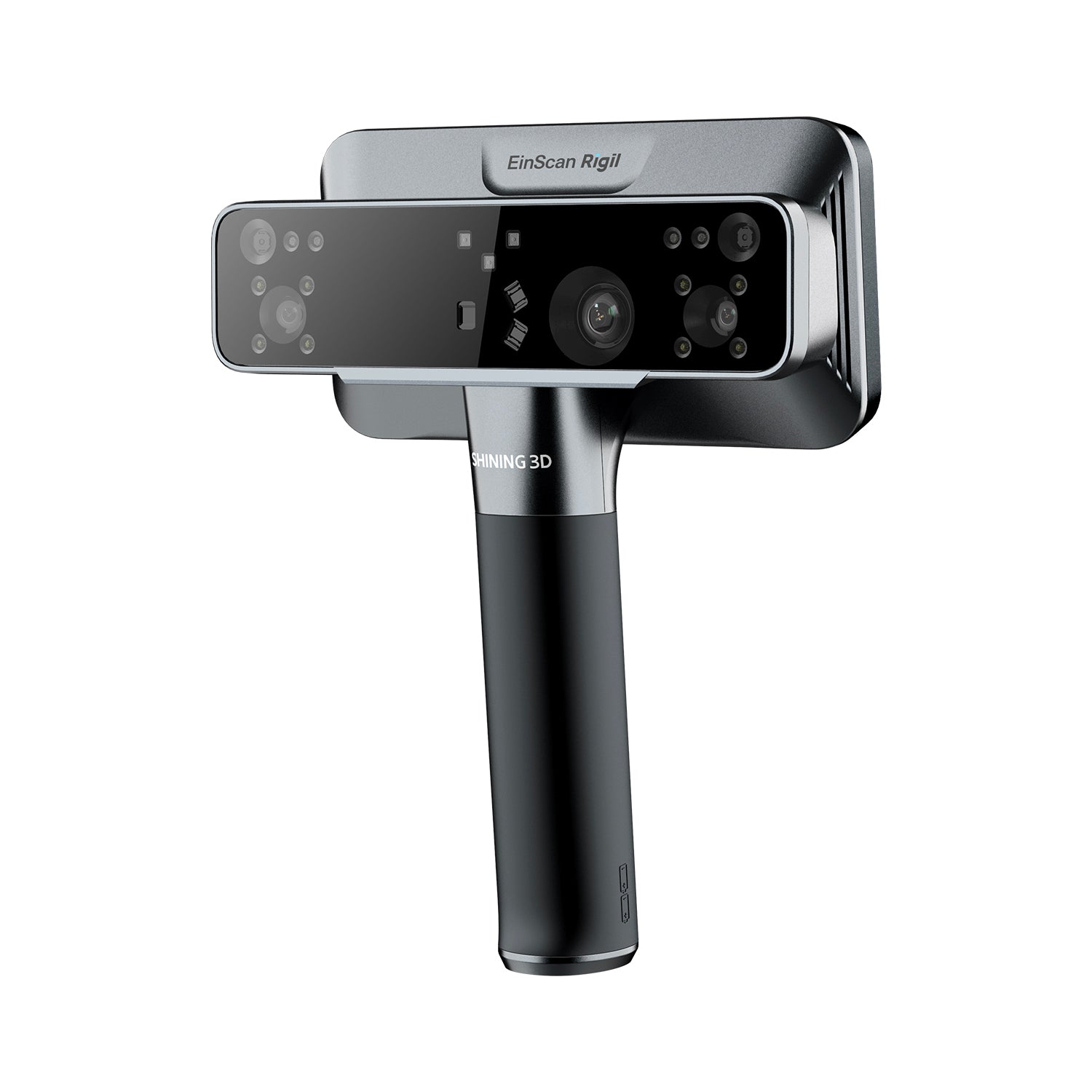

Meet the EinScan Rigil

The EinScan Rigil is the first truly universal 3D scanner engineered for the automotive modification and aftermarket industry. Its all-in-one design with cable-free, sizeable freedom and powerful materials adaptability lets you scan anytime, anywhere. For users who want maximum throughput or finer detail, EinScan Rigil also supports wired and wireless PC modes for advanced performance — a single tool that scales from quick on-site captures to full studio metrology.

EinScan Rigil — All-in-one tri-mode 3D scanner overview

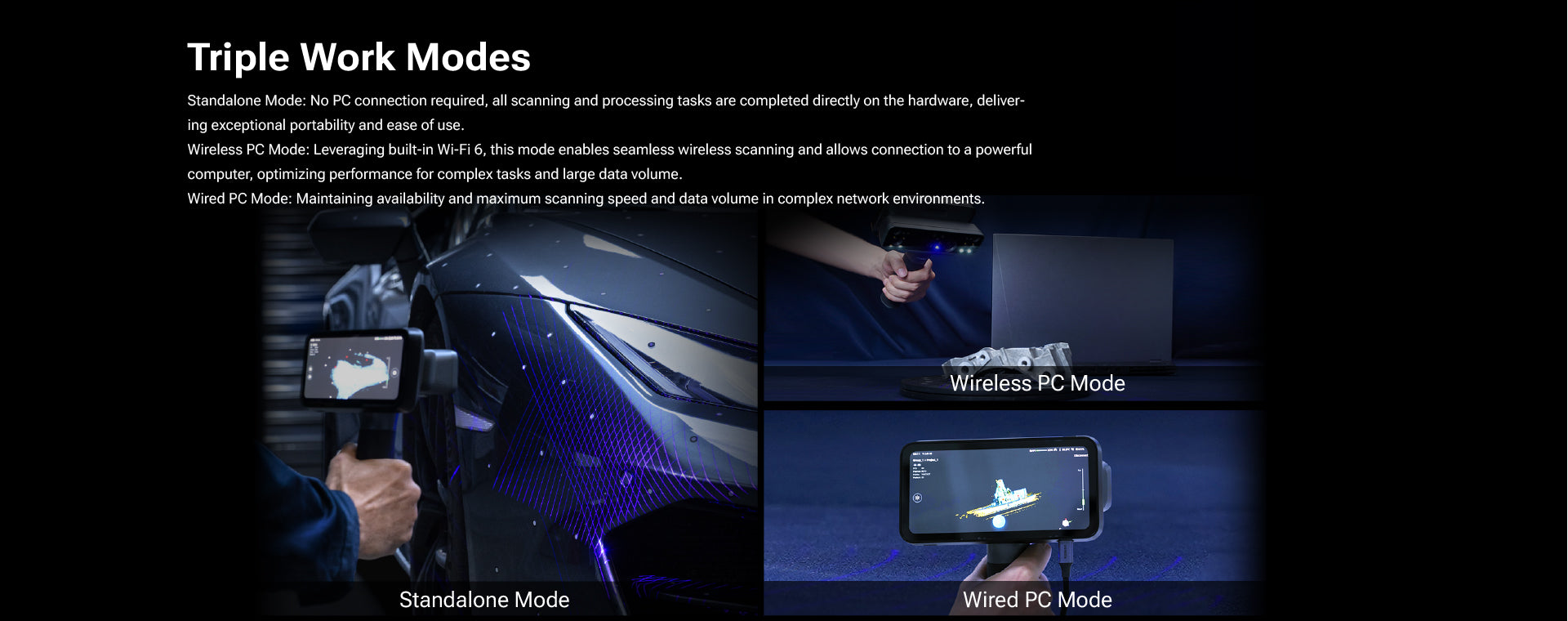

1
Standalone Mode All scanning and processing complete on-device — no PC required, ideal for on-site, mobile, and outdoor jobs.
2
Wireless PC Mode Built-in Wi-Fi 6 streams data to a powerful PC for maximum compute on complex projects and large datasets.
3
Wired PC Mode USB Type-C connection delivers maximum stability and throughput in restricted network environments.

ALL-IN-ONE DESIGN

Everything Onboard, Nothing in the Way

Rigil integrates the scanner, 6.4" 2K AMOLED touchscreen, computing hardware, storage, and battery into one unified body. With an 8-core 2.4 GHz CPU, 32 GB LPDDR5 RAM, and 1 TB SSD plus 64 GB eMMC storage, every part of the workflow happens right in your hand — preview, capture, edit, and export without ever opening a laptop.

EinScan Rigil — All-in-one body with AMOLED touchscreen

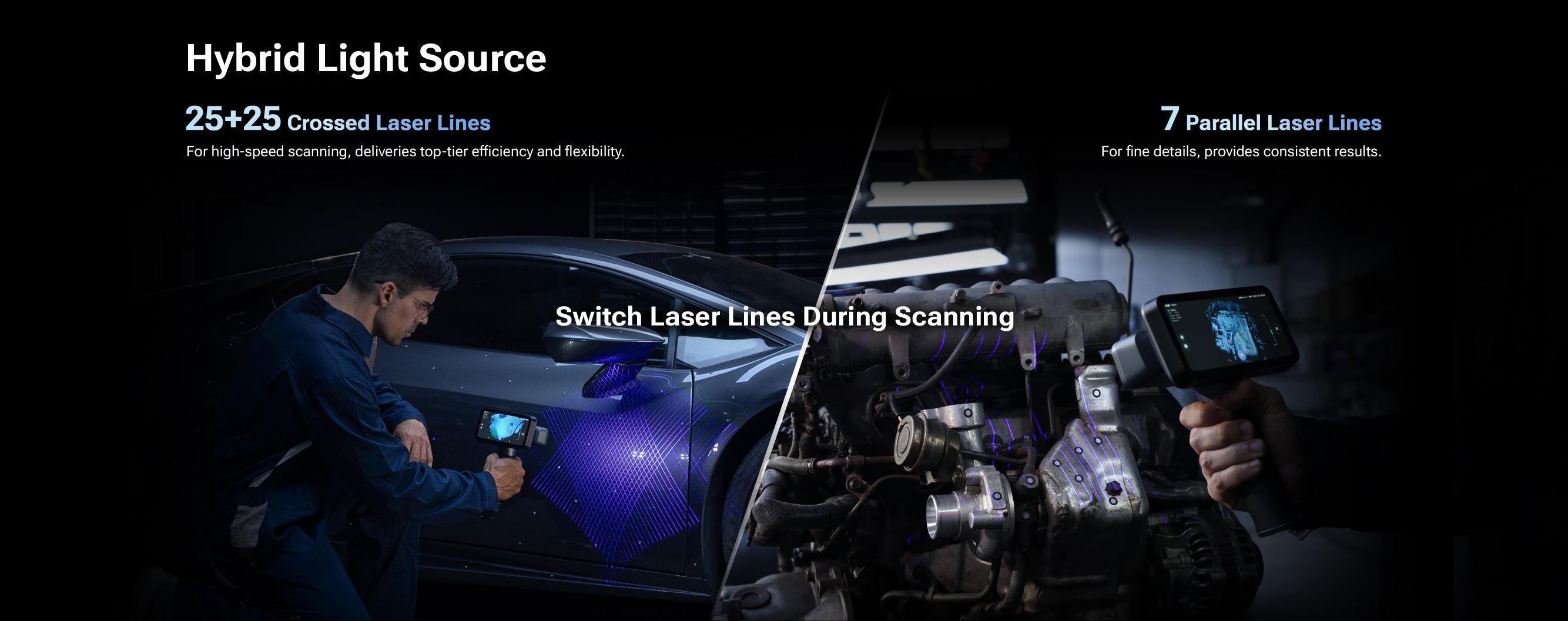

1
25+25 crossed blue laser lines Top-tier large-area scanning at up to 4,800,000 points/s with reduced effort.
2
7 parallel blue laser lines Fine-feature mode delivering 1,480,000 points/s for crisp detail work.
3
IR VCSEL Massive 16,000,000 points/s throughput for big objects, body capture, and outdoor environments.
4
Switchable mid-scan Crossed and parallel modes can be combined within a single project for speed plus detail.

0.04 + 0.06 mm/m

Volumetric accuracy in Laser HD mode

MATERIAL VERSATILITY

Reliable on Dark & Reflective Metal

Rigil's blue laser plus IR system handles materials that defeat conventional structured-light scanners. Dark surfaces, polished metal, and reflective parts capture cleanly with no spray required, making it ideal for automotive components, fabrication shops, and industrial inspection workflows. Even outdoor sunlight isn't a barrier — Rigil keeps capturing reliably where most studio scanners give up.

EinScan Rigil — Scanning dark and reflective parts without spray

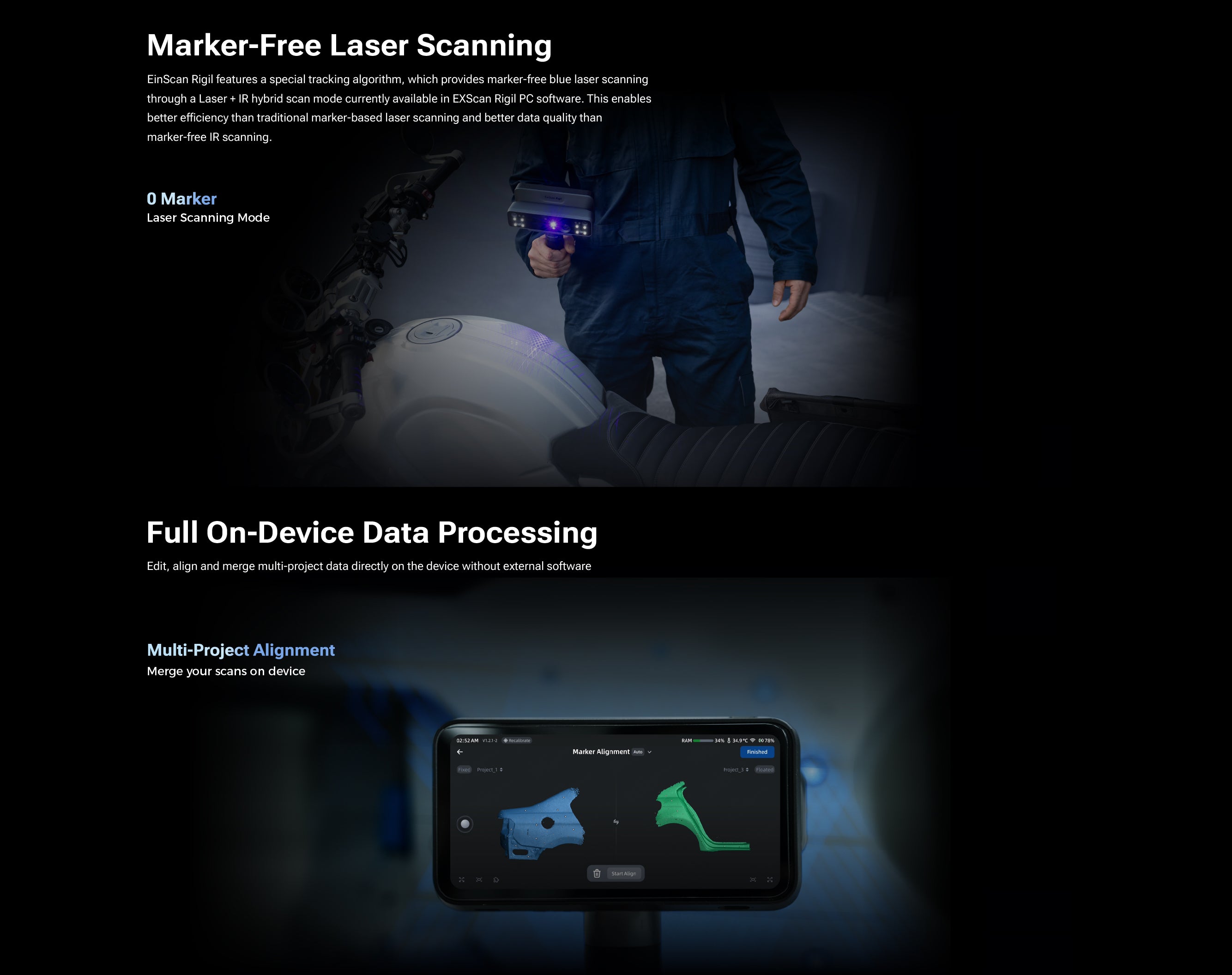

MARKER-FREE WORKFLOW

Skip the Markers, Save the Time

Rigil features a special tracking algorithm that enables marker-free blue laser scanning via a Laser + IR hybrid mode, available in both Standalone and PC modes. The result is better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning alone — perfect for tight spaces or hard-to-mark surfaces like motorcycle frames and car interiors.

EinScan Rigil — Marker-free laser scanning workflow

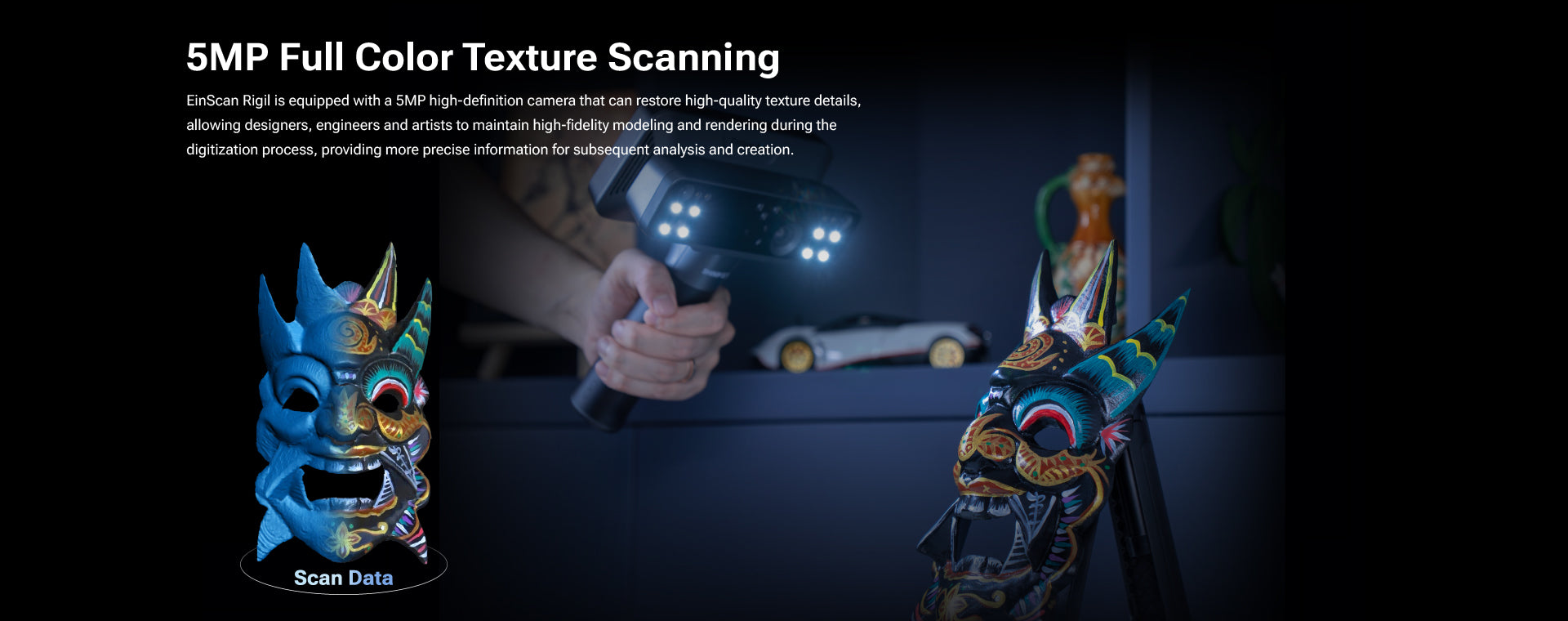

TRUE COLOR

5 MP Texture Camera for High-Fidelity Detail

Rigil is equipped with a 5 MP high-definition texture camera that restores rich color and surface detail with every scan. Designers, engineers, and artists maintain high-fidelity models throughout the digitization process, providing accurate visual context for downstream rendering, inspection, and analysis.

EinScan Rigil — 5 MP color texture camera capture

AUTOMOTIVE READY

Built for the Automotive Aftermarket

Whether you're designing a custom turbo kit, scanning an engine bay for clearance, capturing a full trunk for trim fitment, or digitizing seats for upholstery, Rigil's tri-mode flexibility and all-in-one form factor shine in real automotive workflows. Fab shops, custom builders, and aftermarket designers get a single tool that handles every job from a small bracket to a complete vehicle interior.

EinScan Rigil — Automotive aftermarket scanning applications

SOFTWARE ECOSYSTEM

EXScan Rigil + EXModel + BlueStar Mapping

Rigil ships with a full software stack: EXScan Rigil handles capture and on-device processing, BlueStar Mapping projects high-resolution photos from smartphones or DSLRs onto scans for stunning textured models, and EXModel takes meshes through reverse engineering to professional CAD solid models in just a few steps. Outputs export to STL, OBJ, PLY, 3MF, and ASC for any downstream pipeline.

EinScan Rigil — EXScan, EXModel, and BlueStar Mapping software

Specifications

Work Modes

Scan Modes

Light Source

25+25 crossed blue laser lines, 7 parallel blue laser lines, IR VCSEL

Laser Class

Class II (Laser HD)

Alignment Modes (Laser HD)

Alignment Modes (IR Rapid)

Volumetric Accuracy (Laser HD)

Up to 0.04 + 0.06 mm/m

Volumetric Accuracy (IR Rapid)

Up to 0.1 + 0.4 mm/m

Resolution (Laser HD)

0.05 ~ 10 mm

Resolution (IR Rapid)

0.2 ~ 10 mm

Scan Speed (25+25 Crossed)

Up to 4,800,000 points/s

Scan Speed (7 Parallel)

Up to 1,480,000 points/s

Scan Speed (IR Rapid)

Up to 16,000,000 points/s

Working Distance (Laser HD)

170 ~ 550 mm

Working Distance (IR Rapid)

160 ~ 1500 mm

3D Cameras

2.3 MP × 2 + 1.3 MP × 2

Texture Camera

5 MP RGB

Output Formats

CPU

8-core, 2.4 GHz

RAM

32 GB LPDDR5

Storage

64 GB eMMC + 1 TB SSD

Display

6.4" 2K AMOLED touchscreen

Connectivity

Battery

5500 mAh × 2, swappable

Charging

60 W PD 3.0 charger supported

Operating Temperature

-10°C ~ 40°C

Certifications

Dimensions (H × D × W)

233 × 180 × 72.8 mm

Net Weight

870 g (batteries included)

Operating System

Windows 11 (64-bit)

Processor

13th Gen Intel Core i7-13700H or higher

Graphics Card

NVIDIA GeForce RTX 3060 Laptop GPU or higher, 8 GB+ VRAM

RAM

64 GB or higher, DDR5/LPDDR5 dual-channel

Interface

USB 3.0

Additional Information

EinScan Rigil is purpose-built for prosumers in the automotive aftermarket and any professional workflow that demands a fast, all-in-one 3D capture solution.

Automotive fab shops designing custom kits, brackets, and trim.
Engineers reverse engineering parts where original CAD doesn't exist.
Industrial inspectors needing metrology-grade volumetric accuracy.
Heritage and art professionals scanning sculptures and outdoor monuments.
Designers digitizing complex assemblies with mixed materials and lighting.

By integrating computing, display, and battery into the scanner itself, Rigil removes the friction of traditional PC-tethered workflows.

No laptop, cables, or hub to set up before scanning starts.
Multi-project capability lets you check results on-site.
Built-in Wi-Fi 6 still allows PC offload when extra power is needed.
Dual swappable batteries keep field sessions running for hours.

What's in the Box

Every EinScan Rigil ships fully equipped for professional workflows. The standard package includes the all-in-one scanner, dual swappable batteries, calibration board with universal holder, charging accessories, reflective markers, marker removal tool, and a tempered glass screen protector — everything required to deliver high-accuracy scans straight out of the case.

Standard Package Contents

1
EinScan Rigil Scanner

All-in-one tri-mode 3D scanner with built-in computing
2
Carrying Case

Hard-shell protective case for transport
3
Calibration Board

For factory-grade accuracy calibration
4
Universal Holder

Stand for the calibration board
5
Power Adapter

60 W PD 3.0 charger
6
Type-C Cable for Scanner

USB Type-C cable for wired PC mode and charging
7
Battery Compartment & Charging Cable

External dock for charging spare batteries
8
Battery

Swappable 5500 mAh × 2 (21700 type)
9
3 mm and 6 mm Reflective Markers

Reference markers for marker-based alignment
A
Tempered Glass Screen Protector

Pre-applied protection for the AMOLED touchscreen
B
Marker Removal Tool

For clean removal of adhesive markers after scanning
C
Cleaning Cloth

Microfiber cloth for screen and optics
D
Packing List

Document detailing all included contents
