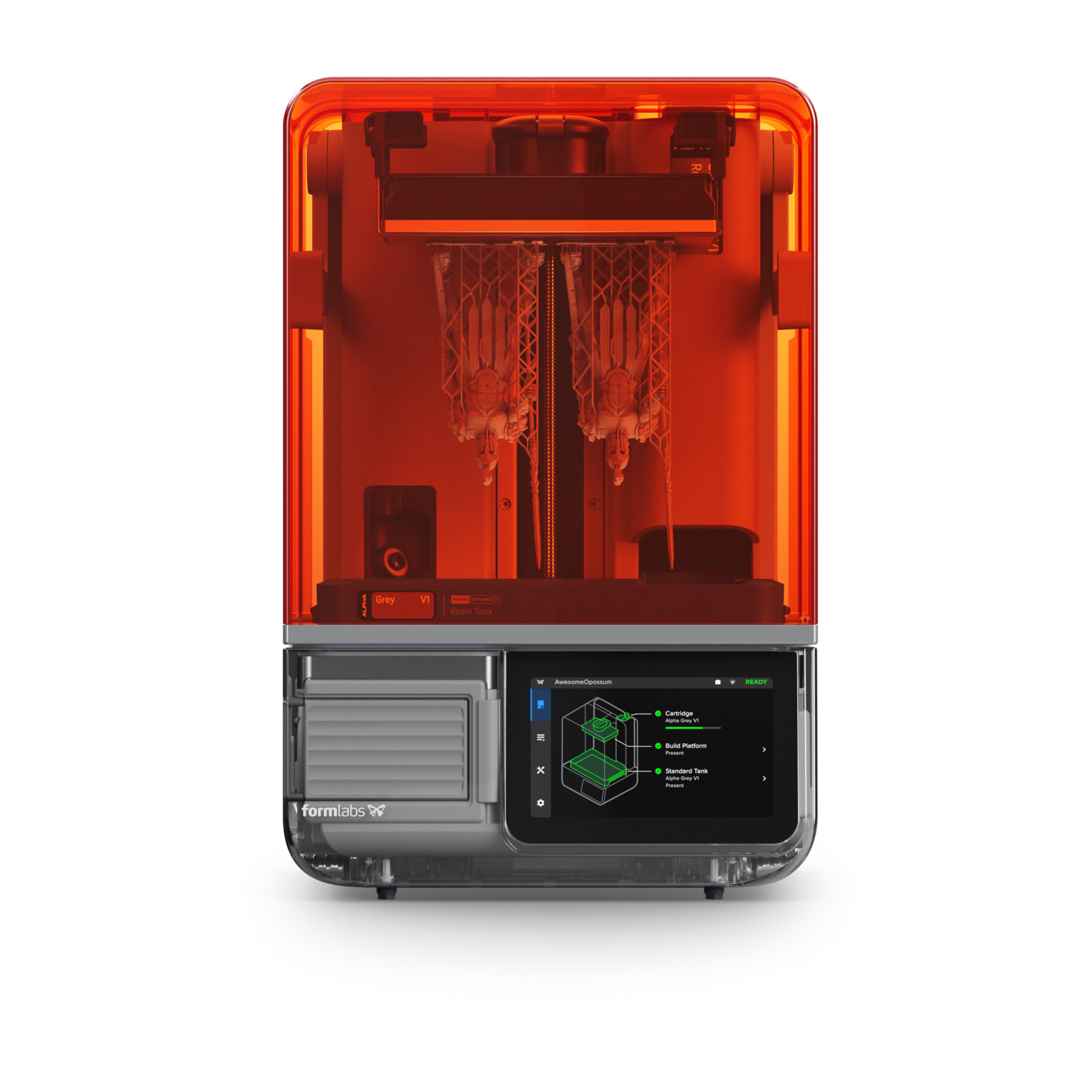

Formlabs Form Studio 1 professional desktop resin 3D printer in Graphite, NZ

Formlabs Form Studio 1 Resin 3D Printer (Flex Package)

Item #: FL-FS1-FLEX

There are no reviews yet Write a review

Price: $2,181.83 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:14546

notify me

Quantity:

About This Item

Flex Package: includes Build Platform Flex, parts pop off in seconds without tools
Most prints finish in under 2 hours; up to 130 mm/h with Alpha Fast Resin
35 µm pixels for razor-sharp detail and smooth surfaces
200 × 125 × 235 mm (5.9 L) build volume
Automatic resin dispensing and heating, no pouring
UL GREENGUARD Gold with Alpha Resins and VOC Extractor
Built-in camera, Wi-Fi, Ethernet and free PreForm software

Overview

New from Formlabs

Formlabs Form Studio 1: Professional Resin Printing for Anyone

Formlabs print quality and reliability in an affordable desktop resin printer. Most parts finish in under two hours, with razor-sharp detail, mess-free automatic resin handling and a low-odour workflow that is safe for your home, office or classroom.

< 2 hrsMost prints

35 µmPixel size

5.9 LBuild volume

130 mm/hMax speed (Alpha Fast)

Formlabs Form Studio 1 resin 3D printer on a desk in a home studio

Blazing fast

Most Parts Printed in Under Two Hours

A backlight of 28 high-powered LEDs and collimating lenses cures each layer quickly and evenly, while Release Texture V2 and an oxygen-permeable tank film cut peel forces. Print time stays the same whether you print one part or fill the platform, and Alpha Fast Resin reaches up to 130 mm per hour.

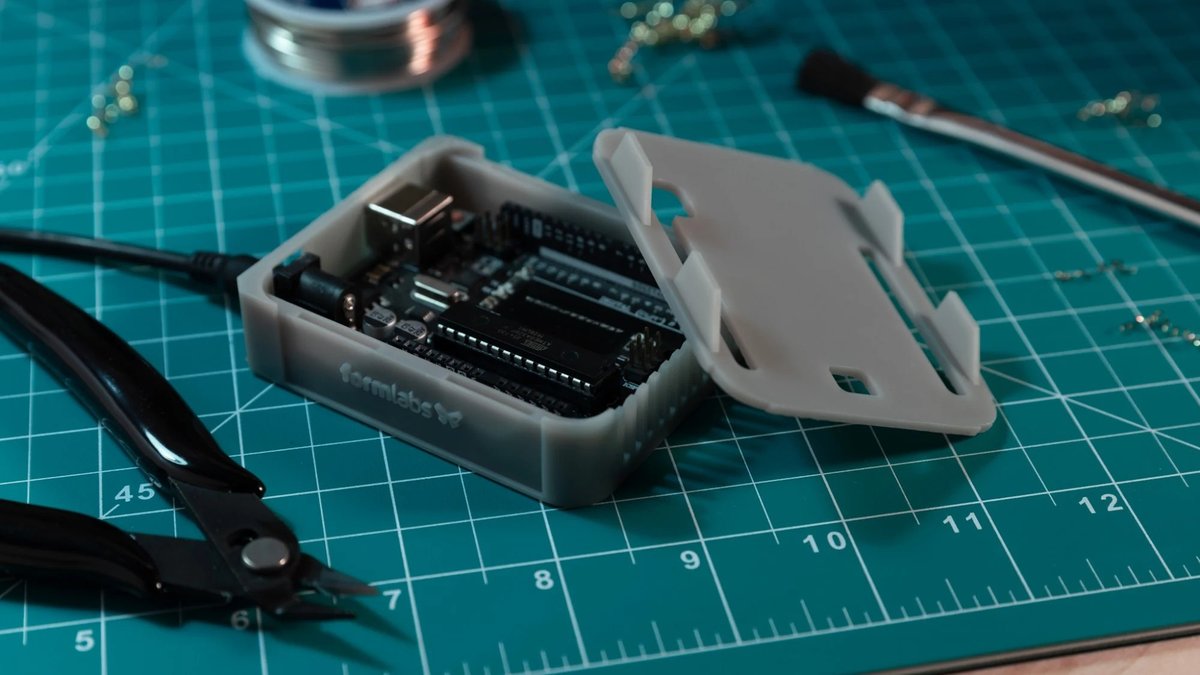

Arduino case printed in Alpha Fast Resin on the Formlabs Form Studio 1

UL GREENGUARD Gold

Safe to Use Where You Work and Live

The fully enclosed print chamber and low-odour Alpha Resins mean no tent or dedicated ventilation is needed. Paired with Alpha Resins and the Formlabs VOC Extractor, Form Studio 1 is the first resin 3D printer certified UL GREENGUARD Gold for low chemical emissions. Printed Alpha Resin parts are certified for long-term skin contact.

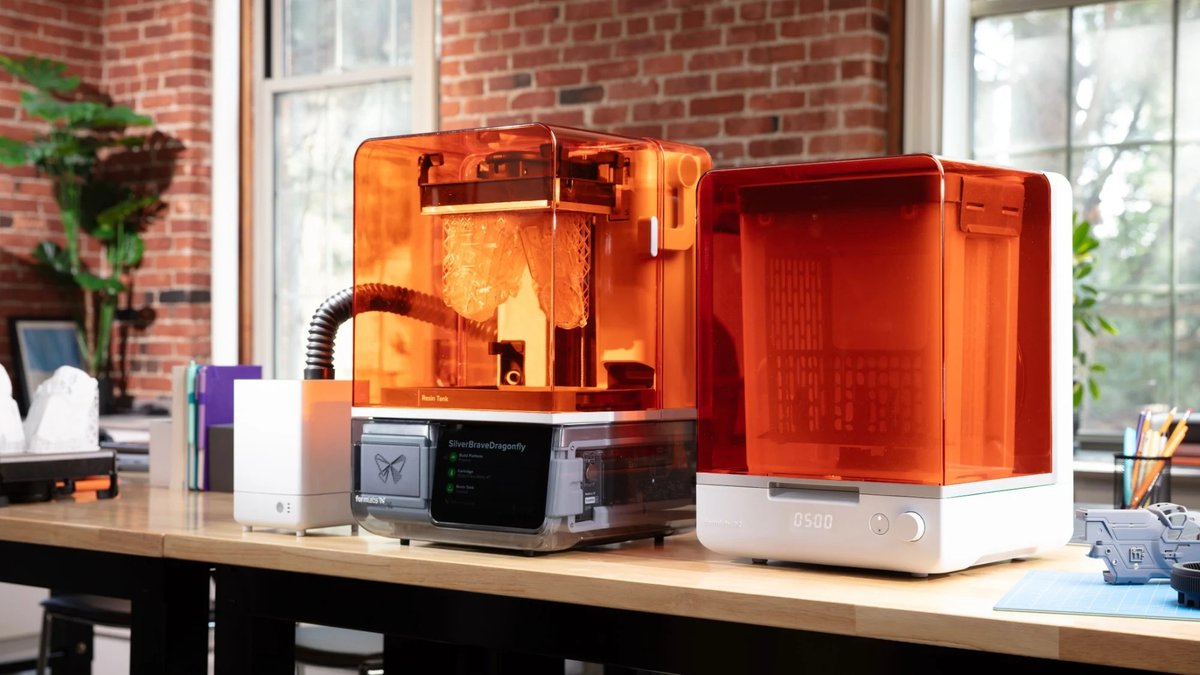

Formlabs Form Studio 1 and Form Studio Wash+Cure in a shared office

Amazing parts

Razor-Sharp Detail and Smooth Surfaces

Highly collimated light and 35 µm pixels with tuned anti-aliasing capture the finest features. Lower peel forces and light-touch supports leave smooth, layer-free surfaces that are ready to paint or present.

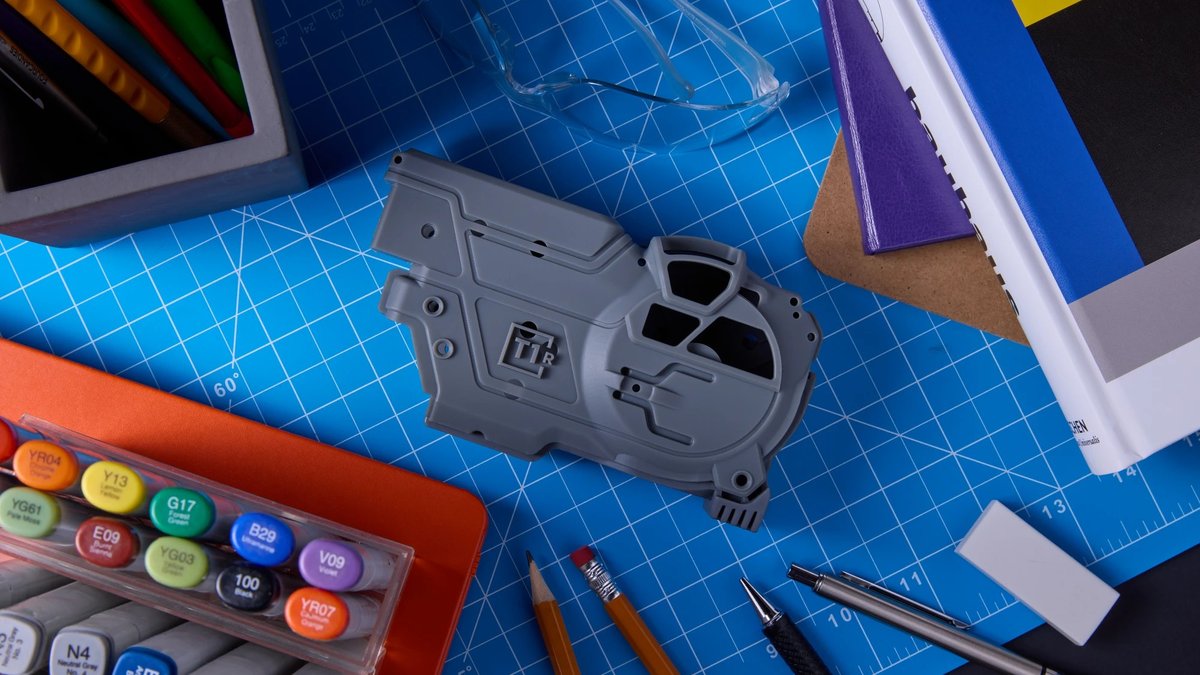

Smooth surface product prototype printed on the Formlabs Form Studio 1

Accurate assemblies

Parts That Fit Straight Off the Printer

XY tolerances go down to ±0.08 mm, and every material setting is tuned to that resin's shrinkage, so printed parts match your model and assemblies fit together as designed.

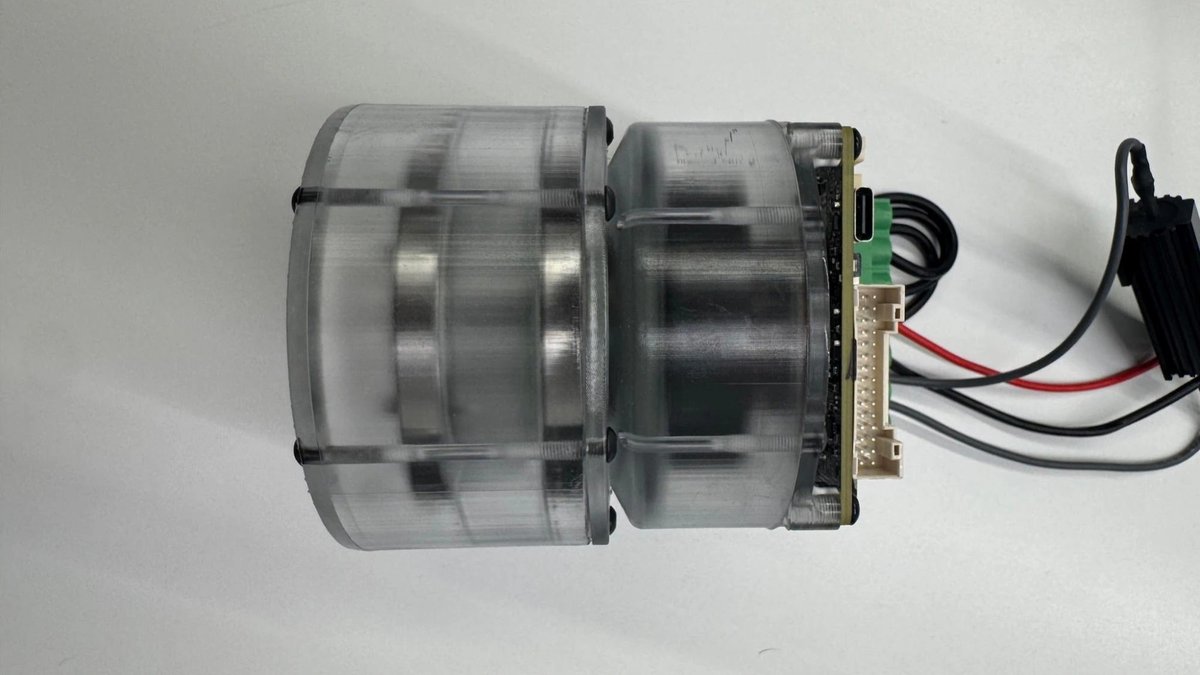

Accurate mechanical assembly printed in Alpha White Resin on Form Studio 1

Easy to use

Learn to Print in About 10 Minutes

Resin cartridges dispense and heat automatically, so you never pour resin. Choose a material, prepare the job with one click in PreForm and press print. With Build Platform Flex, parts pop off in seconds without tools.

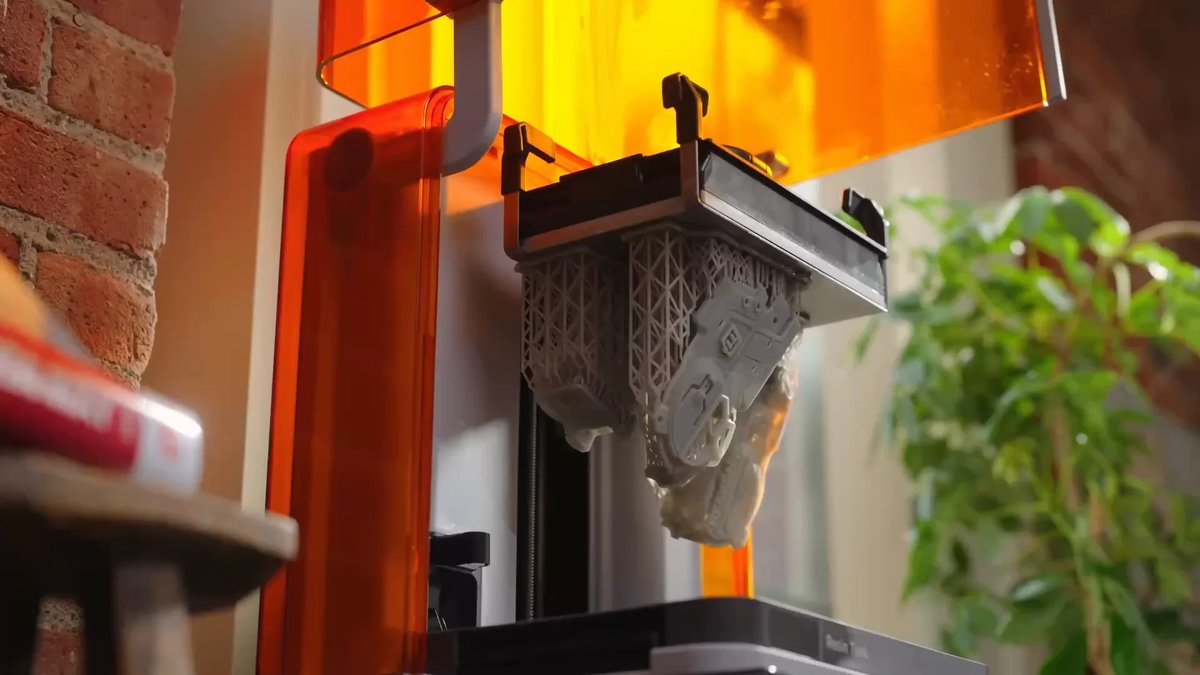

Removing a print from the Formlabs Form Studio 1 Build Platform Flex

Reliable

Formlabs Reliability, Factory Calibrated

Every printer passes a 28-point calibration and a complete test print before leaving the factory. Integrated sensors monitor resin temperature, resin level and print forces, and Formlabs reports print success comparable to Form 4 in internal testing.

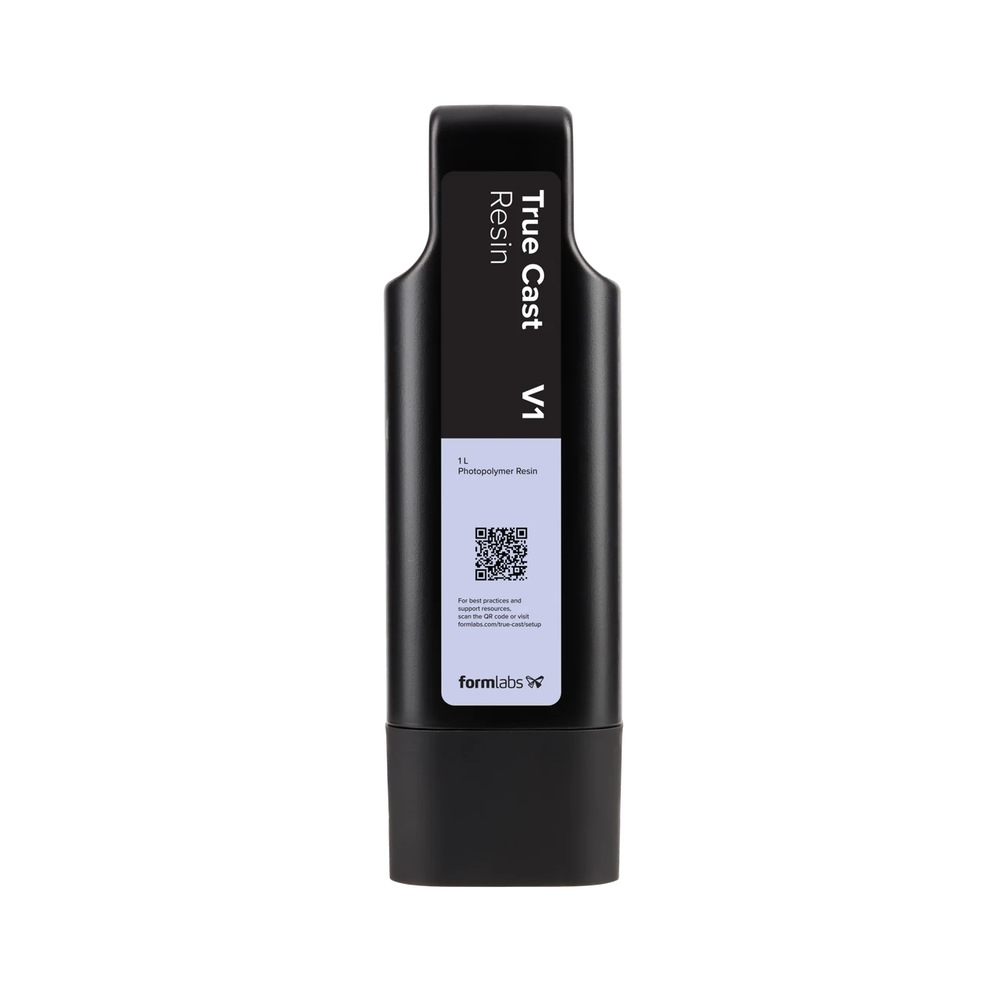

Formlabs resin cartridge with automatic dispensing for Form Studio 1

Watch from anywhere

Built-in Camera and Form Mobile App

A high-resolution camera with stage light streams your print to the Form Mobile app, records time-lapses and notifies you the moment a job finishes. Prefer privacy? Cap the camera or switch it off in settings.

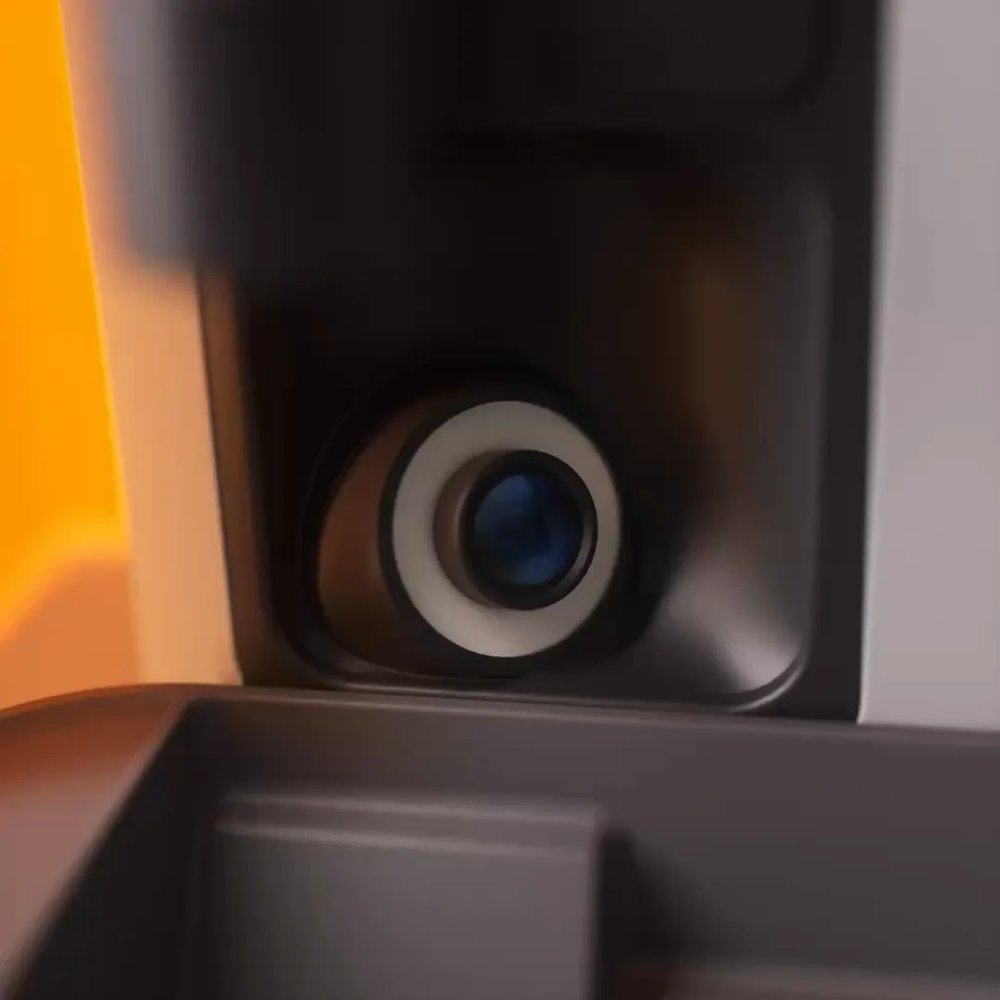

Formlabs Form Studio 1 built-in camera for remote monitoring and time-lapses

Powerful free software

PreForm Does the Hard Work

PreForm suggests the best orientation, supports and layout in one click, with full manual control when you want it. Projects let you plan multiple build platforms in one file.

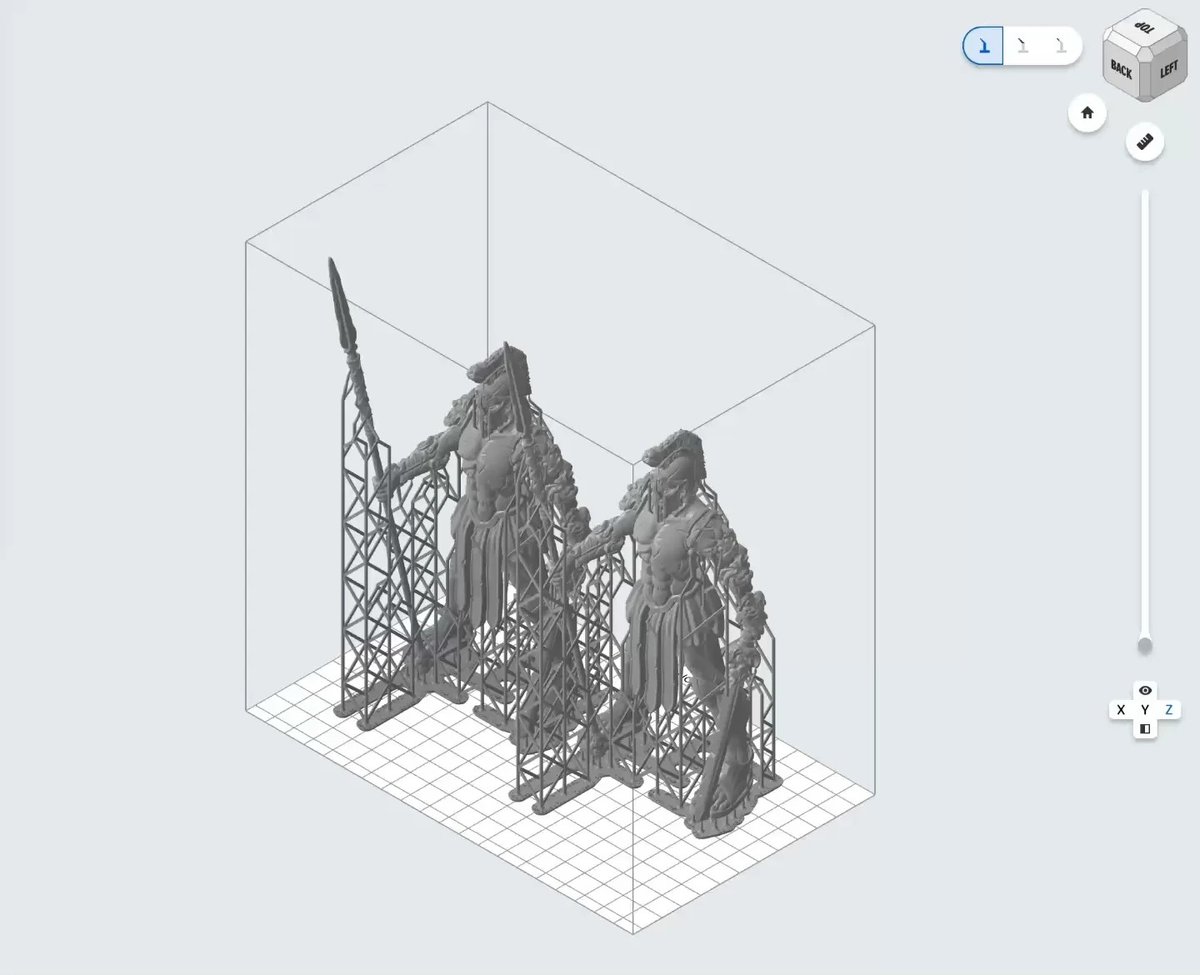

Formlabs PreForm software preparing miniatures for the Form Studio 1

Six New Alpha Resins

Alpha Grey, White, Black, Clear, Model and Fast were developed for Form Studio 1. They are low odour, contain no ingredients with known acute toxicity, and printed parts are safe for long-term skin contact. Tough 1500, Flexible 80A and True Cast are also supported with validated settings, and Open Material Mode is included for third-party 405 nm resins.

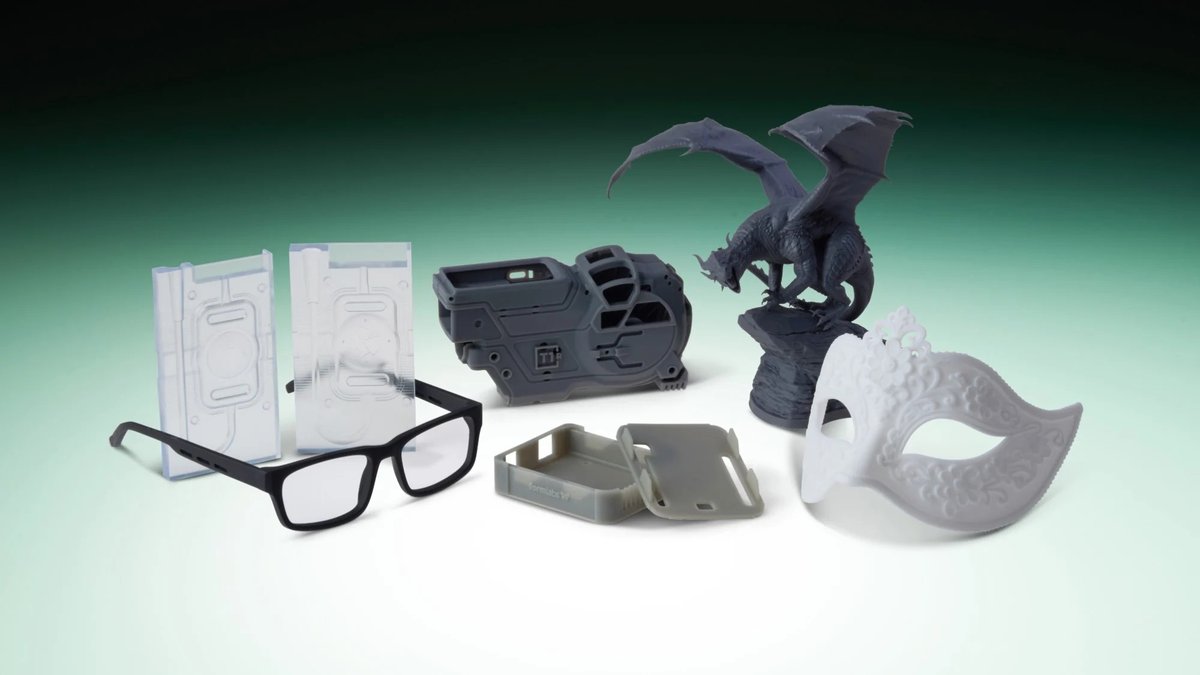

Parts printed in Formlabs Alpha Resins including glasses frame, mask and figurine

Post-Processing Made Simple

Form Studio Wash+Cure is a compact all-in-one unit that washes and cures your Form Studio 1 prints, so parts reach their final properties with minimal handling.

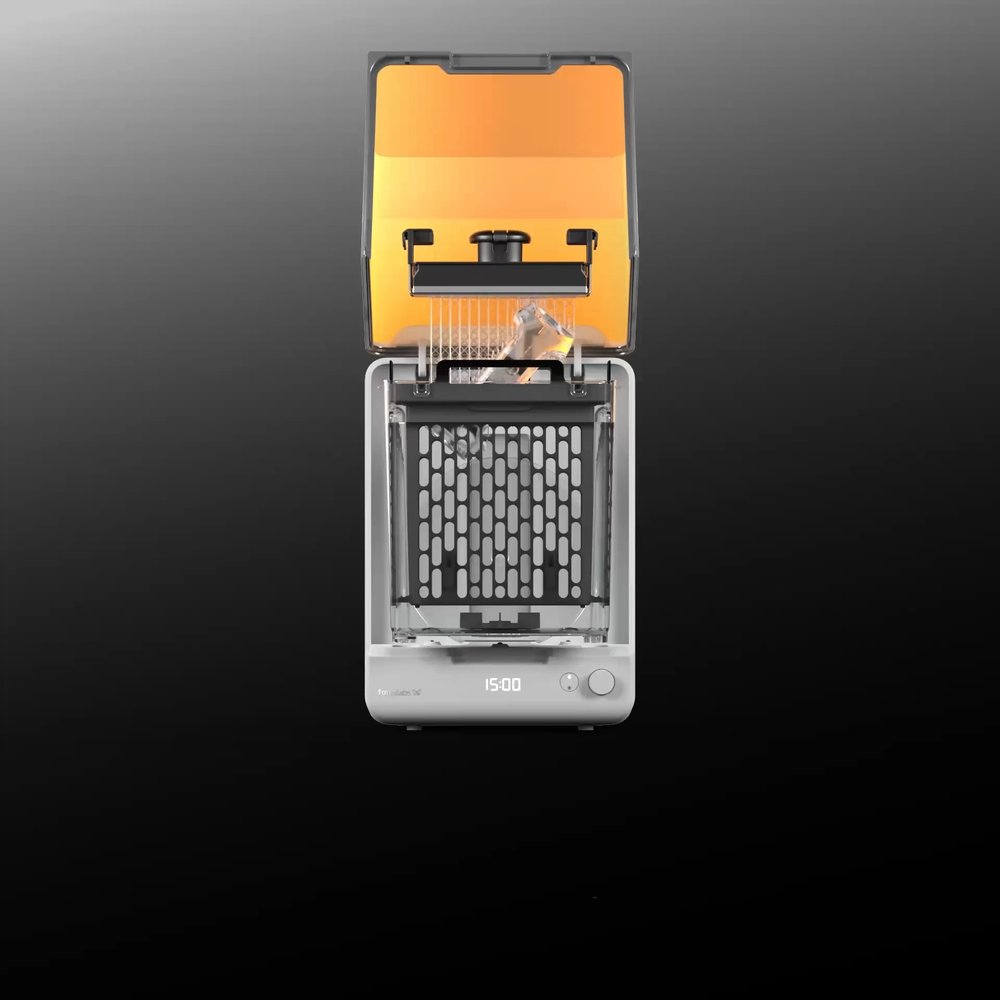

Formlabs Form Studio Wash+Cure all-in-one post-processing unit

Form Studio 1 or Form 4?

Form Studio 1: the affordable way into professional resin printing for creators, designers, studios and classrooms, with the finest 35 µm detail and the new Alpha Resins.
Form 4: for engineering and production work that needs the widest materials library, more power and up to five years of Pro Service. See the Formlabs Form 4.

Why Buy From MindKits

Formlabs reseller in New Zealand with nationwide shipping
Local NZ support for setup, warranty and consumables
One place for your workflow including Formlabs printers, resins and post-processing

Technical Specifications

Technology	Masked stereolithography (MSLA) with Low Force Display™ (LFD)
Light source	Backlight unit with 28 LEDs and plano-convex lens array, 405 nm, 6 mW/cm² at the cure plane
Pixel size	35 µm with anti-aliasing
Build volume (W × D × H)	200 × 125 × 235 mm (5.9 L)
Build area	250 cm²
Maximum part length	291 mm
Layer thickness	25–250 µm
Maximum print speed	Up to 130 mm/hour (Alpha Fast Resin)
XY tolerances	1–30 mm features ±0.5%; 31–80 mm ±0.2%; 81–150 mm ±0.03% (lower limit ±0.08 mm)
Materials	Alpha Grey, White, Black, Clear, Model and Fast; Tough 1500, Flexible 80A and True Cast; Open Material Mode included
Resin handling	Automatic dispensing from cartridge, resin heating to 45 °C
Resin tank life	Designed for more than 75,000 layers with Formlabs materials
Interface	7" interactive touchscreen
Connectivity	Wi-Fi, Ethernet and USB-C 2.0
Camera	Built-in camera with stage light, time-lapses and remote monitoring
Software	PreForm, Dashboard and Form Mobile app (free)
Safety	Enclosed print chamber, spill-resistant tanks, vent port for VOC Extractor; UL GREENGUARD Gold with VOC Extractor and Alpha Resins
Printer dimensions	342 × 315 × 502 mm
Printer weight	14.3 kg
Shipping box	431 × 405 × 616 mm, 18.6 kg (Flex package)
Recommended space	360 mm wide × 330 mm deep × 790 mm high
Warranty	1-year limited warranty

What You Can Make

Formlabs designed Form Studio 1 for creators, designers, hobbyists and studios. These example parts were printed on Form Studio 1.

Electronics

Enclosures and Cases

Snug-fitting cases for Arduino and Raspberry Pi projects, printed in Alpha Fast Resin in a fraction of the time of an FDM print.

Arduino case printed on Formlabs Form Studio 1

Product design

Prototypes That Look Like the Real Thing

Test the look, feel and fit of a speaker enclosure or consumer product with smooth, paint-ready surfaces.

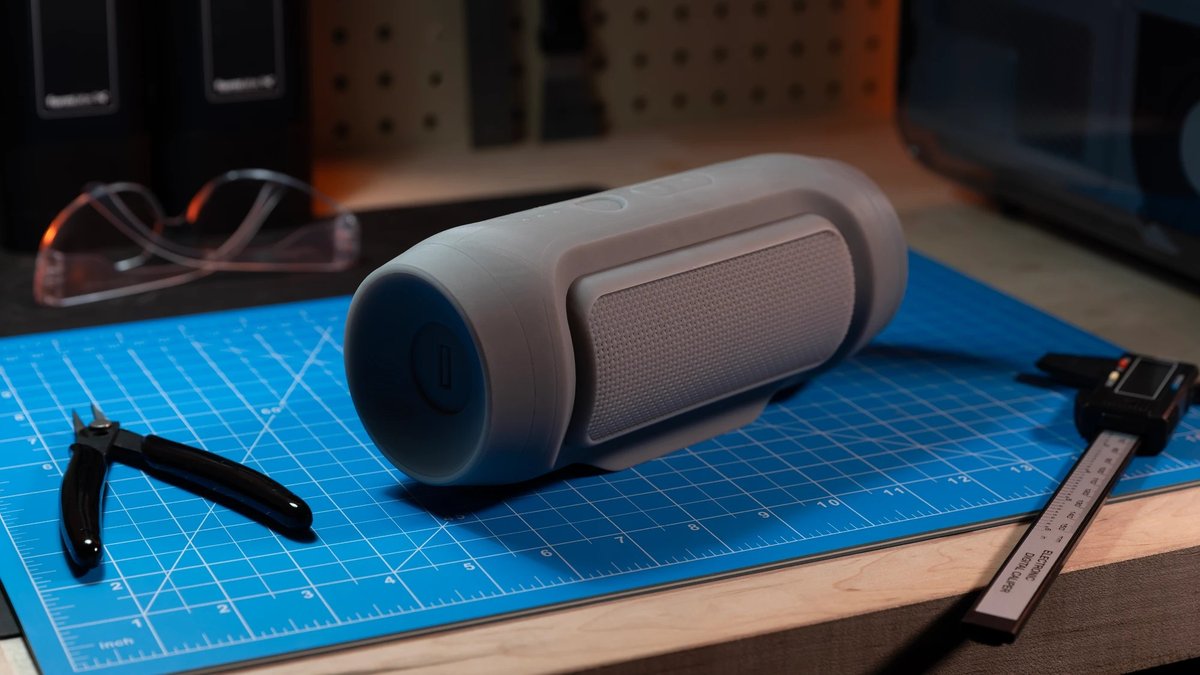

Speaker enclosure prototype printed on Formlabs Form Studio 1

Miniatures and models

Tabletop Figures, Props and Sculpture

Alpha Model Resin gives a deep matte finish that captures fine detail and takes paint beautifully, ideal for miniatures, cosplay props and art.

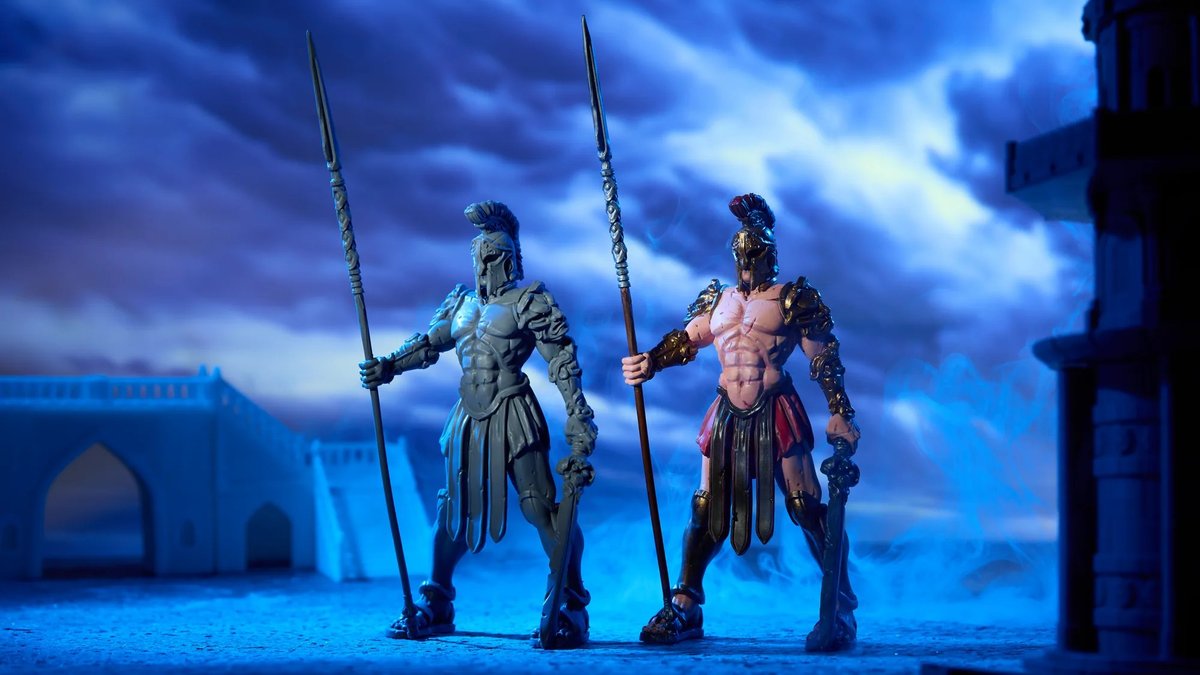

Painted tabletop miniatures printed in Alpha Model Resin

Functional parts

Hobby and RC Parts

Print durable working parts like RC car wheels in Alpha Grey, or step up to Tough 1500 and Flexible 80A for snap fits and rubber-like parts.

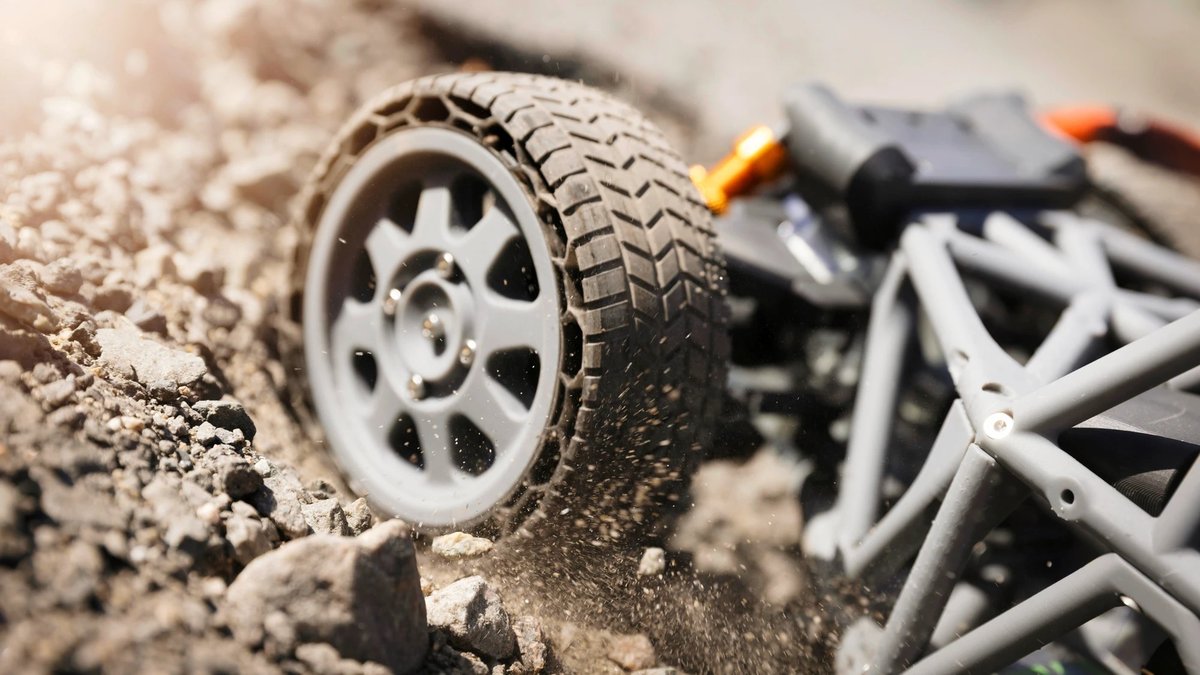

RC car wheels printed in Alpha Grey Resin on Form Studio 1

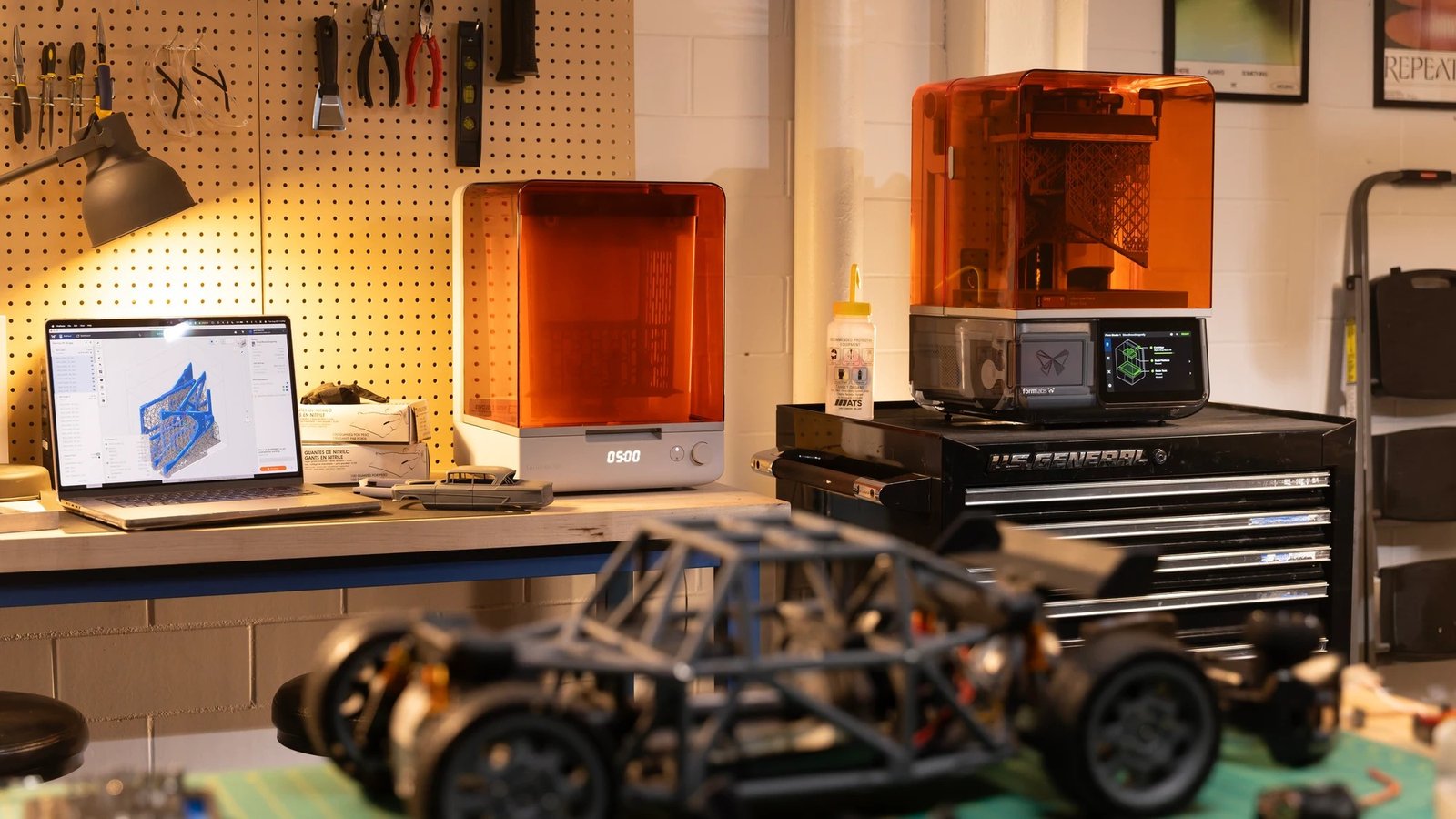

Formlabs Form Studio 1 in a maker workshop next to a 3D printed RC car

Videos and Resources

Form Studio 1 product page Formlabs' overview, comparisons and FAQs
Form Studio 1 training videos Quick-start videos from unboxing to your first print
Receiving and unboxing guide Space requirements, box sizes and setup steps
Introducing Form Studio 1 Formlabs launch article
PreForm Free print preparation software
Form Mobile Monitor prints and time-lapses from your phone

What's in the Box

Formlabs Form Studio 1 printer
Form Studio 1 Resin Tank
Form Studio 1 Build Platform Flex
Accessories box with gloves, scraper, USB cable, calibration tools and more
Power cable

Resin cartridges are sold separately. Formlabs also offers a Base package with the standard aluminium build platform, and packages with Form Studio Wash+Cure.
