FoxAlien Vasto XL V2 CNC Router 600x600mm all-metal desktop CNC machine New Zealand

FoxAlien Vasto XL V2 CNC Router (Ex Demo)

Item #: FOX-VASTO-DEMO
There are no reviews yet Write a review
Price: $5,175.00 inc GST
Retail Price: ##RETAILPRICE## inc GST
Was $5,795.98
    Points to Purchase:34500
    You Save: $620.98 (10.7%)
    The product is in stock Availability: Limited Stock
    Usually ships In a day

    About This Item

    • Closed loop Nema23 60-86 stepper motors — 5000mm/min max speed, 3.1 Nm max torque
    • 600 x 600 x 100mm (23.62" x 23.62") cutting area on T-slot hybrid table
    • Industrial HG-15 linear rails and ball screws on all 3 axes
    • Supports 52mm, 65mm, 69mm spindles — compatible with Makita and DeWalt routers
    • All-metal construction — cuts aluminium, brass, carbon fibre, wood and more
    • Pre-assembled main parts — ready to use in 30–45 minutes
    • Ex Demo unit — 1 in stock

    FoxAlien Vasto XL V2 CNC Router

    Industrial-grade closed loop stepper motors. 600x600mm cutting area. All-metal construction. Ex Demo Unit

    600x600mm Cutting Area
    3.1 NmMax Torque
    5000 mm/minMax Speed
    400W Spindle Power

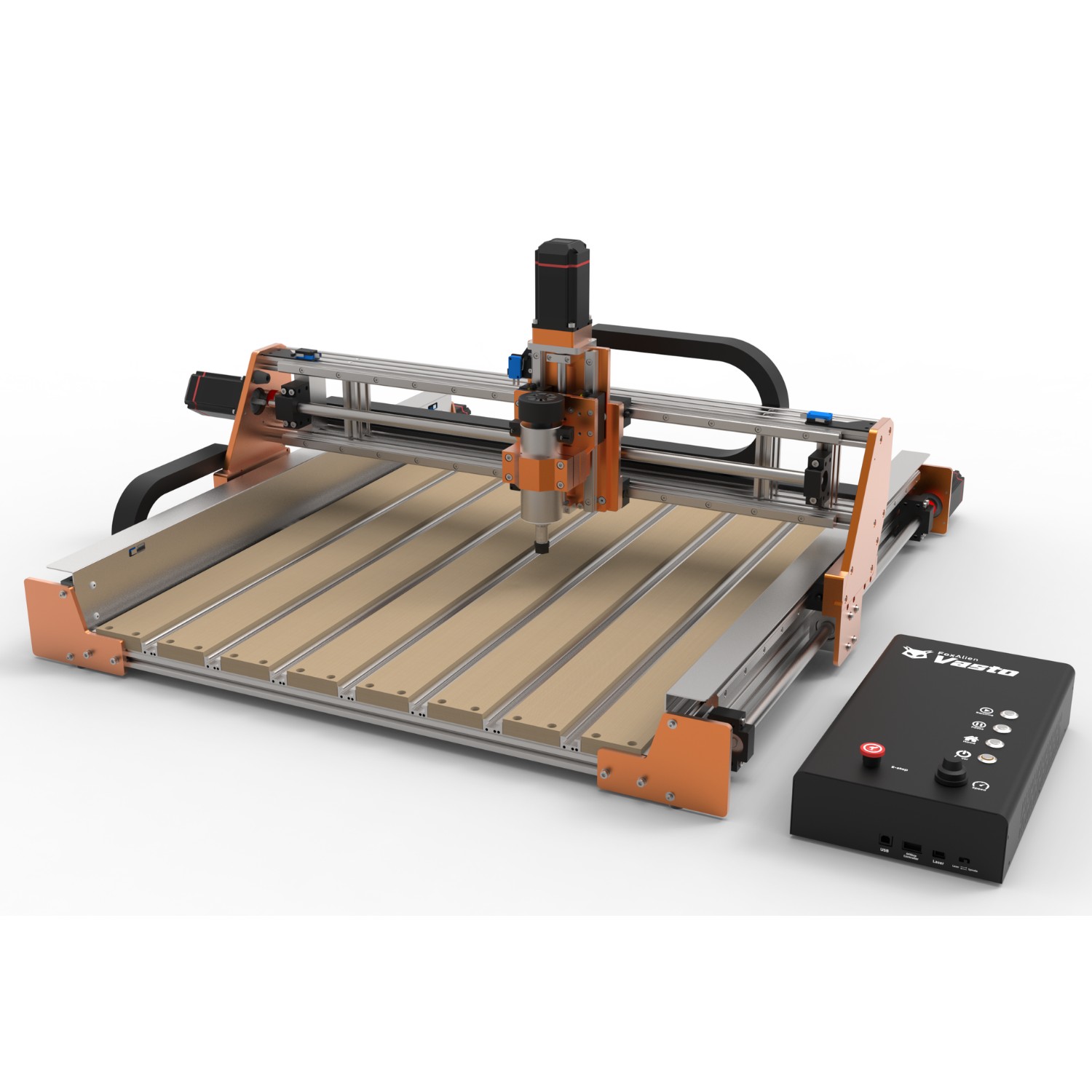

    FoxAlien Vasto XL V2 CNC Router 600x600mm all-metal desktop CNC machine New Zealand

    Professional CNC Router Built for the Workshop

    The FoxAlien Vasto XL V2 is an industrial-grade CNC router delivering a generous 600x600x100mm cutting area in a rigid all-metal frame. Whether you're routing aluminium, carving hardwood, or cutting carbon fibre, this machine has the power and precision to handle it all. Available as an ex demo unit in excellent condition.

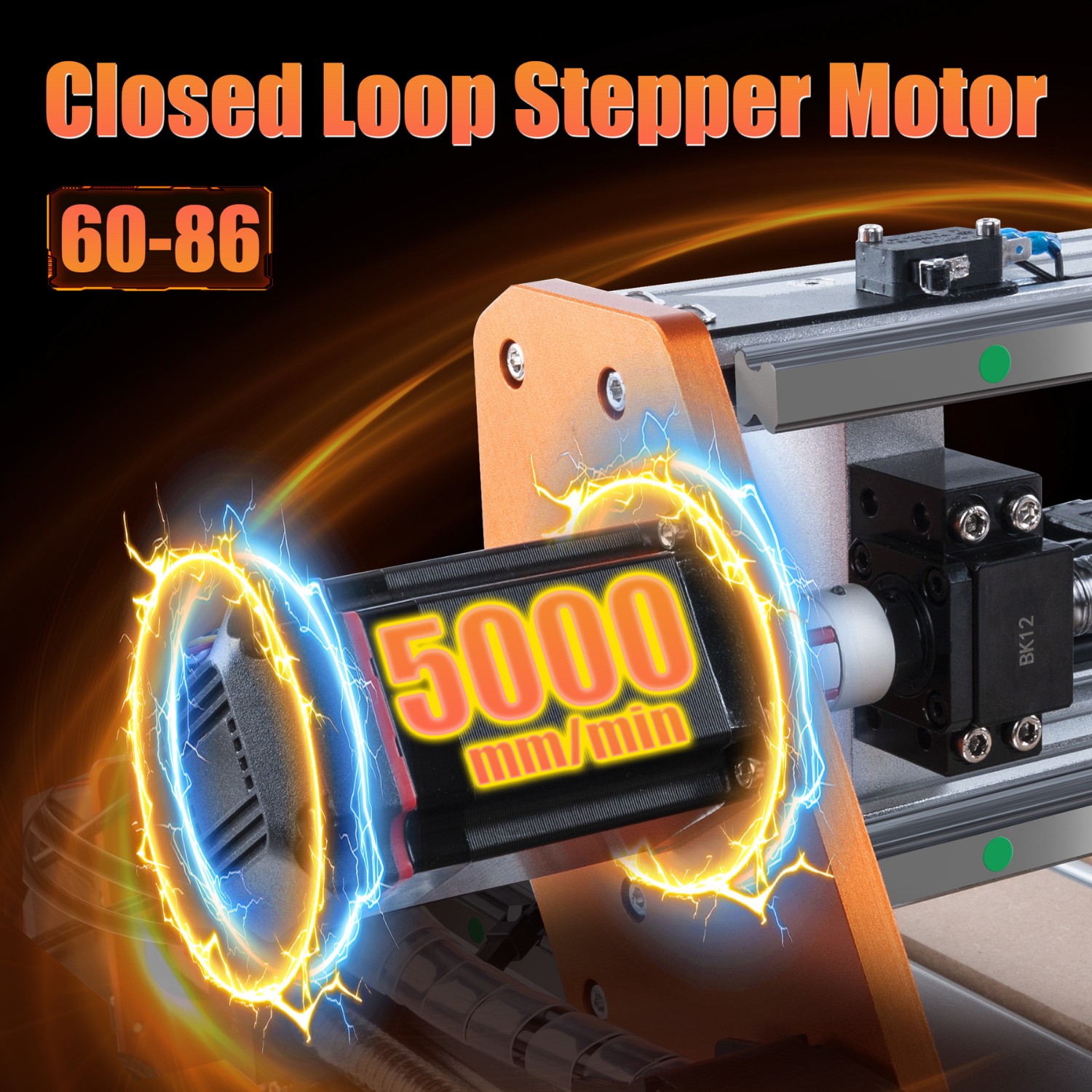

    FoxAlien Vasto XL V2 closed loop stepper motor 5000mm/min rapid feed rate CNC router

    Next-Generation Closed Loop Stepper Motors

    Equipped with FoxAlien's latest Nema23 60-86 closed loop stepper motors, the Vasto XL V2 runs at up to 5000mm/min, 2.5x faster than the V1, with 3.1 Nm max torque. Closed loop feedback means no missed steps, smoother cuts, and lower noise than traditional open-loop designs.

    FoxAlien Nema23 60-86 closed loop 3.1Nm torque vs standard 57-76 stepper motor comparison

    33% More Torque Than Standard Steppers

    The Nema23 60-86 motors deliver 3.1 Nm of torque, a 33% increase over the standard 57-76 series motors at 2.0 Nm. This translates directly into deeper cuts per pass, harder materials handled with ease, and longer tool life from reduced strain on the spindle and bits.

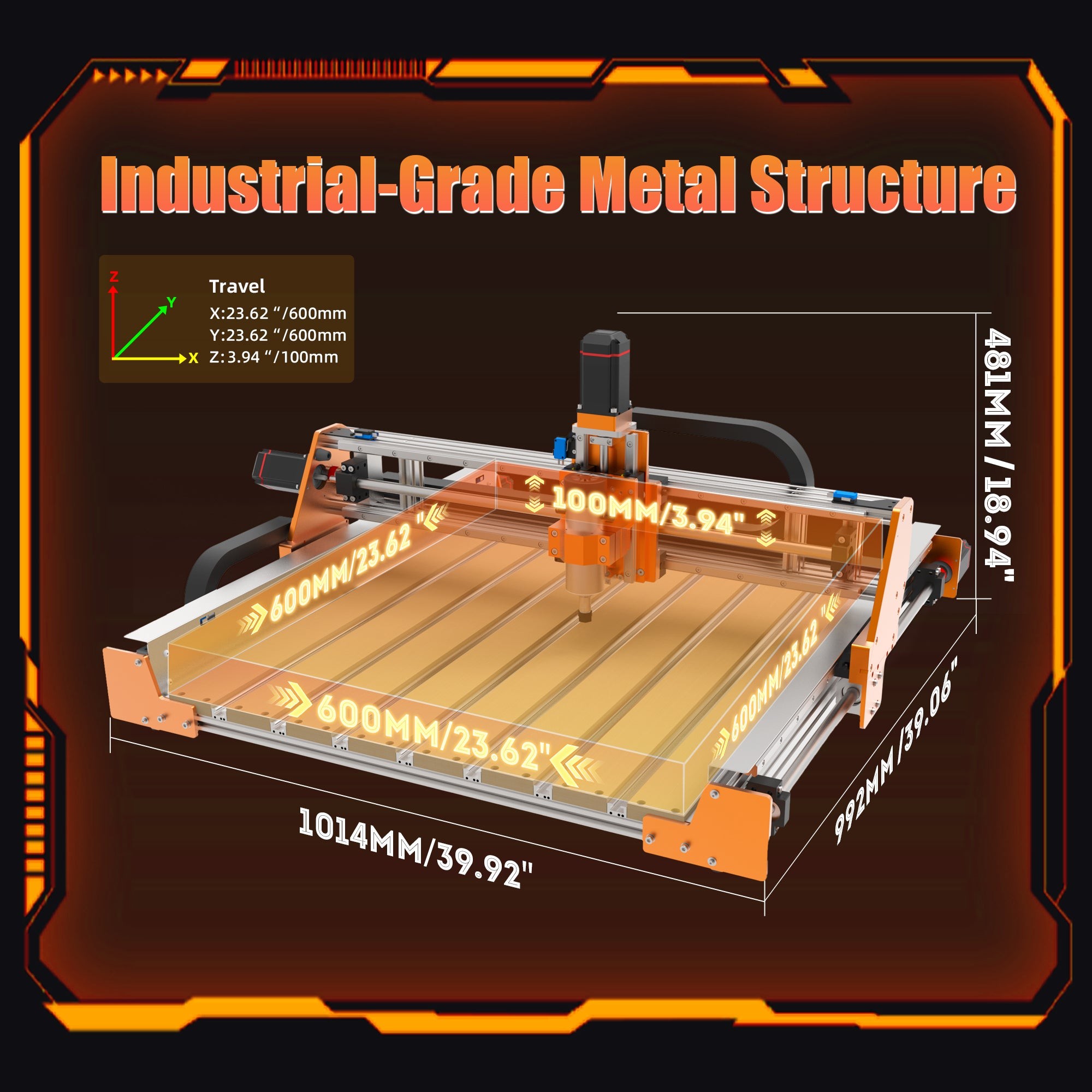

    FoxAlien Vasto XL V2 industrial all-metal structure dimensions 1014x992x481mm CNC machine

    Industrial-Grade All-Metal Structure

    The Vasto XL V2 is built entirely from metal, no plastic structural components. At 1014x992x481mm overall footprint, it's a serious bench-top machine. The rigid frame eliminates flex and chatter, giving you consistent cut quality across the full 600x600mm work area.

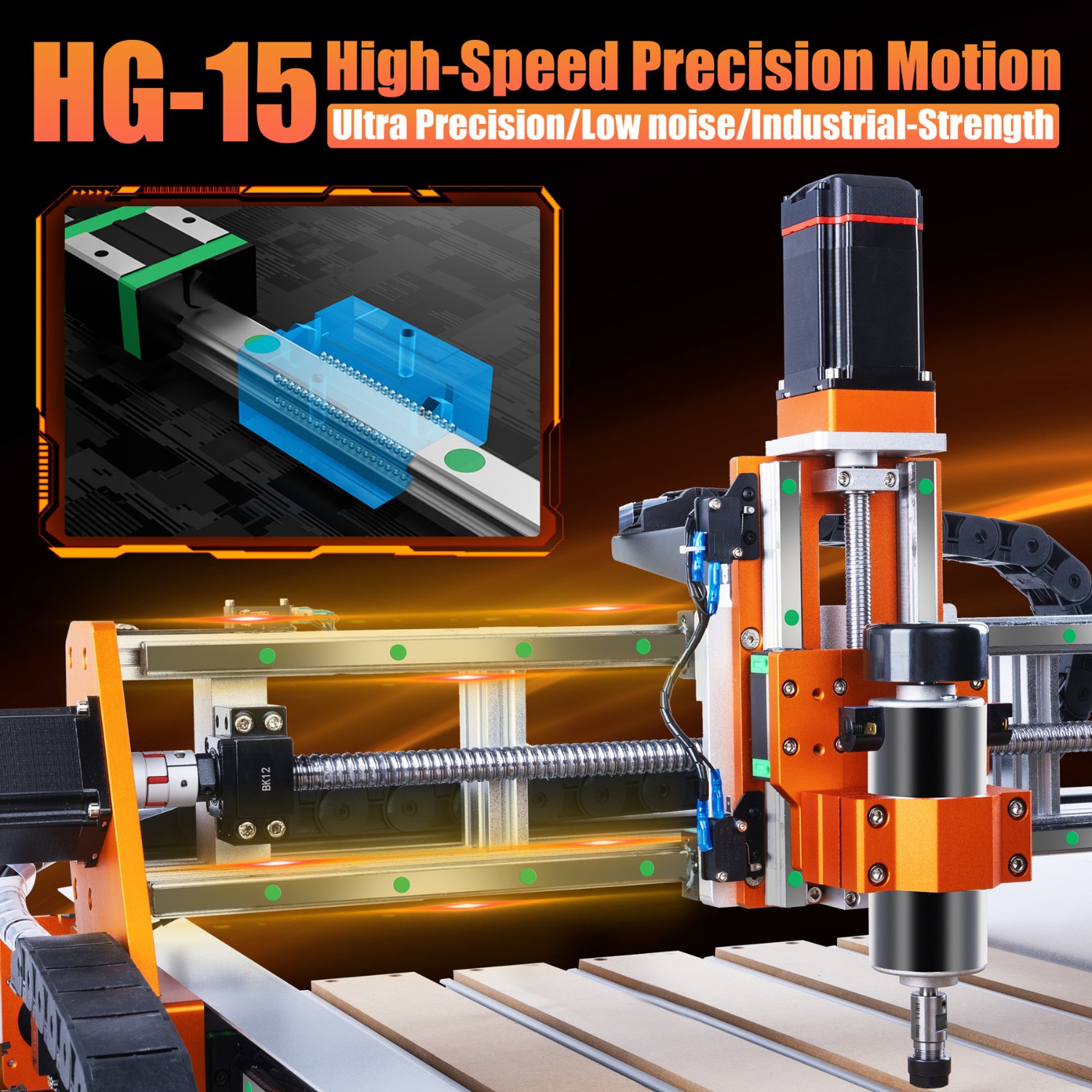

    FoxAlien Vasto XL V2 HG-15 precision linear rails all 3 axes industrial CNC router

    HG-15 Linear Rails on All Three Axes

    Industrial HG-15 linear guide rails on X, Y, and Z axes deliver the smooth, accurate motion you'd expect from a professional machine. Paired with 16mm ball screws on X/Y and 12mm on Z, every movement is precise and backlash-free critical for tight tolerances in aluminium and hardwood work.

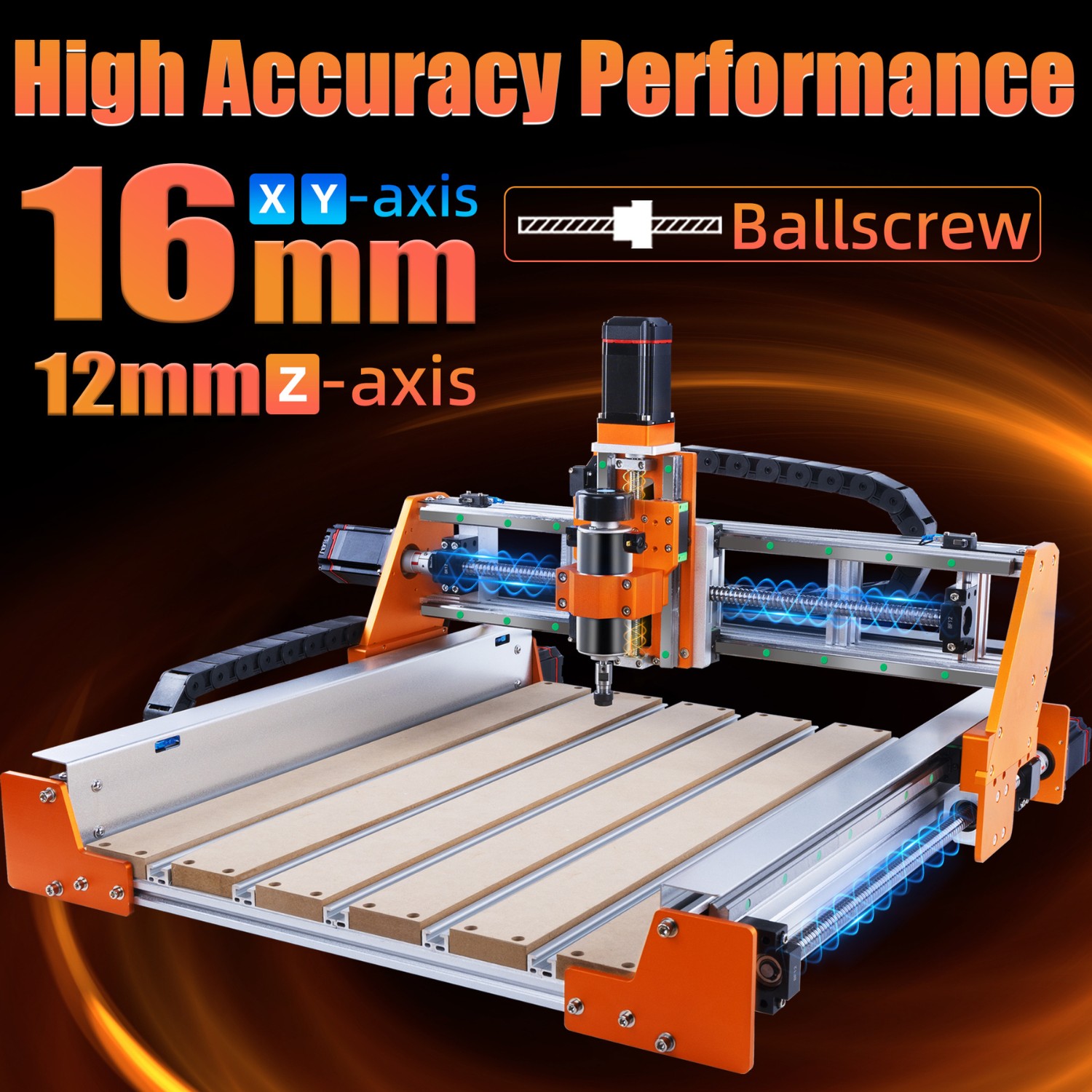

    FoxAlien Vasto XL V2 16mm ball screw high accuracy anti-backlash CNC machine

    16mm Ball Screws for Zero Backlash

    16mm pre-tensioned ball screws on X and Y (12mm on Z) eliminate the backlash that plagues rack-and-pinion designs. The result is consistent dimensional accuracy even on long cuts - no accumulated error, no drift. Your 600mm parts come out at 600mm.

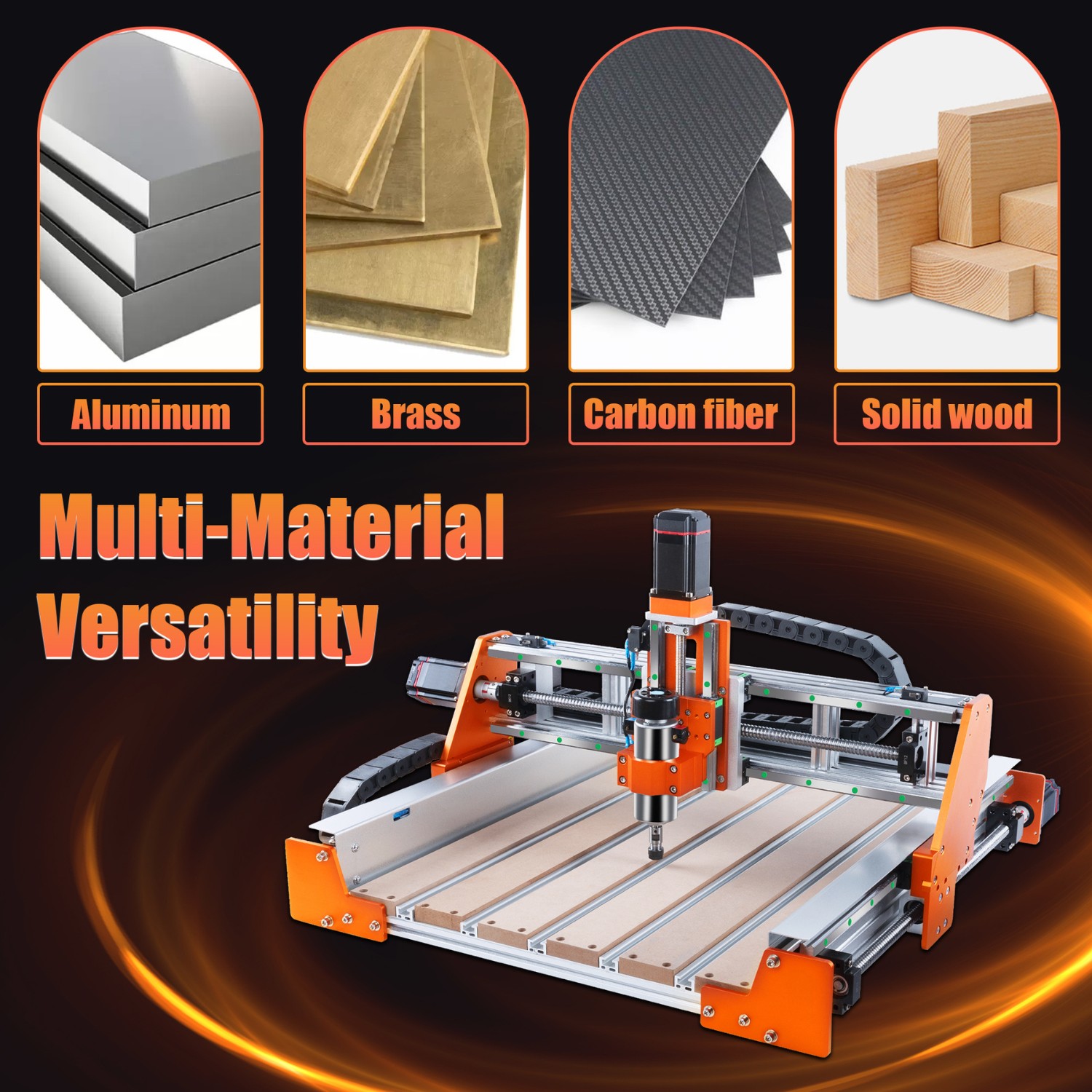

    FoxAlien CNC Router cutting aluminium brass wood carbon fibre acrylic multi-material capability

    Cut Aluminium, Brass, Carbon Fibre & More

    The Vasto XL V2 handles the full range of workshop materials - aluminium, brass, carbon fibre, solid hardwood, MDF, acrylic, and soft plastics. With a 400W spindle mount supporting 52mm, 65mm, and 69mm holders, you can use your preferred Makita RT0700C or DeWalt DWP611 router for any job.

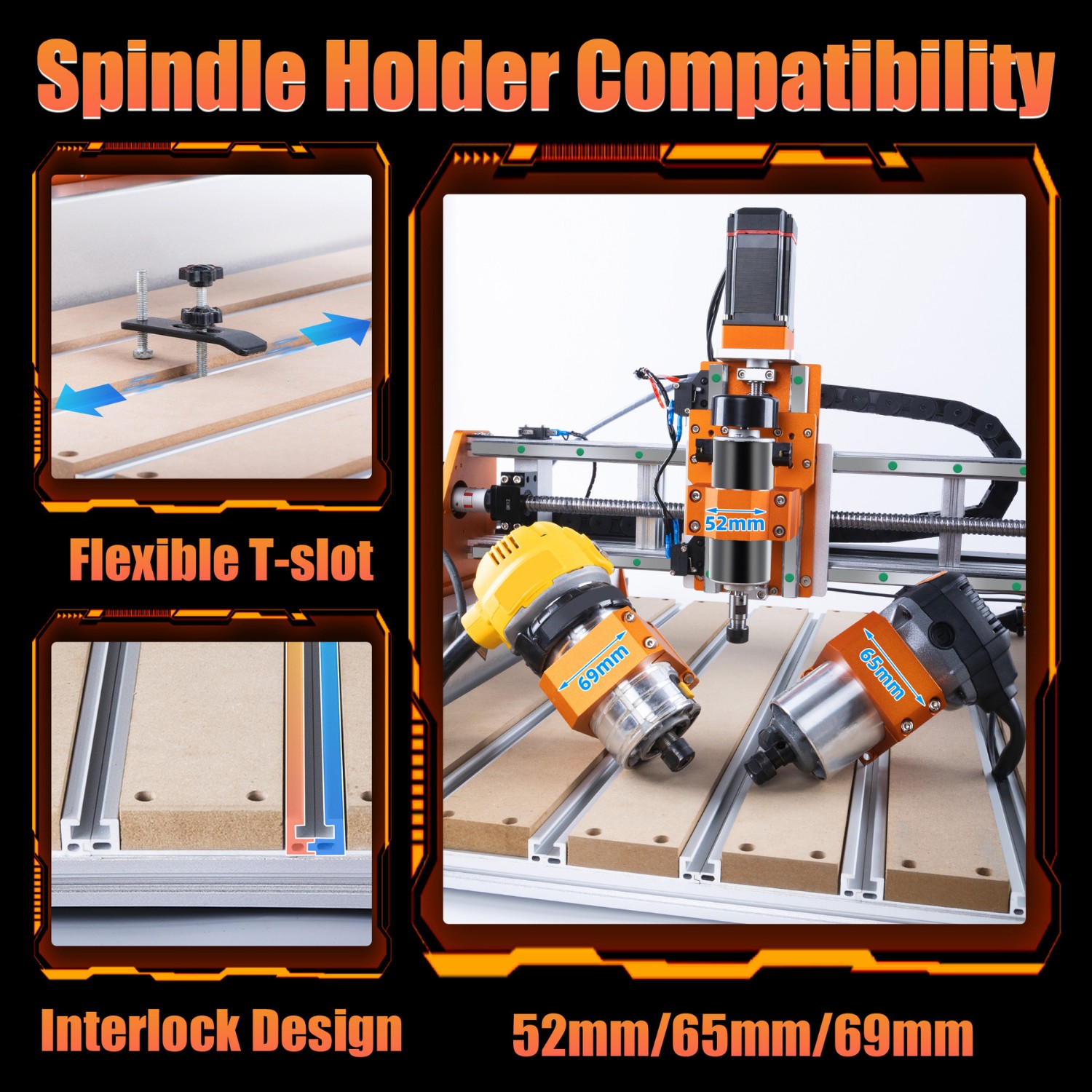

    FoxAlien Vasto XL V2 T-slot hybrid work table 52mm 65mm 69mm spindle holder compatibility

    Flexible T-Slot Hybrid Work Table

    The T-slot hybrid table uses an interlock design for flexible workholding across the full 600x600mm surface. Clamp your workpiece anywhere along the T-slots to accommodate a wide range of shapes and sizes. Main structural components come pre-assembled - typical setup is just 30–45 minutes.

    Specifications

    Cutting Area600 x 600 x 100mm (23.62" x 23.62" x 3.94")
    Machine Footprint1014 x 992 x 481mm
    Spindle Mount400W (supports 52mm, 65mm, 69mm holders)
    Compatible RoutersMakita RT0700C, DeWalt DWP611
    X/Y Axis RailsDual HG-15 Linear Rails and 16mm Ball Screws
    Z Axis RailsDual HG-15 Linear Rails and 12mm Ball Screws
    Stepper MotorsNema23 60-86 Closed Loop
    Max Torque3.1 Nm
    Max Speed5000 mm/min
    Work TableT-slot Hybrid Table
    Frame MaterialAll Metal
    Assembly Time30–45 minutes (main parts pre-assembled)

    Package Includes

    • 1x Vasto XL CNC Router (half-assembled, shipped in 4 boxes)
    • 1x T-slot Hybrid Table
    • 1x Controller

    This is an Ex Demo unit in excellent condition. 1 unit available.
