Mbits ESP32 Dev Board based on Letscode scratch 3.0, Arduino

Item #: EL-MIB26580B
There are no reviews yet Write a review
Price: $30.61 inc GST
Retail: $31.95
    You Save: $1.34 (4.2%)
    The product is in stock Availability: In Stock (Back Order Not Possible)
    Usually ships In 2-4 days

    Quantity:

    Description:

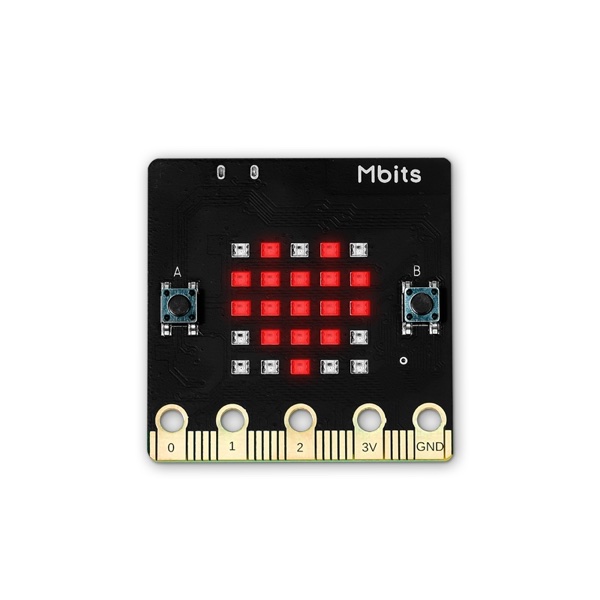

    Mbits is a pocket-sized microcontroller that has lots of features the same as Microbit V2. Mbits is an ESP32-WROVER-B based educational hardware suitable for kids to learn how to program and experience hot topics such as IoT and AI.

    The Mbits board is 52*52mm in size. Continues the style of the edge connector on the bottom of the BBC Micro: bit. If you already own Micro: bit expansion boards. Mbits is compatible with Micro: bit expansion boards, which enabling users to easily start the project with no need for any other knowledge support.

    Integrate many inputs and output hardware such as 25 full-colour LED lights, microphones, buzzers, enabling you to create a variety of interesting interactional works. If you want to realize wireless projects, it is equipped with a 2.4GHz micro: bit radio and BLE Bluetooth 4.2. It supports two programming software-Letscode(base on scratch 3.0) and Arduino.

    Letscode is graphical programming software created mainly for the global needs of science and technology innovation education. With letscode, you can program by only dragging the building blocks with the mouse. It can help you learn the program of game design and robot control easily.

    If you don't get a Micro:bits yet due to it is in short supply, Mbits will be your best choice in learning and having fun.


    Feature

    • Pocket-sized microcontroller designed

    • Wireless connectivity with built-in 2.4GHz micro: bit radio and BLE Bluetooth 4.2

    • Onboard MEMS microphone, speaker, 25 RGB LEDs

    • Onboard accelerometer for motion sensing applications

    • Notched edge connector for easier connections

    • Dedicated I2C bus for peripherals

    • Two programmable buttons

    • Supports Lestscode (based on scratch3.0) and Arduino IDE

    Comparison between Mbits and the Micro: bit(v2.0)

    MbitsMicrobit(v2)
    ProcessorESP32Nordic Semiconductor nRF52833
    Memory16M Flash, 8M RAM512KB Flash, 128KB RAM
    OnboardMEMS microphoneMEMS microphone and LED indicator
    5x5 RGB LED5x5 Red LED
    AccelerometerAccelerometer
    2 programable button2 programable button
    On-board speakerOn-board speaker
    Temperature sensorTemperature sensor
    Edge Connector25 pins. 3 dedicated GPIO, ADC,PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs25 pins. 4 dedicated GPIO, PWM, I2C, SPI and ext.power. 3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection
    Wireless

    2.4GHz Radio/BLE WiFi & Bluetooth 4.2

    2.4GHz micro:bit Radio/BLE Bluetooth 5.0
    Power5V via micro-USB port, 3V via edge connector or battery pack5V via micro-USB port, 3V via edge connector or battery pack
    Current available500mA available for accessories200mA available for accessories
    SoftwareLetscode, ArduinoMakeCode, Python, Scratch
    Size5.2cm(w) x 5.2cm(h)5cm(w) x 4cm(h)

    Package List

    • Mbits x 1
