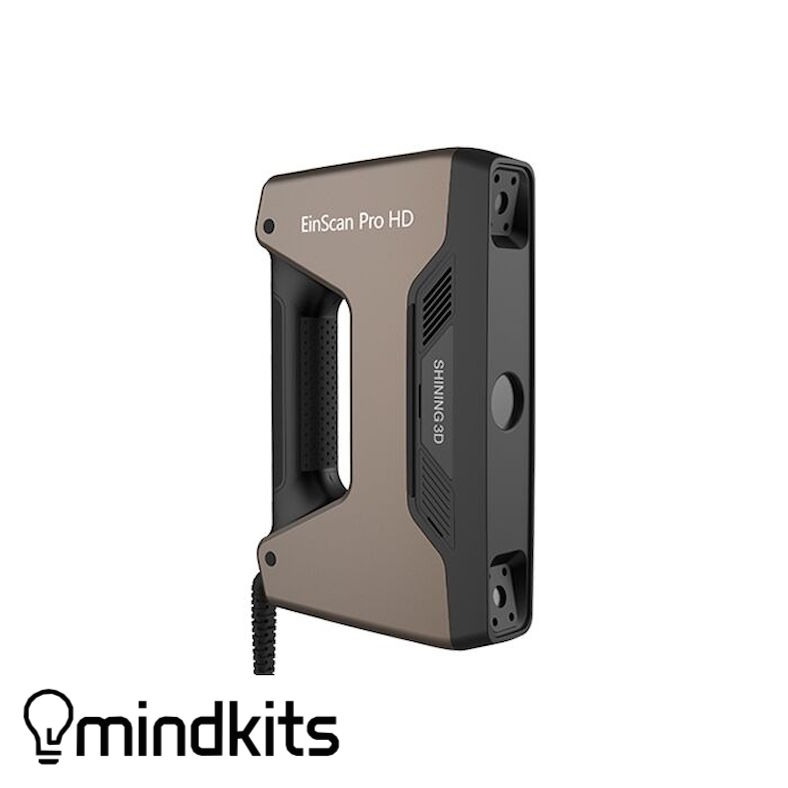

Shining 3D Einscan Pro HD 3D Scanner
The EinScan Pro HD offers top-notch handheld scanning with high resolution and accuracy, perfect for designers and engineers. Its versatile design ensures reliability and efficiency in professional-grade 3D modeling.
Impressive High Resolution for Fine Details

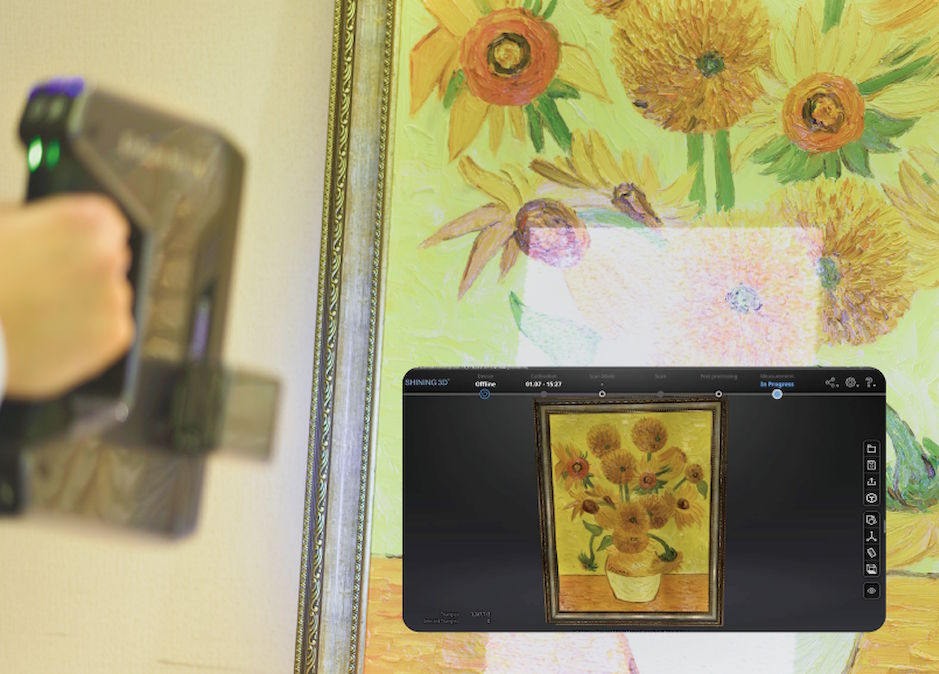

Adopted stripe pattern scanning to fixed scan mode and handheld HD scan mode, handheld scanning in EinScan Pro HD is as good as station fixed scan, making scanning more freely.
Point distance:
Fixed Scan: 0.24mm
Handheld: 0.2-3mm
Less Limitations of Scan Objects
With stronger lighting projection and a smart algorithm, EinScan Pro HD is capable of scanning a wider range of objects of dark or black color and casting metal surfaces, enriching the capability for 3D scanning of materials.
High-Speed Scanning
EinScan Pro HD can capture up to 3,000,000 points per second under handheld scan mode, and less than 0.5 s for every single frame in fixed scan mode, significantly improving scanning efficiency.
High Accuracy for High Quality 3D Modeling
EinScan Pro HD delivers accuracy up to 0.04 mm in Fixed Scan Mode. Under handheld scanning mode by marker alignment, the volumetric accuracy is up to 0.045 + 0.3mm/m, making it suitable for reverse engineering.

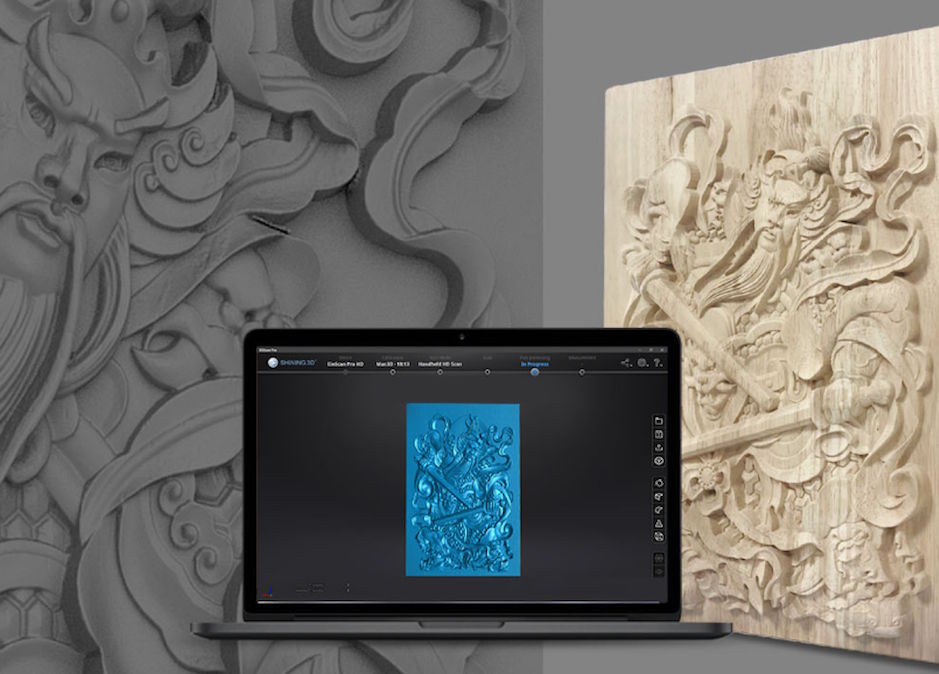

User Friendly Software
Exscan Pro offers an intuitive and easy-to-use interface, making it accessible for users at different levels of expertise.

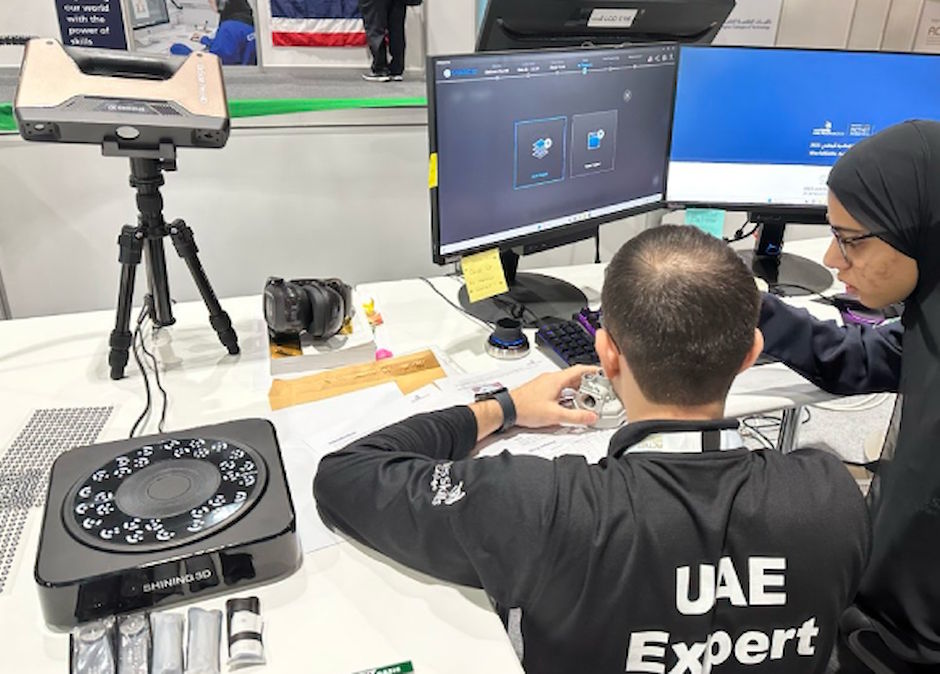

WorldSkills Designated Competition Model
EinScan Pro HD is designated model the Mechanical Engineering CAD in WorldSkills Competitions. It provides competitors with a highly accurate and versatile device capable of capturing complex mechanical parts with seamless precision.
