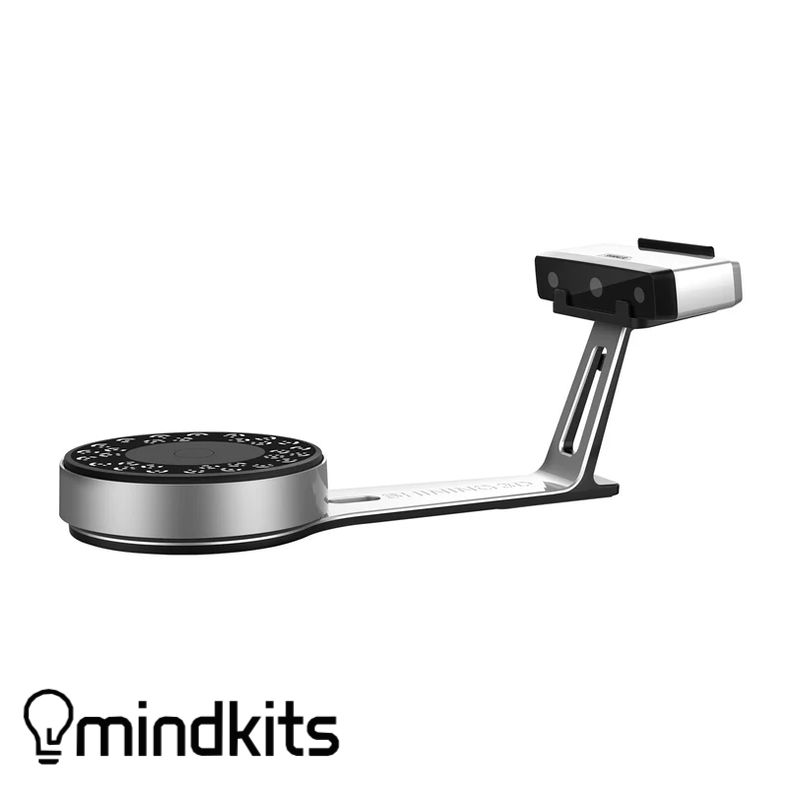

Shining 3D Einscan SP v2

Item #: S3D-LSU-Einscan-SP-v2
There are no reviews yet Write a review
Price: $3,908.85 inc GST
Retail Price: ##RETAILPRICE## inc GST
    Points to Purchase:26059
    The product is in stock Availability: NZ Stock (not at our main warehouse)
    Usually ships In 3-5 days

    About This Item

    • High Precision & Speed: Delivers up to 0.05 mm accuracy and completes a single scan in less than 1 second, with a point distance of 0.17–0.2 mm for detailed results.
    • Flexible Scanning Modes: Offers five alignment modes including manual, feature, markers, turntable, and turntable coded targets, suitable for various object sizes and scanning needs.
    • Powerful Software & Post-Processing: Comes with EXScan S software featuring automatic calibration, mesh editing tools (hole filling, smoothing, sharpening), and adjustable resolution settings.
    • Wide Applications: Ideal for education, cultural preservation, automotive parts, and medical research; supports color scanning and is compatible with macOS and multiple languages.

    Shining 3D Einscan SP v2

    Bring Ideas to Life: 3D Scanning for Every Creator

    Easy Operation, Fast Scanning Speed


    One-click scanning without rigid workflow
    Automatic calibration without tedious preparations
    1 second for a single scan
    45 seconds for one turn

    Stable and Reliable Results


    Precise calibration in a simple way, achieving high accuracy of up to 0.05mm
    Powerful software algorithms and a point distance of up to 0.17mm, ensuring the scanning results have high-definition details.

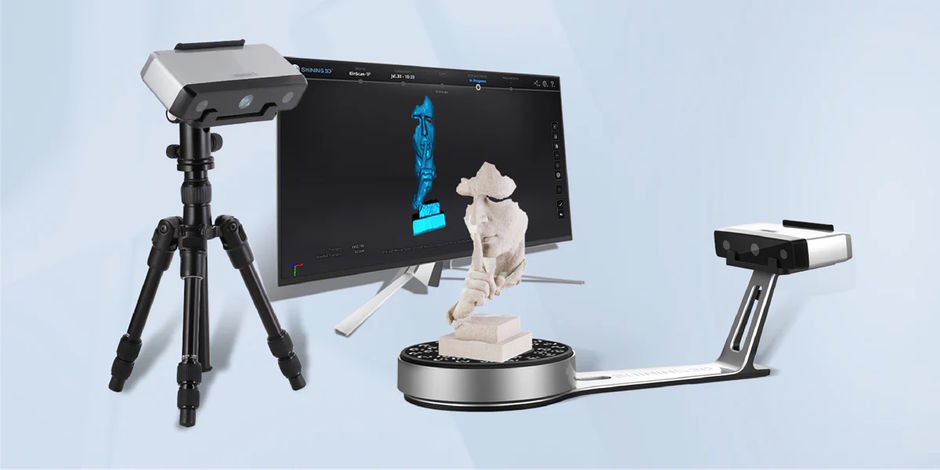

    Extensive Scanning Range from Small to Large

    Depending on the size of the object, scanning can be carried out using a turntable for automatic scanning or a tripod for manual scanning.

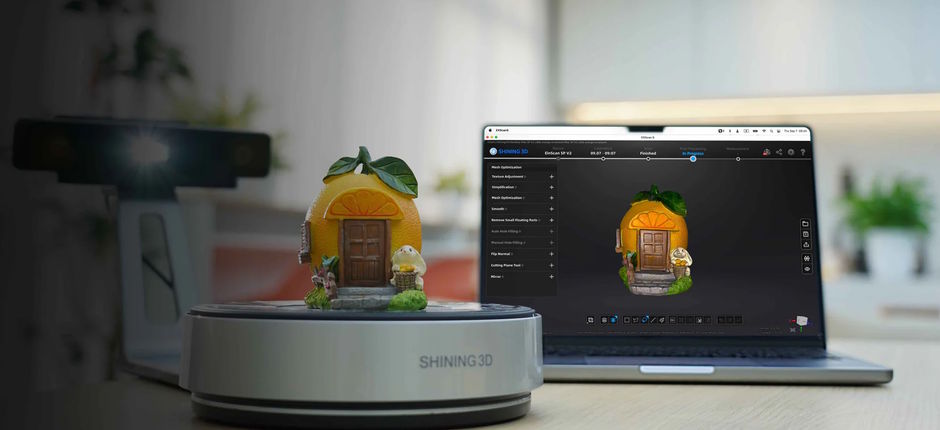

    Color in 3D Scanning

    Easy reproduction of physical objects with colored textures, enhanced the utility and realism of the captured 3D models.

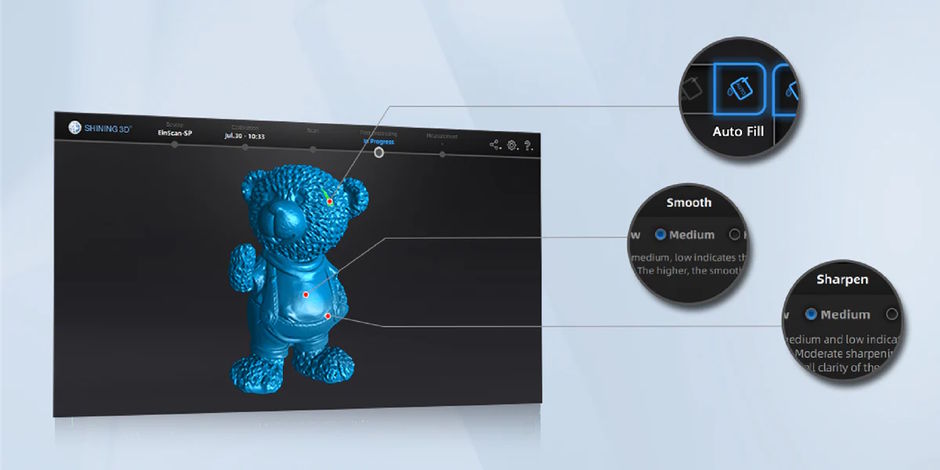

    Powerful Post-processing Functions

    Software EXScan S has the functions of hole filling, mesh smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide perfect 3D data for subsequent applications.

    Scan Mode Fixed Scan with Turntable Fixed Scan without Turntable
    Mode of Alignment Turntable; Feature; Markers; Manual; Turntable Coded Targets Feature; Markers; Manual
    Single Shot Accuracy ≤0.05 mm
    Minimum Scan Volume 30 × 30 × 30 mm
    Maximum Scan Volume 200 × 200 × 200 mm 1200 × 1200 × 1200 mm
    Range of Single Capture 200 × 150 mm
    Scan Speed Single Scan < 1 s
    Turntable < 45 s
    Point Distance 0.17 mm ~ 0.2 mm
    Texture Yes
    File Format OBJ, STL, ASC, PLY, 3MF
    Camera Resolution 1.3 Mega Pixels
    Light Source White LED
    Stand-off Distance 290 ~ 480 mm
    Computer Requirements (Required) USB: 1 × USB 2.0 or 3.0; OS: Win 7, 8 or 10 (64 bit); Graphic Card: Nvidia series; Graphic memory: >1G; CPU: Dual-core i5 or higher; Memory: >8G
    Computer Requirements (Recommended) Graphic Card: Independent Graphic Card, NVIDIA GTX660 or higher; Graphics memory: >2G; CPU: Dual Core i5 or higher; Memory: >16G
    Scanner Body Weight 2.5 kg
    Software Included EXScan S; Solid Edge SHINING 3D Edition
    Dimension 570 × 210 × 210 mm
    Power Supply 40 W
    Input Voltage DC: 12 V, 3.33 A
    Calibration Board HD
    Turntable Turntable with coded targets
    Load Capacity of Turntable 5 kg
