Sovol SV08 Max enclosed 500mm CoreXY 3D printer NZ

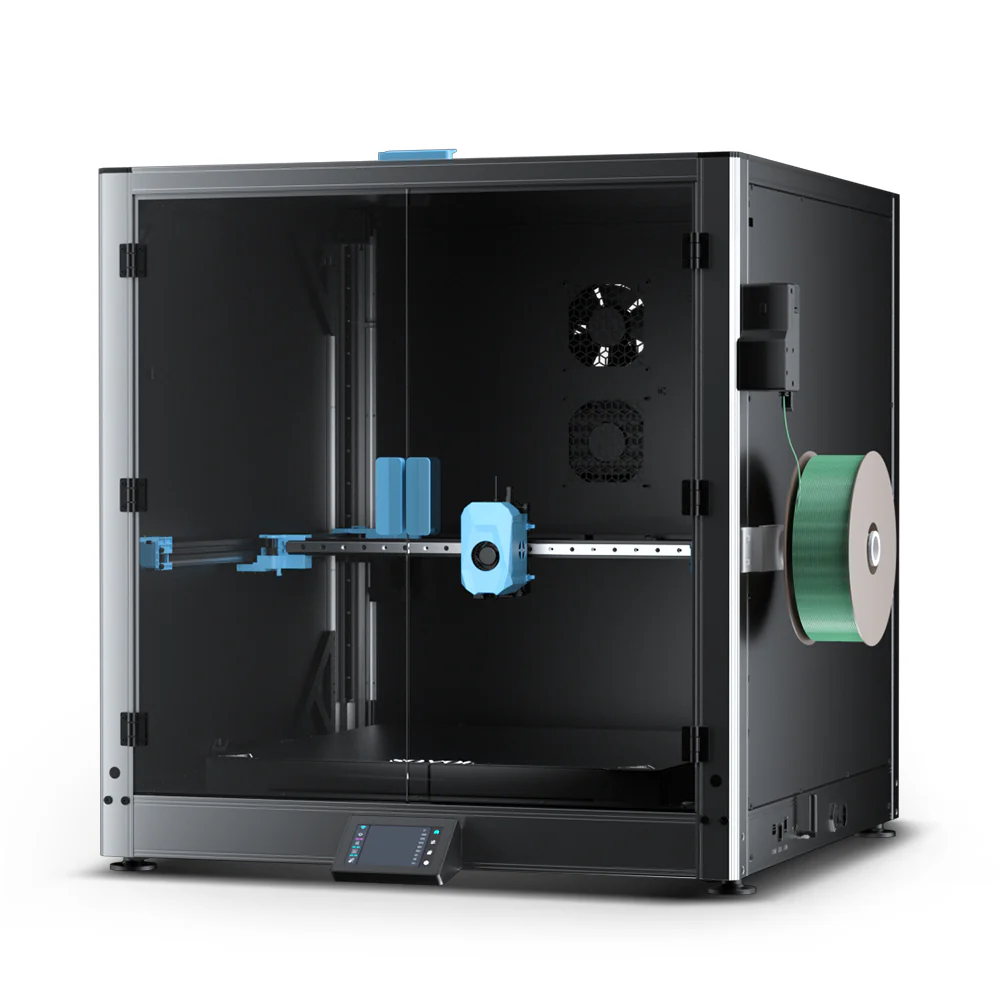

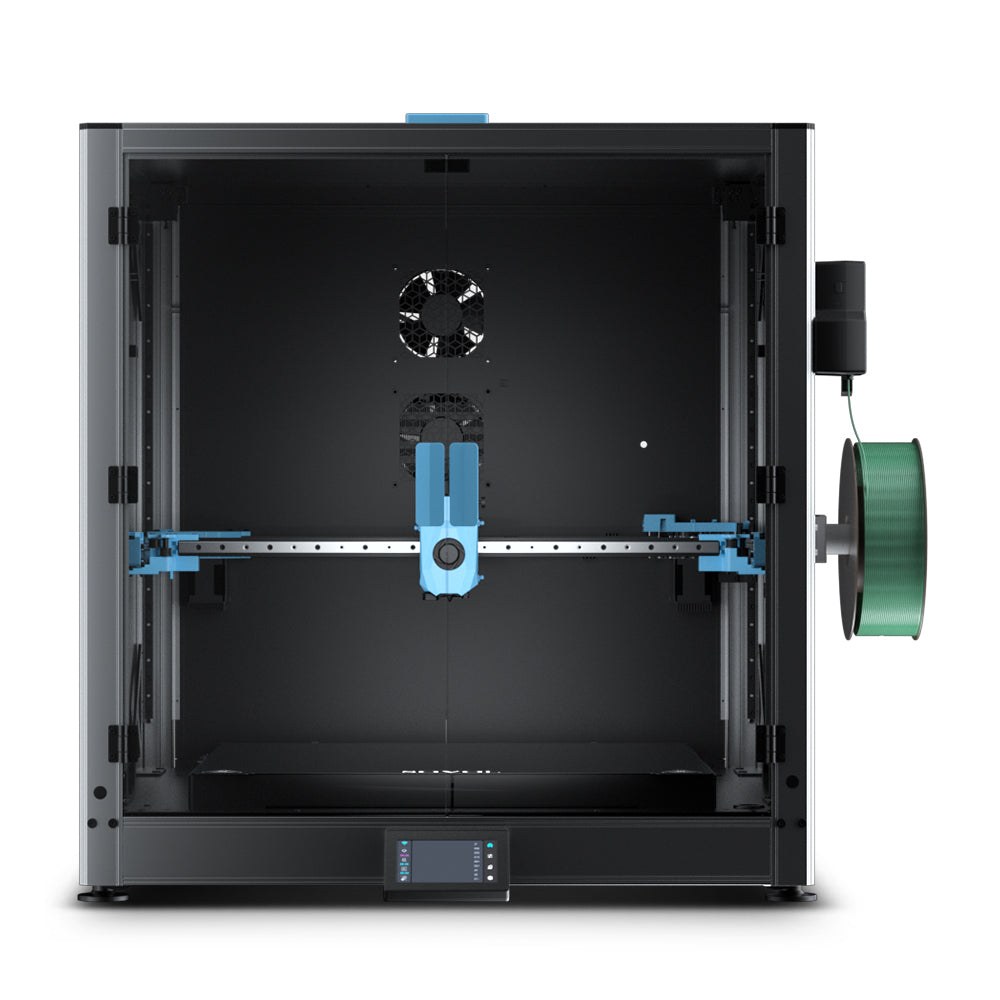

Sovol SV08 Max 3D Printer With Enclosure

Name: Sovol SV08 Max 3D Printer With Enclosure
Brand: Sovol
SKU: SVL-M-500101101686+400101101919
Price: 2680.00 NZD
Availability: InStock

Item #: SVL-M-500101101686+400101101919

There are no reviews yet Write a review

Price: $2,680.00 inc GST

Retail Price: ##RETAILPRICE## inc GST

Was $2,945.82

Points to Purchase:17867

You Save: $265.82 (9.0%)

Quantity:

About This Item

Official Sovol product with AU-standard power connection
NZ-based support from MindKits
Preorder now: expected at our warehouse around 9 October 2026.

Overview

Large-format enclosed CoreXY

Build the projects that do not fit on an ordinary printer

The enclosed Sovol SV08 Max combines a huge 500 × 500 × 450mm usable build volume with Klipper speed, full linear rails and a stable enclosed workspace for ambitious prototypes, props and functional parts.

500 × 500 × 450mmEnclosed build volume

700mm/sMaximum speed

40,000mm/s²Maximum acceleration

300°CMaximum nozzle temperature

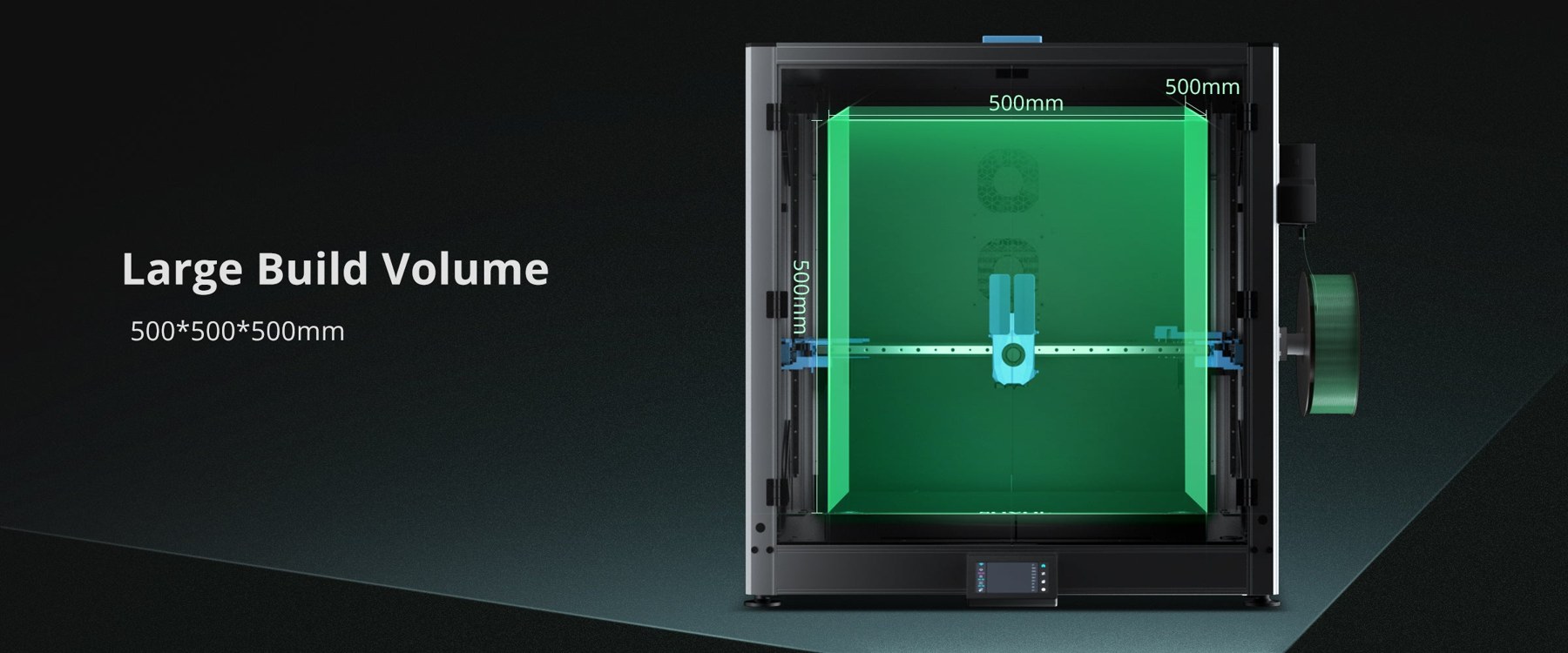

Print large parts as single pieces

Move beyond splitting helmets, architectural models, workshop fixtures and tall prototypes into small sections. The enclosure reduces the usable Z height from 500mm to 450mm, while preserving the full 500 × 500mm bed.

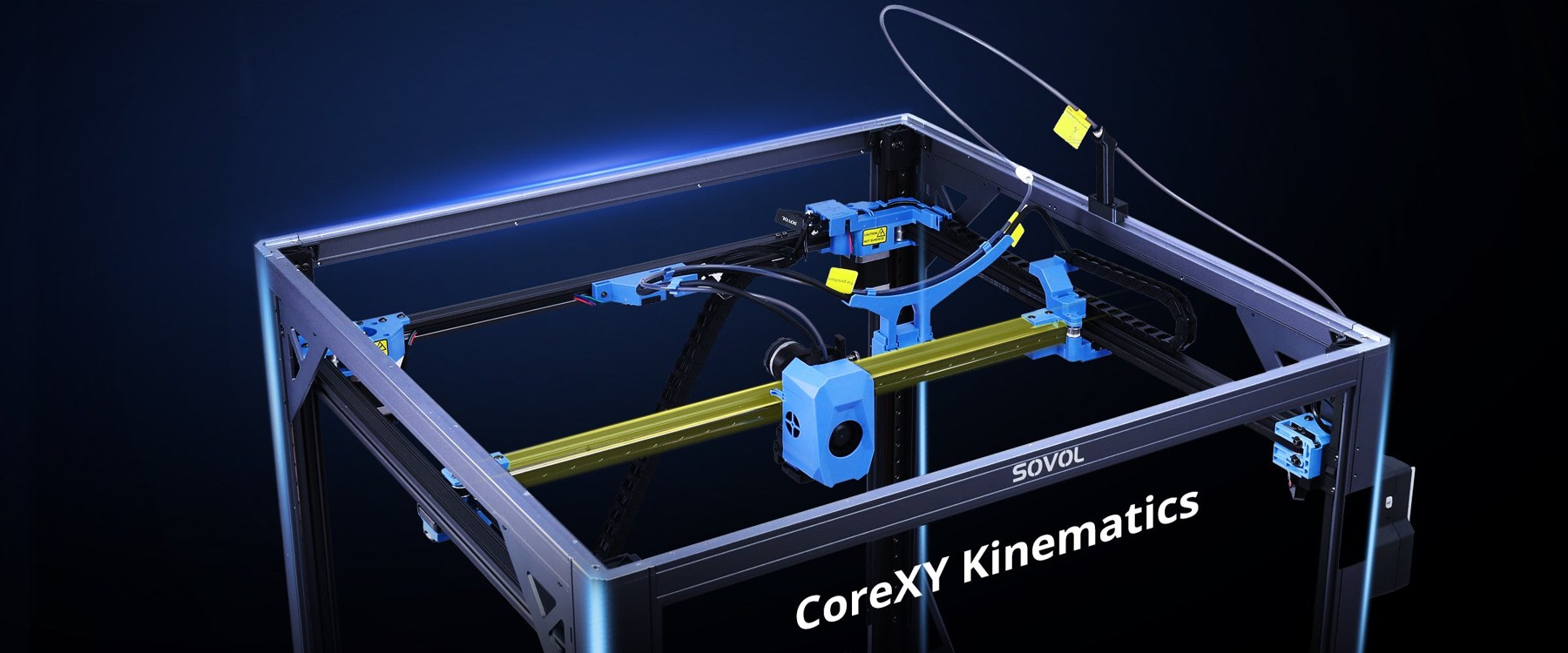

CoreXY motion on full linear rails

CoreXY kinematics keep moving mass controlled, while full XYZ linear rails and four independent Z motors support fast, repeatable movement across the unusually large build area.

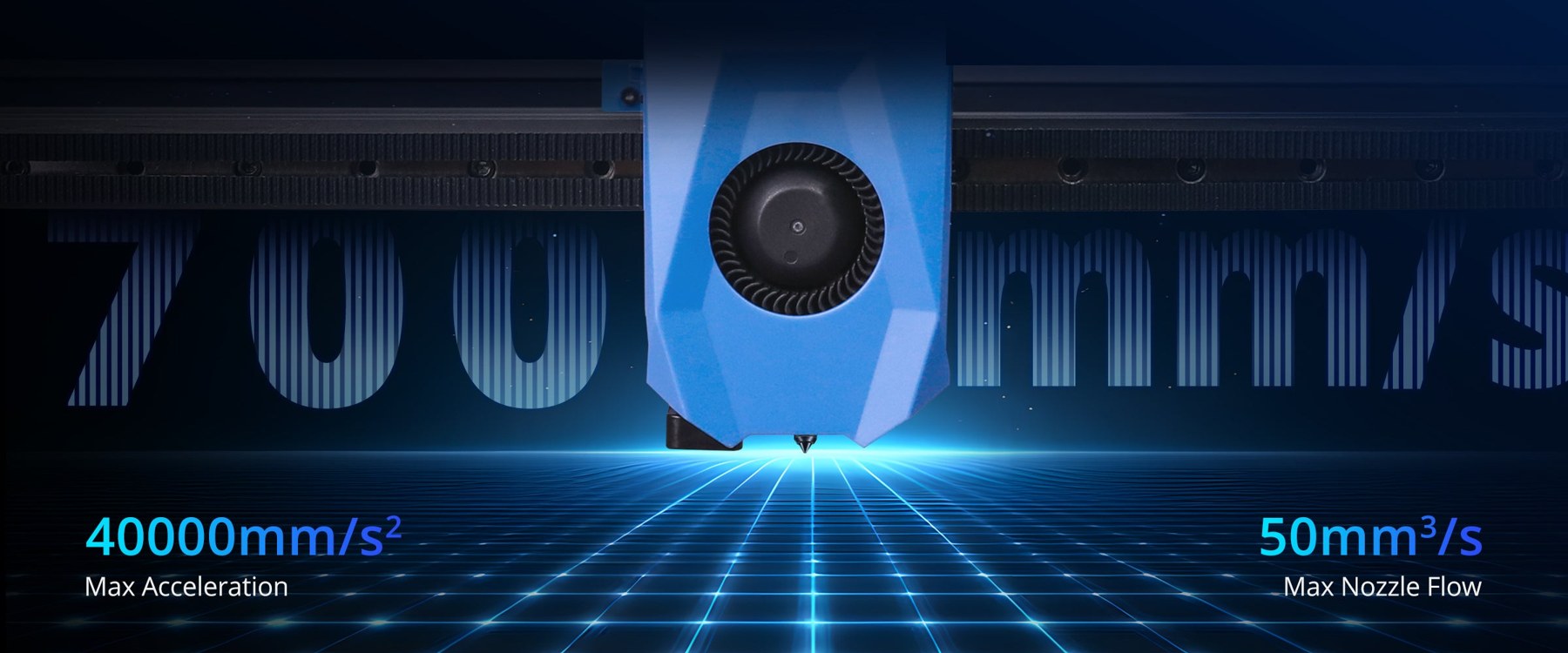

High speed with serious material flow

Sovol rates the SV08 Max up to 700mm/s, 40,000mm/s² acceleration and 50mm³/s maximum flow. Those figures give the motion and extrusion system headroom for large prints, although real settings still depend on material, geometry and quality goals.

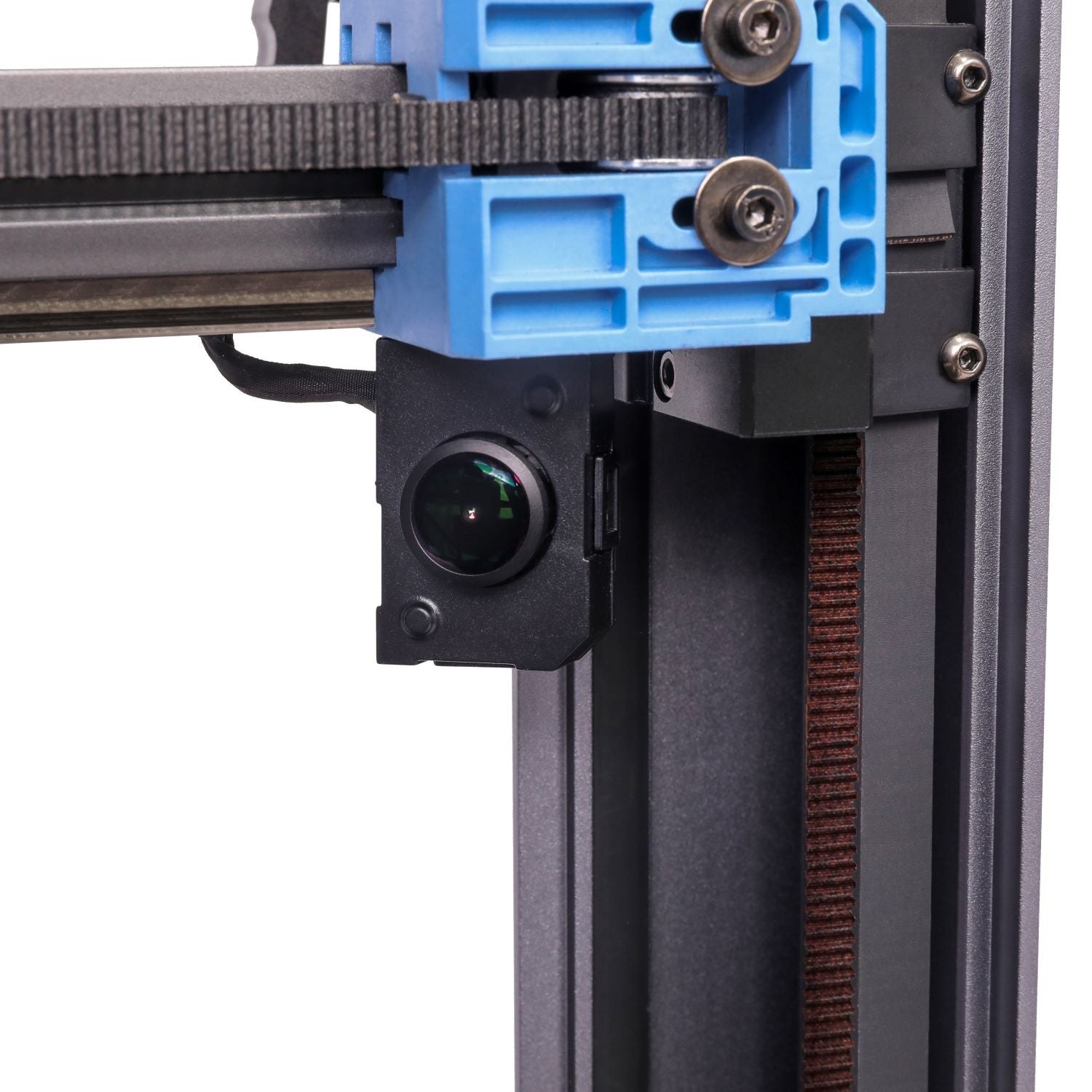

Watch long jobs from the built-in camera

The integrated camera supports remote monitoring, useful when a single large-format print may run for many hours. Connectivity includes USB, dual-band Wi-Fi, HDMI and Ethernet.

Move from everyday filament to engineering materials

A 300°C hotend, 100°C bed and enclosed build space broaden the material options beyond PLA. Sovol lists PLA, PETG, TPU, ABS, ASA, PA and PC compatibility; always follow the filament maker’s ventilation and drying guidance.

Automatic first-layer setup

Eddy-current scanning supports rapid bed mapping and automatic Z-offset adjustment.

Open-source Klipper platform

Klipper control and an open-source approach make the machine attractive to experienced users who value access and customisation.

Filament protection

Runout, tangle and clog detection help protect long prints from common feed interruptions.

Technical Specifications

Technical specifications

Model

Sovol SV08 Max with enclosure

Kinematics

CoreXY

Usable build volume with enclosure

500 × 500 × 450mm

Open build volume

500 × 500 × 500mm

Maximum print speed

700mm/s

Maximum acceleration

40,000mm/s²

Maximum flow rate

50mm³/s

Control system

Klipper

Levelling

Eddy-current scanning with automatic Z-offset

Motion

Full XYZ linear rails; four independent Z motors

Nozzle temperature

Up to 300°C

Bed temperature

Up to 100°C

Included nozzles

Two 0.4mm nozzles

Filament diameter

1.75mm

Detection

Runout, tangle and clog detection

Connections

USB, 2.4/5GHz Wi-Fi, HDMI and Ethernet

Storage

8GB eMMC

Printer size

700 × 710 × 750mm, excluding spool holder

Printer carton

810 × 820 × 360mm

Enclosure carton

775 × 728 × 155mm

Shipping weight

55kg combined

What You Can Make

Make full-scale work, not just small models

The 500mm-class platform is at its best when size itself solves a problem.

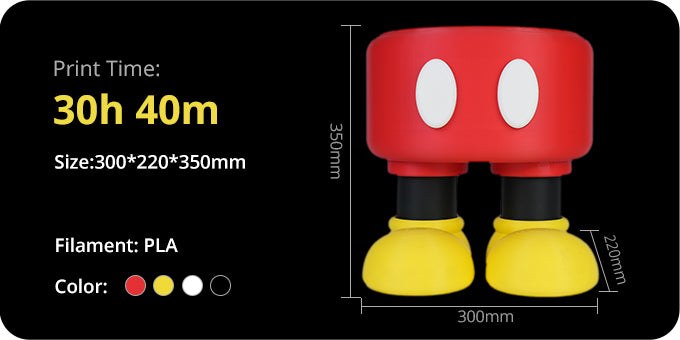

Large character and costume work

Print full-scale helmet sections, character pieces and display work with fewer joins and less post-processing.

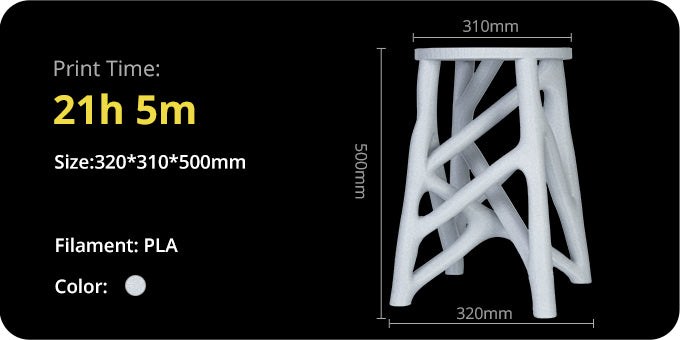

Tall prototypes and workshop fixtures

Use the height and bed area for architectural forms, production aids, enclosures, jigs and one-piece functional prototypes.

Who it suits

This is a large, open-source Klipper machine for confident makers, studios and workshops that genuinely need the build volume. It is not a compact plug-and-forget appliance: allow space for the 700 × 710mm footprint, spool holder, door access and ventilation.
