Tyvok K1 Pro 1200x700mm 100W CO2 Laser Engraver + COMBO

Item #: TYV-K1PRO-1200-NZ-Combo
There are no reviews yet Write a review
Price: $9,849.00 inc GST
Retail Price: ##RETAILPRICE## inc GST
Was $10,999.00
    Points to Purchase:65660
    You Save: $1,150.00 (10.5%)
    The product is in stock Availability: Limited Stock
    Usually ships In a day

    About This Item

    • COMBO Include: K1 Pro, honeycomb plate, industrial air assist, ventilation machine, chiller, and smoke purifier
    • True 100W optical CO₂ power — cuts up to 20mm thick in a single pass with clean edges.
    • Massive 1200×700mm work area with over 90% effective engraving space for large sheet work.
    • ±0.05mm repeatability via dual Y-axis lead screws and high-rigidity linear rails.
    • Integrated HD camera with auto-distortion correction for drag-and-place design alignment.
    • Auto-focus sensor sets focal length automatically — no manual adjustment required.
    • Dual-channel exhaust system removes smoke at the source, ideal for indoor studios.

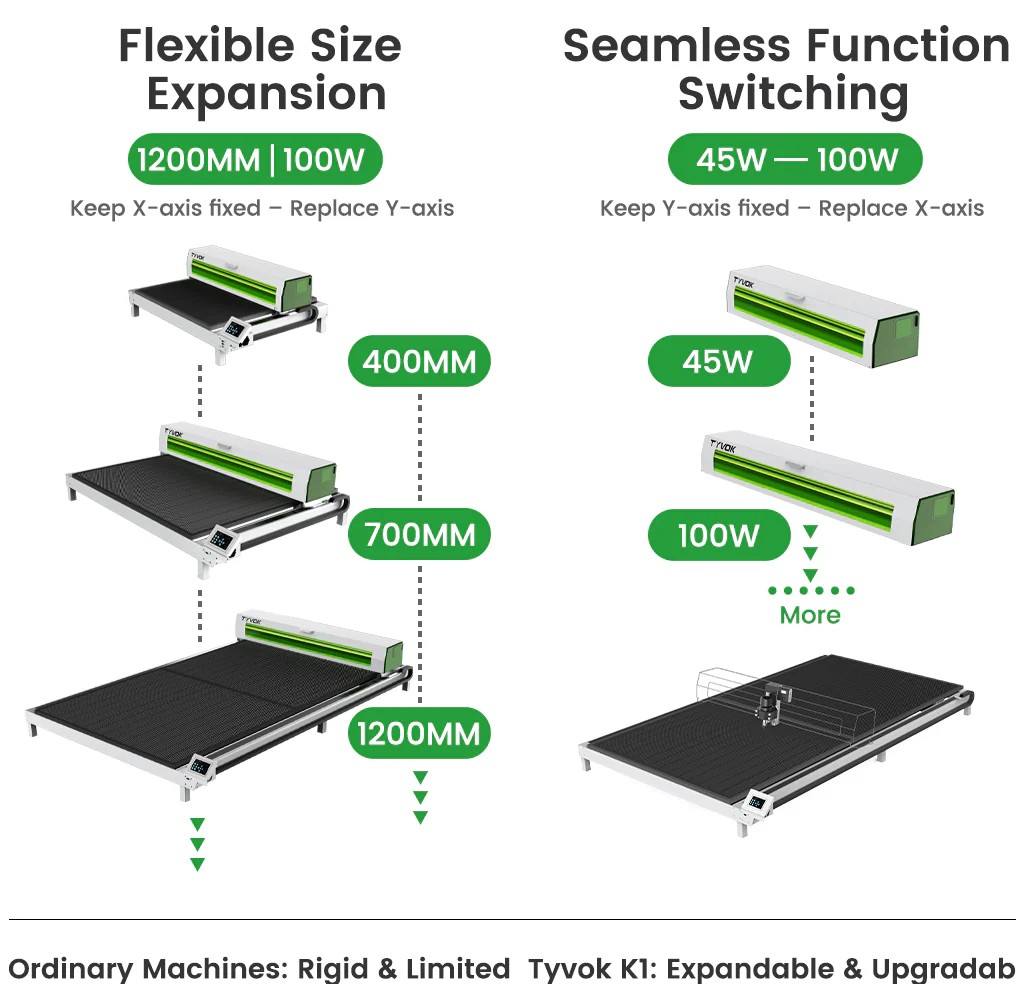

    • Modular and expandable — upgrade Y-axis to 1200×2000mm without buying a new machine.
    • Supported by New Zealand's authorised Tyvok distributor with local warranty and support.
    Professional CO2 Laser

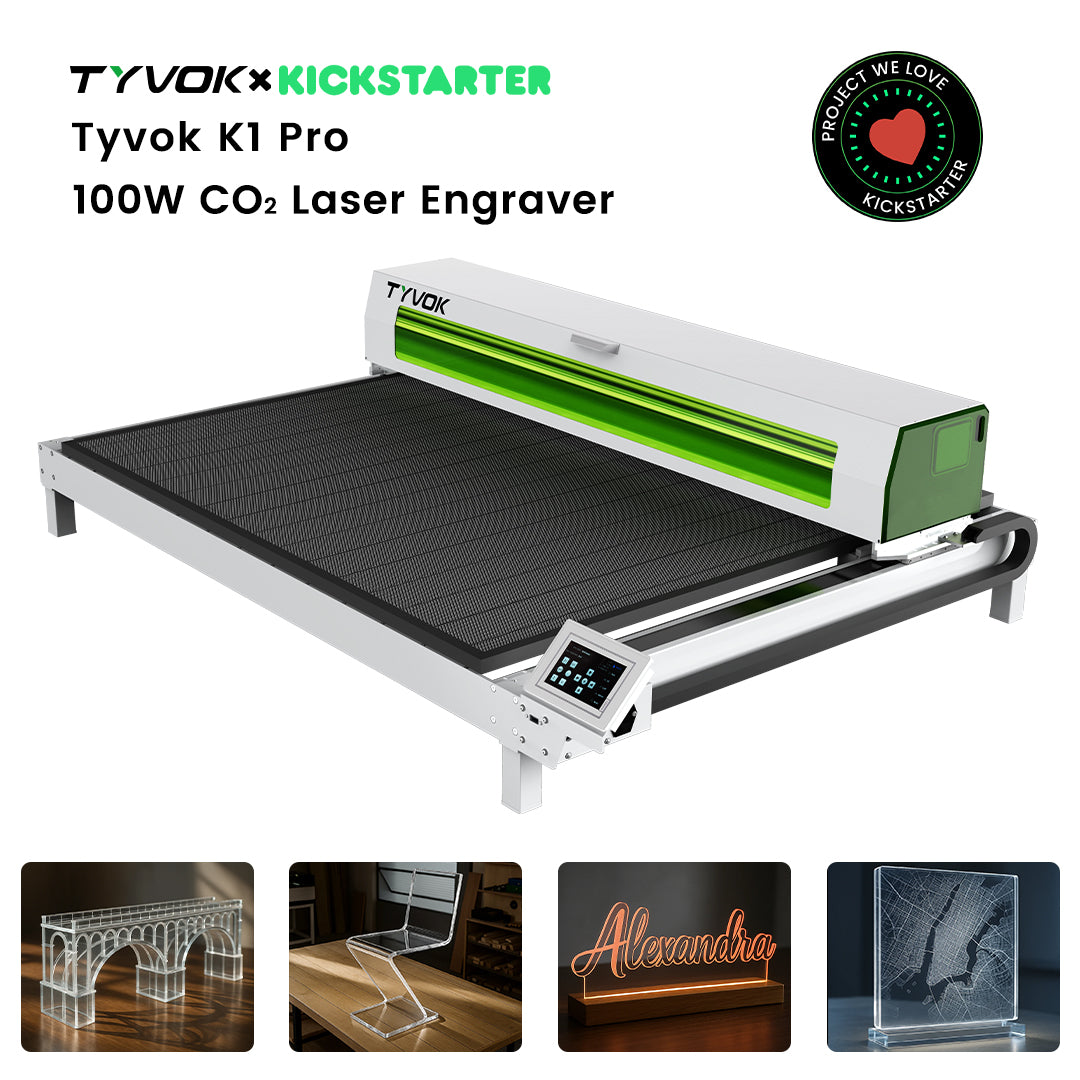

    Tyvok K1 Pro 100W CO2 Laser Engraver COMBO

    Industrial-grade 100W CO2 laser power with a massive 1200 x 700mm working area. Perfect for signage, prototyping, and production-scale engraving and cutting of wood, acrylic, glass, leather, and more.

    100W CO2 Laser Power
    1200x700 mm Working Area
    1000 mm/s Max Speed
    20mm Max Cut Depth
    Complete Package - Ready to Work

    Honeycomb Cutting Plate

    Supports clean cuts and prevents back-burn on your materials

    Industrial Water Chiller

    Maintains stable tube temperature for long service life

    Air Assist + Smoke Purifier

    Keeps edges clean and allows safe indoor operation

    Power Beyond Limits

    True 100W optical CO2 laser power for professional-grade results from a compact system

    Laser Performance

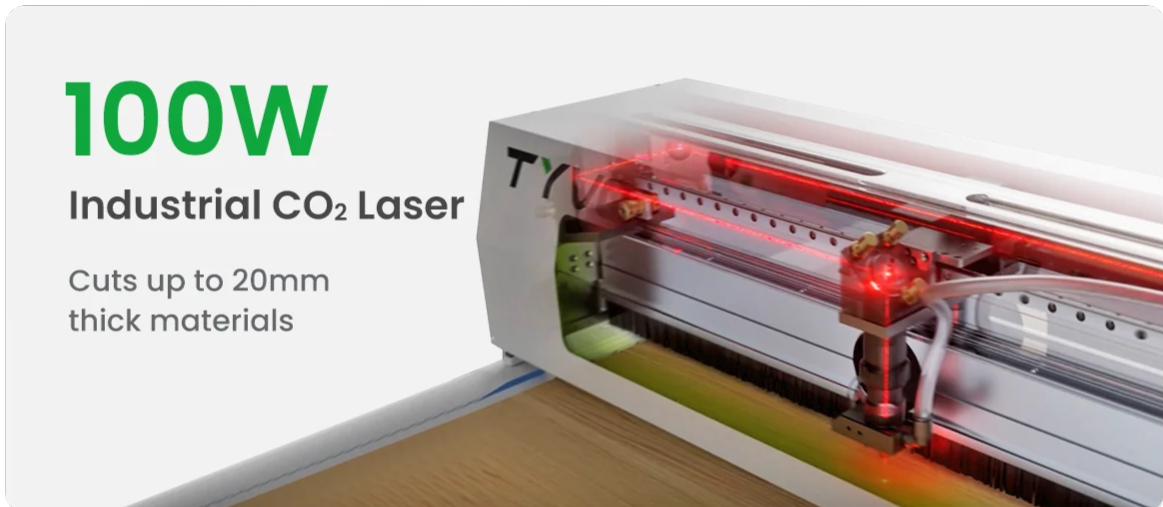

    100W CO2 Laser Engine

    Cut Up to 20mm in a Single Pass

    Tyvok K1 Pro delivers true 100W optical CO2 laser power, cutting through materials up to 20mm thick in a single pass. Clean edges, fewer burn marks. Industrial-grade results from a compact system without compromise.

    5-inch Touchscreen

    Working Area

    Full-Size Engraving, No Repositioning

    1200 x 700mm Work Area

    The K1 Pro's massive working area delivers over 90% effective engraving space. Large sheets for signage, furniture panels, or structural builds can be processed in one pass without repositioning or waste. Perfect for 4x2 ft boards.

    5-inch Touchscreen
    Speed

    Speed for Fast, Detailed Results

    Up to 1000mm/s Engraving Speed

    With a maximum engraving speed of 1000mm/s, the K1 Pro enables efficient processing of detailed artwork and bulk production tasks. Motion stability and path planning are optimized to deliver speed without compromising edge sharpness or fine textures.

    5-inch Touchscreen
    Precision

    Precise to +/-0.05mm

    Dual Y-Axis Lead Screw System

    A dual Y-axis lead screw system delivers consistent +/-0.05mm positioning accuracy across the full workspace. This mechanical precision ensures clean joins and reliable alignment - essential for layered structures, inlays, and interlocking parts.

    5-inch Touchscreen
    🎯

    Smart Autofocus

    Integrated sensor measures material thickness and automatically adjusts focal length. From 1mm acrylic to 20mm wood - no manual setup required.

    📷

    HD Camera Preview

    Top-mounted wide-angle camera provides live feedback with automatic distortion correction. Drag and place designs precisely anywhere on the material.

    💨

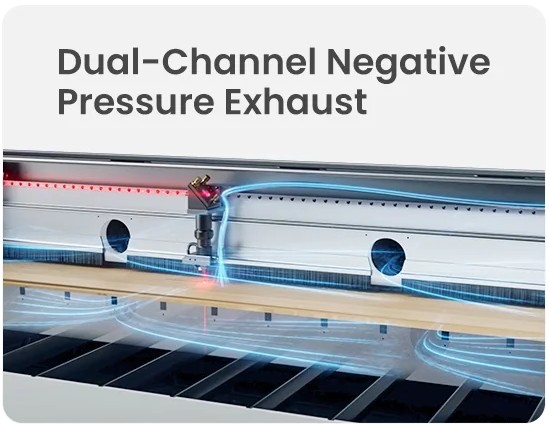

    Dual-Mode Exhaust

    Automatically switches between fine airflow and high-volume exhaust modes depending on workload, optimizing smoke removal and lens protection.

    ❄️

    Built-In Water Cooling

    Self-contained water cooling unit is embedded directly into the optical chamber. Plug-and-play deployment with no external pipelines.

    Creative Control Made Simple

    Intelligent features that lower the learning curve for schools, studios, and small teams

    Airflow Integration

    Odor-Free Operation

    Fully Integrated Exhaust System

    Tyvok K1 Pro features a fully integrated exhaust system with a reengineered airflow path, actively removing smoke and odor at the source. Ideal for studios, classrooms, and shared environments - maintains a clean workspace without external attachments.

    5-inch Touchscreen
    User Interface

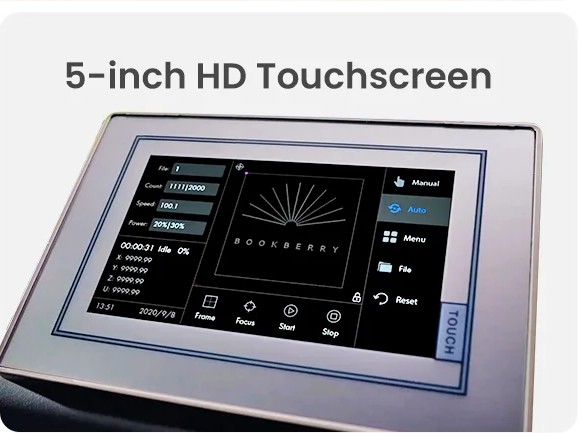

    5-inch HD Touchscreen

    Smartphone-Style Controls

    Easy-to-use 5-inch touchscreen with smooth, smartphone-style controls. Supports multiple languages, making it quick and simple for beginners to start engraving. Preview your work directly on the built-in display.

    5-inch Touchscreen

    Master Materials, Create Freely

    Works beautifully with glass, acrylic, wood, leather, fabric, and more

    🪵

    Wood

    Cuts and engraves all types of wood including MDF, plywood, and solid hardwoods up to 20mm thick.

    💎

    Acrylic

    Cuts through transparent acrylic with clean, polished edges - something diode lasers cannot achieve.

    🥛

    Glass

    Engrave directly on glass without coatings or special preparation - a key advantage of CO2 over diode lasers.

    👜

    Leather & Fabric

    Precise cutting and detailed engraving on leather, canvas, felt, and other textiles.

    Technical Specifications

    Working Area
    1200 x 700 mm
    Laser Power
    100W CO2
    Max Engraving Speed
    1000 mm/s
    Positioning Accuracy
    +/-0.05 mm
    Max Cut Thickness
    Up to 20 mm
    Control System
    Tyvok-Ruida Industrial
    Display
    5-inch HD Touchscreen
    Camera
    HD Wide-Angle
    Autofocus
    Yes - Smart Sensor
    Cooling
    Built-In Water Chiller
    Software
    LightBurn / RDWorks / Tyvok Guided
    Format
    Floor Standing

    Tyvok K1 Pro Technical Specifications

    Working Area 1200 x 700 mm
    Laser Type 100W Sealed CO2 Laser
    Max Engraving Speed 1000 mm/s
    Positioning Accuracy +/-0.05 mm
    Max Cutting Thickness Up to 20 mm (material dependent)
    Acrylic Cut Capability Up to 10 mm (clean polished edge)
    Motion System Dual Y-Axis Lead Screw
    Autofocus Yes - Smart Sensor
    Camera System HD Wide-Angle with Auto-Leveling
    Display 5-inch HD Touchscreen
    Control System Tyvok-Ruida Industrial Controller
    Cooling Integrated Water Chiller
    Exhaust Dual-Channel with Smoke Purifier
    Air Assist Included
    Enclosure Semi-Enclosed Design
    Software Compatibility LightBurn, RDWorks, Tyvok Guided

    Safety Features

    Lid Safety Lid-Triggered Power Cutoff
    Electrical Protection Fuse Protection + Grounding
    Fire Safety Mini Fire Extinguisher Included

    Materials Supported

    Wood MDF, Plywood, Hardwood, Bamboo
    Acrylic Clear, Colored, Cast, Extruded
    Glass Engrave Only (no coating needed)
    Leather Cut and Engrave
    Fabric / Textiles Cut and Engrave
    Paper / Cardboard Cut and Engrave
    Rubber / Foam Cut and Engrave

    Package Contents

    • Tyvok K1 Pro 100W CO2 Laser Engraver
    • Honeycomb Cutting Plate
    • Industrial Water Chiller
    • Air Assist System
    • Ventilation Kit
    • Smoke Purifier
    • USB Cable
    • Power Cable
    • User Manual
    • Accessory Kit
