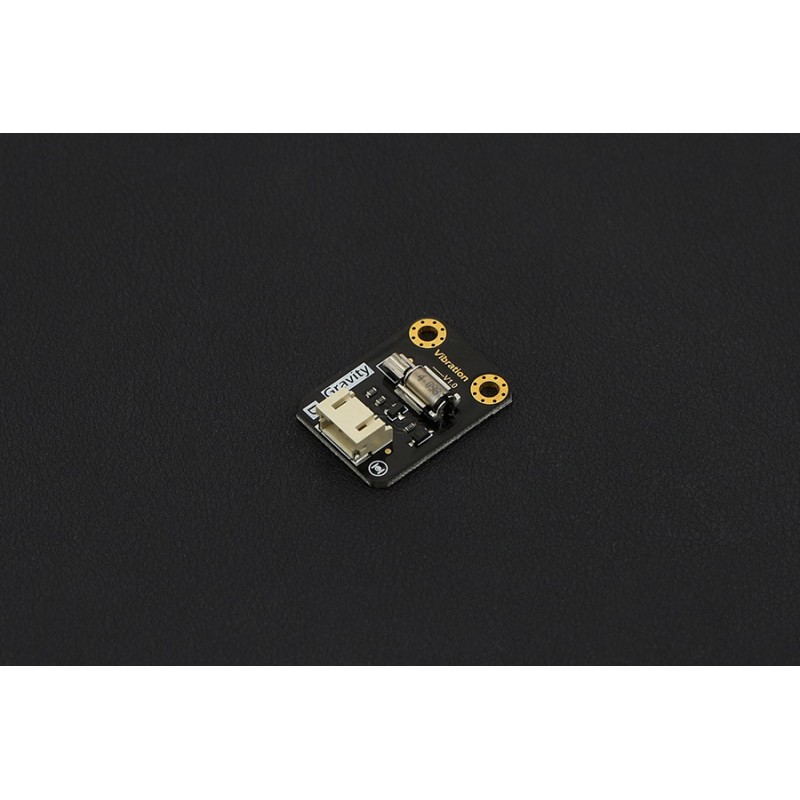

Have you ever wondered how to implement a vibration motor in your project, like you would find in a mobile phone? The latest vibration module in the DFRobot "Gravity" series will give you in-depth understanding of the principles of vibration motors. This module uses a high quality vibration motor that is the size of a coin. With this little vibration motor module, you can make some interesting Arduino projects such as an alarm, a notifier or even a vibrating robot!
To make this sensor accessible to users of all backgrounds, a three pin Gravity
interface is connected to allow plug and play usage with a range of Arduino microcontrollers. The I/O sensor shield
is also a useful accessory and will allow you to connect directly to your Arduino
. This sensor can also work at 3.3V levels which makes it compatible with Raspberry Pi
, Intel Edison
, Joule and Curie.
|Specification|Operating Voltage: 5VControl Mode: High-Low level / PWM signalDimensions: 30 x 22 mm / 1.18 x 0.78"
|Documents|Product WikiMore Documents
|ShippingList|Gravity: Vibration Module x 1Gravity Series PH2.0 to XH2.54 3 Pin Digital Cable x 1
