SM5100B Evaluation Board

Item #: CEL-09427
Bin:I19
There are no reviews yet Write a review
Price: $71.89 inc GST
    The product is in stock Availability: Stocked-NoBackOrder
    Usually ships In 2-4 days
    Stocked-NoBackOrder Quantity: 2

    Quantity:

    SM5100B Evaluation Board

    Description: This is an evaluation board for the SM5100B GSM/GPRS module; everything you need to get started with the cellular module is included on this board. With FTDI's FT232RL connected up to UART0 of the SM5100B you can send AT commands from a PC terminal straight to the module.

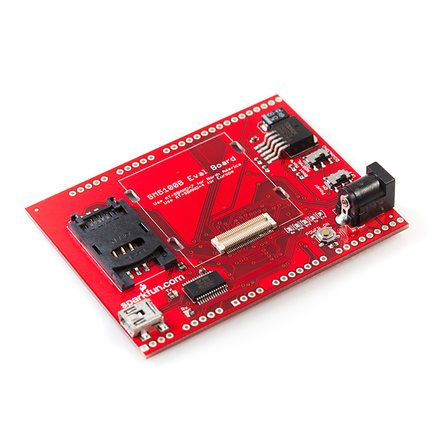

    This board comes as shown in the picture with the 60-pin SM5100B mating connector, SIM card socket, SPX29302 3.8VDC high-current voltage regulator, FT232RL USB-to-UART, Mini-B USB connector, and more supporting circuitry. The SM5100B module is not included.

    Note: If you don't want to use your computer, or the USB to communicate with the SM5100's UART, make sure you clear the RX, DTR, RTS, TX, and CTS jumpers.

    Note:Please note that powering the unit by USB can create some quirky behaviour (resets). When using the radio please note that it's a good idea to use an external power source such as a battery pack so the radios have enough power and don't cause the unit to reset.


    Features:

    • 60-pin SM5100B mating connector populated on board
    • Power from barrel jack regulated to 3.8VDC
    • SM5100B UART0 connected to FT232RL UART-to-USB chip
      • Mini-B USB connector integrated
    • All pins of the SM5100B broken out to 0.1" pitch headers
    • SIM socket integrated with SM5100B and populated on-board
    • ON/OFF and Boot mode SPDT switches
    • POWER ON momentary push-button switch
    • Red power indicator LED
    • RX, TX LEDs

    Dimensions: 3.2 x 2.5"
