Sparkfun

8, 16, 20, and 28-Pin SSOP to DIP break out boards. The footprint was rotated to accommodate different width SSOP devices and can be used with any pin count up to 28 pins. Designed to be used with...

8, 16, 20, and 28-Pin SSOP to DIP break out boards. The footprint was rotated to accommodate different width SSOP devices and can be used with any pin count up to 28 pins. Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We've made these 0.635mm devices fit just fine. Can be used with packages that have a lead span of .230" up to .350". 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers...

Breakout board for the microSD socket that is not much bigger than your fingernail. Compatible with the SPI interface found on any SD card, this tiny form factor was created for cell phone storage...

Breakout board for the microSD socket that is not much bigger than your fingernail. Compatible with the SPI interface found on any SD card, this tiny form factor was created for cell phone storage and is perfect for your next MP3 project! Board comes fully assembled and tested. The bare socket is available. Documents: Schematic Eagle Files Datasheet Adding SD to a Router - Thanks Jake! Eagle Layout as well! mbed Example GitHub ...

Basic breakout board for the TEMT6000 Ambient Light Sensor. Only what you need, nothing you don't. Sensor acts like a transistor - the greater the incoming light, the higher the analog voltage on...

Basic breakout board for the TEMT6000 Ambient Light Sensor. Only what you need, nothing you don't. Sensor acts like a transistor - the greater the incoming light, the higher the analog voltage on the signal pin. Documents: Hookup Guide Datasheet GitHub ...

This is a simple breakout board for the MQ - 3, MQ - 4, MQ - 6, MQ - 7, and MQ - 8 gas sensors. With the Gas Sensor Breakout you will be able to utilize each oversized, oddly spaced pins featured on...

This is a simple breakout board for the MQ - 3, MQ - 4, MQ - 6, MQ - 7, and MQ - 8 gas sensors. With the Gas Sensor Breakout you will be able to utilize each oversized, oddly spaced pins featured on every MQ gas sensor product. This is an extremely handy and economical board to have around when detecting multiple types of gases. All you need is the VCC at 5V, GND, and a resistor to an ADC, that is it! Note: This is just the PCB. The appropriate sensors are listed below in the Recommended...

This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the...

This is a breakout board for the very handy 16-Channel Analog/Digital Multiplexer/Demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the schematic, SIG on the board) to one of 16 channel pins (CHANxx). It works with both digital and analog signals (the voltage can't be higher than VCC), and the connections function in either direction. To control it, connect 4 digital outputs to the chip's address select pins (S0-S3), and send it the...

This is a board designed for opto-isolation. This board is helpful for connecting digital systems (like a 5V microcontroller) to a high-voltage or noisy system. This board electrically isolates a...

This is a board designed for opto-isolation. This board is helpful for connecting digital systems (like a 5V microcontroller) to a high-voltage or noisy system. This board electrically isolates a controller from the high-power system by use of an opto-isolator IC. This IC has two LEDs and two photodiodes built-in. This allows the low-voltage side to control a high voltage side. We often use this board to allow a microcontroller control servos or other motors that use a higher voltage than the...

A simple breakout PCB for the GP1A57HR photo interrupter (also known as a photogate, photodiode, or phototransistor). This PCB has three connections for PWR, GND, and Signal. When the gate is clear,...

A simple breakout PCB for the GP1A57HR photo interrupter (also known as a photogate, photodiode, or phototransistor). This PCB has three connections for PWR, GND, and Signal. When the gate is clear, SIG will be high (>4.9V). When the gate is blocked by a finger, writing utensil, food pellet, or anything else - SIG will go low ( Assembled picture is for reference only, board comes bare; photo interrupter and the 220Ω (330Ω, works as well) current limiting resistor are listed below. Documents:...

This is a simple 5V Op Amp breakout board, set up as a 2-stage amplifier with a gain of 100 (gain of 10 for each stage). The on-board trim pot sets the signal level between the stages, not the...

This is a simple 5V Op Amp breakout board, set up as a 2-stage amplifier with a gain of 100 (gain of 10 for each stage). The on-board trim pot sets the signal level between the stages, not the feedback path. The bandwidth is set to 15.9kHz by a pair of feedback capacitors, or over 100kHz with the caps removed. The LMV358 opamp can source up to 160mA and works well as a low impedance driver/buffer. Documents: Schematic Eagle Files Introduction to Op Amps with LTSpice Datasheet (LMV358) GitHub...

This is the newest revision of this board and this breakout board pairs an SP3485 RS-485 transceiver with an FT232RL USB UART IC to convert a USB stream to RS-485. The SP3485 is a half-duplex...

This is the newest revision of this board and this breakout board pairs an SP3485 RS-485 transceiver with an FT232RL USB UART IC to convert a USB stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. The TXDEN pin of the FT232RL is connected to the transmit and receive enable inputs of the SP3485, this line is used to control the transmission mode of the RS-485 transceiver. With the proper...

We have no idea what USB device you are hooking up to, but if you want to access the microUSB port on something, you might want this. We broke out all 5 pins with a vertical microUSB connector for...

We have no idea what USB device you are hooking up to, but if you want to access the microUSB port on something, you might want this. We broke out all 5 pins with a vertical microUSB connector for your prototyping needs. Features: Dimensions: 23.54L x 14.75W x 14.65H mm Documents: Schematic Eagle Files GitHub ...

Here is a real time clock based on the DS3234 Real Time Clock IC. The DS3234 is a low-cost, extremely accurate SPI bus real-time clock with an integrated temperature-compensated crystal oscillator...

Here is a real time clock based on the DS3234 Real Time Clock IC. The DS3234 is a low-cost, extremely accurate SPI bus real-time clock with an integrated temperature-compensated crystal oscillator and crystal. The RTC maintains seconds, minutes, hours, day, date, month, and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections of leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM...

The TLC5940 is a 16 channel PWM unit with 12 bit duty cycle control (0-4095), 6 bit current limit control (0-63), and a daisy chainable serial interface. This breakout board is a good way to take...

The TLC5940 is a 16 channel PWM unit with 12 bit duty cycle control (0-4095), 6 bit current limit control (0-63), and a daisy chainable serial interface. This breakout board is a good way to take full advantage of this useful IC. All 16 PWM channels are broken out to standard 0.1" headers, which run alongside convenient voltage and ground rails. Also, because the TLC5940 can be daisy-chained, the breakout is designed to support that feature. On the left-hand side of the board all serial inputs...

The 'must have' IC for TTL/CMOS projects finally has its own breakout board! This is the RS232 converter IC that is capable of running at 3V and communicating with 5V logic. We've taken the SOIC...

The 'must have' IC for TTL/CMOS projects finally has its own breakout board! This is the RS232 converter IC that is capable of running at 3V and communicating with 5V logic. We've taken the SOIC package MAX3232 and broken out all the pins you need to set up your RS232 to TTL connection. We've also included the necessary 0.1uF charge pump capacitors. Also remember that because the MAX3232 operates at a broader voltage range than the 232 (3 - 5.5V) you can use this on both your 3.3 and 5V...

"If you aren’t familiar with the Electric Imp, it essentially provides an easy, integrated way to connect almost any hardware device both to other devices and to internet services. The...

"If you aren’t familiar with the Electric Imp, it essentially provides an easy, integrated way to connect almost any hardware device both to other devices and to internet services. The SparkFun Electric Imp Breakout Board allows you to explore the capabilities of the Imp by providing standard 0.1" headers to solder to as well as the necessary CryptAuthEE IC to identify your prototype to the Imp Cloud service! This is just the development board, so you’ll need to buy the Imp...

This is a breakout board for the Texas Instruments TXB0104 module. The TXB0104 is a 4-bit bidirectional voltage-level translator with automatic direction sensing. This 4-bit noninverting translator...

This is a breakout board for the Texas Instruments TXB0104 module. The TXB0104 is a 4-bit bidirectional voltage-level translator with automatic direction sensing. This 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65V to 5.5V. This allows for universal low-voltage bidirectional translation...

This simple board breaks out a micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header. If you want to add the popular micro-B USB to your project, but don't want to put up with...

This simple board breaks out a micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header. If you want to add the popular micro-B USB to your project, but don't want to put up with soldering the tiny connector, this is the board for you. Features: 0.8 x 0.45" (20.3 x 11.4mm) Documents: [Schematic](http://cdn.sparkfun.com/datasheets/BreakoutBoards/Breakout Board for USB microB.pdf) [Eagle Files](http://cdn.sparkfun.com/datasheets/BreakoutBoards/Breakout Board for USB...

This simple board breaks out a female USB type A connector's VCC, GND, D- and D+ pins to a 0.1" pitch header. If you want to add a USB to your project, but don't want to put up with soldering...

This simple board breaks out a female USB type A connector's VCC, GND, D- and D+ pins to a 0.1" pitch header. If you want to add a USB to your project, but don't want to put up with soldering tiny connectors, this is the board for you. Dimensions: 1.02 x 0.9" (26.06 x 22.93mm) Documents: Schematic Eagle Files Hookup Guide GitHub ...

These are various leaded cables for attaching to multimeters, power supplies, oscilloscopes, function generators, etc. Cables come in red/black pairs. Features: 36" Long ...

These are various leaded cables for attaching to multimeters, power supplies, oscilloscopes, function generators, etc. Cables come in red/black pairs. Features: 36" Long

These are various leaded cables for attaching to multimeters, power supplies, oscilloscopes, function generators, etc. Cables come in red/black pairs. Features: 36" long ...

These are various leaded cables for attaching to multimeters, power supplies, oscilloscopes, function generators, etc. Cables come in red/black pairs. Features: 36" long

This is a standard issue USB 2.0 cable. This is the most common A to B Male/Male type peripheral cable, the kind that's usually used for printers. Compatible with most SFE designed USB boards as...

This is a standard issue USB 2.0 cable. This is the most common A to B Male/Male type peripheral cable, the kind that's usually used for printers. Compatible with most SFE designed USB boards as well as USB Arduino boards like the Uno. If you're still trying to wrap your head around the world of USB cables, why not check out our USB Buying Guide? Features: 6 Feet

The BNC probe kit includes a 20MHz professional probe with hook and tip as well as a couple converters to connect the probe to either a BNC jack, RCA jack, or a PCB mount. Each Probe is 4ft (1.2m)...

The BNC probe kit includes a 20MHz professional probe with hook and tip as well as a couple converters to connect the probe to either a BNC jack, RCA jack, or a PCB mount. Each Probe is 4ft (1.2m) in length and is perfect for most midrange applications. This kit was designed for use with our Digital Oscilloscope Kit, but can be used in a variety of other way or with other parts. Includes: 20MHz professional probe with tip, hook connector and ground alligator clip BNC-to-RCA(male)...

This is an interface cable for the Bus Pirate, designed to connect to its 2x5 I/O header. The cable's connector is composed of two rows of five 0.1" spaced pins; it's also polarized, as is the...

This is an interface cable for the Bus Pirate, designed to connect to its 2x5 I/O header. The cable's connector is composed of two rows of five 0.1" spaced pins; it's also polarized, as is the mating connector on-board the Bus Pirate, so you can only connect the cable in one direction. The leads of the cable are terminated with female ends to mate with test hooks. The pin-out of the connector is documented here. ...

These are good quality IC test hooks with a male connection wire. Instead of a single hook, these have two hooks that are capable of grabbing very small points (like SOIC IC legs). Comes in a bag of...

These are good quality IC test hooks with a male connection wire. Instead of a single hook, these have two hooks that are capable of grabbing very small points (like SOIC IC legs). Comes in a bag of five IC hooks of different colors (black, red, white, blue, and green). We use them with the Bus Pirate logic analyzer harnesses but are very cool on their own. Wire length is 2.5" long. Male pin easily inserts into breadboard or other standard 0.1" connector.

USB 2.0 type A to micro USB 5-pin. This is a new, smaller connector for USB devices. Micro USB connectors are about half the height of mini USB. Micro USB is found on newer hand held devices like...

USB 2.0 type A to micro USB 5-pin. This is a new, smaller connector for USB devices. Micro USB connectors are about half the height of mini USB. Micro USB is found on newer hand held devices like cell phones and portable media devices. Works great with the Google Nexus One. Cable color and shape may vary slightly from image as our stock rotates. If you're still trying to wrap your head around the world of USB cables, why not check out our USB Buying Guide? Features: 6 glorious feet ...

Ribbon cable is really helpful in situations where you need to make a lot of connections without a big mess of wires. Nothing makes a project look more finished than a nice clean wiring harness....

Ribbon cable is really helpful in situations where you need to make a lot of connections without a big mess of wires. Nothing makes a project look more finished than a nice clean wiring harness. This is a 15ft. length of 10-wire ribbon cable. Check the related products below for crimp-on connectors that will fit this cable. Documents: [Datasheet](http://cdn.sparkfun.com/datasheets/Cables/HookUp/Morethanall IDC Cable HFR-28R3HF-xx.pdf) ...

This is a USB 2.0 type A to Mini-B 5-pin cable. You know, the mini-B connector that usually comes with USB Hubs, Cameras, MP3 players, etc. You can use this with our LiPo Charger, FTDI Basic...

This is a USB 2.0 type A to Mini-B 5-pin cable. You know, the mini-B connector that usually comes with USB Hubs, Cameras, MP3 players, etc. You can use this with our LiPo Charger, FTDI Basic Programmer or even combine it with the CP210x IC and SMD Mini-B connector to create your own portable USB device! The best part? It's SparkFun Red and has the flame logo embossed on the connector shroud. Sweet. If you're still trying to wrap your head around the world of USB cables, why not check out our...

You've got the wrong USB cable. It doesn't matter which one you have, it's the wrong one. But what if you could have the right one? What if you could have the right one every time? Enter: The...

You've got the wrong USB cable. It doesn't matter which one you have, it's the wrong one. But what if you could have the right one? What if you could have the right one every time? Enter: The Cerberus. The Cerberus is a three-headed cable-beast that will ensure that you're never stuck looking for a USB cable that fits your device. At one end of the Cerberus you have the standard A-type connector, which you can plug into your computer or USB power supply; At the other end are three common USB...

This is your simple three conductor sensor cable with electrode pad leads. These cables are 24" long and feature a 3.5mm audio jack connector on one end with snap style receptacles for biomedical...

This is your simple three conductor sensor cable with electrode pad leads. These cables are 24" long and feature a 3.5mm audio jack connector on one end with snap style receptacles for biomedical sensor pads. Each cable comes in a red/blue/black set. Features: 24" Long 4 mm connector Documents: Product Video

This is a basic, 4-digit 7-segment display - yellow in color. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points. The...

This is a basic, 4-digit 7-segment display - yellow in color. It has a common anode. The display features one decimal point per digit, and individually controllable apostrophe and colon points. The LEDs have a forward voltage of 2.1VDC and a max forward current of 20mA. The hardware interface is sixteen (two rows of eight) through-hole pins. We carry this same display in red, green, and blue. Features: Overall Display: 40.18 x 12.8 mm (1.58 x 0.50") Digit Height: 10mm (0.39") Documents:...

This is a simple slide switch for the LilyPad. Use it as a simple ON/OFF switch, or to control LEDs, buzzers, sensors, etc. The swtiches on each board are rated for 4 volts at 300mA, but will work...

This is a simple slide switch for the LilyPad. Use it as a simple ON/OFF switch, or to control LEDs, buzzers, sensors, etc. The swtiches on each board are rated for 4 volts at 300mA, but will work at 5 volts with a reduction in current. LilyPad is a wearable e-textile technology developed by Leah Buechley and cooperatively designed by Leah and SparkFun. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and...

Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop...

Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements the Processing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux). The Arduino Mega is a microcontroller board based on the ATmega2560. It has 54 digital input/output...

This is a fantastic find for SFE. A small, high-quality, quad-band, standard SMA terminated, cellular antenna. Specifications: GSM/850E : 824 to 894MHz GSM : 880 to 960MHz DCS : 1710 to 1880MHz PCS...

This is a fantastic find for SFE. A small, high-quality, quad-band, standard SMA terminated, cellular antenna. Specifications: GSM/850E : 824 to 894MHz GSM : 880 to 960MHz DCS : 1710 to 1880MHz PCS : 1850 to 1990MHz Documents: GSM Antenna 850-1900MHz

This high gain, 7.75" antenna is perfect for AVL applications where cellular reception is a must. Connector is regular SMA so don't confuse it with 2.4GHz antennas. Specifications: GSM/850E : 824 to...

This high gain, 7.75" antenna is perfect for AVL applications where cellular reception is a must. Connector is regular SMA so don't confuse it with 2.4GHz antennas. Specifications: GSM/850E : 824 to 894MHz GSM : 880 to 960MHz DCS : 1710 to 1880MHz PCS : 1850 to 1990MHz Documents: Datasheet

We use these little buttons on everything! These Miniature Single Pole Single Throw switches have a good click to them and are breadboard friendly. Perfect as a tactile reset switch. These momentary...

We use these little buttons on everything! These Miniature Single Pole Single Throw switches have a good click to them and are breadboard friendly. Perfect as a tactile reset switch. These momentary buttons are rated up to 50mA. Documents: Dimensional Drawing (NEEDS UPDATE! COMING SOON!)

These are high quality Single Pole - Double Throw (SPDT) sealed relays. Use them to switch high voltage, and/or high current devices. This relay's coil is rated up to 12V, with a minimum switching...

These are high quality Single Pole - Double Throw (SPDT) sealed relays. Use them to switch high voltage, and/or high current devices. This relay's coil is rated up to 12V, with a minimum switching voltage of 5V. The contacts are rated up to 5A (@250VAC, 30VDC). Note: In the Datasheet below there is a pin layout listed as "Bottom View." Be aware, this pin layout is actually the top-down view NOT bottom-up. Features: 5V DC SPDT Relay Rated up to 5A Fully Sealed Documents: Datasheet ...

Simple SPDT slide switch. Rated at 30V/200mA. The pins have .1" spacing - fits great into a breadboard! Use it as a power switch or general control switch. Documents: Dimensional Drawing ...

Simple SPDT slide switch. Rated at 30V/200mA. The pins have .1" spacing - fits great into a breadboard! Use it as a power switch or general control switch. Documents: Dimensional Drawing

Ever hear of a thing called RGB? Red, Green, Blue? How about an RGB LED? These 5mm units have four pins - Cathode is the longest pin. One for each color and a common cathode. Use this one LED for...

Ever hear of a thing called RGB? Red, Green, Blue? How about an RGB LED? These 5mm units have four pins - Cathode is the longest pin. One for each color and a common cathode. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Note: As of 1/2010, the pins in the datasheet are correctly labeled. Pin 3 is Green and Pin 4 is Blue. Those purchased prior to then will have Blue on Pin 3 and Green on Pin 4. Features: Forward Voltage (RGB): (2.0, 3.2,...

Faster, cheaper, smaller, better, right? The SN754410 Quad Half H-Bridge is just that. Capable of driving high voltage motors using TTL 5V logic levels, the SN754410 can drive 4.5V up to 36V at 1A...

Faster, cheaper, smaller, better, right? The SN754410 Quad Half H-Bridge is just that. Capable of driving high voltage motors using TTL 5V logic levels, the SN754410 can drive 4.5V up to 36V at 1A continuous output current! Please see datasheet for more information. This is a pin to pin compatible replacement for the L293D. **Datasheets: **SN754410

"DC to DC converter/regulator MC34063A. Has an input range of 3V to 40V, output switch current of up to 1.5 amp. Step up, step down and invert capability. This is the unit we used in the high...

"DC to DC converter/regulator MC34063A. Has an input range of 3V to 40V, output switch current of up to 1.5 amp. Step up, step down and invert capability. This is the unit we used in the high voltage ringer circuit for the port-o-rotary phone! Documents:MC34063 Datasheet"

These are very bright LEDs. The LEDs are so bright that it hurts to look directly at them. Please take a look at the pictures to get an idea of the intensity. All lenses are clear. Features:...

These are very bright LEDs. The LEDs are so bright that it hurts to look directly at them. Please take a look at the pictures to get an idea of the intensity. All lenses are clear. Features: Standard Size - T1 3/4 5mm Forward Voltage: Min: 3.2V Max: 3.4V Max current 20mA Documents: Datasheet LED Tutorial ...

LEDs - those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays. This is a very standard red LED. The lens is 3mm in diameter, and is...

LEDs - those blinky things. A must have for power indication, pin status, opto-electronic sensors, and fun blinky displays. This is a very standard red LED. The lens is 3mm in diameter, and is diffused. Features: 1.8-2.2VDC forward drop Max current: 20mA Suggested using current: 16-18mA Luminous Intensity: 150-200mcd Documents: Datasheet LED Tutorial ...

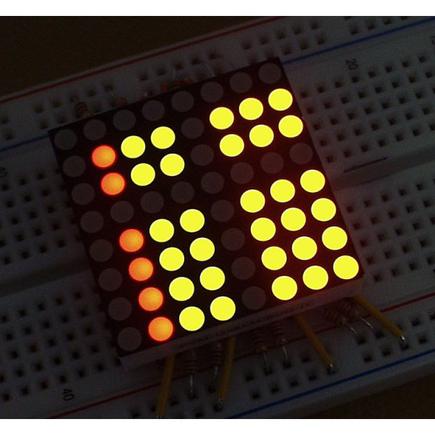

"LED Matrix with dual-color LEDs. This small matrix has both bright-red and bright-green LEDs built into one common cathode housing. Unit comes with a black finish and a opaque LED lenses. The...

"LED Matrix with dual-color LEDs. This small matrix has both bright-red and bright-green LEDs built into one common cathode housing. Unit comes with a black finish and a opaque LED lenses. The picture does not quite do the matrix justice. The Red and Green LEDs are quite clear, and turning both on creates a nice yellow color. Dimensions: 0.275x1.25x1.25" Documents: Datasheet " ...

This a simple breakout board for the button pads. Each LED and button is brought out to the side connectors. The connectors are soldered to the back side of the PCB. We recommend trimming the...

This a simple breakout board for the button pads. Each LED and button is brought out to the side connectors. The connectors are soldered to the back side of the PCB. We recommend trimming the connector leads on the button side as short as possible to reduce the deflection of the pad. Now with footprints for diodes! Use the super cheap 1N4148 through-hole diodes. These can be used to isolate the switches to make for a bit easier decoding. Documents: Schematic Eagle Files Hookup Guide Datasheet...

This is a very common signal diode - 1N4148. Use this for signals up to 200mA of current. Documents: Datasheet ...

This is a very common signal diode - 1N4148. Use this for signals up to 200mA of current. Documents: Datasheet

Small electret microphone. Useful in acoustic and audio applications. Documents: Datasheet Example Audio LED control project by Adam Greig ...

Small electret microphone. Useful in acoustic and audio applications. Documents: Datasheet Example Audio LED control project by Adam Greig

This is a small device called a reed switch. When the device is exposed to a magnetic field, the two ferrous materials inside the switch pull together and the switch closes. When the magnetic field...

This is a small device called a reed switch. When the device is exposed to a magnetic field, the two ferrous materials inside the switch pull together and the switch closes. When the magnetic field is removed, the reeds separate and the switch opens. This makes for a great non-contact switch. This switch can carry up to 1.2A. Documents: Datasheet Hookup Guide Application Note Videos ...

This is a simple 5mm LED with an interesting array of applications. This UV LED can be used for counterfeit detection (bills, credit cards, documents, etc), sterilization, pesticide, black lights,...

This is a simple 5mm LED with an interesting array of applications. This UV LED can be used for counterfeit detection (bills, credit cards, documents, etc), sterilization, pesticide, black lights, sun burns, the list goes on. Please wear eye protection when using these LEDs. Features: T1 3/4 5mm clear lens 395-400nm 100-180mcd 3-3.6V forward drop Documents: Datasheet LED Tutorial All About LEDs ...

Miniature surface mount momentary button. These are great, low-profile momentary switches. Perfect as a tactile reset switch. Rated up to 50mA. Documents: Dimensional Drawing ...

Miniature surface mount momentary button. These are great, low-profile momentary switches. Perfect as a tactile reset switch. Rated up to 50mA. Documents: Dimensional Drawing

This is your standard fridge magnet, perfect for holding up quite a bit of weight. Grade C8, ceramic disk magnet. Magnetization is throughout the thickness of the magnet. We used this part with the...

This is your standard fridge magnet, perfect for holding up quite a bit of weight. Grade C8, ceramic disk magnet. Magnetization is throughout the thickness of the magnet. We used this part with the SparkFun flame kits found at our various workshops. Attachable with double stick tape or hot-glue. Features: BrMax: 3850 Gauss Pull Force: 1.5 lbs. 0.709x0.197"

This is a joystick very similar to the 'analog' joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers - one for each axis. Pots are ~10k each. This...

This is a joystick very similar to the 'analog' joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers - one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is pressed down. Note: Breakout board available below. Documents: Tutorial Eagle Library Videos ...

This is a heavy-duty joystick very similar to the ones in claw arcade games. Directional movements are momentary limit switches - one for each direction. This joystick also has a select button that...

This is a heavy-duty joystick very similar to the ones in claw arcade games. Directional movements are momentary limit switches - one for each direction. This joystick also has a select button that is actuated when the red button is pressed down. This joystick is pretty beefy and very tall because of it. We built up an enclosure just to see what it would look like. Ideally, this joystick would be panel mounted, but actually reading the movement of the joystick is as simple as setting up the...

A small audio speaker that is ideal for radio and amplifier projects and is small enough to fit in robot projects. Features: Small Size Power rating: 0.5W Impedance: 8Ω 50mm diameter, 16mm high,...

A small audio speaker that is ideal for radio and amplifier projects and is small enough to fit in robot projects. Features: Small Size Power rating: 0.5W Impedance: 8Ω 50mm diameter, 16mm high, 28mm base diameter

4-way Pacman type arcade joystick. Heavy duty design gives this joystick a great feel! Features: ABS plastic and solid alloy construction Uses 4 microswitches to detect on/off position Unique handle...

4-way Pacman type arcade joystick. Heavy duty design gives this joystick a great feel! Features: ABS plastic and solid alloy construction Uses 4 microswitches to detect on/off position Unique handle design Spring return to center Very rugged construction Rated 5A @ 125V, 3A @ 250V* Overall height: 101mm Base: 97x65mm Joystick height: 60mm Documents: Manual ...

This is a standard 12mm square momentary button. What we really like is the large button head and good tactile feel (it 'clicks' really well). This button is great for user input on a PCB or a good,...

This is a standard 12mm square momentary button. What we really like is the large button head and good tactile feel (it 'clicks' really well). This button is great for user input on a PCB or a good, big reset button on a breadboard. Breadboard friendly!

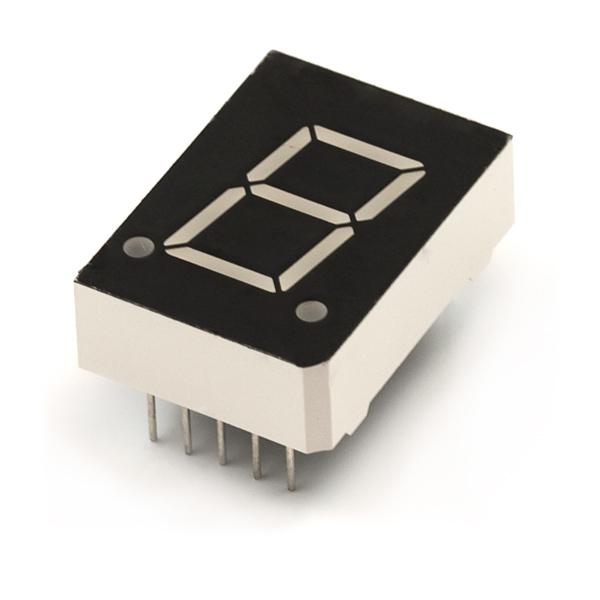

Your basic 7-segment LED, but in blue! Common anode. Two decimal points, but only the one on the right is wired. Digit height is 0.6". Overall height is 1". Check out this tutorial on how to use...

Your basic 7-segment LED, but in blue! Common anode. Two decimal points, but only the one on the right is wired. Digit height is 0.6". Overall height is 1". Check out this tutorial on how to use this product with the 74HC595 Shift Register and Arduino. Thanks Patrick and Mycha! Documents: Datasheet Arduino Library (Thanks Derek!) ...

This is a heavy duty SPST toggle switch - your basic on/off toggle. Rated for 2A at 250V or 4A at 125V. Includes a face plate and two threaded nuts for mounting. Works great with our missile switch...

This is a heavy duty SPST toggle switch - your basic on/off toggle. Rated for 2A at 250V or 4A at 125V. Includes a face plate and two threaded nuts for mounting. Works great with our missile switch cover. Features: 0.5 x 0.55 x 1.45" Documents: Dimensional Drawing

An adjustable potentiometer can open up many interesting user interfaces. Turn the pot and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a...

An adjustable potentiometer can open up many interesting user interfaces. Turn the pot and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user! This is a center-tap linear type potentiometer. The outer two pins will always show 10K resistance, the center pin resistance to one of the...

The US1881 is an integrated Hall-Effect latched sensor. That's nice but what does it do? Holding a magnet near the sensor will cause the output pin to toggle. This makes for a robust presence...

The US1881 is an integrated Hall-Effect latched sensor. That's nice but what does it do? Holding a magnet near the sensor will cause the output pin to toggle. This makes for a robust presence sensor. A reed sensor also works nicely, but can be limited by the glass encapsulation and size. A Hall-Effect sensor is much smaller, but can handle less current than a reed switch. The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage,...

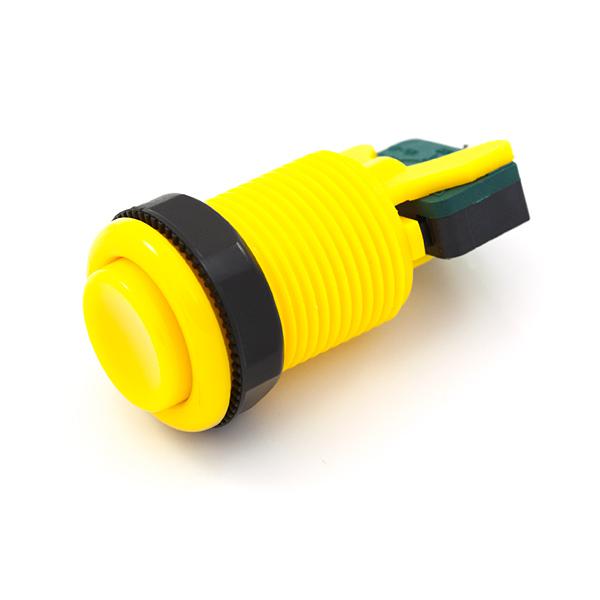

This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, 'clicky' feel. Features:...

This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, 'clicky' feel. Features: Concave plunger design Durable nylon material Microswitch: max 3A @ 120 VAC Microswitch reliability tested to 10,000,000 cycles Includes 3 terminal microswitch Net weight: 25g* Bezel diameter: 32mm Overall height: 65mm Mounting hole: 1 1/8th inch paddle bit (1.125" / 28mm) ...

This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, 'clicky' feel. Features:...

This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, 'clicky' feel. Features: Concave plunger design Durable nylon material Microswitch: max 3A @ 120 VAC Microswitch reliability tested to 10,000,000 cycles Includes 3 terminal microswitch Net weight: 25g* Cap diameter: 35mm Overall height: 65mm Mounting hole: 1 1/8th inch paddle bit (1.125" / 28mm) ...

This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, 'clicky' feel. Features:...

This is a 35mm concave momentary push button similar to the ones you find on arcade games. Simple screw in design. Perfect for mashing. This button has a great tactile, 'clicky' feel. Features: Concave plunger design Durable nylon material Microswitch: max 3A @ 120 VAC Microswitch reliability tested to 10,000,000 cycles Includes 3 terminal microswitch Net weight: 25g* Cap diameter: 35mm Overall height: 65mm Mounting hole: 1 1/8th inch paddle bit (1.125" / 28mm) ...

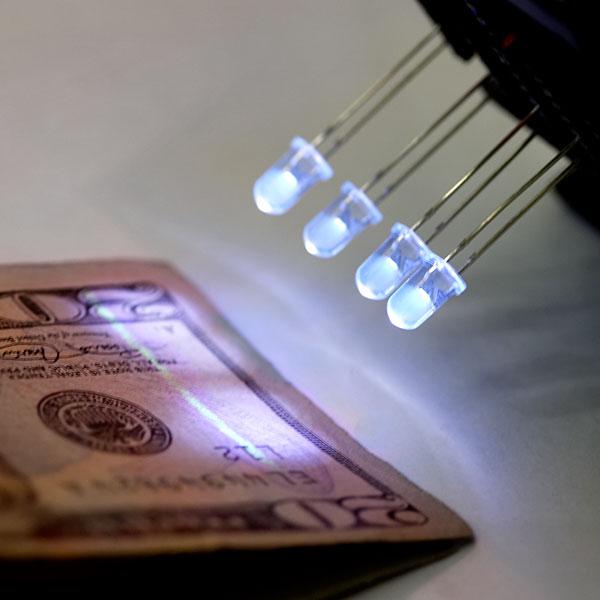

We all know that you can never get too many LEDs. Don't worry, we've got you covered. This is a pack of 25 LEDs all conveniently packaged in a nice reusable ESD safe bag. Make that next project...

We all know that you can never get too many LEDs. Don't worry, we've got you covered. This is a pack of 25 LEDs all conveniently packaged in a nice reusable ESD safe bag. Make that next project shine! Features: 25 super bright red LEDs 9,000mcd brightness Standard size - T1 3/4 5mm 2.4V forward drop Max current 20mA Documents: Info Sheet Datasheet LED Tutorial ...

We all know that you can never get too many LEDs. Don't worry, we've got you covered. This is a pack of 25 LEDs all conveniently packaged in a nice reusable ESD safe bag. Make that next project...

We all know that you can never get too many LEDs. Don't worry, we've got you covered. This is a pack of 25 LEDs all conveniently packaged in a nice reusable ESD safe bag. Make that next project shine! Features: 25 super bright blue LEDs Standard size - T1 3/4 5mm 4,000mcd brightness 3.4V forward drop Max current 20mA Documents: Datasheet LED Tutorial ...

There are lots of trimpots out there. Some are very large, some so small they require a screwdriver. Here at SparkFun, we just needed a simple one that worked. This 10K trimmable potentiometer has a...

There are lots of trimpots out there. Some are very large, some so small they require a screwdriver. Here at SparkFun, we just needed a simple one that worked. This 10K trimmable potentiometer has a small knob built right in and it's breadboard friendly to boot! Perfect for your next LCD contrast adjuster, opamp setting, or volume level. This model # is TSR-3386U within the datasheet. Documents: Datasheet (Note pins are in a single row, as shown in the pictures) ...
