SparkFun Photo Interrupter Breakout Board - GP1A57HRJ00F

There are no reviews yet. | Write a review

Stock on hand: 2

SKU:BOB-09322 C7

Price: $2.64

Quantity:

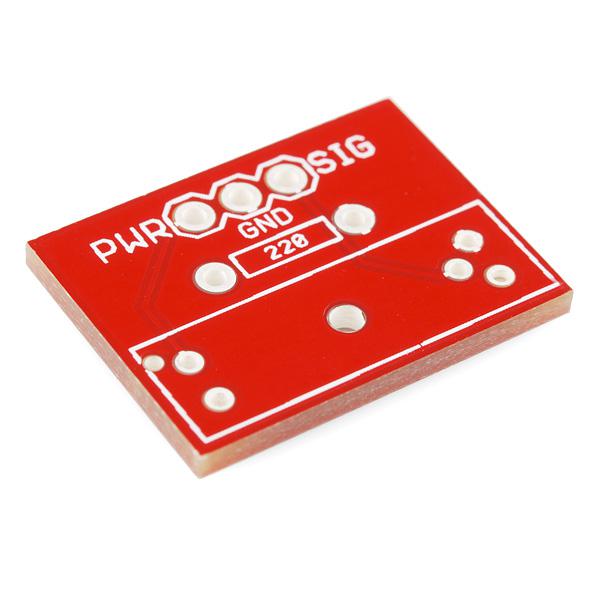

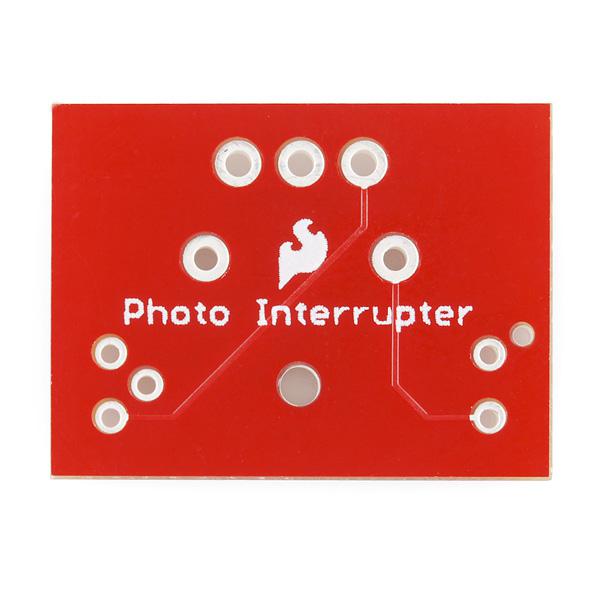

A simple breakout PCB for the GP1A57HR photo interrupter (also known as a photogate, photodiode, or phototransistor). This PCB has three connections for PWR, GND, and Signal.

When the gate is clear, SIG will be high (>4.9V). When the gate is blocked by a finger, writing utensil, food pellet, or anything else - SIG will go low (<0.4V).

Assembled picture is for reference only, board comes bare; photo interrupter and the 220Ω (330Ω, works as well) current limiting resistor are listed below.

Documents:

Schematic
Eagle Files
GitHub (Design Files)
