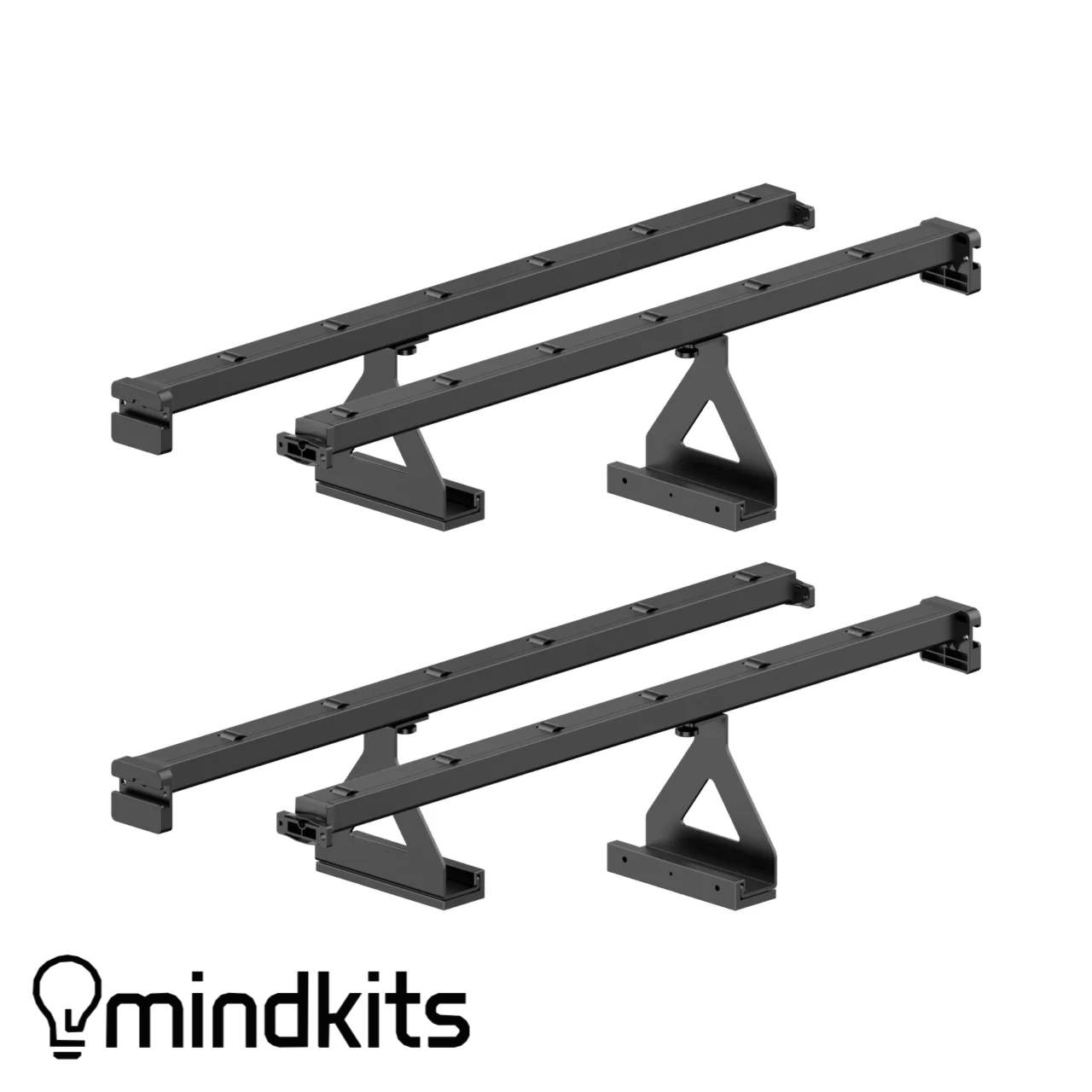

xTool - Conveyor Rail (25.5") for xTool P Series Automatic Conveyor Feeder

Item #: xTool-ACF-255-CR

There are no reviews yet Write a review

Price: $262.44 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:1750

notify me

Estimate Shipping

About This Item

Supersized Work Area: Engrave up to 118" × 19.6" with ease, allowing for longer materials and higher project volumes.
Automatic Conveying System: Smart path planning and material feeding eliminate manual handling and reduce accuracy deviations.
Versatile Material Compatibility: Supports a wide range of materials from plywood and acrylic to soft materials like felt, cork, and EVA.
User-Friendly Design: Features include anti-slip pressure wheels, color-coded pressure settings, easy assembly buckles, and alignment grids for precise positioning.

Description

Featured

xTool - Conveyor Rail (25.5") for xTool P Series Automatic Conveyor Feeder

The maximum processing area is supersized up to 118''×19.6'', giving you the option to engrave anything up to 118 inches long in size effortlessly, and set more quantity at one time.

XTOOL - CONVEYOR

xTool - Conveyor Rail (25.5") for xTool P Series Automatic Conveyor Feeder

Automatic Conveying,Farewell Accuracy Deviation

The maximum processing area is supersized up to 118''×19.6'', giving you the option to engrave anything up to 118 inches long in size effortlessly, and set more quantity at one time.

Automatic engraving path planning and material conveying; Farewell to manual material feeding and accuracy deviation.

CREATIONS UNRESTRAINED

Creations Unrestrained by Materials

Aligning Grids, for Precise Process

The material range is expanded from plywood, acrylic and fiberboard to soft materials like felt, cork and EVA.

The upper and lower pressure wheels use anti-slip materials, and materials of various sizes can be easily fixed to prevent them from slipping or shifting during the conveying process.

Specifications

Product Information	Conveyor Rail (25.5") for xTool P Series Automatic Conveyor Feeder
Applicable to	xTool P2
Package Size	30.2''×10.1''×9.1'' (769×255×230mm)
Product Size	27.1''×7.8''×5.3'' (687×200×135mm)
Product Weight	8.045kg
Max. Speed	160mm/s
Maximum Processing Area	118''×19.6'' (3000mm×500mm)
Maximum Material Width	24.5'' (624mm)
Minimum Material Width	2.5'' (65mm)
Maximum Material Thickness	0.55'' (14mm)
Conveyor Rail (Hard Material)	Basic (2 pairs) ×1: 39'' (1m) support length / 34'' (0.85m) processing length + Add-on kit (2 pairs) ×1: 64.5'' (1.64m) / 58.6'' (1.49m) + Add-on kit (2 pairs) ×2: 90'' (2.3m) / 84.6'' (2.15m) + Add-on kit (2 pairs) ×3: 118'' (3m) / 112.2'' (2.85m)
Soft Material	Can hang down on both sides of the conveyor feeder. Some materials may require PET tape.

What's in the Box

xTool - Automatic Conveyor Feeder for xTool P Series *1
