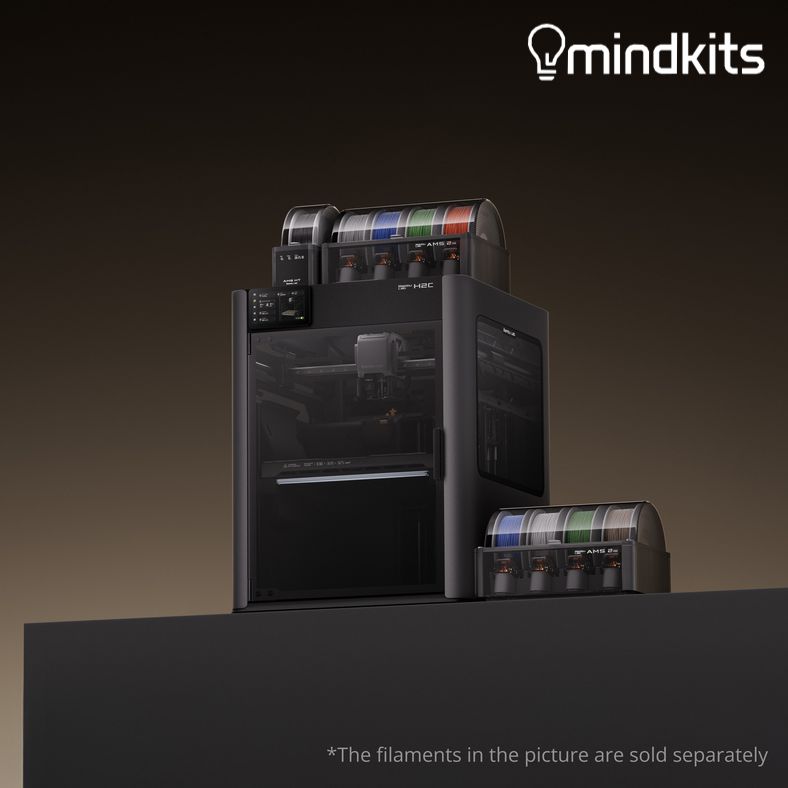

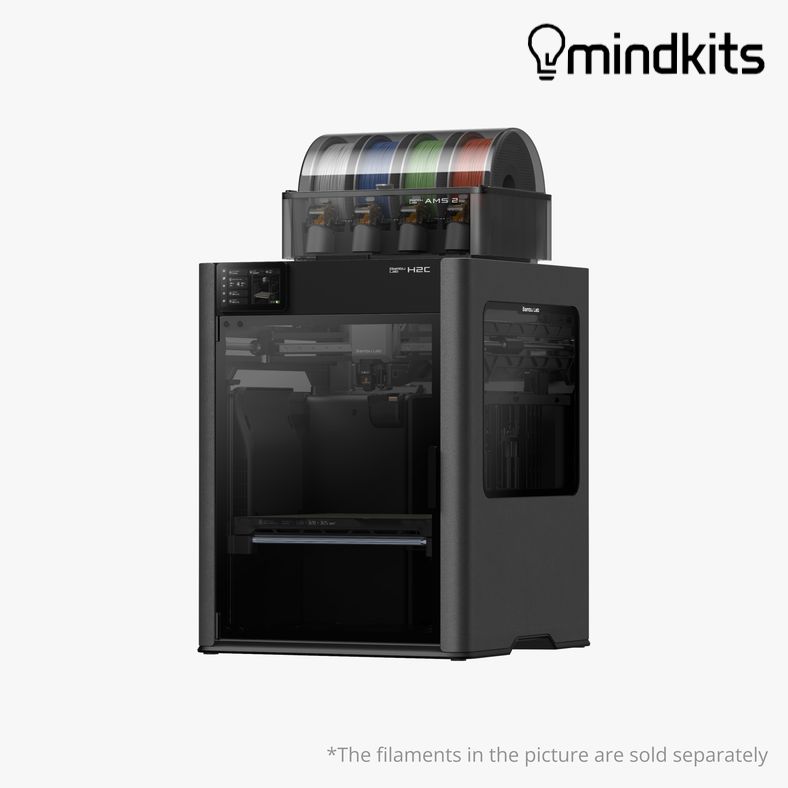

Bambu Lab H2C Combo with AMS and Vortek System

Item #: BAM-PF003-C+SA007-AU

There are no reviews yet Write a review

Price: $4,999.00 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:33327

notify me

Estimate Shipping

About This Item

Without Compromise: Bambu Lab’s H2C is a high-performance multi-material 3D printer featuring dual extruders and advanced automation, designed for professional-grade desktop printing.
Vortek System Integration: The H2C debuts the Vortek hotend-swapping system, enabling rapid, tool-free hotend changes and seamless multi-material transitions without filament flushing.
Multi-Material Efficiency: Vortek supports up to 7 materials or colors with minimal waste, improving print speed and reducing downtime compared to traditional filament-swapping methods.
Upgradeable Ecosystem: Vortek is available as an upgrade kit for H2D and H2S printers, though Bambu Lab recommends the H2C for the best out-of-box Vortek experience due to hardware integration.

Description

Featured

Bambu Lab H2C Combo with AMS and Vortek System

PAINT NO

Paint No More, Print 7 Colors in One-Piece

Purge Saving Multi-Color Printing

Painting intricate models is a thing of the past — the H2C brings your designs to life with six-color printing and a versatile seventh nozzle for support or an additional color. This whole thing is printed in 2 parts. The main raptor is 6-color and the base is another 6-color.

NO MORE

No More Assembly — Print Multi-Material Parts in One Piece

Purge Saving Multi-Material Printing

With the H2C, you can print up to seven different materials in a single run — no nozzle purging required. Combine multiple material properties in one seamless structure and take integrated design to a whole new level.

No More Assembly — Print Multi-Material Parts in One Piece

PRINT DURABLE

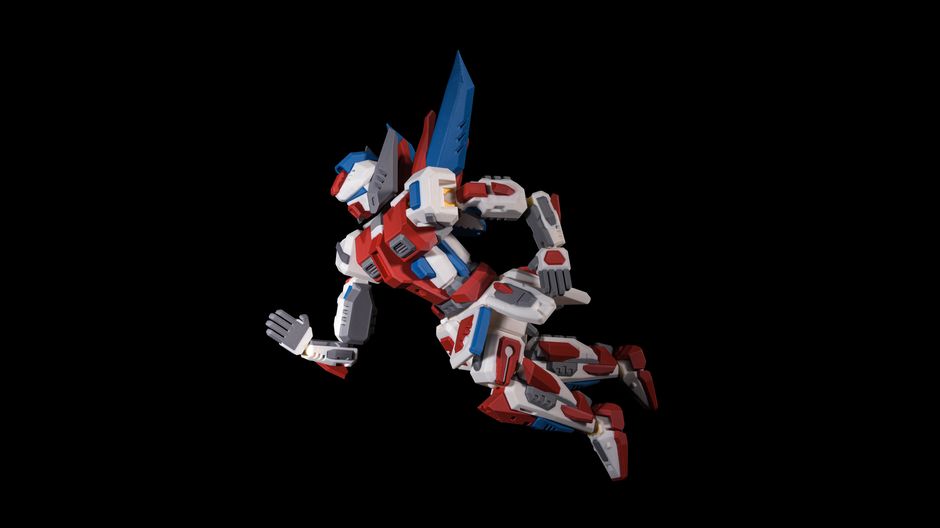

Print Durable Joints — Built Right Into the Parts

Integrated TPU Joints for Multi-Color Parts

Print durable TPU ball joints for your robot models — flexible, long-lasting, and built for endless motion.

Print Durable Joints — Built Right Into the Parts

MULTI-MATERIAL PRINTING

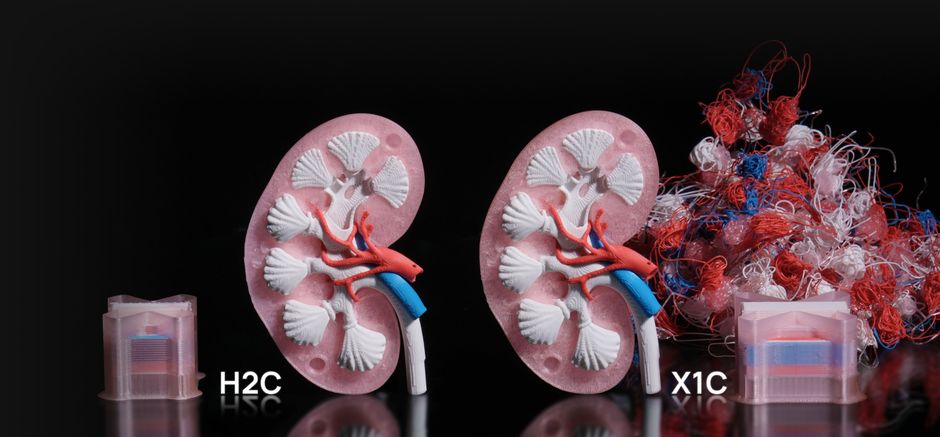

Multi-Material Printing with Minimal Purge Waste

In traditional single-nozzle multi-material printing, purging is needed to clear leftover material between filament changes.Vortek changes that with an intelligent hotend-swapping system that replaces the entire hotend — delivering faster, cleaner prints with minimal waste.

FULLY AUTOMATIC

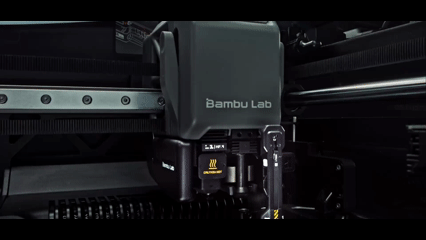

Fully Automatic Filament Change

The Vortek system works seamlessly with our highly reliable AMS (Automatic Material System), making the entire filament change process fully automatic — no need to manually load each filament into the toolhead.

ALWAYS DELIVERING

Always Delivering the Most Efficient Combination

The Vortek system can store filament information in the hotend’s memory, ensuring the correct filament is matched to each hotend. If you are printing with more than seven filament types, the system can calculate the optimal combination to minimize purge waste.

SMALL FORM

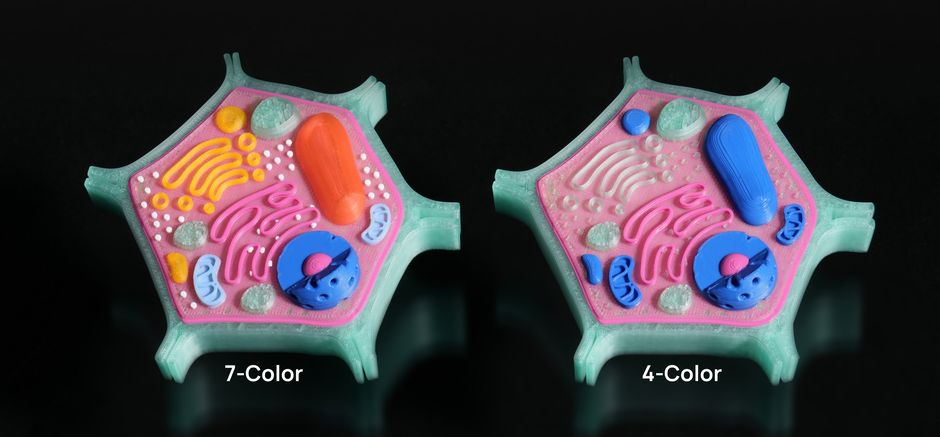

Small Form Factor, More Filaments

Because only the hotend is swapped, the system can house up to six replaceable hotends without significantly reducing the build volume.That means more materials, more colors, and more possibilities — all in one print.

8-SECOND INDUCTION

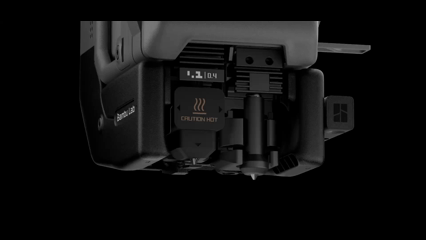

8-Second Induction Heating

Our industry-leading induction heating technology brings the nozzle to temperature in 8-sec, significantly reducing the preheating time for each material swap compared to traditional methods.

CONTACTLESS DESIGN

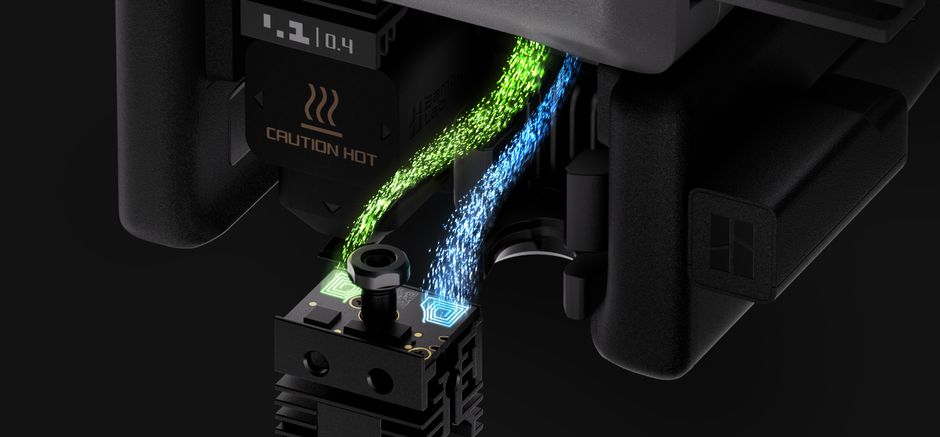

Contactless Design For Reliability

Our high standards for reliability led us to move away from contact-based metal pins, which are prone to oxidation and unstable connections.We developed a contactless solution that ensures a stable, high-frequency connection — the foundation for precise temperature control and intelligent hotend sync.

COLORS ARE NO

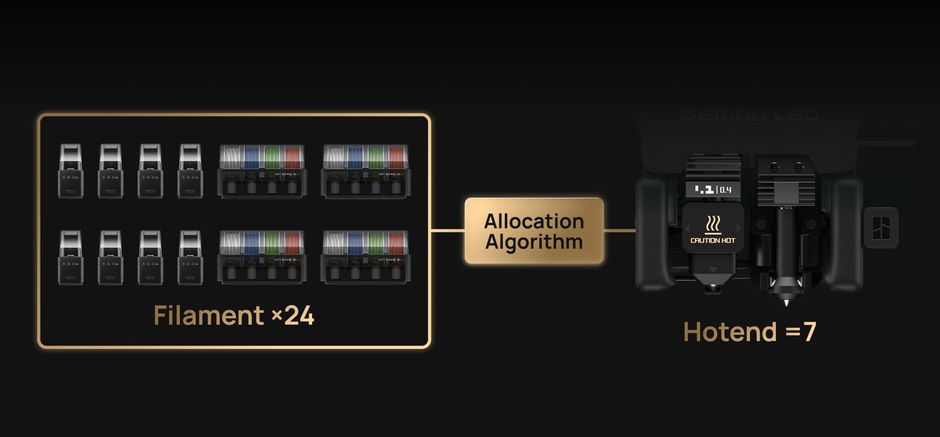

Colors Are No Longer Limited By How Many Toolheads You Have

Unlike traditional toolchanger printers that limit color count by the number of toolheads, the H2C supports up to 24 materials in a single print through parallel-connected AMS units. Its intelligent algorithm optimizes filament-to-hotend allocation to minimize purge waste while delivering outstanding multi-color and multi-material results.

ENCLOSED FOR HIGH-PERFORMANCE

Enclosed for High-Performance Printing

With its seamless enclosure and adaptive airflow system, the H2C maintains a stable chamber temperature for high-performance materials and filters the air to keep your workspace clean and safe.

FULLY AUTOMATIC

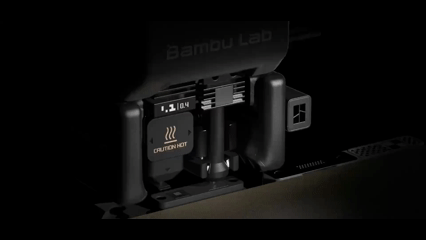

Fully Automatic Nozzle Offset Calibration

Our inductive nozzle offset calibration is fully automated — no manual steps, no calibration plates, no extra setup. In just a few minutes, the H2C precisely calibrates nozzle offset to within 25 microns.*

DEDICATED HOTENDS

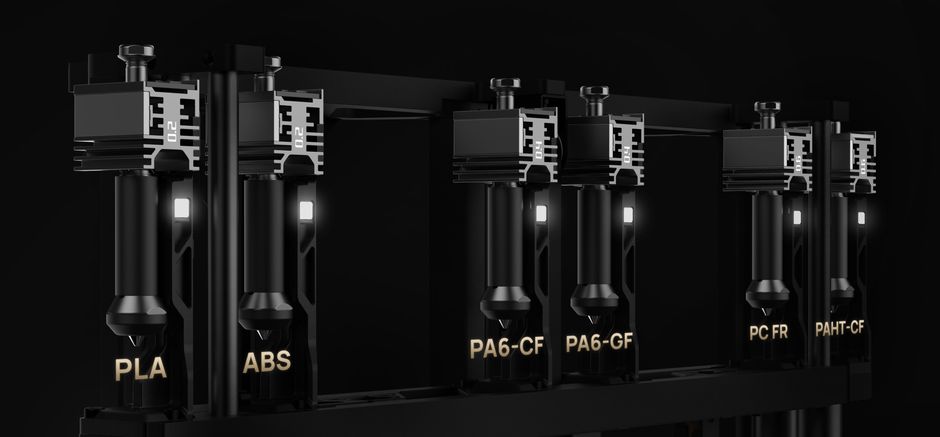

Dedicated Hotends for Specific Filaments

The H2C's Vortek system lets you dedicate one of its six interchangeable hotends to specific filaments — a game-changer for valuable engineering materials.This ensures superior consistency and reliability across prints. Each hotend can even automatically store filament information, so the next time you load that material, it's instantly matched to the correct hotend.

TOP TIER

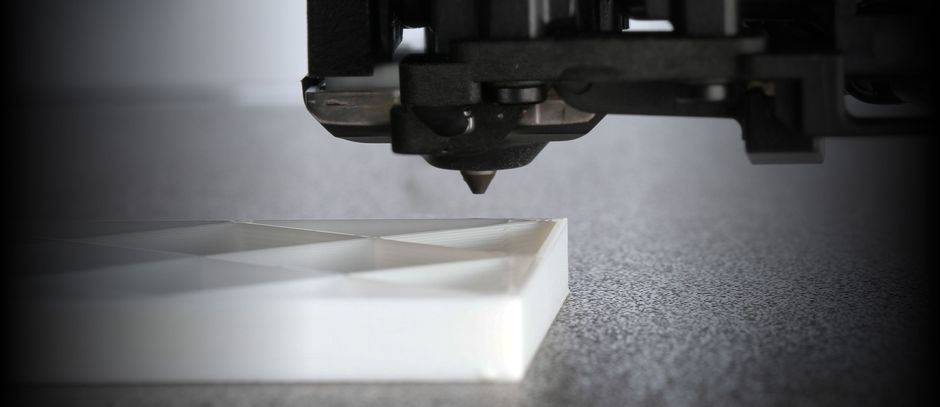

Top Tier Printing Performance

AI Camera

The PMSM servo extruder delivers up to 10 kg of maximum extrusion force—70% more than stepper motor—dramatically improves high-flowrate extrusion stability. Our proprietary servo architecture samples resistance and position at 20 kHz, actively detecting filament grinding and clogs in real time.

With its Vision Encoder, the H2C achieves a distance-independent motion accuracy of less than 50 μm—thinner than human hair. The system automatically compensates for any mechanical drift during calibration, ensuring consistent precision and peak performance over time.*

SAFETY, CHECKED

Safety, Checked

Flexible Network Security & Connectivity

The H2C's three-stage filtration system is essential for printing with engineering filaments. This powerful combination of a G3 pre-filter, an H12 HEPA filter, and a coconut shell activated carbon filter effectively minimizes the odors and harmful particulates often released by engineering materials.

The H2C's chamber is constructed entirely with flame-retardant material, providing robust, passive fire safety protection across the entire enclosure.

Specifications

Item		Specifications
Printing Technology		Fused Deposition Modeling
Body	Build Volume (WDH)	Single Nozzle Printing: 325320325 mm³ (Left) Single Nozzle Printing: 305320325 mm³ (Right) Dual Nozzle Printing: 300320325 mm³ Total Volume for Two Nozzles: 330320325 mm³
	Chassis	Aluminum and Steel
	Outer Frame	Plastic and Glass
Physical Dimensions	Physical Dimensions	492514626 mm³
Physical Dimensions	Net Weight	32.5 kg
Toolhead	Extruder Gear	Hardened Steel
	Nozzle	Hardened Steel
	Max Nozzle Temperature	350 °C
	Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
	Filament Cutter	Built-in
	Filament Diameter	1.75 mm
	Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor
Heatbed	Build Plate Material	Flexible Steel Plate
	Included Build Plate Type	Textured PEI Plate
	Supported Build Plate Type	Textured PEI plate, Engineering Plate
	Max Heatbed Temperature	120 ℃
Speed	Max Speed of Toolhead	1000 mm/s
	Max Acceleration of Toolhead	20,000 mm/s²
	Max Flow for Hotend	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Chamber Temperature Control	Active Chamber Heating	Supported
Chamber Temperature Control	Max Temperature	65 °C
Air Purification	Pre-filter Grade	G3
	HEPA Filter Grade	H12
	Activated Carbon Filter Type	Granulated Coconut Shell
	VOC Filtration	Superior
	Particulate Matter Filtration	Supported
Cooling	Part Cooling Fan	Closed Loop Control
	Cooling Fan for Hotend	Closed Loop Control
	Main Control Board Fan	Closed Loop Control
	Chamber Exhaust Fan	Closed Loop Control
	Chamber Heat Circulation Fan	Closed Loop Control
	Auxiliary Part Cooling Fan	Closed Loop Control
	Toolhead Enhanced Cooling Fan	Closed Loop Control
Supported Filament Type	PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS;Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS
Sensor	Live View Camera	Built-in; 1920*1080
	Nozzle Camera	Built-in; 1920*1080
	BirdsEye Camera	Built-in; 3264*2448 (Equipped with Laser Edition)
	Toolhead Camera	Built-in; 1600*1200
	Door Sensor	Supported
	Filament Run Out Sensor	Supported
	Filament Tangle Sensor	Supported
	Filament Odometry	Supported with AMS
	Power Loss Recovery	Supported
Electrical Requirements	Voltage	100-120 VAC / 200-240 VAC, 50/60 Hz
	Max Power*	1800 W@220 V/1250 W@110 V
	Typical Power	200 W@220 V/200 W@110 V (Single Nozzle Printing PLA)
Working Temperature		10 °C-30 °C
Electronics	Touchscreen	5-inch 720*1280 Touchscreen
	Storage	Built-in 8 GB EMMC and USB Port
	Control Interface	Touchscreen, mobile App, PC App
	Motion Controller	Dual-core Cortex-M4 and Single-core Cortex-M7
	Application Processor	Quad-core ARM with NPU
Software	Slicer	Bambu Studio Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.
Software	Supported Operating System	MacOS, Windows, Linux
Network Control	Ethernet	Not Available
	Wireless Network	Wi-Fi
	Network Kill Switch	Not Available
	Removable Network Module	Not Available
	802.1X Network Access Control	Not Available
Wi-Fi	Operating Frequency	2412 - 2472 MHz, 5150 - 5850 MHz (FCC/CE) 2400 - 2483.5 MHz, 5150 - 5850 MHz (SRRC)
	Wi-Fi Transmitter Power (EIRP)	2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE)
	Wi-Fi Protocol	IEEE 802.11 a/b/g/n

Other Resources

FAQ

1. What hotends are included in the H2C Combo?

The H2C AMS Combo/Laser Full Combo includes 8 hotends and 1 AMS 2 Pro: Right hotends (Induction hotends): 4 × 0.4 mm hardened steel induction hotends, of which 1 is pre-installed on the printer and 3 are included in the accessory box. The accessory box also includes 1 × 0.2 mm induction hotend and 1 × 0.6 mm induction hotend. Left hotends (Standard hotends): 2 × 0.4 mm hardened steel standard hotends, of which 1 is pre-installed and 1 is included in the accessory box.

Currently, the firmware supports mixed flow-rate printing (standard flow + high flow), but does not yet support mixing different nozzle sizes during printing. If this feature is added in the future, we will provide details through a software update.

2. If I want full hotend-swap capability, what additional hotends do I need? How should the AMS be connected?

To fully experience the Vortek 6-hotend automatic swap system, we recommend purchasing the H2C Ultimate Set, which include: 3 × 0.4 mm induction hotends, 1 × 0.2 mm left hotend, 1 × 0.6 mm left hotend, 1 x AMS 2 Pro, 1 x AMS HT.

Combined with the AMS 2 Pro that comes with the H2C Combo, you will then have 2 × AMS 2 Pro + 1 × AMS HT.
Ultimate setup: Two AMS 2 Pro feed the right induction hotends; AMS HT feeds the left hotends. This gives you full 7-hotend automatic swapping with AMS support on both sides.

In addition to the above options, you can also try:

Multi-AMS Setup: Add 2 × AMS HT. All three AMS feed the right-side hotends. Future Setup (2026): A Filament Track Switch Module will be released, allowing full 7-hotend support with only 2 AMS units, enabling free filament switching between left & right filament paths.

3. Does the H2C support laser and blade-cutting functions?

The H2C Laser Edition supports both 10W and 40W laser modules and is also compatible with the blade-cutting module. The non-laser H2C supports blade-cutting by default, but can be upgraded to support laser functions via an upgrade kit.

4. Can H2S or H2D be upgraded to H2C?

Both H2D and H2S users may upgrade to H2C by installing the Vortek Upgrade Kit. However, the upgrade process is complex and time-consuming, so users who want the Vortek experience are recommended to purchase H2C directly. Purchasing H2S/H2D first and upgrading later will incur extra cost. The Vortek Upgrade Kit is expected to be available in early 2026.

5. Can H2C dual-nozzle printing be used with different nozzle sizes simultaneously?

Not currently. The firmware does not yet support mixing nozzle sizes (left vs. right or within Vortek hotend sets). However, mixed nozzle types of the same size (e.g., 0.4 mm standard flow

6. Are the H2C buildplates, calibration plates, laser platform, and blade-cutting mats compatible with H2D?

Because the Vortek hotend rack occupies additional space, the H2C print bed is slightly smaller than the H2D.

However, the vision calibration plates, laser platform, and blade-cutting mats are fully compatible across all H2 series models. For more details, please refer to Wiki.

What's in the Box

	H2C AMS Combo	H2C Laser Full Combo	Ultimate Set
H2C	1	-	-
H2C Laser Edition	-	1	-
Build Plate	1	1	-
Spool Holder	1	1	-
0.4mm Induction Hotend	4	4	3
0.2mm Induction Hotend	1	1	1
0.6mm Induction Hotend	1	1	1
4-in-1 PTFE	1	1	-
Accessory Box	1	1	-
AMS 2 Pro	1	1	1
AMS HT	-	-	1
10W Laser Module	-	depending on option	-
40W Laser Module	-	depending on option	-
Cutting Module (with Pen Holder)	-	1	-
Laser Platform	-	1	-
Cutting Platform	-	1	-
Emergency Stop Button	-	1	-
