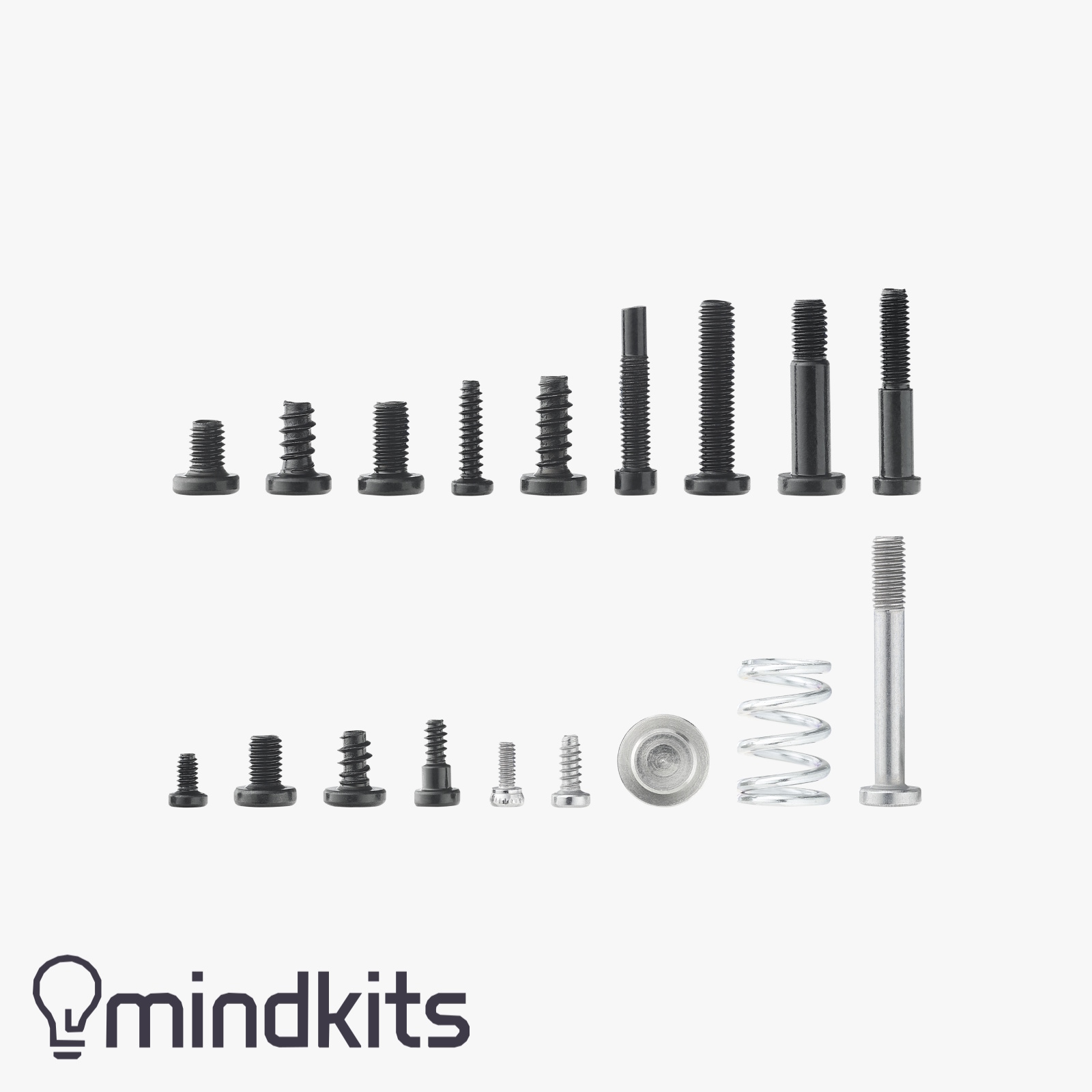

| 1 |
ST3-4.5 |
10 |
Rear Panel and the Front Cover (Front) |
| 2 |
BT3-6 |
20 |
P1S panels and the Z-axis Timing Pulley |
| 3 |
M3-6 |
20 |
XY/Z Motor and the X1 AP Board |
| 4 |
BT2-8 |
10 |
AMS first stage feeder, the MC board, and the Excess chute |
| 5 |
BT3-8 |
10 |
Heatbed Unit and the AMS Main Frame |
| 6 |
MG2.5-13 |
10 |
Cutter lever |
| 7 |
M3-14 |
10 |
Cutter lever Driven gear of the Extruder Unit |
| 8 |
MG3-14 |
5 |
Hotend |
| 9 |
MG2.5-15 |
5 |
Hotend Cooling Fans |
| 10 |
ST2-3.5 |
10 |
P1S Panels (Upper) |
| 11 |
M3-4.5 |
10 |
X1C Panels |
| 12 |
BT3-5 |
20 |
Rear Panel and the Front Cover (Rear) |
| 13 |
BTG2-6 |
10 |
PTEF tube bracket |
| 14 |
M1.6-4 |
10 |
TH Board FPC Cable of X1C toolhead PCBs |
| 15 |
BT2-5 |
20 |
Toolhead housing and PCBs |
| 16 |
The pressing plate |
5 |
Extruder Gear Assembly |
| 17 |
0.9x11 mm Helical Compression Spring |
5 |
Extruder Gear Assembly |
| 18 |
M3-23 |
5 |
For the AMS Filament Buffer |
