• 25Items in Box
• 8 secInduction Heat-Up
• 7Hotends Onboard
• 24Max Materials
• 0gPurge Waste

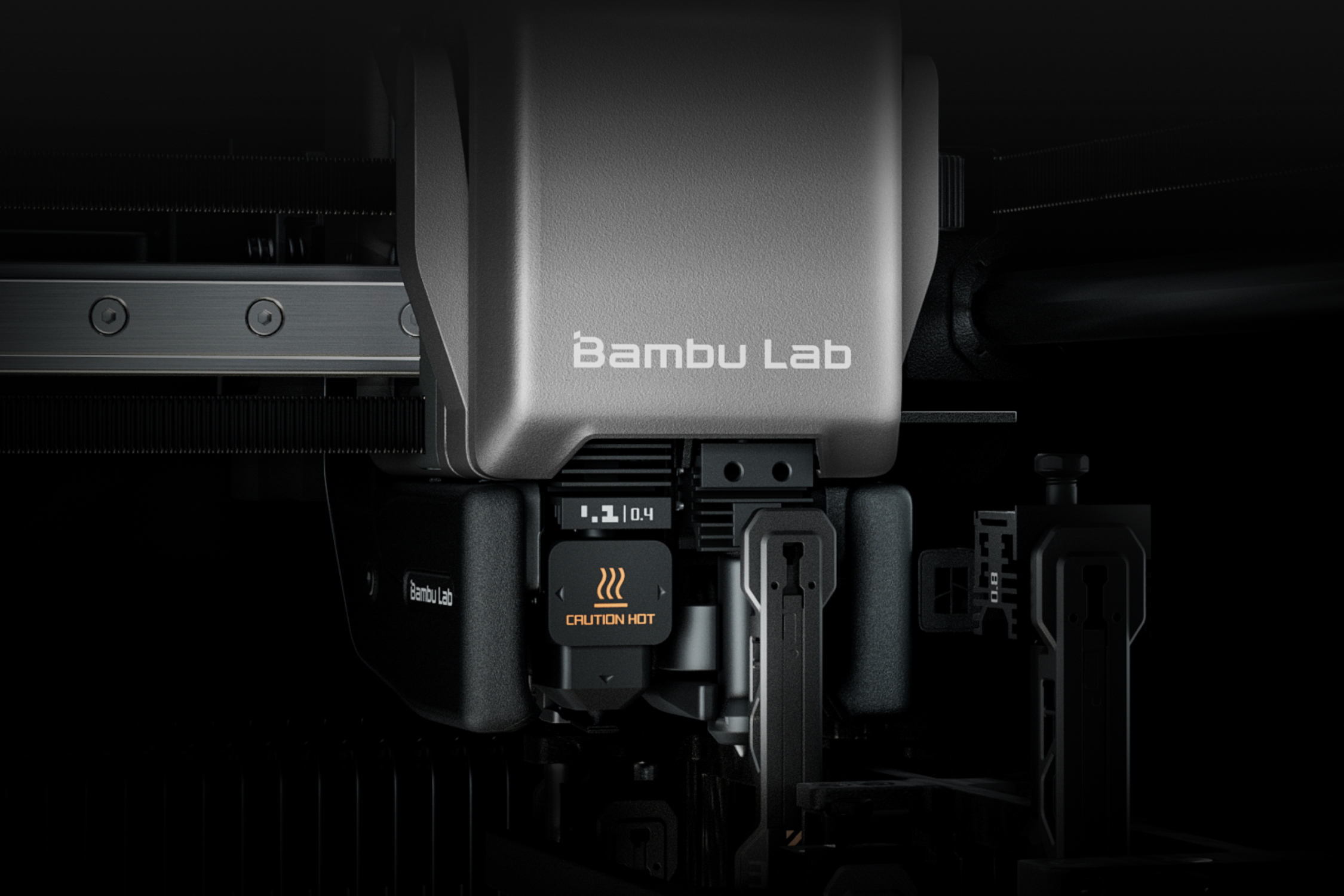

ZERO-PURGE MULTI-MATERIAL

Swap Entire Hotends, Not Just Filament

Forget the purge tower

Traditional single-nozzle multi-color printers waste filament every time they change materials. The Vortek system flips that workflow on its head by physically swapping the entire hotend between materials. The result is dramatically cleaner colors, faster transitions, and almost no purge waste — a major leap forward for makers running PLA, PETG, ABS, TPU, and engineering filaments side by side.

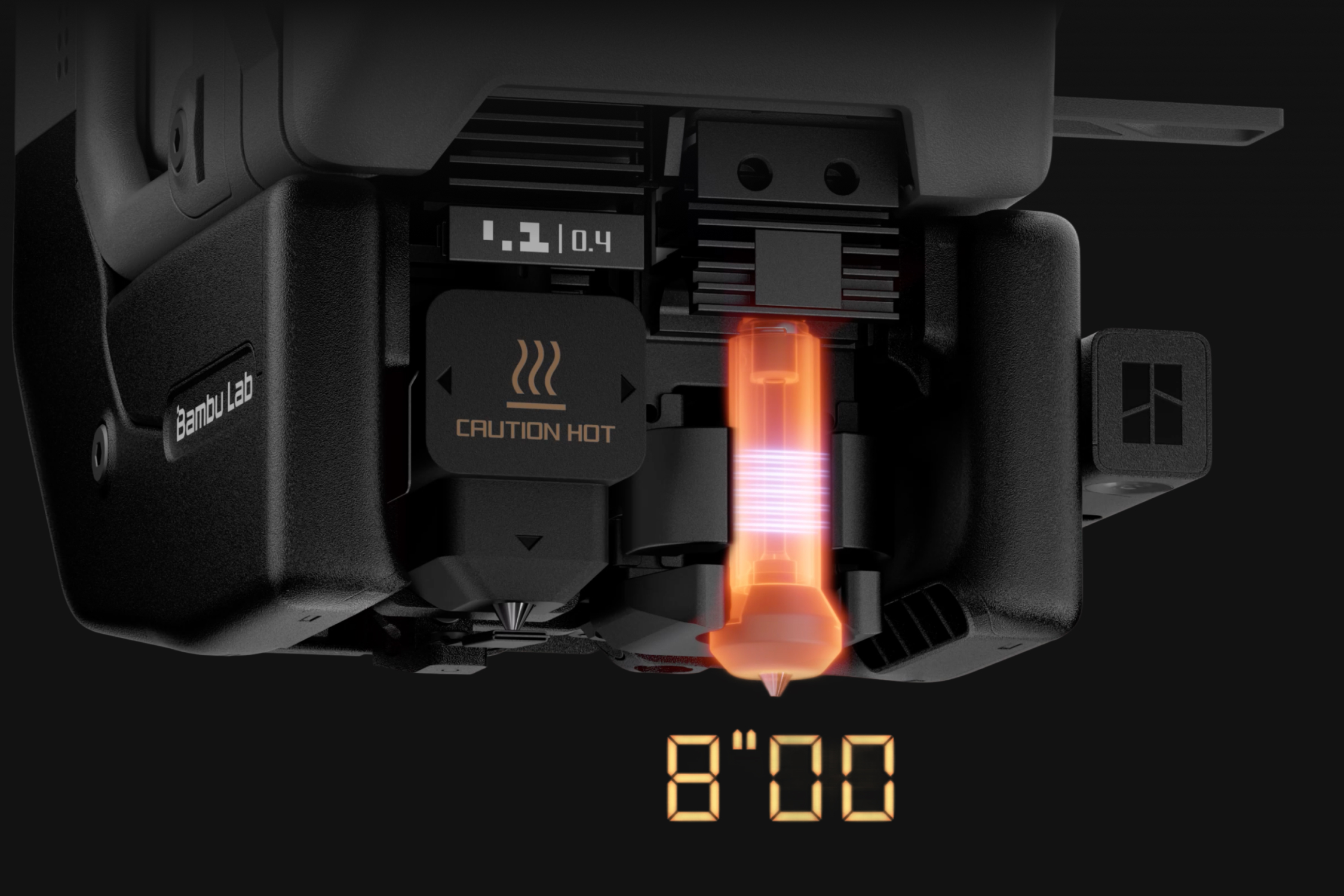

INDUCTION HEATING

From Cold to Printing in 8 Seconds

No heater cartridges, no wires

Each Vortek hotend heats by electromagnetic induction rather than a traditional wired heater cartridge. That makes the physical swap mechanically simple and lightning-fast: the system reaches operating temperature in just 8 seconds, slashing the preheating delay between every material change and keeping multi-material jobs flowing.

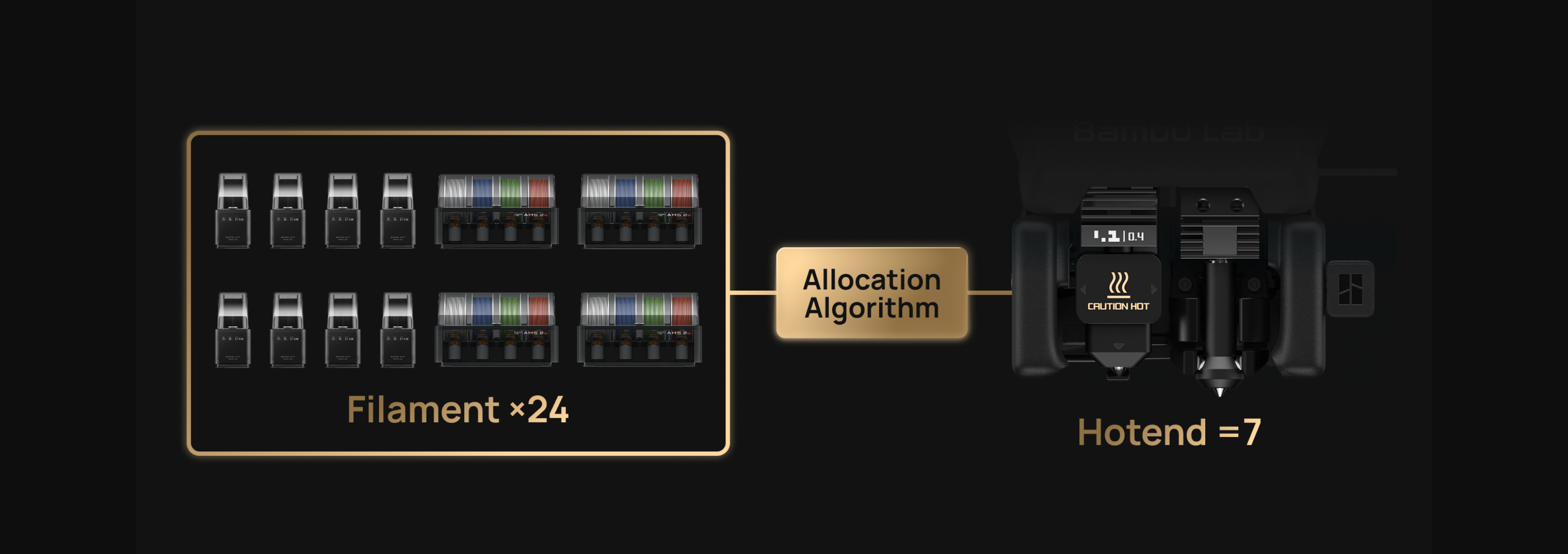

INTELLIGENT AMS PAIRING

Fully Automatic Filament Management

Designed around the Bambu AMS

The Vortek Upgrade Kit integrates seamlessly with the Bambu Lab AMS, so filaments load automatically and never need to be threaded into the toolhead by hand. Every hotend stores its own filament data, and when you push past seven materials the system intelligently calculates the optimal hotend-to-filament assignments to keep waste at an absolute minimum.

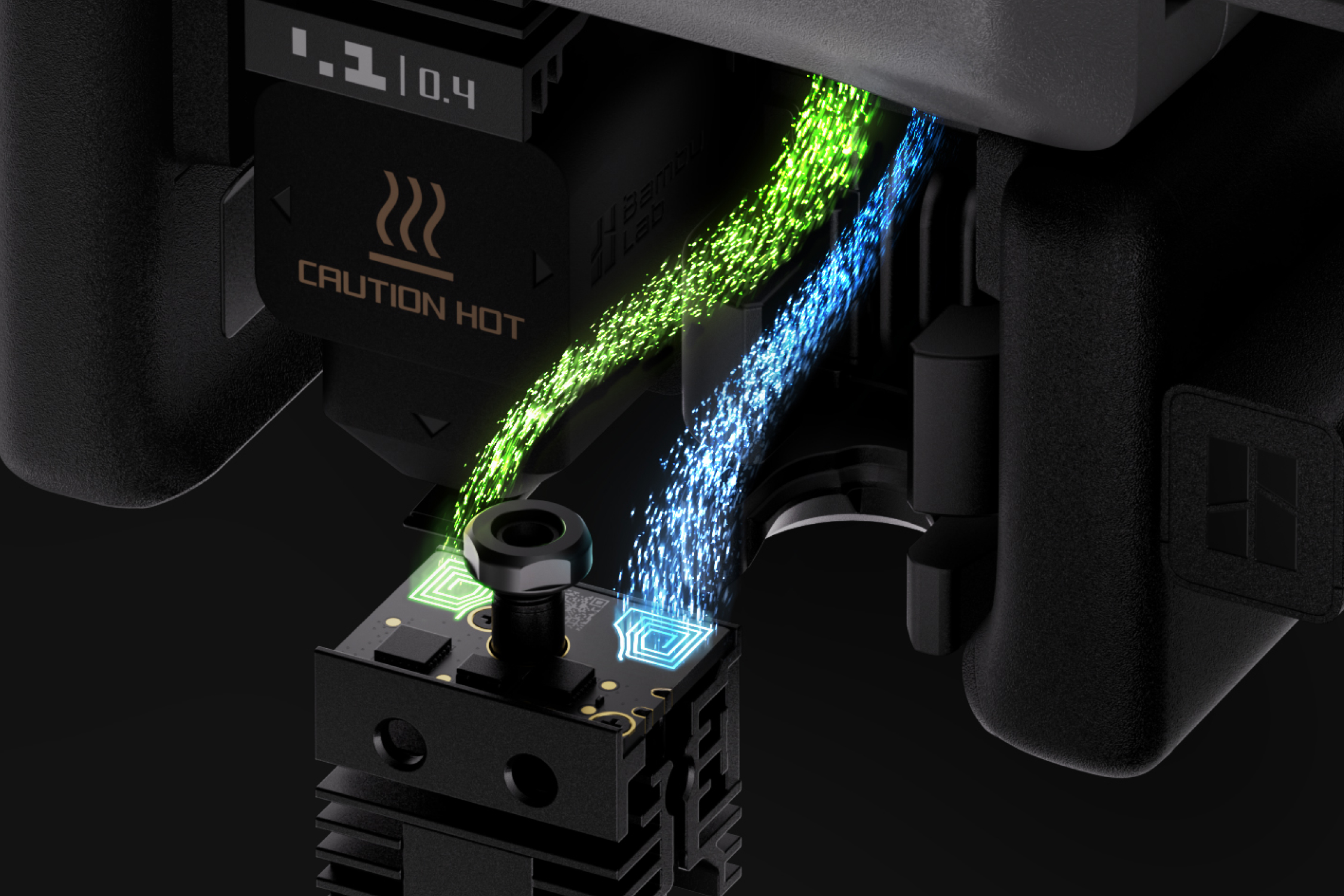

CONTACTLESS RELIABILITY

High-Frequency Connection, Built to Last

Engineered to outlive pogo-pin designs

Conventional toolchangers rely on metal contact pins that can oxidize and degrade over thousands of cycles. Bambu Lab engineered Vortek with a fully contactless high-frequency link that keeps nozzle and heatsink temperatures in perfect sync with the printer's control system — the foundation of stable, repeatable induction heating for the long haul.

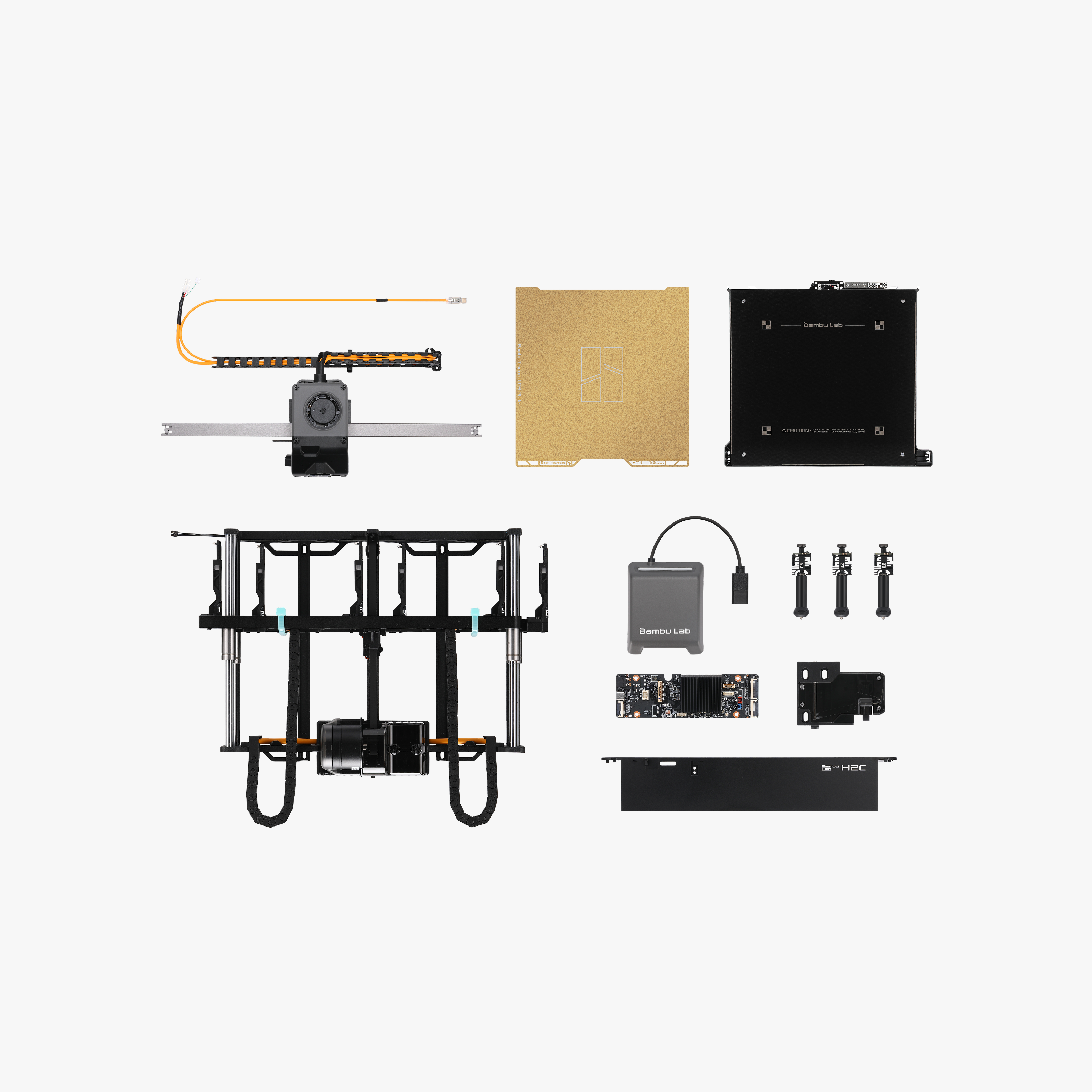

COMPLETE HARDWARE PACK

Everything Needed for the Bambu Lab Vortek Upgrade Kit Install

Six induction hotends & all major H2C assemblies

The kit is a full electromechanical conversion, not just a nozzle bundle. It contains 25 items across five separate packages. Inside you'll find a new toolhead with X-axis assembly, an upgraded heatbed, the AP board, an induction hotend rack, a 4-in-1 PTFE adapter, and six factory-calibrated induction hotends — four 0.4mm hardened steel, one 0.6mm hardened steel, and one 0.2mm stainless steel.

Vortek System Performance

Included Induction Hotends

Compatibility

Installation

Packaging

The Bambu Lab Vortek Upgrade Kit ships in five separate boxes containing every mechanical and electronic part needed to convert your H2D or H2S into a full H2C-class machine. Inspect the contents against the official packing list immediately on arrival.

What's in the Bambu Lab Vortek Upgrade Kit

• 1 0.4mm Induction Hotend (Hardened Steel)
  × 4

• 2 0.6mm Induction Hotend (Hardened Steel)
  × 1

• 3 0.2mm Induction Hotend (Stainless Steel)
  × 1

• 4 AP Board
  × 1

• 5 Upgraded Heatbed
  × 1

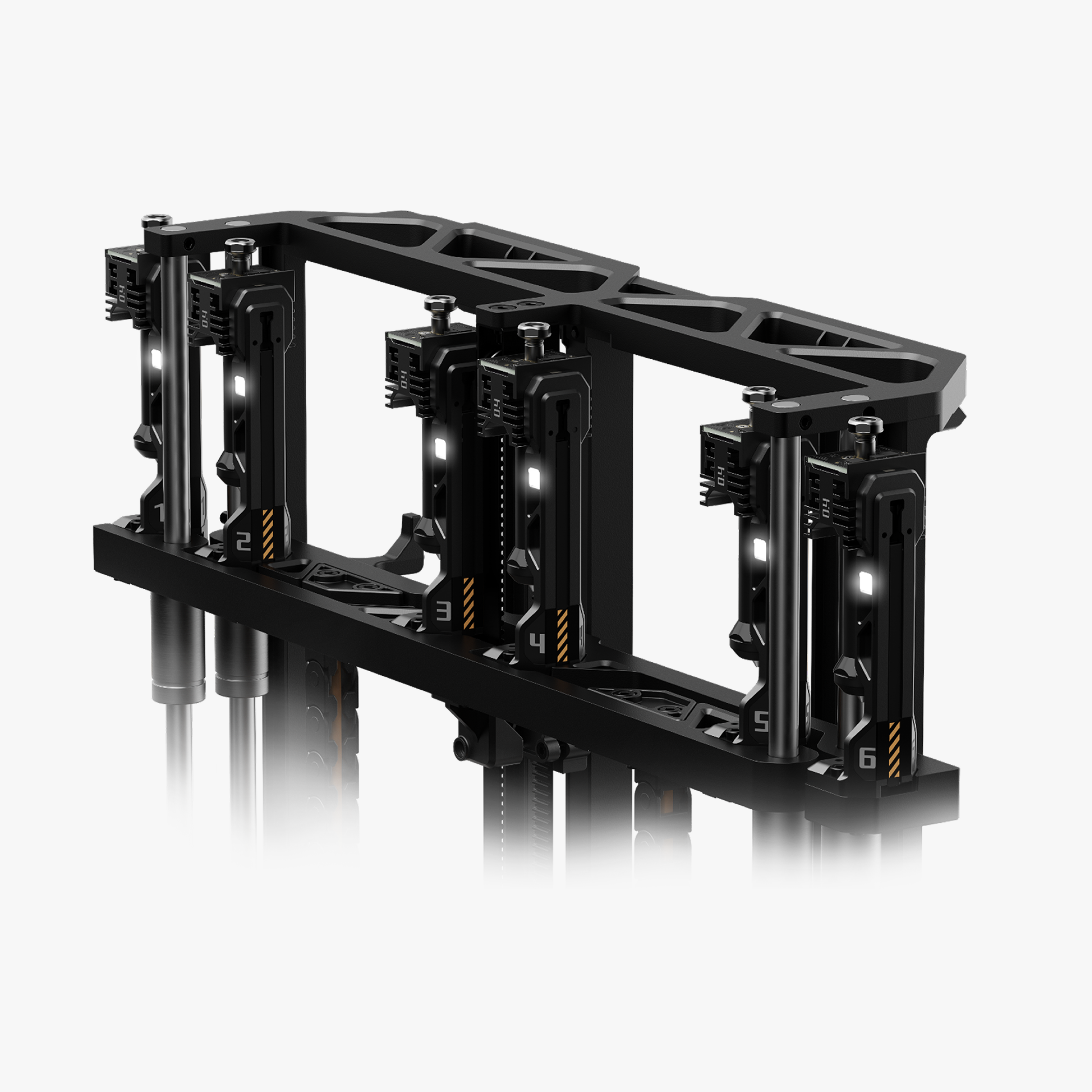

• 6 Induction Hotend Rack Assembly
  × 1

• 7 Toolhead with X-Axis Assembly
  × 1

• 8 Induction Hotend Mount Crossbeams
  × 2

• 9 Induction Hotend Latch Actuator
  × 1

• 10 Induction Hotend Lever Release Mounting Bracket
  × 1

• 11 4-in-1 PTFE Adapter
  × 1

• 12 4-in-1 PTFE Cleaning Pads
  × 5

• 13 185mm PTFE Tube
  × 1

• 14 Nozzle Offset Calibration Sensor
  × 1

• 15 Toolhead Cooling Fan
  × 1

• 16 Front Cover
  × 1

• 17 Textured PEI Build Plate
  × 1

• 18 Mounting Hardware, Screws, Cable Ties, Vinyl Tape
  Assorted
