Accessory Compatibility
| Recommended | Not Recommended |
| Build Plate | Cool Plate, High Temperature Plate or Textured PEI Plate | Engineering Plate |
| Hotend | Hotend with Hardened Steel Nozzle (0.4 mm) Hotend with Stainless Steel Nozzle (0.2 mm, 0.4 mm) | Hotend with Hardened Steel Nozzle (0.6 mm, 0.8 mm) |
| Glue | Liquid Glue / Glue Stick | / |
RFID for Intelligent Printing

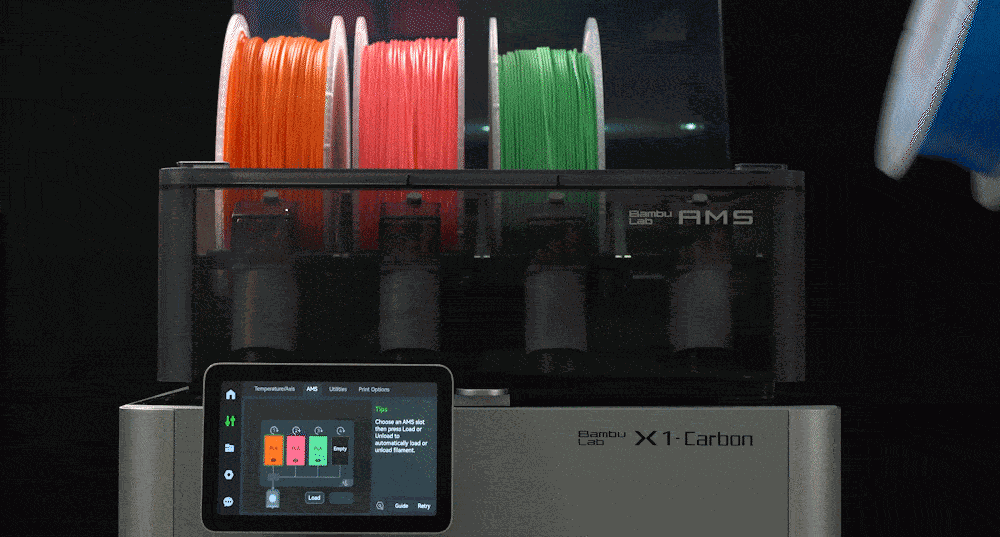

All printing parameters are embedded in RFID, which can be read through our AMS (Automatic Material System).
Load and print! No more tedious setting steps.
| Recommended Printing Settings |
| Drying Settings (Blast Drying Oven) | 55 °C,8 h |
| Printing and Keeping Container's Humidity | < 20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 210 - 240 °C |
| Bed Temperature (with Glue) | 35 - 45 °C |
| Printing Speed | < 250 mm/s |
| Physical Properties |
| Density | 1.32 g/cm³ |
| Vicat Softening Temperature | 56 °C |
| Heat Deflection Temperature | 53 °C |
| Melting Temperature | 152 °C |
| Melt Index | 20.5 ± 1.2 g/10 min |
| Mechanical Properties |
| Tensile Strength | 27 ± 4 MPa |
| Breaking Elongation Rate | 3.5 ± 0.6 % |
| Bending Modulus | 2370 ± 150 MPa |
| Bending Strength | 66 ± 4 MPa |
| Impact Strength | 24.5 ± 1.7 kJ/m² |
Downloads
Filament TDS
Filament MSDS
Filament RoHS
Printing Tips
• Drying conditions: 55℃ for 8 hrs. Store in a dry environment after use. Dry before use if the material absorbs moisture. For more details please refer to: Filament drying instructions on WIKI.

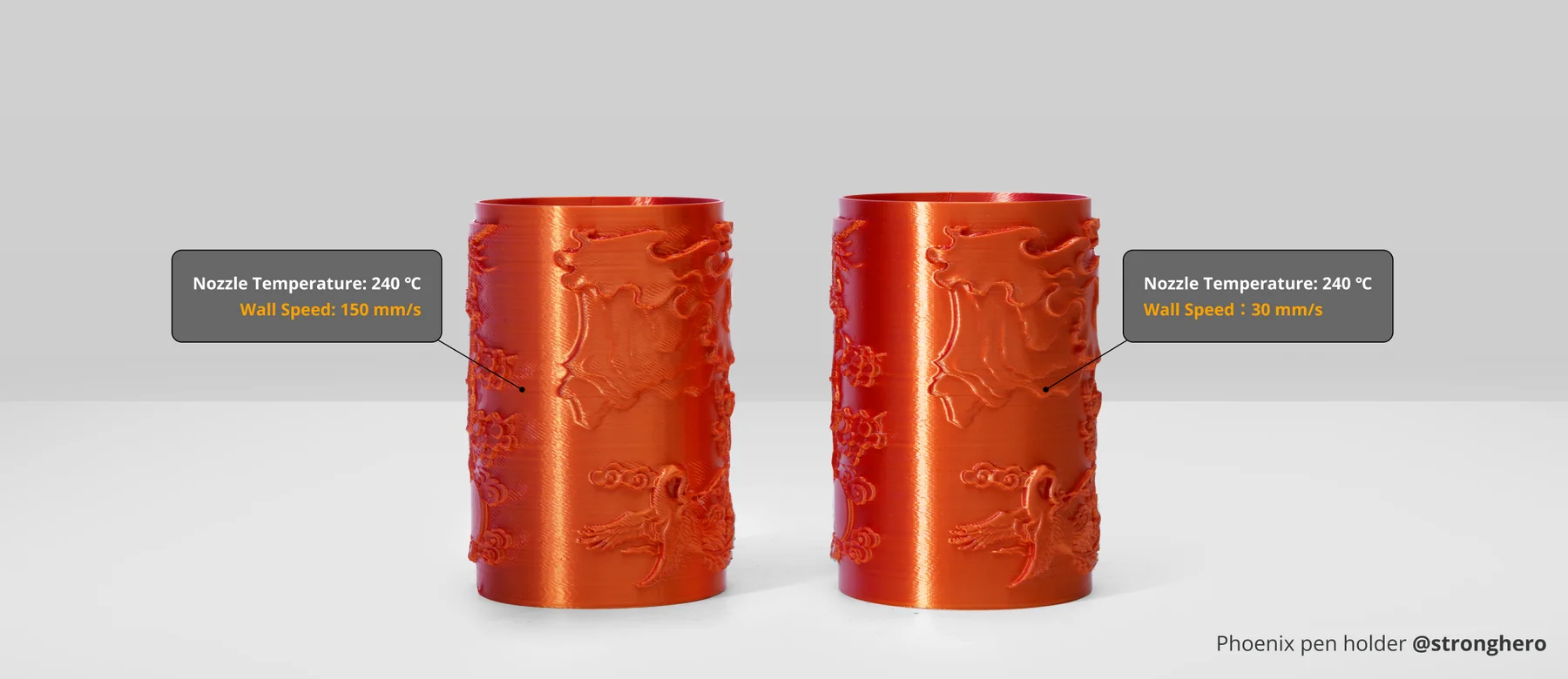

• PLA Silk Dual Colour is a new colour options of PLA Silk series, please use the default PLA Silk setting for printing. To obtain higher printing quality and higher gloss finish, please set lower printing speed.
• When printing with PLA Silk Dual Colour filament, there is a small chance of filament rotation, potentially causing uneven colour transitions, and it has a unique elliptical cross-section, which may lead to some extrusion challenges that are considered normal.
The A-series printers have a higher risk due to their special structure, so use of this filament with A-series printers is not recommended.
