Pixel Filament ASA - CryoFrost (White) - with Reusable Spool - 1kg

Item #: PIX-ASA-CRYOFROST-SP
There are no reviews yet Write a review
Price: $28.00 inc GST
Retail Price: ##RETAILPRICE## inc GST
    Points to Purchase:187
    The product is in stock Availability: Limited Stock
    Usually ships In a day

    About This Item

    • What it is: Affordable, high‑grade 1.75 mm 3D printing filament made from polymers sourced from qualified suppliers.
    • Proven quality: Selected after extensive supplier qualification, testing, and community feedback to match or exceed major brands for reliability and print accuracy.
    • Compatibility and performance: Consistent extrusion, strong layer adhesion, and smooth finished surfaces across common materials like PLA, PETG, and TPU.
    • Customer benefits: Earn Pixel Points on purchases and a no‑quibbles returns policy that credits spools (even lightly used) to ensure satisfaction.

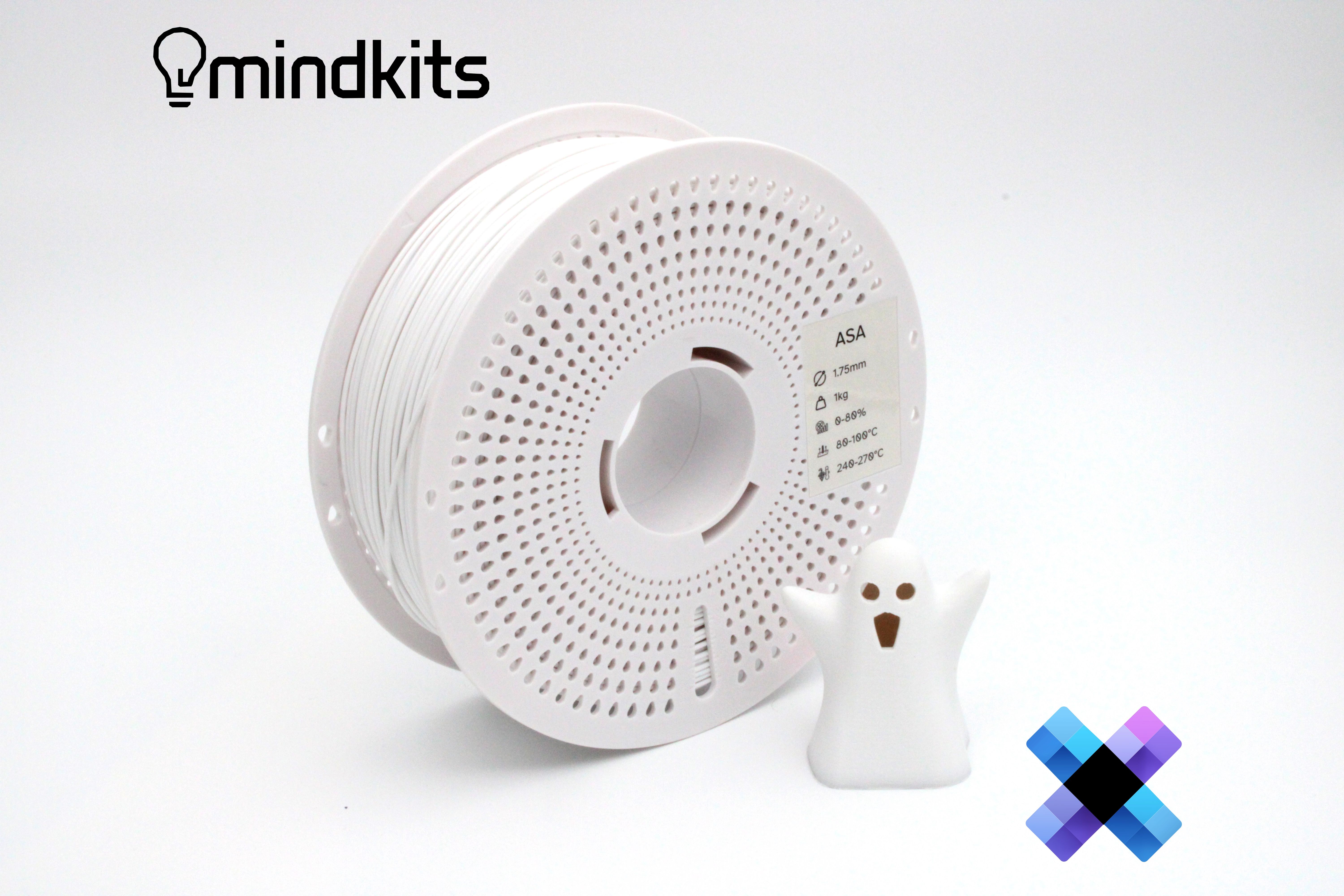

    Pixel Filament ASA - CryoFrost (White) - with Reusable Spool - 1kg

    Pixel Filament ASA - CryoFrost (White) - with Reusable Spool - 1kg is ASA for outdoor housings, brackets, signs and fixtures. The CryoFrost (White) colourway is supplied as a 1 kg spool.

    Choose ASA where sunlight and weather exposure make ordinary indoor materials less suitable.

    • 1.75 mm filament
    • Dimensional tolerance: ±0.03 mm
    • Net filament weight: 1 kg

    Reusable spool included: This 1 kg filament is supplied on a reusable spool and is ready to load into a compatible printer.

    Why MindKits made Pixel Filament

    After testing multiple manufacturers, the MindKits team selected qualified suppliers that consistently delivered dependable extrusion, dimensional accuracy and print quality. Pixel Filament was created to give makers, educators and businesses reliable material at a fair everyday price.

    Pixel Points rewards

    Every Pixel Filament purchase earns Pixel Points. Points are added after the order is approved and can be redeemed on future purchases or combined with cash at checkout.

    No-quibbles return process

    If your filament does not meet expectations, contact MindKits. Subject to the programme terms, we will credit the value of the spool, including lightly used spools. See the Pixel Filament FAQ for eligibility and limits.

    Physical and Mechanical Properties

    Category Subject Testing Method Data
    Physical Density ISO 1183 1.05 g/cm3
    Melt Index 260°C, 2.16 kg 7.0 ± 0.8 g/10 min
    Melting Temperature DSC, 10°C/min 210 °C
    Glass Transition Temperature DSC, 10°C/min N/A
    Crystallization Temperature DSC, 10°C/min N/A
    Vicat Softening Temperature ISO 306; GB/T 1633 106 °C
    Heat Deflection Temperature ISO 75 1.8 MPa 92 °C
    Saturated Water Absorption Rate 25°C, 55% RH 0.45%
    Mechanical Young's Modulus (X-Y) ISO 527; GB/T 1040 2450 ± 270 MPa
    Young's Modulus (Z) ISO 527; GB/T 1040 2120 ± 260 MPa
    Tensile Strength (X-Y) ISO 527; GB/T 1040 37 ± 3 MPa
    Tensile Strength (Z) ISO 527; GB/T 1040 31 ± 4 MPa
    Breaking Elongation Rate (X-Y) ISO 527; GB/T 1040 9.2 ± 1.4 %
    Breaking Elongation Rate (Z) ISO 527; GB/T 1040 4.6 ± 0.8 %
    Bending Modulus (X-Y) ISO 178; GB/T 9341 1920 ± 130 MPa
    Bending Modulus (Z) ISO 178; GB/T 9341 1650 ± 120 MPa
    Bending Strength (X-Y) ISO 178; GB/T 9341 65 ± 5 MPa
    Bending Strength (Z) ISO 178; GB/T 9341 40 ± 3 MPa
    Impact Strength (X-Y) ISO 179; GB/T 1043 41.0 ± 2.3 kJ/m2; 19.6 ± 1.8 kJ/m2 (notched)
    Impact Strength (Z) ISO 179; GB/T 1043 4.9 ± 0.6 kJ/m2

    Recommended Print Settings

    Parameter Value
    Nozzle Temperature 240–270 (°C)
    Drying Settings before Printing Blast Drying Oven: 80 °C, 8 h
    Printing and Storage Humidity < 20% RH (Sealed; with desiccant)
    Nozzle Size 0.2 mm; 0.4 mm; 0.6 mm; 0.8 mm
    Base Plate Temperature 80–100 (°C)
    Build Plate Type Engineering Plate; High Temperature Plate; Textured PEI Plate
    Cooling Fan 0–80%
    Printing speed < 250 mm/s
    Retraction speed 20–40 mm/s
    Chamber Temperature 45–60 °C
    Max Overhang Angle ~ 70°
    Max Bridging Length ~ 40 mm
    • 1kg Spool of Filament *1
