SparkFun Humidity and Temperature Sensor Breakout - Si7021

Item #: SEN-13763
Bin:E30
There are no reviews yet Write a review
Price: $17.11 inc GST
    The product is in stock Availability: Stocked
    Usually ships In 1-2 days.
    Stocked Quantity: 2

    Quantity:

    The Si7021 is a low-cost, easy-to-use, highly accurate, digital humidity and temperature sensor. This sensor is ideal for environmental sensing and data logging and perfect for build a weather stations or humidor control system. All you need are two lines for I2C communication, and you’ll have relative humidity readings and very accurate temperature readings as a bonus!

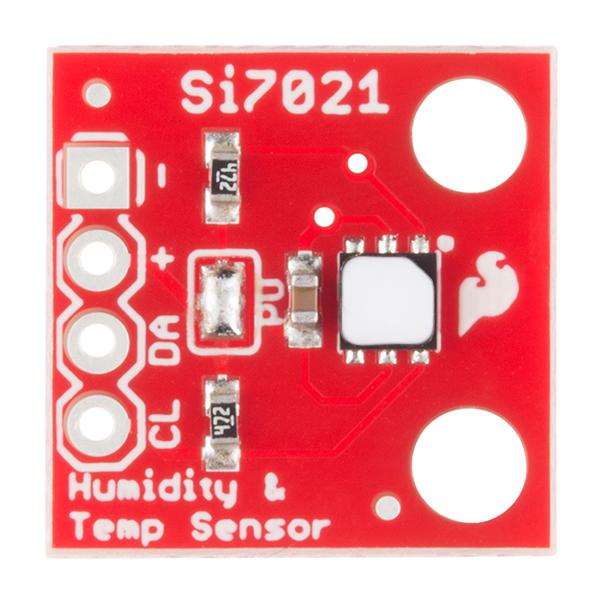

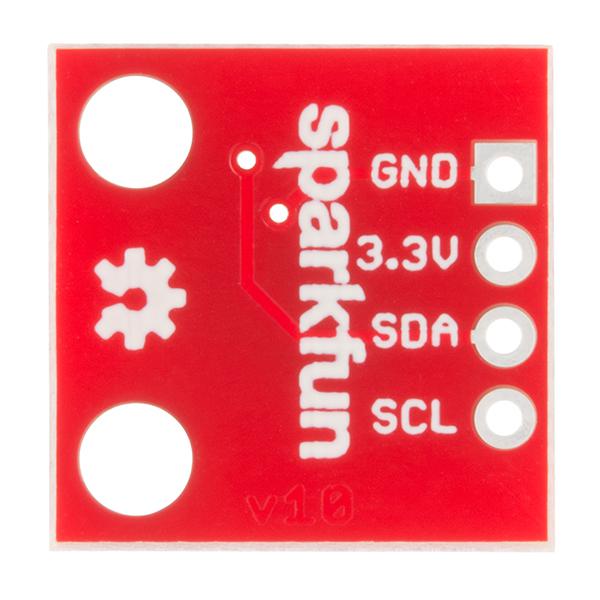

    There are only four pins that need to be hooked up in order to start using this sensor in a project. One for VCC, one for GND, and two data lines for I2C communication. This breakout board has built-in 4.7KΩ pullup resistors for I2C communications. If you’re hooking up multiple I2C devices on the same bus, you may want to disable these resistors.

    Features:

    • 0.6" x 0.6"

    Documents:
