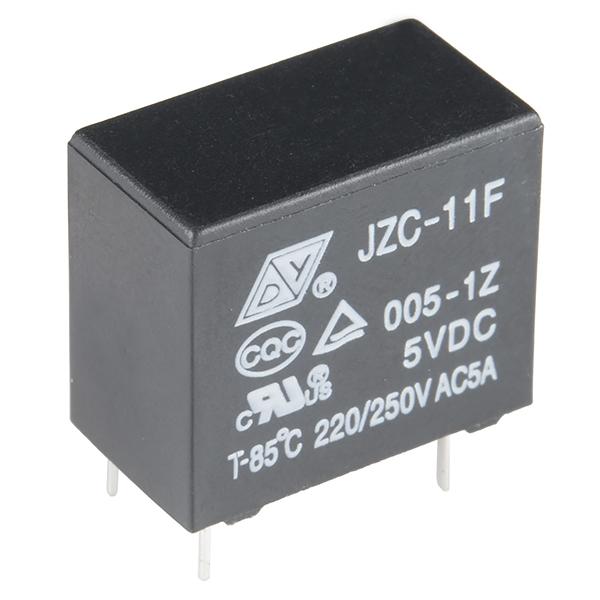

These are high quality Single Pole - Double Throw (SPDT) sealed relays. Use them to switch high voltage, and/or high current devices.

This relay's coil is rated up to 12V, with a minimum switching voltage of 5V. The contacts are rated up to 5A (@250VAC, 30VDC).

Note: In the Datasheet below there is a pin layout listed as "Bottom View." Be aware, this pin layout is actually the top-down view NOT bottom-up.

Features:

• 5V DC SPDT Relay
• Rated up to 5A
• Fully Sealed

Documents:

• Datasheet
