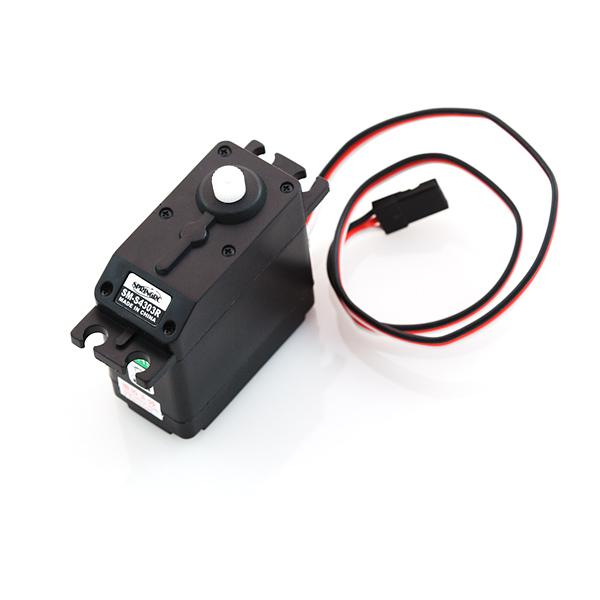

Servo - Generic High Torque Continuous Rotation (Standard Size)

Item #: ROB-09347
Bin:U6
There are no reviews yet Write a review
Price: $29.46 inc GST
    The product is in stock Availability: Stocked-NoBackOrder
    Usually ships In 1-2 days
    Stocked-NoBackOrder Quantity: 10

    Quantity:

    Here, for all your mechatronic needs, is a simple, high quality continuous rotation servo motor. This servo is able to take in 6 volts and deliver 66.7 oz-in. of maximum torque at 70 r/min.

    A standard 3-pin power and control cable is attached and all hardware listed below is included.

    Includes:

    • 1x SM-S4303R High Torque Continuous Rotation Servo
    • 1x Mounting Screw
    • 1x Four Point Horn
    • 1x Six Point Horn
    • 2x Double Arm Horn (1x Large, 1x Medium)
    • 2x Circle Horn (1x Large, 1x Medium)
    • 4x Rubber Grommets
    • 4x 2x15mm Phillips Screw
    • 4x Brass Eyelets

    Features:

    • Voltage: 4.8-6.0 Volts
    • Torque: 45.8/66.7 oz-in. (4.8/6.0V)
    • Speed: 60/70 r/min (4.8/6.0V)
    • Rotation: 360°
    • Dual Ball Bearing
    • 4 Plastic Gears + 1 Metal Gear
    • 25T Spline
    • Rest point adjustment* 42 x 39.5 x 22.5mm
    • Wire length: 300mm
    • Weight: 44g

    Documents:
