Ultrasonic Range Finder - LV-MaxSonar-EZ1

Item #: SEN-00639
Bin:M6
There are no reviews yet Write a review
Price: $47.40 inc GST
    The product is in stock Availability: Stocked-NoBackOrder
    Usually ships In 2-4 days
    Stocked-NoBackOrder Quantity: 1

    Quantity:

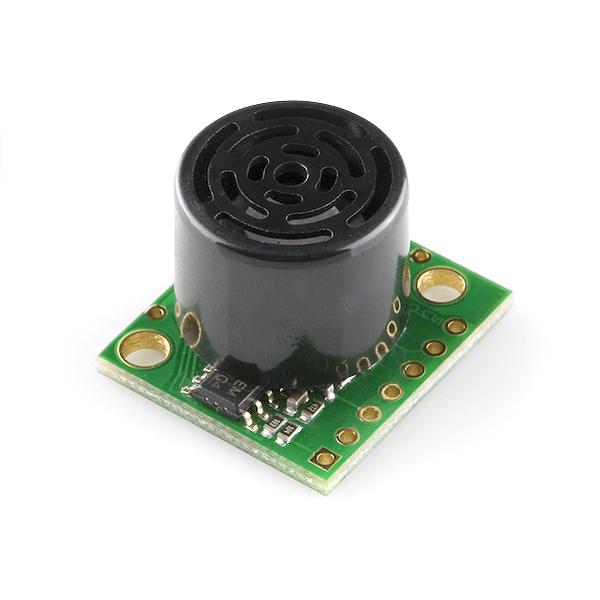

    This is the fantastically easy to use sensor from Maxbotix. We are extremely pleased with the size, quality, and ease of use of this little range finder. The serial interface is a bit odd (it's RS232 instead of standard TTL), but the PWM and Analog interfaces will allow any micro to listen easily enough. The sensor provides very accurate readings of 0 to 255 inches (0 to 6.45m) in 1 inch increments with little or no dead zone!

    Maxbotix is offering the EZ0, EZ1, EZ2, EZ3, and EZ4 with progressively narrower beam angles allowing the sensor to match the application. Please see beam width explanation below.

    Control up to 10 sensors with only two pins! Checkout the Maxbotix FAQ listed below.

    Features:

    • 42kHz Ultrasonic sensor
    • Operates from 2.5-5.5V
    • Low 2mA supply current
    • 20Hz reading rate
    • RS232 Serial Output - 9600bps
    • Analog Output - 10mV/inch
    • PWM Output - 147uS/inch
    • Small, light weight module
