SparkFun Humidity and Temperature Sensor Breakout - HIH6130

Item #: SEN-11295
Bin:G40-2
There are no reviews yet Write a review
Price: $54.07 inc GST
    The product is in stock Availability: Stocked-NoBackOrder
    Usually ships In 2-4 days
    Stocked-NoBackOrder Quantity: 1

    Quantity:

    It's not the heat but the humidity that gets you, at least that's what they say. Really, both are important, what you need is a sensor that combines humidity and temperature readings. How about this Honeywell HumidIcon Digital Humidity/Temperature Sensor?

    The HIH6130 is a digital output-type relative humidity (RH) and temperature sensor combined in the same package. This allows the RH measurement to be temperature compensated and provides a second, standalone temperature sensor output.

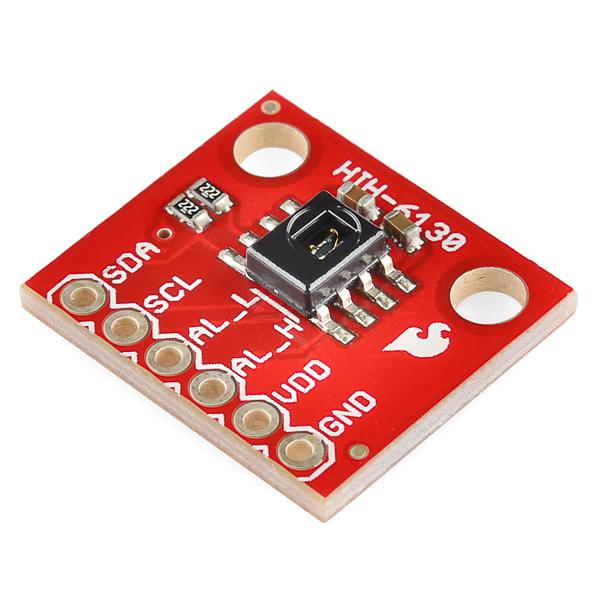

    This breakout board gives you standard 0.1" spaced headers for each of the pins on this SOIC package, making it a lot easier to prototype your next humidity-sensing application. Communication with the HIH6130 is easily achieved over I2C using libraries like "Wire.h"

    Features:

    • Operating Voltage: 2.3-5.5v
    • Compensated humidity range: 10-90% RH
    • Compensated temp. range 5-50°C
    • True temperature-compensated digital I2C output
    • Wide operating temperature range allows for use in many applications

    Documents:
