If you need to charge LiPo batteries, this simple charger will do just that. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.

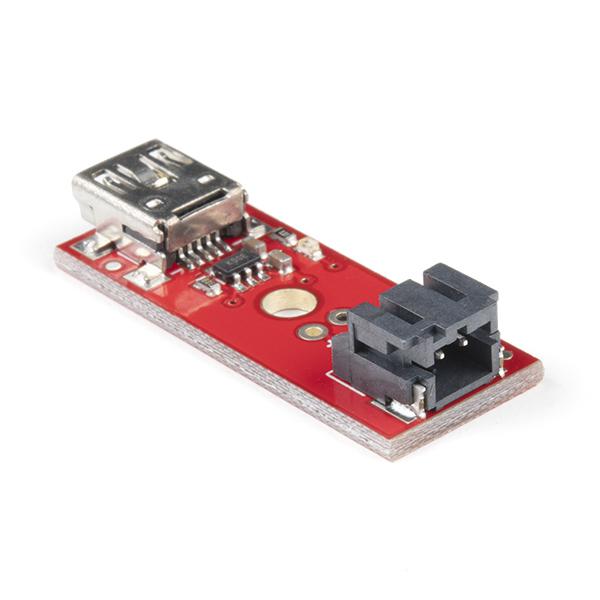

The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a mini-USB connector. However, we do not recommend this charger with a 110mAh battery.

Note: This version uses a mini-USB cable. We also have this charger with a micro-USB connection as well.

Features:

• 34.1x13.2mm

Documents:

• Schematic
• Eagle Files
• Datasheet (MCP73831T)
• GitHub
