No Stock in NZ. This item will be brought into New Zealand - Order before 20th (cutoff). Delivery on 31st/1st.

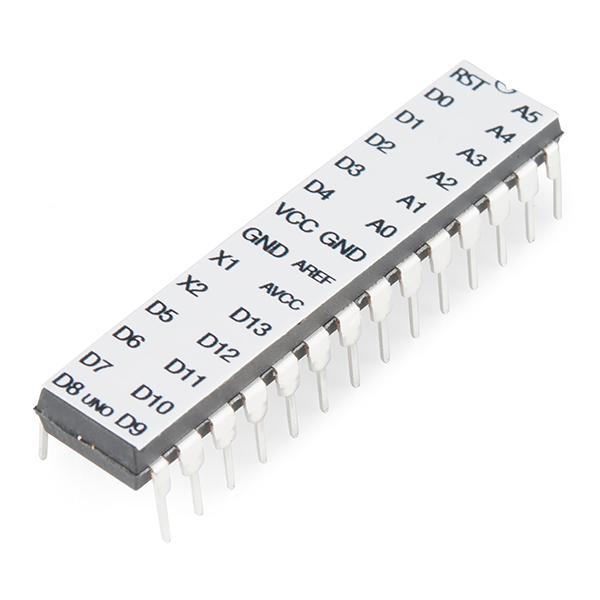

The name says it all on this one. An ATmega328P in DIP package, pre-loaded with the Arduino Optiboot (Uno 16MHz) Bootloader. This will allow you to use Arduino code in your custom embedded project without having to use an actual Arduino board.
To get this chip working with Arduino IDE, you will need an external 16MHz crystal or resonator, a 5V supply, and a serial connection. If you are not comfortable doing this, we recommend purchasing the Arduino Uno board that has all of these built into the board.
Atmel's ATMega328P 8-Bit Processor in 28 pin DIP package. It's like the ATmega168, with double the flash space. 32K of program space. 23 I/O lines, 6 of which are channels for the 10-bit ADC. Runs up to 20MHz with external crystal. Package can be programmed in circuit. 1.8V to 5V operating voltage!
Note: This microcontroller is in fact the ATmega328P, not the original ATmega328 and contains the bootloader used on the Arduino Uno, with small modifications to work more reliably with different serial connection options (mainly the FTDI). Check the link below for more information.
Documents:
Crystal 16MHz
Price: $1.67
AVR 28 Pin 20MHz 32K 6A/D - ATMega328P
Price: $7.38
Arduino Uno - R3
Price: $49.66
DIP Sockets Solder Tail - 28-Pin 0.3"
Price: $1.58
