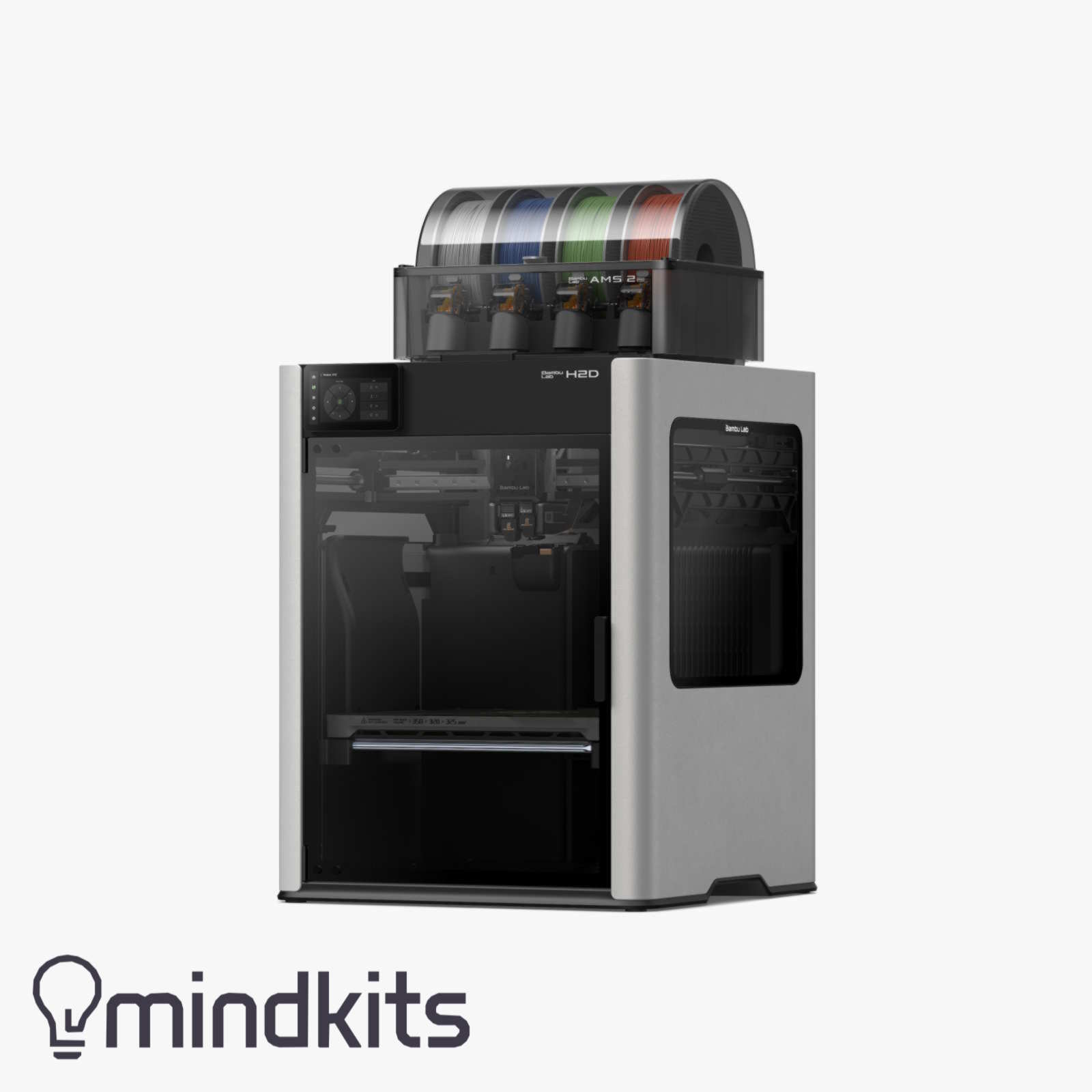

Bambu Lab H2D 3D Printer AMS Combo

Item #: BAM-PF003-D+SA007-AU

There are no reviews yet Write a review

Price: $4,349.00 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:28994

notify me

Estimate Shipping

Quantity:

About This Item

Official Bambu Lab provider in New Zealand with local parts and warranty, ensuring an added layer of security for your investment.
Bambu Lab H2D 3D Printer with AMS Combo
Real-time spatial alignment utilizing the innovative BirdsEye Camera and advanced computer vision algorithms that achieves precision up to 0.3 mm.
CodeSync technology ensures automatic material calibration without manual intervention.
50 micro-metres of printing precision.
Most expansive build volume available in any Bambu Lab machine to date.
Dual-hotend configuration and actively heated chamber designed for processing the most challenging materials.
Delivers reliable quality at printing speeds of 600 mm/s.
15 sensors providing comprehensive monitoring across the complete filament pathway.

Description

Featured

Bambu Lab H2D 3D Printer AMS Combo

COMPLETE PERSONAL

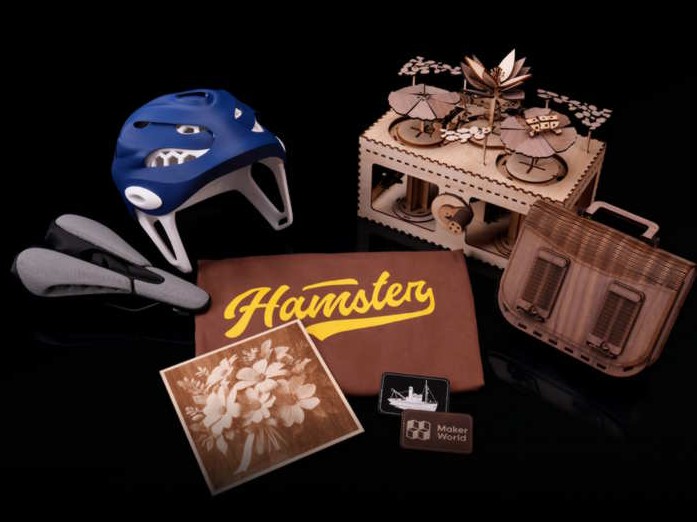

Complete Personal Manufacturing Hub

Combined 3D Printing, laser engraving/cutting, and digital cutting/plotting, within a single unified platform. (Capabilities varies from variant to variant.

DUAL-NOZZLE, DOUBLE

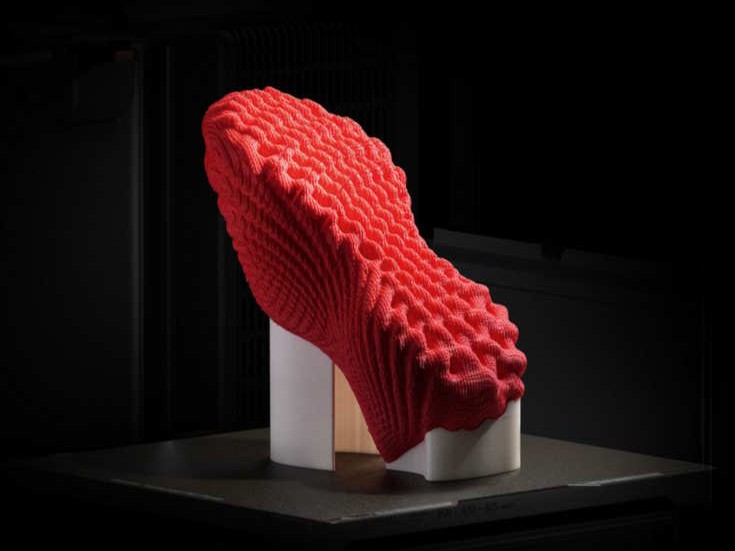

Dual-Nozzle, Double Flexibility

Rapid and streamlined multi-material printing.

AI-POWERED SIMPLICITY

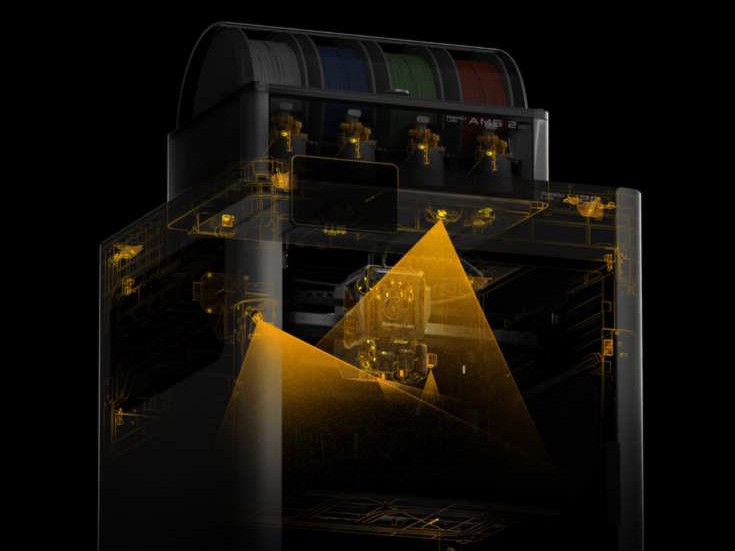

AI-Powered Simplicity

Four computer vision cameras, 36 sensors, and 2 servos integrated through advanced algorithms.

DEDICATED SUPPORT

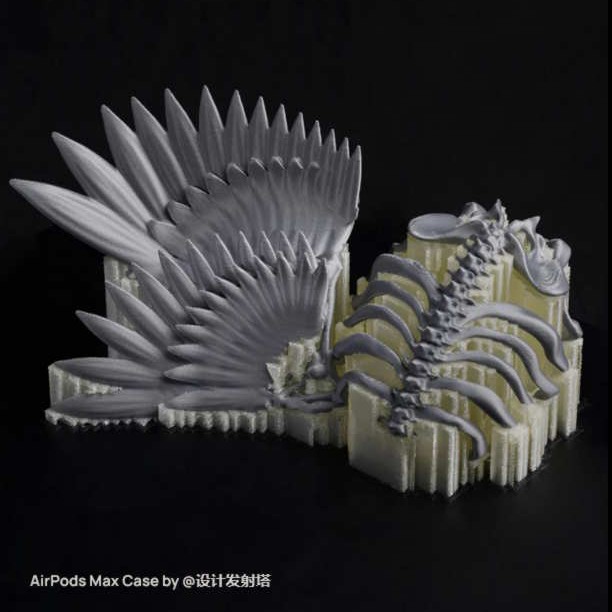

Dedicated Support Material

Flawless Supports with minimal waste, purging, and reloading

Support material printing becomes effortless. With H2D's dual-nozzle configuration, one nozzle can be dedicated to support materials.Enabling secure prints and an ideal support interface.

EFFICIENT MULTI-COLOR

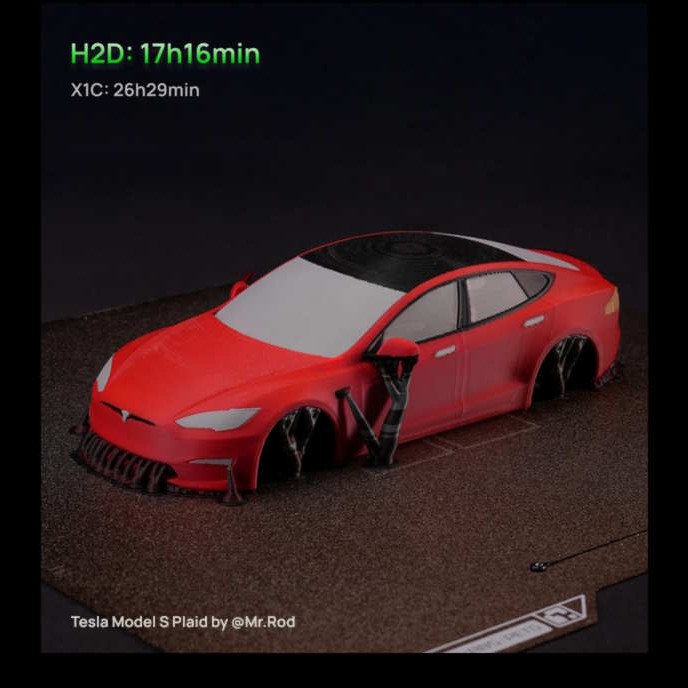

Efficient Multi-Color Printing

Rapid and streamlined multi-color printing

Dual nozzle technology minimizes purge cycles in multi-color applications. The H2D's intelligent algorithms enhance filament utilization -- maximizing dual nozzle performance to conserve time and materials.

FULL AUTO-CALIBRATION

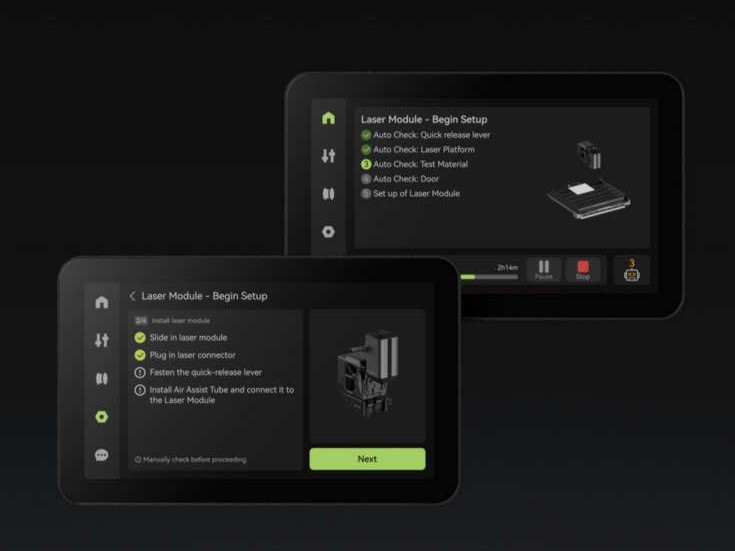

Full Auto-Calibration

A single touch triggers automated laser focus verification and material measurement, removing manual measurement requirements.

MATERIAL CODESYNC

Material CodeSync

The H2D automatically reads the QR code on your material to configure the optimal preset.

OUR SECRET

Our Secret Weapon: Vision Encoder

50µm ultrafine-motion accuracy

An ultra-precise vision encoder plate, paired with 5µm resolution optical measurements to monitor and correct toolhead motion, allows the H2D to achieve reliable and consistent distance-independent 50µm motion accuracy throughout the entire workspace, one order of magnitude superior to its predecessor. (Vision Encoder Sold Separately)

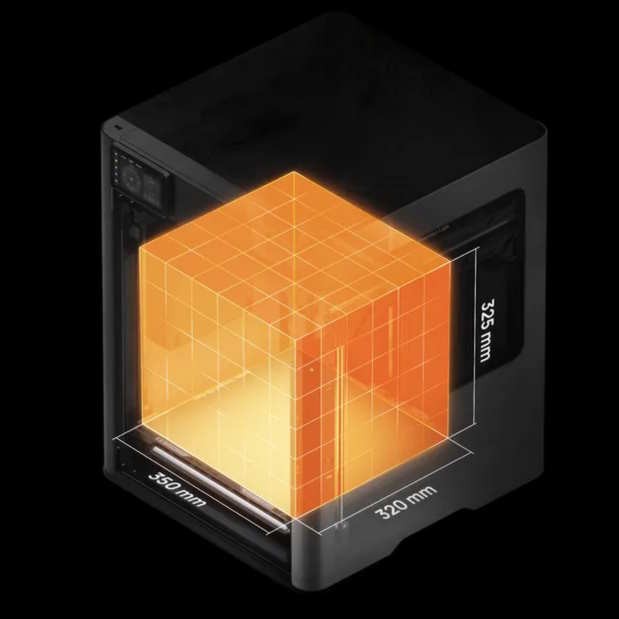

KING-SIZE WORK

King-size Work Zone

Break Free from Size Constraints

With a print volume reaching up to 350 mm x 320 mm x 325 mm, executing large-scale projects becomes effortless! From laser engraving on substantial objects to printing oversized models, the expanded workspace empowers you to realize even your most ambitious concepts.

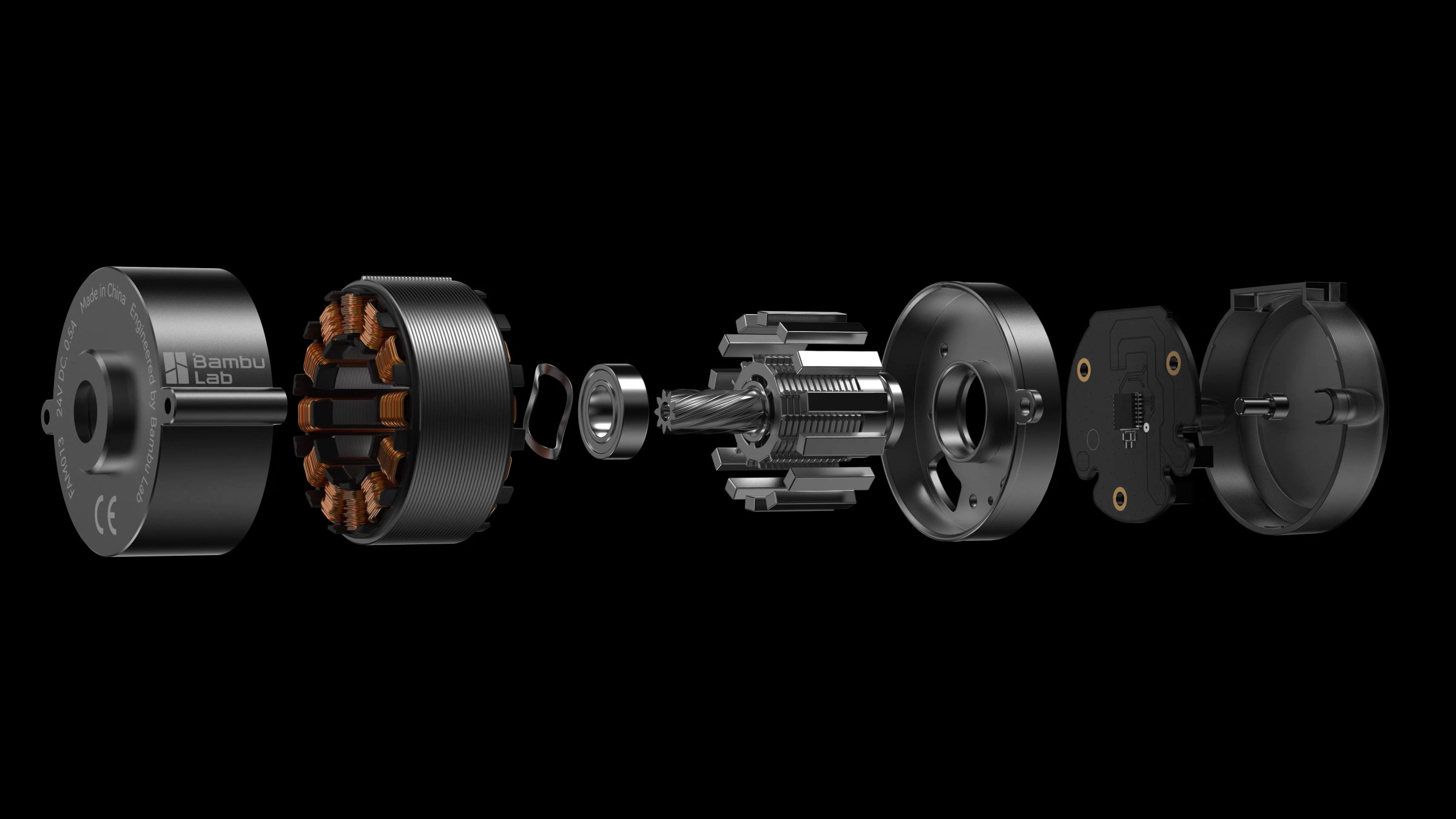

DYNASENSE EXTRUDER

DynaSense Extruder

Intelligent Sensing for Precise Extrusion Control

Bambu Lab's proprietary PMSM servo architecture creates an intelligent extrusion management system. It performs 20kHz Torque/Resistance and position sampling to dynamically adjust electromagnetic torque vectors. Ensuring stable extrusion and identifying filament grinding and clogging.

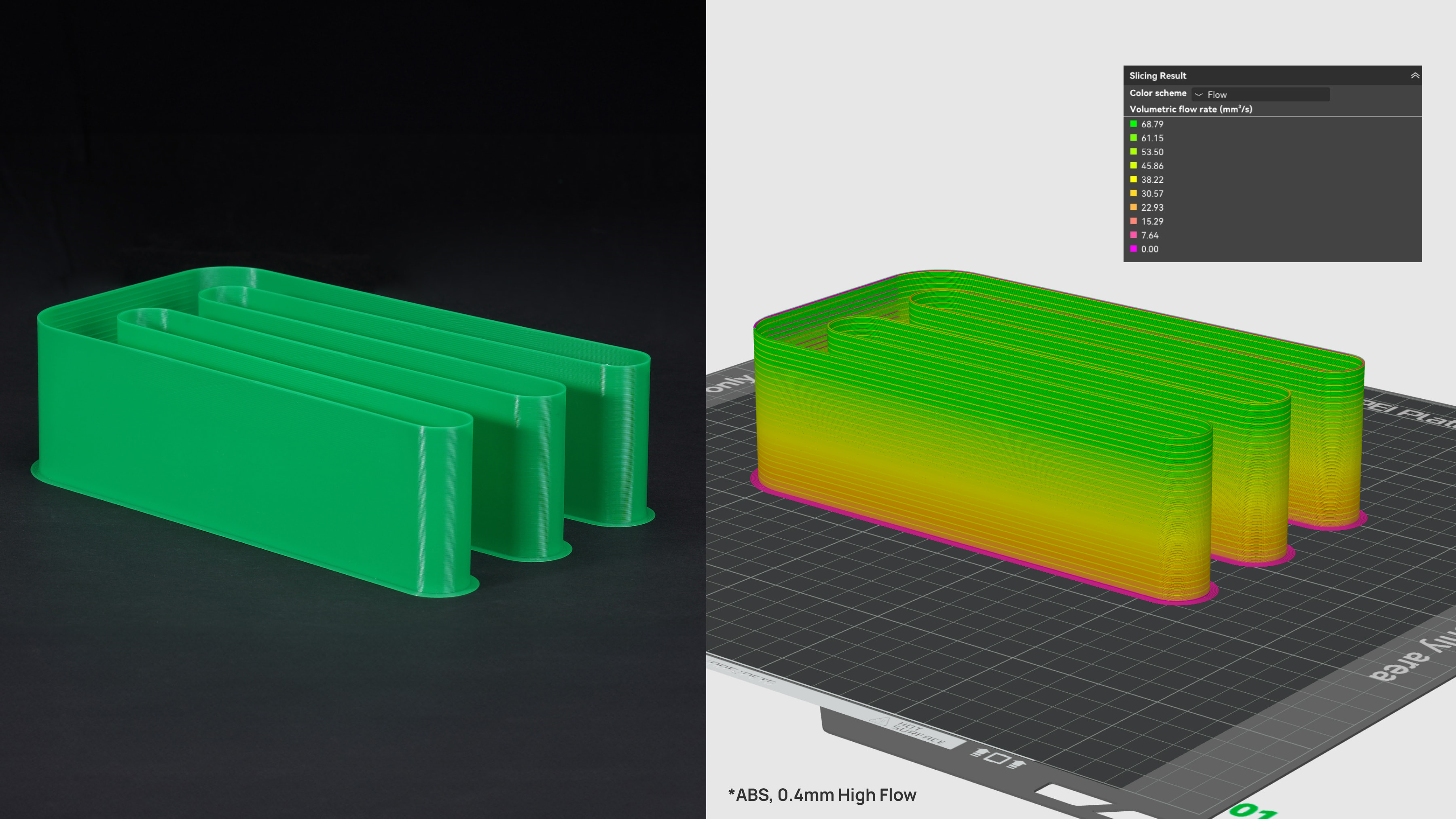

REAL HIGH-FLOW

REAL High-Flow Hotend

Consistently Print at 600 mm/s with Ease

The H2D's specially engineered high-flow hotend guarantees dependable, high-speed printing at 600mm/s. Engineered for consistent performance, it prevents mid-print flowrate limitations, allowing uninterrupted high-speed printing regardless of print size or complexity.

NOZZLE CAMERA

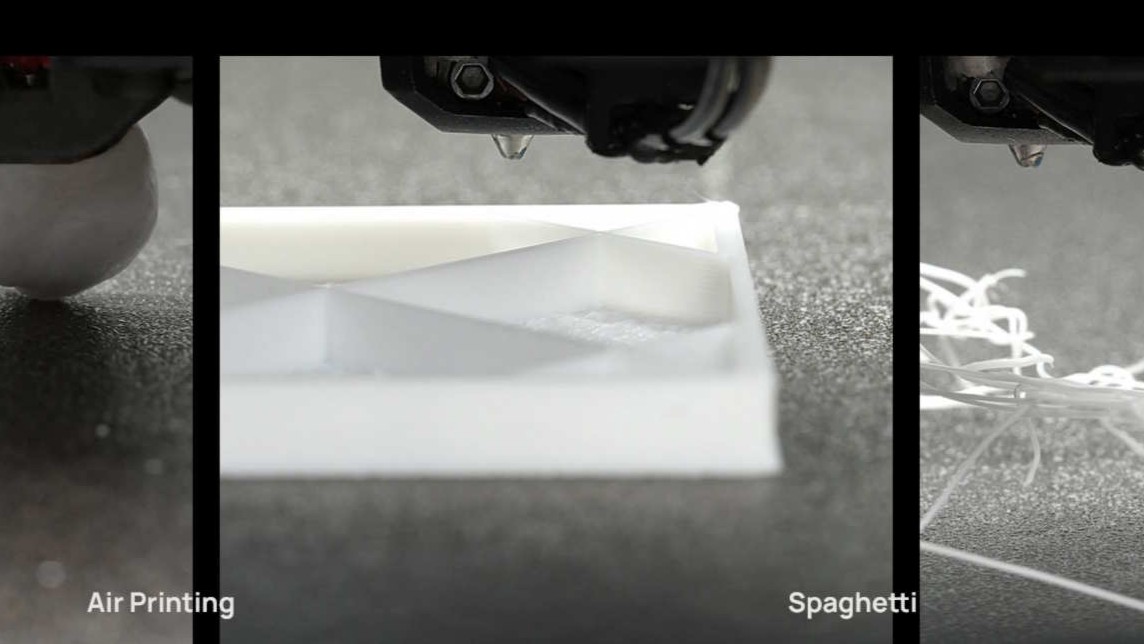

Nozzle Camera

Monitor Extrusion at the Nozzle Tip

The H2D incorporates an AI-powered nozzle camera with macro lens. This intelligent monitoring solution continuously observes extrusion patterns, instantly identifying material accumulation, filament deviations, and extrusion failures.

PREFLIGHT CHECKLIST

Preflight Checklist by AI

Peace of Mind Every Time You Print

Before each operational cycle, H2D's vision system performs a comprehensive pre-flight checklist: Chamber Integrity Scan – Identifies debris throughout the entire print surface. Hardware Configuration Audit – Instantly recognizes nozzle dimensions and build plate properties. Digital-Physical Alignment – Automatically confirms consistency between detected hardware specifications and active slicer parameters.

SOTA FILAMENT

SOTA Filament Monitoring

15 Sensors on One Filament Path

Unlike traditional systems with single filament run-out detectors, the H2D incorporates comprehensive material flow monitoring. Along the AMS-to-nozzle pathway, 15 strategic sensors create an intelligent network, continuously monitoring five critical parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This creates an industry-leading filament behavior management system.

AMS, Evolved.

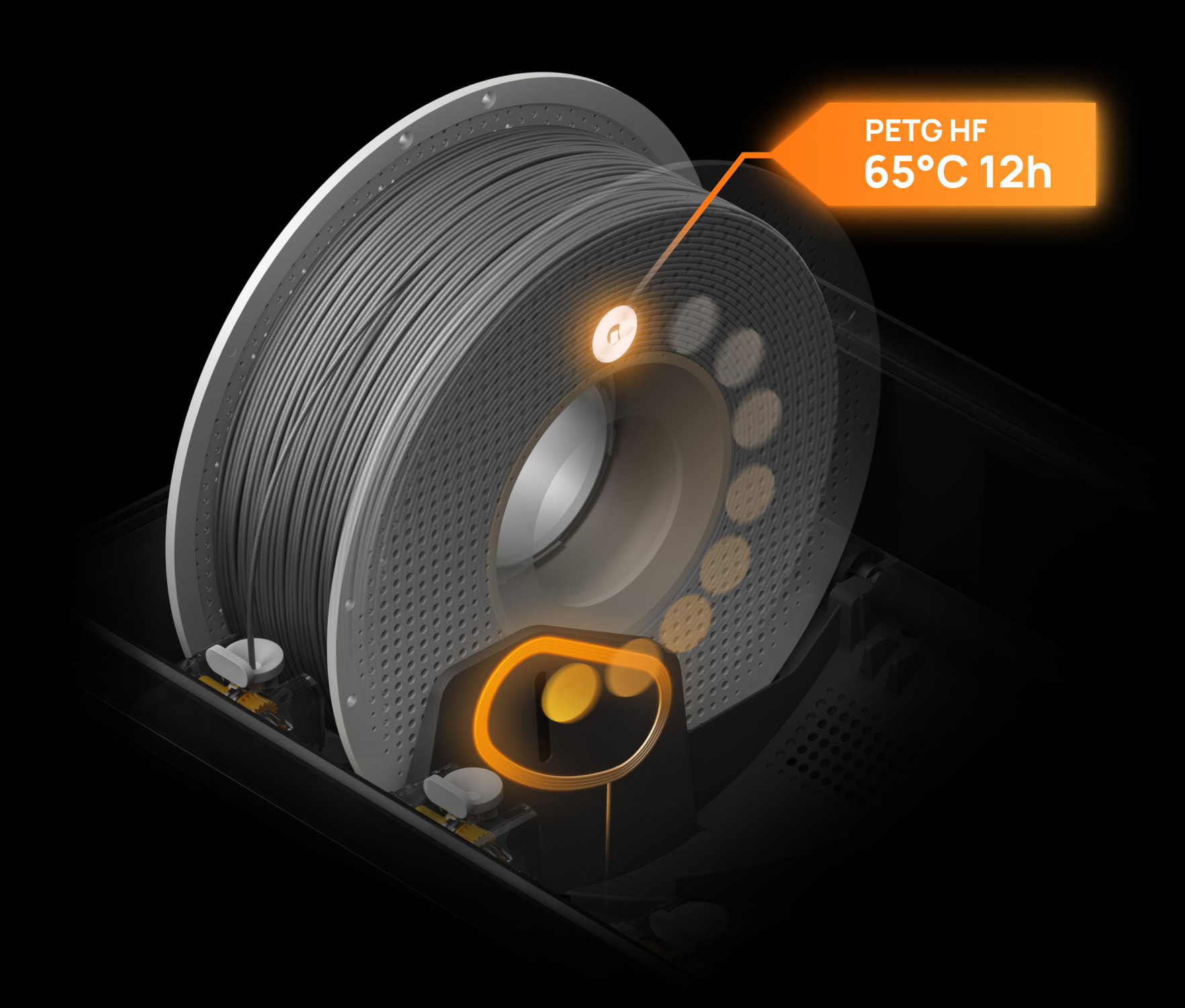

DRY FILAMENT

Dry Filament Quickly and Intelligently

RFID Sync

Automated ventilation enables dehumidification during drying cycles and creates airtight sealing for weeks of reliable printing performance.

Throughout the drying cycle, filament spools rotate automatically to ensure uniform drying coverage.

+60%

Advanced Bambu permanent magnet synchronous servo motor accelerates filament feeding performance by 60%

-10 MIN

-10 min

Typical 10min reduction per 100 filament changes

TOOL-FREE FILAMENT

Tool-Free Filament Tubes Access

Clearing broken filament from the original AMS demands removing all spools and dismantling the housing with two screws, consuming 3-5 minutes. Conversely, the AMS 2 Pro provides immediate, tool-free access to filament tubes from the top panel.

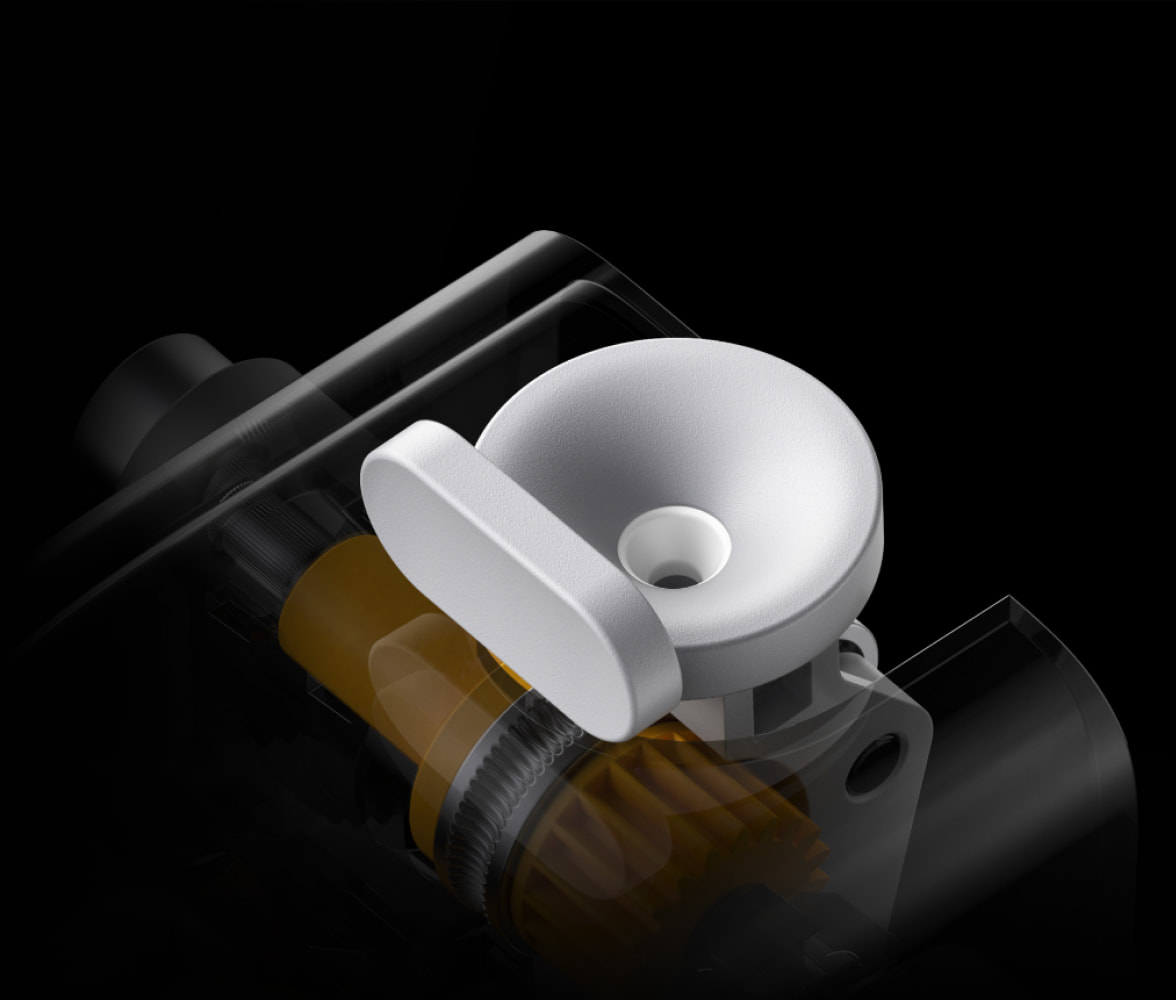

CERAMIC INLET

Ceramic Inlet

Ceramic filament inlets featuring Vickers hardness of 1200 dramatically improves longevity.

Specifications

Physical Dimensions

Physical Dimensions	492514626 mm³
Net Weight	31 kg

Hotend	All Metal
Extruder Gear	Hardened Steel
Nozzle	Hardened Steel
Max Nozzle Temperature	350 °C
Included Nozzle Diameter	0.4 mm
Supported Nozzle Diameter	0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Filament Diameter	1.75 mm
Extruder Motor	Bambu Lab High-precision Permanent Magnet Synchronous Motor

Heatbed

Supported Build Plate Type	Textured PEI Plate, Smooth PEI Plate
Max Heatbed Temperature	120 ℃

Speed

Max Speed of Toolhead	1000 mm/s
Max Acceleration of Toolhead	20,000 mm/s²
Max Flow for Hotend (Standard Flow Hotend)	40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Max Flow for Hotend (Optional High Flow Hotend)	65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)

Chamber Temperature Control

Active Chamber Heating	Supported
Max Temperature	65 °C

Air Purification

Pre-filter Grade	G3
HEPA Filter Grade	H12
Activated Carbon Filter Type	Granulated Coconut Shell

Cooling

Part Cooling Fan	Closed Loop Control
Auxiliary Part Cooling Fan	Closed Loop Control
Chamber Heat Circulation Fan	Closed Loop Control
Cooling Fan for Hotend	Closed Loop Control
Main Control Board Fan	Closed Loop Control
Chamber Exhaust Fan	Closed Loop Control

Supported Filament Type

PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA CF/GF, PPS, PPS-CF/GF

Supported

Sensor

Live View Camera	Built-in; 1920*1080
Nozzle Camera	Built-in; 1920*1080
BirdsEye Camera	Built-in; 3264*2448 （Equipped with Laser Edition)
Toolhead Camera	Built-in; 1920*1080
Door Sensor	Supported
Filament Run Out Sensor	Supported
Filament Tangle Sensor	Supported
Filament Odometry	Supported with AMS
Power Loss Recovery	Supported

Electrical Requirements

Voltage	100-120 VAC / 200-240 VAC, 50/60 Hz
Max Power*	2200 W@220 V / 1320 W@110 V
	Please purchase the version corresponding to your region's voltage.

Working Temperature

10 °C–30 °C

Electronics

Touchscreen	5-inch 720*1280 Touchscreen
Storage	Built-in 8 GB EMMC and USB Port
Control Interface	Touchscreen, mobile App, PC App
Neural Processing Unit	2 TOPS

Software

Slicer & Software

Bambu Studio, Bambu Suite, Bambu Handy

Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported.

Supported Operating System

MacOS, Windows

Wi-Fi

Operating Frequency

2412-2472 MHz, 5150-5850 MHz (FCC/CE)

2400-2483.5 MHz, 5150-5850 MHz (SRRC)

Wi-Fi Transmitter Power (EIRP)

2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)xtagstartz/p>

What's in the Box

	H2D AMS Combo	H2D Laser Full Combo	H2D
Bambu Lab H2D	Included	-	Included
Bambu Lab H2DLaser Edition	-	Included	-

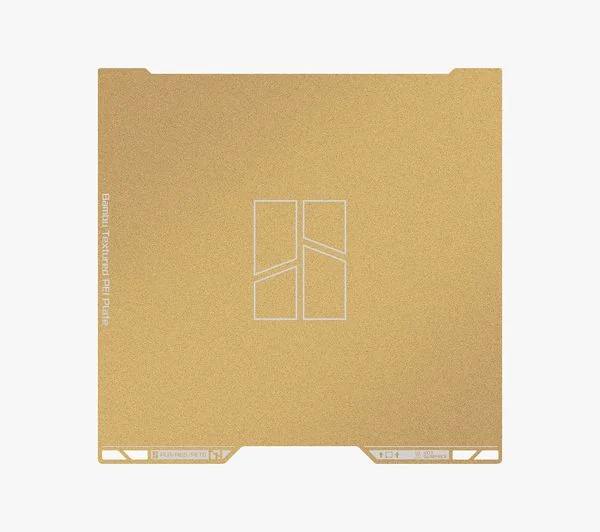

Textured PEI Build Plate	Included	Included	Included
Spool Holder	Included	Included	Included
Accessory Box	Included	Included	Included
AMS 2 Pro	Included	Included	-
10W Laser Module	-	Depending on selected combo	-
40W Laser Module	-	Depending on selected combo	-
Cutting Module (with Pen Holder)	-	Included	-

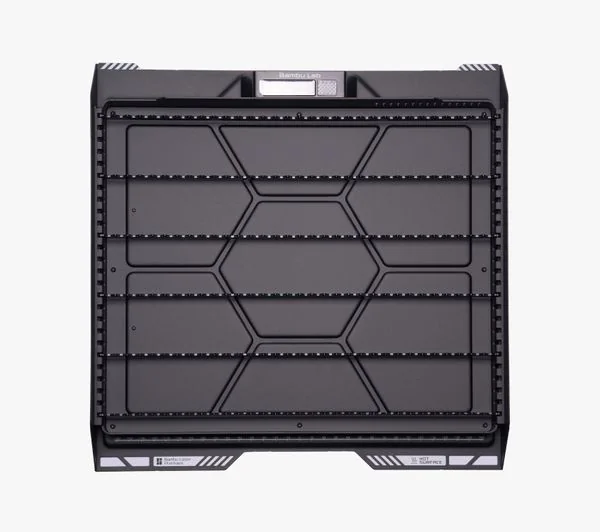

Laser Platform	-	Included	-

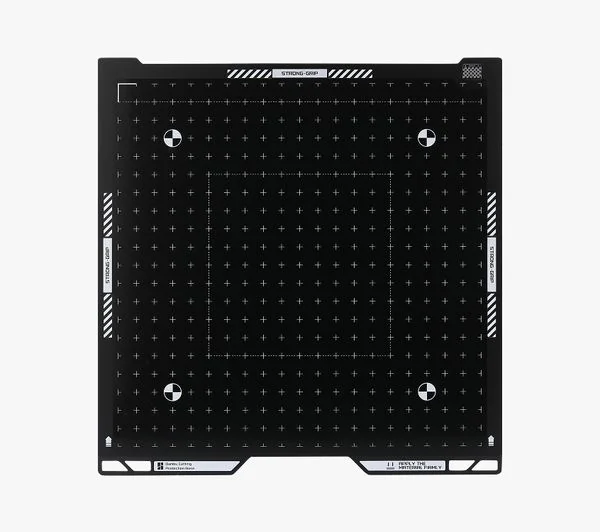

Cutting Platform	-	Included	-
Safety Key	Included	Included	Included

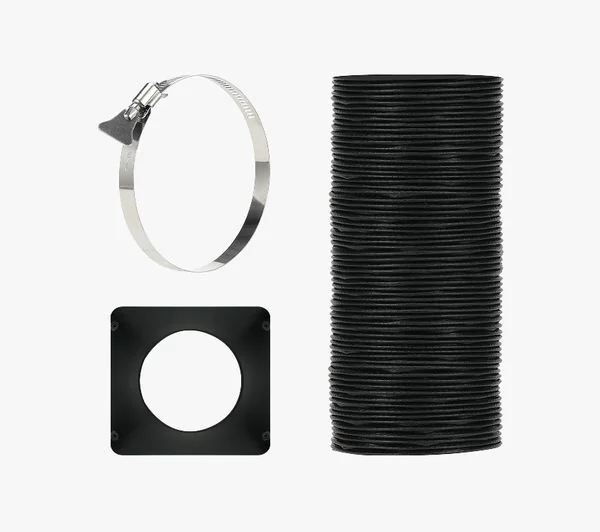

Ventilation Pipe	-	Included	-

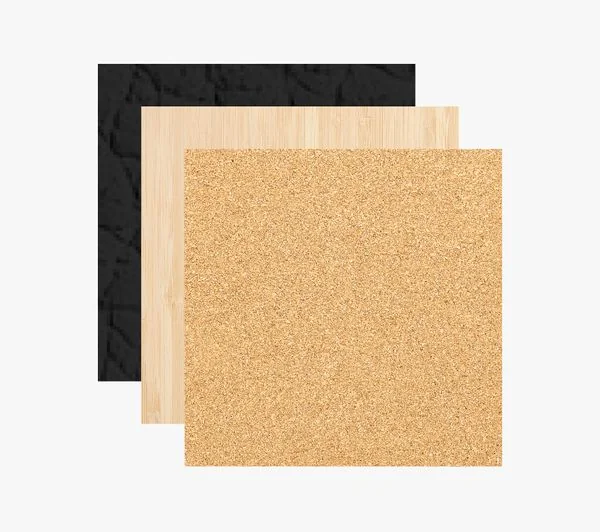

Laser & Cutting Materials	-	Included	-

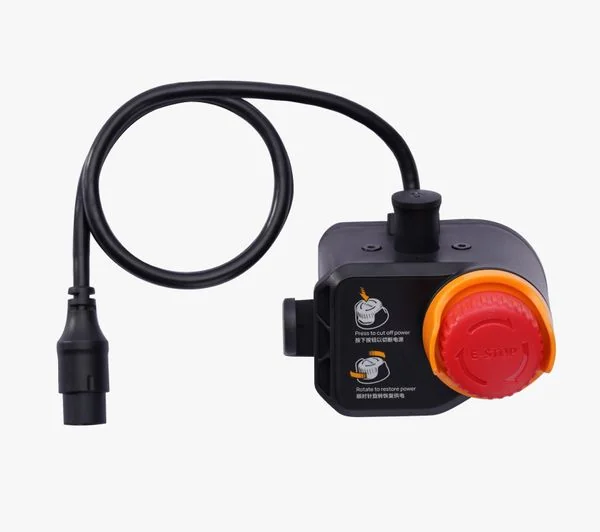

EmergencyStop Button	-	Included	-
