Bambu Lab X2D Combo 3D Printer

Item #: BAM-PF004-P+SA007-AU

There are no reviews yet Write a review

Price: $2,099.00 inc GST

Retail Price: ##RETAILPRICE## inc GST

Points to Purchase:13994

notify me

Estimate Shipping

About This Item

swap_horizDual-Nozzle System with mechanical switching - print two materials simultaneously without tool changes
crop_free256 x 256 x 260mm Build Volume - generous print area with CoreXY speed and precision
speed1000mm/s Max Speed with 20,000mm/s acceleration for rapid, high-quality prints
thermostat300C Nozzle / 65C Active Chamber - Cool Mode and Heat Mode for all filament types
sensors31 Integrated Sensors monitor filament path, thermal environment, and machine safety in real-time
smart_toyFull AI Detection with HD camera for spaghetti detection, nozzle blobs, and plate verification
air3-Stage Air Filtration with G3 pre-filter, H12 HEPA, and activated carbon - under 50dB operation
build_circleTool-Free Quick-Swap Nozzles compatible across X2, H2, and P2 series printers
hubAMS 2 Pro Compatible - up to 25-color printing with dual hotends and multiple AMS units

Description

Bambu Lab X2D

Dual-Nozzle 3D Printing, Perfected

The Bambu Lab X2D brings true dual-nozzle printing to the beloved X-series platform. Print with two materials simultaneously, switch between Cool Mode and Heat Mode for any filament type, and leverage 31 integrated sensors for intelligent print monitoring. A completely rebuilt printer with the features professionals need and the reliability makers trust.

swap_horiz Dual Nozzle
thermostat 65C Chamber
sensors 31 Sensors
smart_toy AI Detection
air 3-Stage Filtration

The left (main) nozzle runs a direct-drive extruder powered by a PMSM servo motor that samples torque and position 20,000 times per second. This delivers 8.5kg max extrusion force - about 70% more than the X1 Carbon - with real-time filament grinding and clog detection.

The right (auxiliary) nozzle uses a Bowden configuration from the rear of the machine. This split architecture keeps the printhead compact, enabling the full 256mm build volume while supporting dual-material printing at speeds up to 200mm/s.

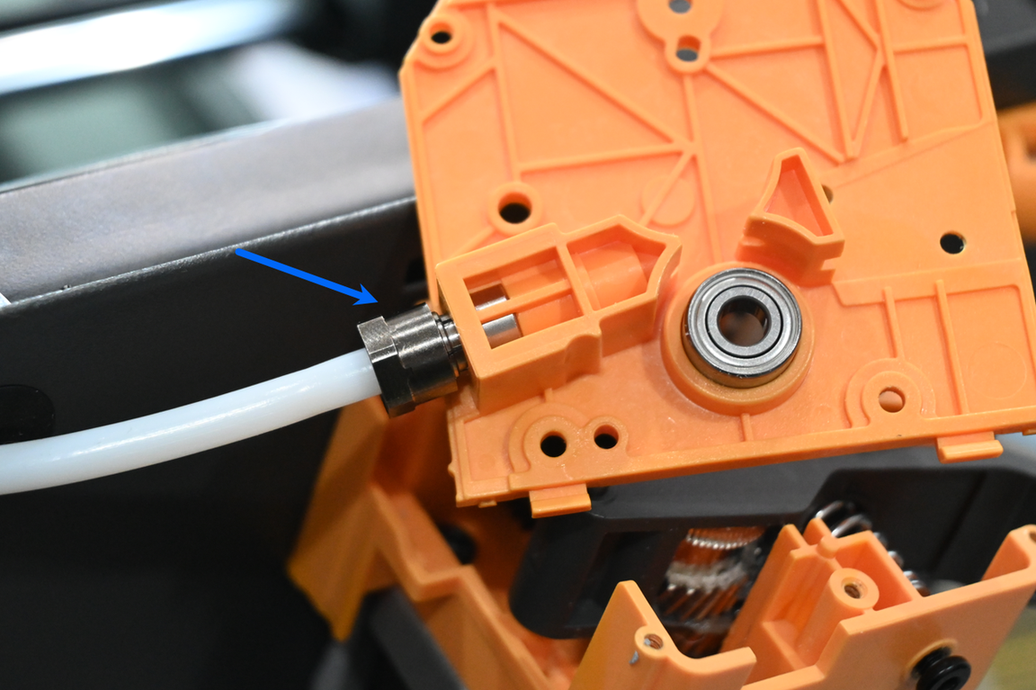

Bambu Lab X2D dual nozzle mechanical switching system showing direct drive and bowden configuration

autorenew

1,000,000+ Cycles

Nozzle switching mechanism tested without degradation

Single nozzle printing: 256 x 256 x 260mm - the full build volume for standard prints.

Dual nozzle printing: 235.5 x 256 x 256mm - slightly reduced to accommodate both nozzles, still generous for multi-material projects.

Optional Vision Encoder upgrade brings motion accuracy to the 50-micron class - serious precision for dual-nozzle alignment where even 0.1mm misalignment can ruin a print.

Bambu Lab X2D CoreXY motion system with high-speed printing capabilities

ac_unit
Cool Mode Draws ambient air from the room for clean overhangs in PLA and PETG. Chamber stays around 32C for optimal part cooling without risking heat creep or nozzle clogs.
local_fire_department
Heat Mode (Up to 65C) Vents close and the heater activates, circulating warm air throughout the chamber. Perfect for ABS, ASA, Nylon, and other engineering filaments that require stable thermal environments to prevent warping.
bolt
300C Maximum Nozzle Temperature Both nozzles reach 300C, supporting engineering materials including carbon-fiber composites, PC, and most nylons. The 120C heated bed handles demanding adhesion requirements.

The Dynamic Flow Calibration system watches the extrusion motor, hotend, nozzles, and filament simultaneously. An eddy current sensor measures nozzle pressure, automatically adjusting flow rates for perfect extrusion.

The upgraded 1080p HD camera with improved chamber lighting enables AI monitoring that detects spaghetti printing, nozzle blobs, and exhaust duct blockages. Before printing, it scans for debris and verifies plate placement.

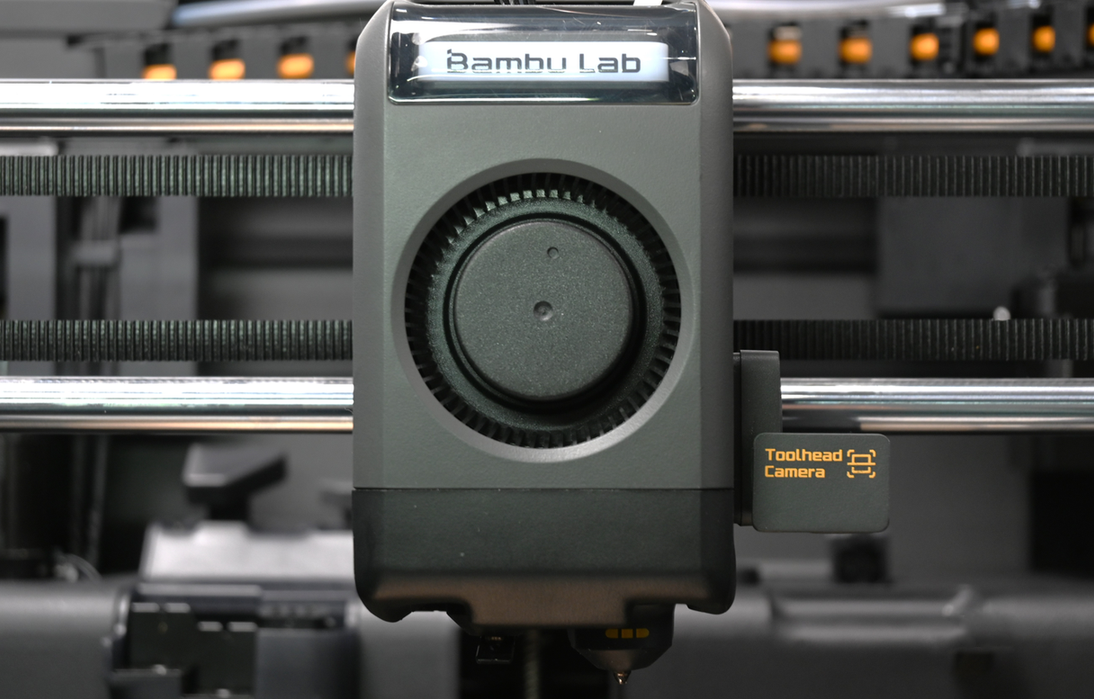

Bambu Lab X2D HD camera and AI monitoring system detecting print issues in real-time

psychology

20,000 Samples/Second

PMSM servo motor torque and position monitoring for filament path detection

filter_1
G3 Pre-Filter Captures large particles and debris before they reach the main filtration stages, extending filter life and maintaining airflow efficiency.
filter_2
H12 HEPA Filter Removes fine particulates and ultrafine particles from ABS, ASA, and other materials that release emissions during printing.
filter_3
Coconut Shell Activated Carbon Absorbs VOCs and odors for cleaner air output. Essential for indoor printing environments like offices, classrooms, and home studios.

Cross-Series Compatibility: All manually changed Bambu Lab nozzles are now compatible across the entire X2, H2, and P2 lineup. One nozzle type for multiple printers eliminates confusion when ordering replacements.

Available Sizes: 0.2mm, 0.4mm, 0.6mm, and 0.8mm in hardened steel. The included 0.4mm nozzle handles most projects, but swapping to 0.6mm for faster prints or 0.2mm for fine detail takes just seconds.

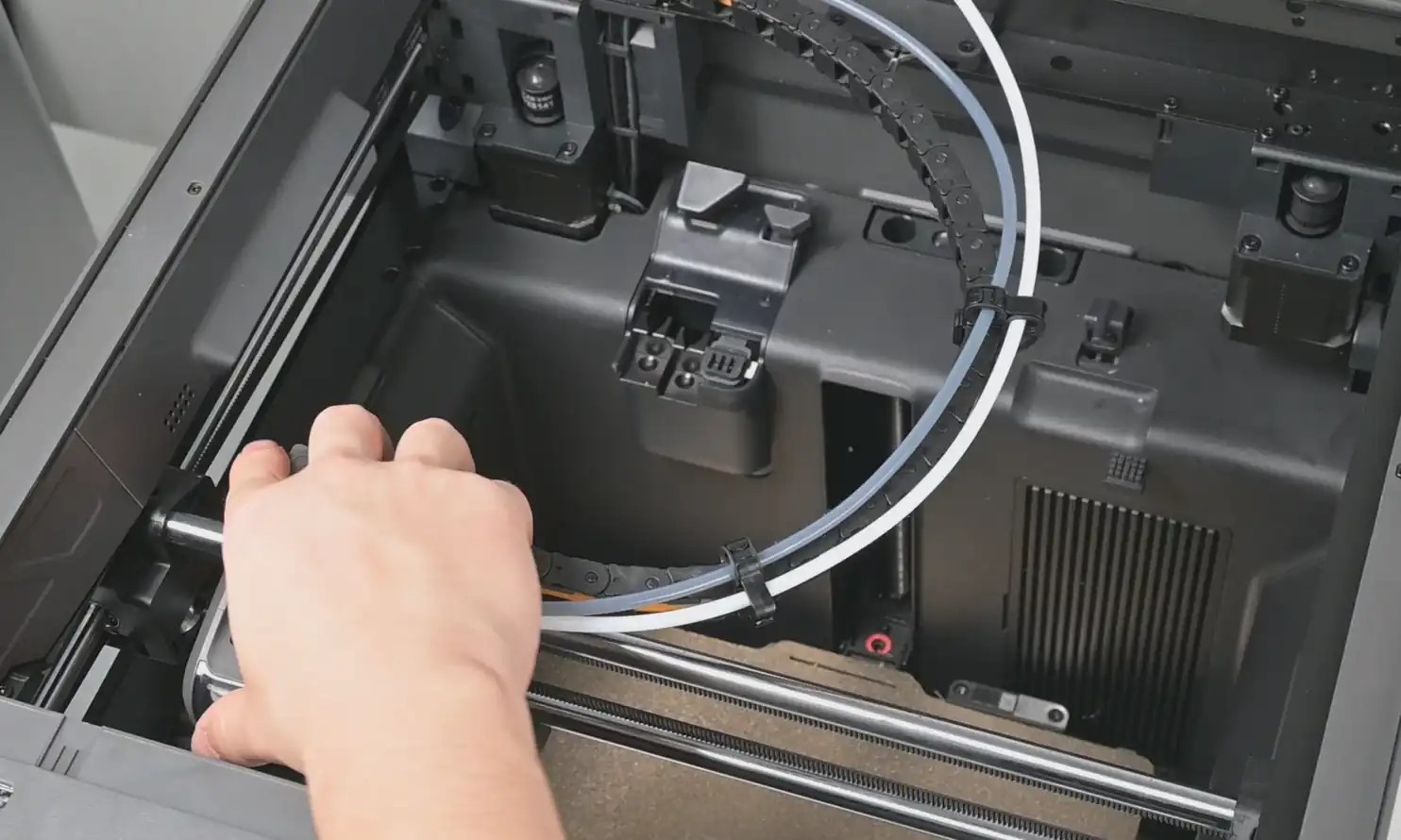

Bambu Lab X2D tool-free quick-swap nozzle system for easy maintenance

eco
Standard Materials PLA, PETG, PLA-CF, PETG-CF - print with the door closed using Cool Mode for perfect overhangs and part cooling.
engineering
Engineering Filaments ABS, ASA, PC, Nylon (PA), PAHT-CF - use Heat Mode at 65C to prevent warping and layer delamination on demanding prints.
water_drop
Support Materials PVA, BVOH (water-soluble), HIPS (limonene-soluble) - the second nozzle enables true dissolvable supports for complex geometries impossible with single-nozzle printers.
compress
Flexible Filaments TPU and other flexibles supported via the direct-drive main nozzle. Dedicated TPU system support included.

Single Nozzle Configuration: Supports up to 4 AMS 2 Pro units and 8 AMS HT units (12 units total, 24 slots).

Dual Nozzle Configuration: Enable up to 25-color printing when combining both hotends with maximum AMS capacity.

The AMS 2 Pro features active moisture discharge, sealed storage, and real-time temperature/humidity monitoring displayed on screen and in Bambu Studio. RFID tags on Bambu Lab filament automatically identify material type and color.

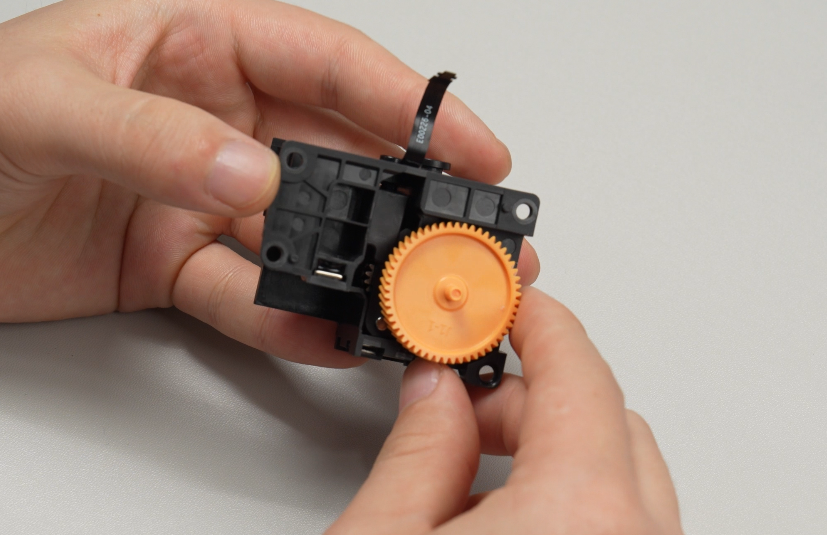

Bambu Lab X2D with AMS 2 Pro automatic material system for multi-color printing

palette

Up to 25 Colors

Maximum color capability with dual nozzles and full AMS configuration

Specifications

list_alt

Technical Specifications

Build Volume (Main Nozzle)

256 x 256 x 260mm

Build Volume (Auxiliary Nozzle)

235.5 x 256 x 256mm

Build Volume (Dual Nozzle)

235.5 x 256 x 256mm

Motion System

CoreXY

Max Toolhead Speed

1000mm/s

Auxiliary Nozzle Max Speed

200mm/s

Max Acceleration

20,000mm/s²

Motion Accuracy (with Vision Encoder)

50 microns

Nozzle Configuration

Dual Nozzle with Mechanical Switching

Main Extruder (Left)

Direct Drive with PMSM Servo Motor

Auxiliary Extruder (Right)

Bowden (rear-mounted motor)

Max Extrusion Force (Main)

8.5kg

Servo Sampling Rate

20,000 times/second

Extruder Gear Assembly

Hardened Steel

Filament Cutter

Built-in

Filament Diameter

1.75mm

Nozzle Type

Tool-Free Quick-Swap (X2/H2/P2 Compatible)

Included Nozzle Diameter

0.4mm Hardened Steel

Supported Nozzle Diameters

Max Nozzle Temperature

300C

Nozzle Switching Durability

1,000,000+ cycles tested

Max Bed Temperature

120C

Max Chamber Temperature

65C (Active Heating)

Thermal Control Mode

Intelligent Cool Mode / Heat Mode Switching

Enclosure

Fully Enclosed with Active Vents

Bed Leveling

Fully Automatic

Build Plate

PEI Textured Spring Steel Sheet

Total Sensors

31 Sensors

AI Detection

Full Filament Path Detection

Camera

1920 x 1080 HD High Frame Rate

Flow Calibration

Dynamic Flow Calibration (Main Nozzle)

Pressure Sensor

Eddy Current Sensor for Nozzle Pressure

Vision Encoder Support

Yes (50-micron accuracy, sold separately)

Filtration System

3-Stage Filtration

Filter Types

Noise Level

Under 50dB

External Exhaust

Included

Standard Materials

Engineering Materials

Support Materials

Flexible Materials

Other Materials

Connectivity

Display

5-Inch Touchscreen

Software

Bambu Studio, Bambu Handy (Mobile App)

AMS 2 Pro Support

Yes (Combo includes 1x AMS 2 Pro)

Max AMS Units (Single Nozzle)

4x AMS 2 Pro + 8x AMS HT (24 slots)

Max Colors (Dual Nozzle)

25 Colors

AMS Hub Compatible

No (interface types differ)

RFID Filament Detection

Yes

Machine Dimensions

392 x 406 x 478mm (15.4 x 15.9 x 18.8 inches)

Net Weight

16.25kg (35.8 lbs)

Chassis

Plastic and Steel

Guide Rails

Hardened Steel Rods

Voltage Range

100-120V (region-specific)

Additional Information

info

Additional Information

The Bambu Lab X2D is designed for quick setup. Unbox, place on a stable surface, connect to power, and follow the on-screen calibration wizard. The printer will automatically level the bed and calibrate both nozzles.

qr_code_scannerScan the QR code inside the box for an unboxing video guide
touch_appUse the 5-inch touchscreen for initial configuration and Wi-Fi setup
computerDownload Bambu Studio for slicing and advanced printer management
smartphoneInstall Bambu Handy app for remote monitoring and print management
printStart with the pre-loaded test models in the printer's memory to verify setup

The X2D's dual-nozzle system opens up new printing possibilities. Here are tips to get the best results from multi-material printing:

lightbulbMaterial pairing: The main (left) nozzle handles flexibles like TPU better due to direct drive. Use the auxiliary (right) nozzle for rigid materials or supports.
thermostatTemperature matching: When printing two materials, choose combinations with similar temperature requirements to minimize switching delays.
water_dropDissolvable supports: Use PVA or BVOH in the auxiliary nozzle for water-soluble supports. HIPS dissolves in limonene and works well with ABS.
paletteDual-color prints: For simple two-color prints, assign each nozzle to a color to minimize purging compared to single-nozzle AMS prints.
speedSpeed expectations: The auxiliary nozzle maxes out at 200mm/s compared to 1000mm/s for the main nozzle. Plan complex prints accordingly.

The X2D automatically selects the appropriate chamber mode based on your filament, but understanding when each applies helps optimize results:

ac_unitCool Mode: Draws ambient air into the chamber for PLA, PETG, and other materials requiring good part cooling. Chamber stays around 32C. Keeps the door closed for dust protection and camera monitoring.
local_fire_departmentHeat Mode: Seals vents and activates the heater for ABS, ASA, PC, and Nylon. Maintains up to 65C to prevent warping and layer delamination.
warningMixed materials: When printing high-temp and low-temp materials together, the printer will balance chamber temperature. Consider using support materials that tolerate the required chamber temp.

The X2D Combo includes one AMS 2 Pro for the main nozzle. Here's how to expand your multi-material capabilities:

add_circleExpanding colors: Add up to 4x AMS 2 Pro and 8x AMS HT units (12 total, 24 slots) for single-nozzle printing, or up to 25 colors with dual nozzles.
cableConnection note: To connect more than two AMS units, you'll need a 4-in-1 PTFE Adapter (FAZ013-N).
blockAMS Hub: The X2D is not compatible with the older AMS Hub due to different interface types.
grainFilament drying: The AMS 2 Pro doubles as a filament dryer with active moisture discharge. Note that drying only works when the printer is not printing.
nfcRFID tags: Bambu Lab filaments include RFID tags for automatic identification. Third-party filaments require manual profile setup.

The X2D is designed for easy maintenance with tool-free nozzle changes and accessible components:

swap_horizNozzle changes: Quick-swap nozzles install in seconds without tools. Compatible across X2, H2, and P2 series.
cleaning_servicesNozzle wiping pads: Replace wiping pads when worn. Spares included in the accessory box.
airFilters: Check and replace the 3-stage filtration system periodically, especially when printing high-emission materials like ABS.
scienceBuild plate: Clean the PEI textured plate with isopropyl alcohol between prints. Avoid touching the print surface with fingers.
settingsCalibration: The printer auto-calibrates, but run manual calibration if you notice first-layer issues or nozzle misalignment.

Access official documentation, community resources, and support channels:

descriptionBambu Lab X2D Wiki - Official documentation, guides, and troubleshooting
downloadBambu Studio Download - Official slicer software for Windows, macOS, and Linux
phone_androidBambu Handy App - Mobile app for iOS and Android
forumBambu Lab Community Forum - User discussions, tips, and troubleshooting
support_agentBambu Lab Support - Contact official support for warranty and technical issues

Choosing between Bambu Lab printers? Here's how the X2D compares:

check_circleX2D vs P2S: For just $100 more than the P2S, the X2D adds dual nozzles, active chamber heating to 65C, 31 sensors, 3-stage filtration, and dedicated TPU support. The X2D is the better value for most users.
check_circleX2D vs H2D: The H2D offers a larger 350 x 320 x 325mm build volume, 350C nozzle temp (vs 300C), dual direct-drive extruders, and optional laser modules. Choose H2D for larger engineering prints or laser capabilities.
check_circleX2D's sweet spot: The X2D delivers the best balance of dual-nozzle capability, build volume, and price for makers, hobbyists, and small businesses.
