Banish the Fumes: A Beginner’s Guide to Safe Resin 3D Printing
Resin 3D printing offers incredible detail and versatility, but it comes with a reputation for being messy, smelly, and potentially hazardous. If you’re new to resin printing (or just worried about the health risks) this guide from Angus breaks down how to create a safe, clean, and enjoyable workspace for your resin printer.
Join Our Community!
Ready to Start Printing?
Featured UniFormation Products from MindKits

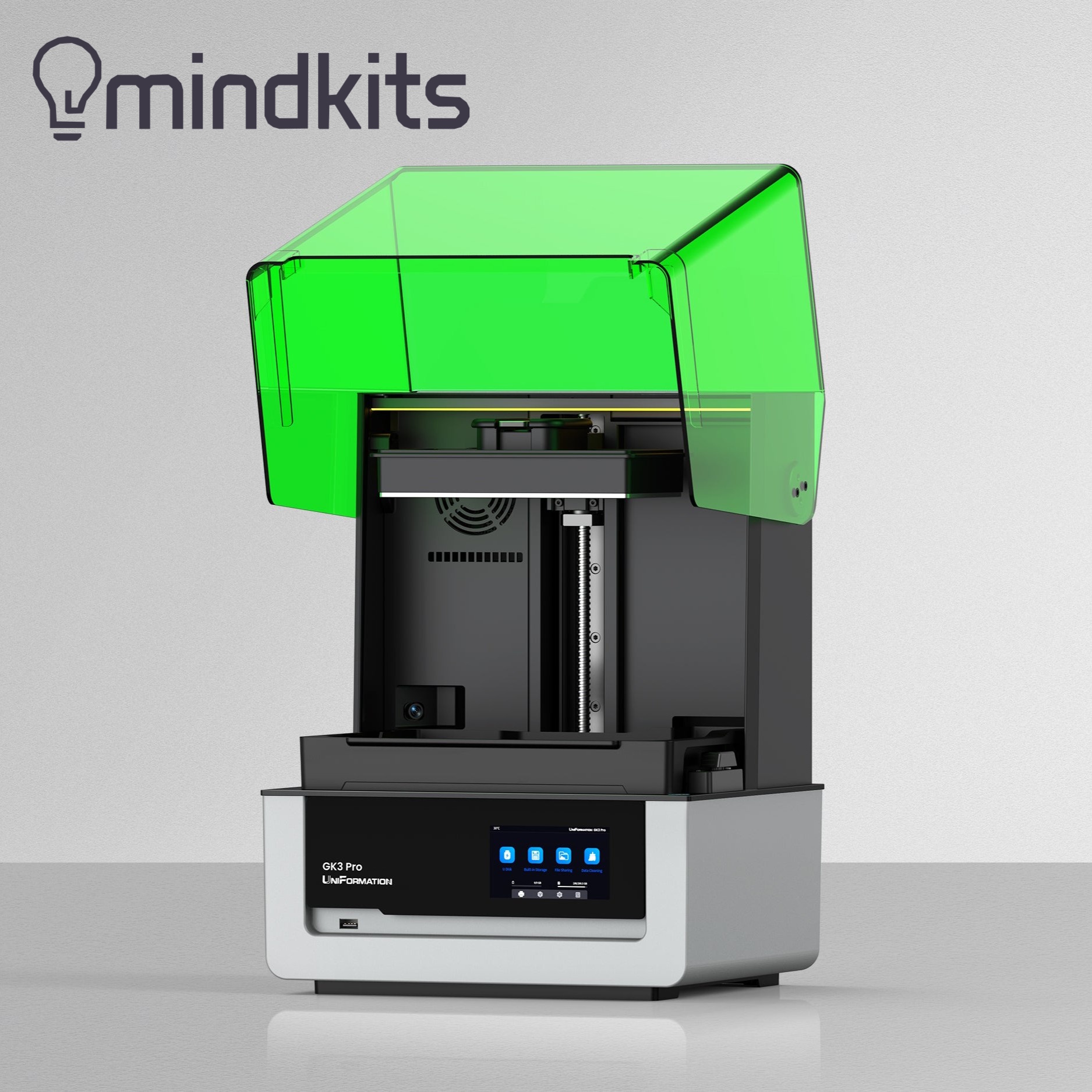

UniFormation GK3 Pro
High-precision 3D printer with 16K screen, smart resin feeding, and built-in camera.
What's so great about the UniFormation range anyway?

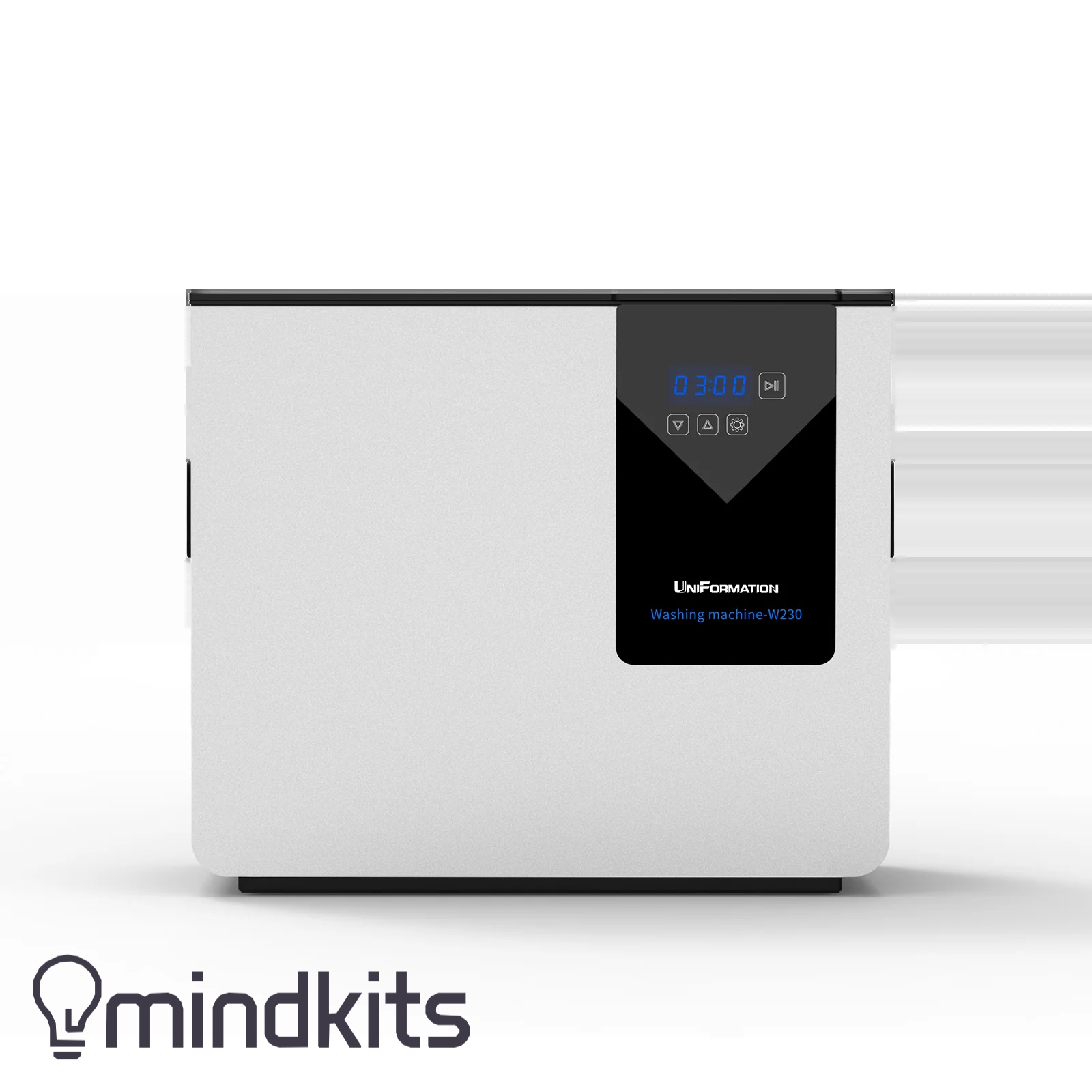

The UniFormation post-processing system is a game-changer for anyone who values a tidy, low-mess workspace. The entire post-processing workflow is contained within a completely sealed environment. As soon as your uncured prints come off the printer, you can transfer them directly into a sealed wash station within seconds. This means there are very few points of contact between you and the sticky, uncured resin—drastically reducing the risk of spills and skin exposure.

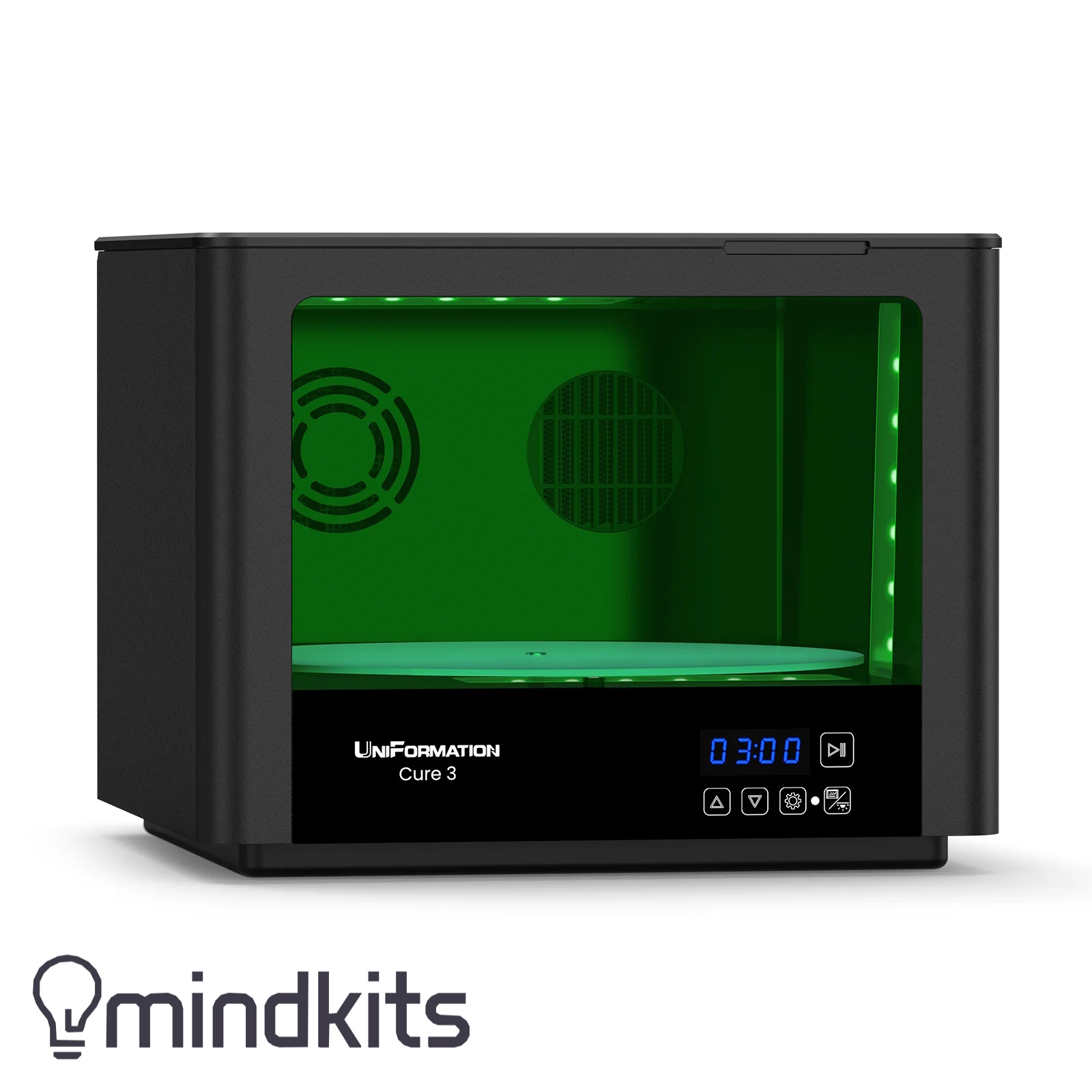

The Cure3 curing station doesn’t just cure your prints; it also handles drying in the same box. It’s equipped with a robust carbon filter that captures any offgassing during curing, as well as any vaporized, resin-contaminated solvent as your prints dry. This keeps odors and potentially harmful fumes contained, making your workspace safer and more pleasant.
The GK3’s build plate is another standout feature. It’s extra chunky, keeping goopy resin further away from your hands, and it has a trough around the edge to catch drips before they hit your hands or your work surface. This thoughtful design means less mess and less cleanup.
Why Worry About Resin Printing Fumes?
Resin printing involves two main hazards:
- Volatile Organic Compounds (VOCs): These are microscopic particles and gases released during printing and post-processing.
- Solvents: Commonly used for cleaning prints (like isopropyl alcohol or methylated spirits), these can become contaminated and hazardous, especially when aerosolized.
Just because you can’t smell these fumes doesn’t mean they aren’t present or dangerous. Standard air purifiers aren’t sufficient to filter out the VOCs produced by resin printers. Activated carbon filters help, but would need to be replaced constantly to be effective.
Building a Safe Resin Printing Workspace
The solution is simple: vent the fumes outside. Here’s how you can set up a safe enclosure for less than $150 NZD:
- Propagation Tent: These tents, typically used for indoor gardening, are designed to contain smells and can be purchased for under $100. They’re perfect for enclosing your resin printer and keeping fumes contained.
- Silicone Mat: Place a silicone mat (often sold as a dog feeding mat for around $20) inside the tent to catch spills and make cleanup easy. Resin doesn’t stick to silicone, so any spills or drips wipe off cleanly and effortlessly. This simple addition makes cleaning up after a print session quick and stress-free.
- Quiet Fan: Use a quiet 140mm computer-style fan to draw air out of the tent. Attach it to the tent with a 3D-printed adapter, and connect it to a 100mm duct that vents outside—through a window or former cat door, for example.
This setup is not only affordable but also renter-friendly and easily reversible. The main goal is to create a sealed box that vents fumes outdoors, and there are countless ways to adapt this solution to your space.
Dealing With Resin Waste
Safe printing isn’t just about fumes—it’s also about responsible waste management:
- Solid Waste: Gloves, supports, and paper towels contaminated with resin should be cured (exposed to sunlight or UV light) before disposal. Use a sealed container (like a diaper bin or a silicone-gasketed box) to store waste until you’re ready to cure and dispose of it.
- Liquid Waste: Contaminated water or IPA from cleaning prints should not be poured down the drain. Collect it in a large container and take it to your local chemical waste facility for proper disposal. Many facilities will accept this waste, sometimes for a small fee.
Final Thoughts: Safety Makes Printing Fun
Setting up a safe resin printing environment doesn’t have to be expensive or complicated. With a little creativity, you can build an enclosure that protects your health, keeps your workspace clean, and makes resin printing a pleasure rather than a chore.
“If you take these steps to just make your setup a little bit safer and a little bit cleaner, you’ll not only have a good time resin printing—I’m pretty sure you’re going to enjoy it more than FDM because when you have a good workflow going, resin is so easy to work with.”
Stay safe, print smart, and enjoy the world of resin 3D printing!
